CARBURETOR & MANIFOLD KIT,750,SBC VORTEC,HOLLEY CLASSIC,STREET WARRIOR

Brand New Holley Classic Carburetor & Small Block Chevy Vortec Manifold Combo, 750 CFM, Electric Choke, Gasoline, Vacuum Secondaries (Part #VK060088).

We have combined the 0-80508S carburetor and intake manifold into a kit form that includes all of the gaskets, bolts, and an air cleaner for a complete installation. Perfect replacement carburetor when your original style is no longer available. Replaces Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.

NOTE: This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

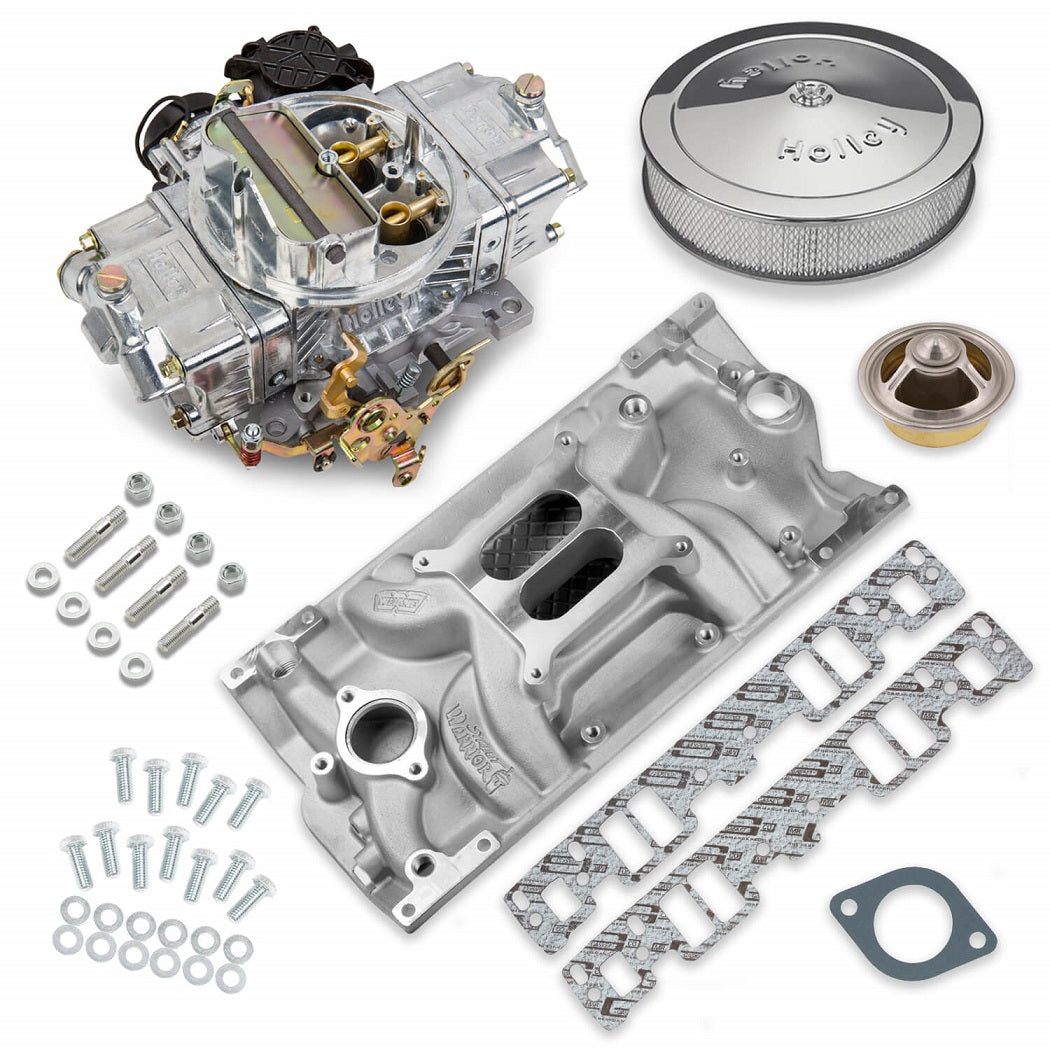

Kit Includes:

• Holley Classic Carburetor (Part #0-80508S)
• Mr. Gasket High Performance / High Flow Thermostat - 180 Degrees (Part #4364)
• 14" Chrome Round Air Cleaner (Part #120-102)
• Mr. Gasket Carburetor Studs (Part #59)
• Mr. Gasket Intake Manifold Bolt Set (Part #955G)
• Weiand Street Warrior Intake Manifold - Chevy Small Block V8 (Part #8121)
• Mr. Gasket Ultra-Seal Intake Manifold Gaskets (Part #136G)
• Mr. Gasket Thermostat Gasket (Part #740C)


Features:

• Performance upgrade for stock to mildly modified V-8 engines

• Calibrated for excellent street performance right out of the box

• Factory preset electric choke for easy startups

• Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.

• Dual feed fuel inlet for easy installation

• Vibratory polished aluminum for good looks and long lasting shine

• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

• Includes new rear bowl fuel inlet to allow for dual feed or custom

• Adjustable needle & seats to accommodate varying fuel pressures

• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

Specs:

• Application: Small Block Chevy Vortec
• Barrels: 4
• Booster: Straight
• Brand: Holley
• Carburetor Use: Street
• CFM: 750
• Choke: Electric
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Single
• Material: Aluminum
• Model: 4160
• Primary Main Jet: 72
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Secondaries: Vacuum
• Supercharged Applications: No
• Throttle Bore: 1.688 inch

You can view and download the assembly/instruction booklet here and here.
