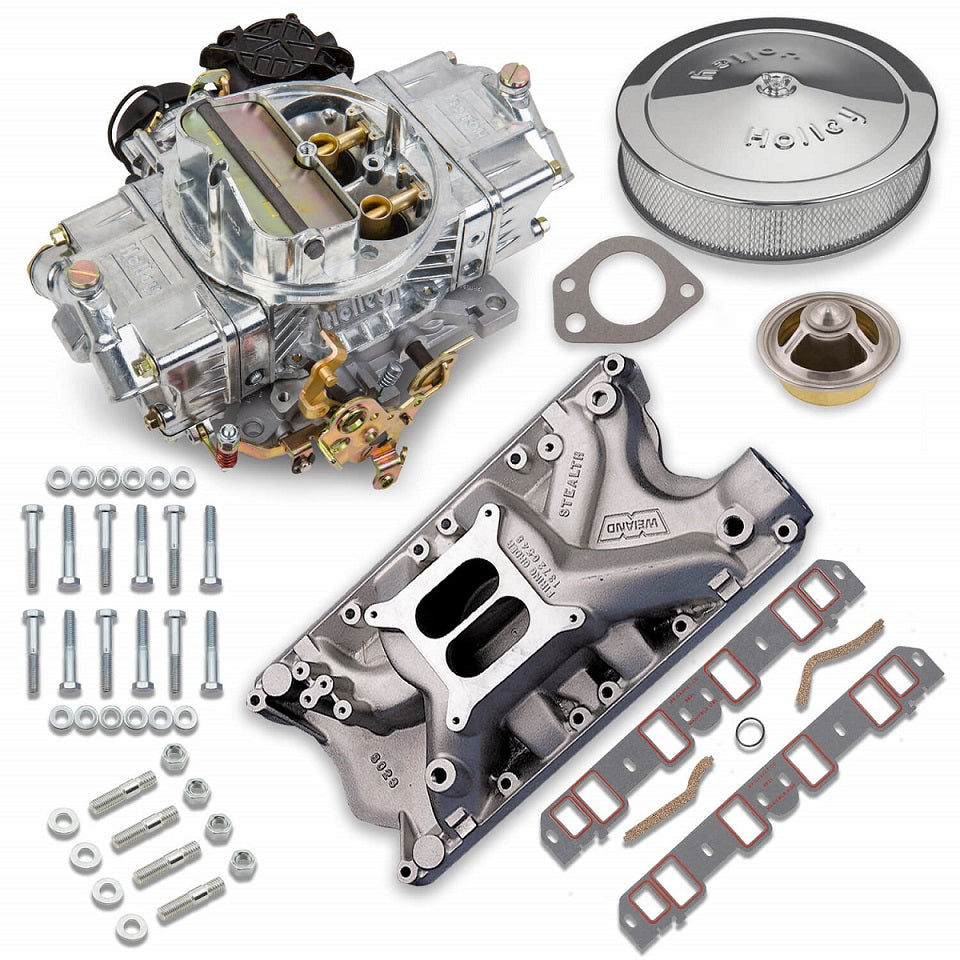

CARBURETOR & MANIFOLD KIT,570,FORD 351W,HOLLEY STREET AVENGER

Brand New Holley Street Avenger Carburetor & Ford 351W Manifold Combo, 570 CFM, Electric Choke, Gasoline, Vacuum Secondaries (Part #VK060069).

We have combined the Street Avenger carburetor and intake manifold into a kit form that includes all of the gaskets, bolts, and an air cleaner for a complete installation. Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

NOTE: This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Kit Includes:

• Mr. Gasket High Performance / High Flow Thermostat - 180 Degrees (Part #4364)
• 14" Chrome Round Air Cleaner (Part #120-102)
• Mr. Gasket Carburetor Studs (Part #59)
• Mr. Gasket Intake Manifold Bolt Set (Part #958G)
• Holley Street Avenger Carburetor (Part #0-80570)
• Weiand Stealth Intake - Ford Small Block V8 (Part #8023WND)
• Mr. Gasket Ultra-Seal Intake Manifold Gaskets (Part #5831)
• Mr. Gasket Thermostat Gasket (Part #746C)

Features:

• Vibratory polished for good looks

• Optimized street calibration that works-out-of-the-box

• Factory preset electric choke for easy startups

• Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)

• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

• Fuel line kit included so there are no unnecessary trips back to the parts store

• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specs:

• Application: Ford 351W
• Barrels: 4
• Booster: Straight
• Brand: Holley
• Carburetor Use: Street
• CFM: 570
• Choke: Electric
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Dual
• Material: Aluminum
• Model: 4150
• Primary Main Jet: 54
• Primary Power Valve: 8.5
• Primary Pump Nozzle Size: 31
• Secondaries: Vacuum
• Supercharged Applications: No
• Throttle Bore: 1.562 inch

You can view and download the assembly/instruction booklet here.
