P/S KIT,PUMP,BRACKET,PULLEY,GEN3 HEMI SWAP>GM TYPE II PUMP

BRAND NEW HOLLEY POWER STEERING KIT WITH SAGINAW TYPE II PUMP, MOUNTING BRACKET & PULLEY, COMPATIBLE WITH CHRYSLER HEMI GEN III ENGINES

THE LATE-MODEL FACTORY POWER STEERING PUMP ON THE MOPAR GEN III HEMI ENGINES HAS TOO MUCH PRESSURE FOR THE STEERING BOX ON MOST OLDER MUSCLE CARS & TRUCKS. THESE SPECIAL SAGINAW TYPE II POWER STEERING PUMPS PRODUCE THE PROPER PRESSURE & PULLEY IS SIZED TO OPERATE THE PUMP AT THE PROPER SPEED WHEN USED WITH THE EXISTING DRIVE SYSTEM ON GEN III HEMI ENGINES.

NOTE: THE POWER STEERING PULLEY MUST BE INSTALLED USING AN INSTALL TOOL THAT CAN BE RENTED AT MOST AUTO PARTS STORES. INCORRECT INSTALL OF THIS PULLEY MAY DAMAGE THE POWER STEERING PUMP INTERNALS. WHEN INSTALLED, THE PULLEY SHOULD BE FLUSH W/ THE END OF THE PUMP SHAFT.

NOTE: 0.88 GPM LOW FLOW - 2.8 GPM HIGH FLOW 1200 PSI.

NOTE: MOUNTING BRACKET BOLTS ONTO THE ENGINE W/ 3 TAPPED HOLES ON THE FRONT OF THE LEFT SIDE CYLINDER HEAD (SOME VEHICLES CAME FROM THE FACTORY WITH ELECTRIC POWER STEERING AND MAY NOT HAVE THE 3 TAPPED HOLES IN THE FRONT OF THE CYLINDER HEAD).

FEATURES:

• LOW PRESSURE POWER STEERING PUMP KIT - USE W/ FACTORY LOW PRESSURE STEERING BOXES IN MUSCLE CARS & TRUCKS WITH GEN III HEMI ENGINE
• PREVENTS DAMAGE TO STEERING BOX ON OLDER VEHICLES (DUE TO EXCESSIVE PRESSURE)

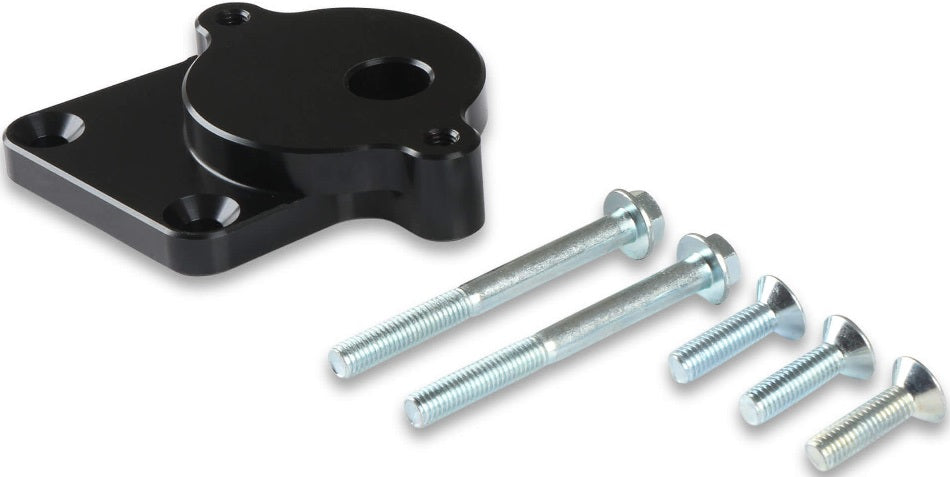

• BILLET ALUMINUM MOUNT W/ BLACK ANODIZED FINISH - BOLTS TO EXISTING TAPPED HOLES ON LEFT SIDE CYLINDER HEAD OF GEN III HEMI ENGINES

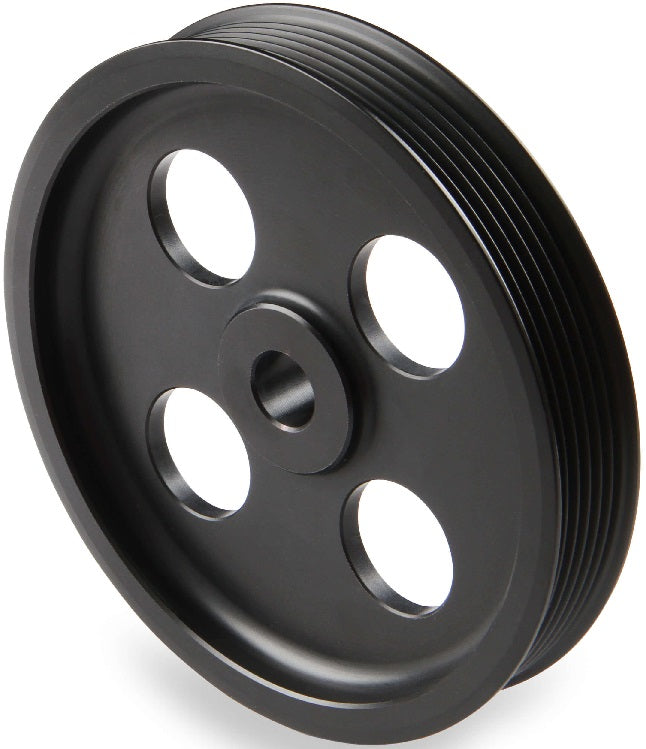

• 6-RIB BILLET ALUMINUM PULLEY WITH BLACK ANODIZED FINISH

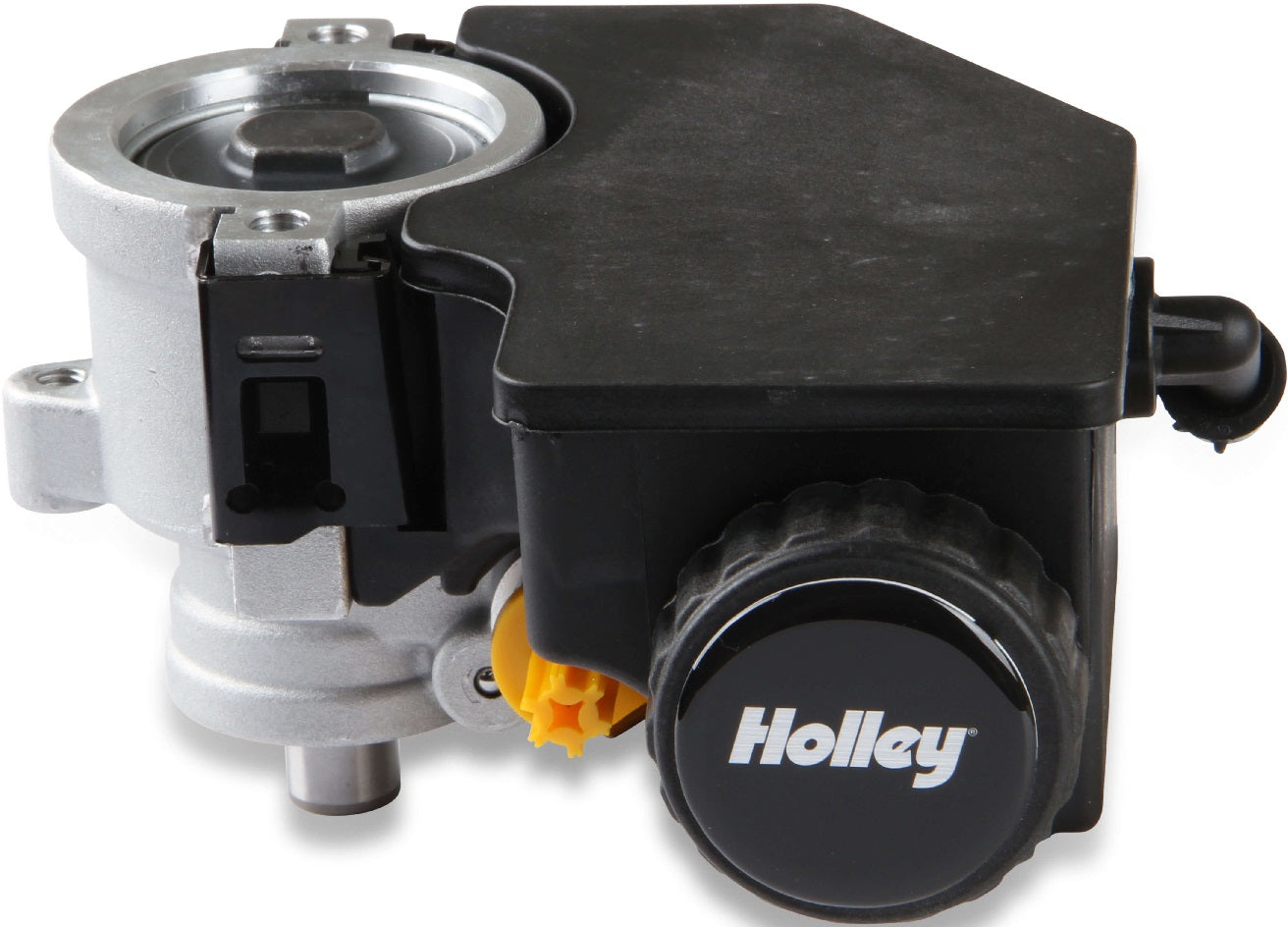

• POWER STEERING PUMP ASSEMBLY INCLUDES PLASTIC RESERVOIR

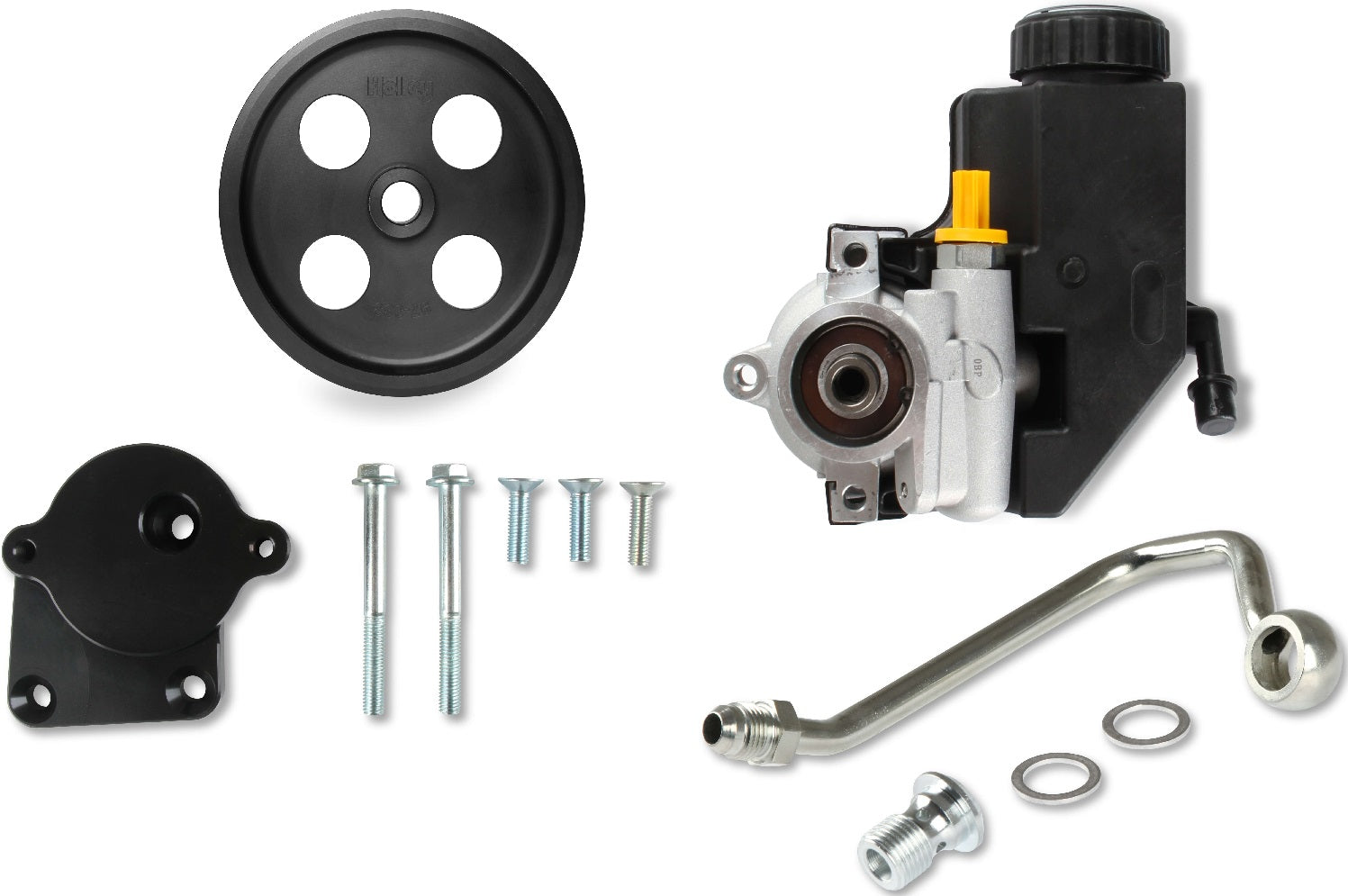

• INCLUDES POWER STEERING PUMP, RESERVOIR, MOUNTING BRACKET, HARDLINE ADAPTER & PULLEY
• WORKS WITH "CAR STYLE" & "TRUCK STYLE" ACCESSORY DRIVE SYSTEMS ON GEN III HEMI ENGINES (5.7L, 6.1L & 6.4L)
• IDEAL FOR GEN III HEMI ENGINE SWAPS IN MUSCLE CARS & TRUCKS

SPECS:

• ENGINE: CHRYSLER HEMI GEN III
• FINISH: CAST
• MATERIAL: ALUMINUM
• PRODUCT TYPE: ACCESSORY DRIVE KITS
