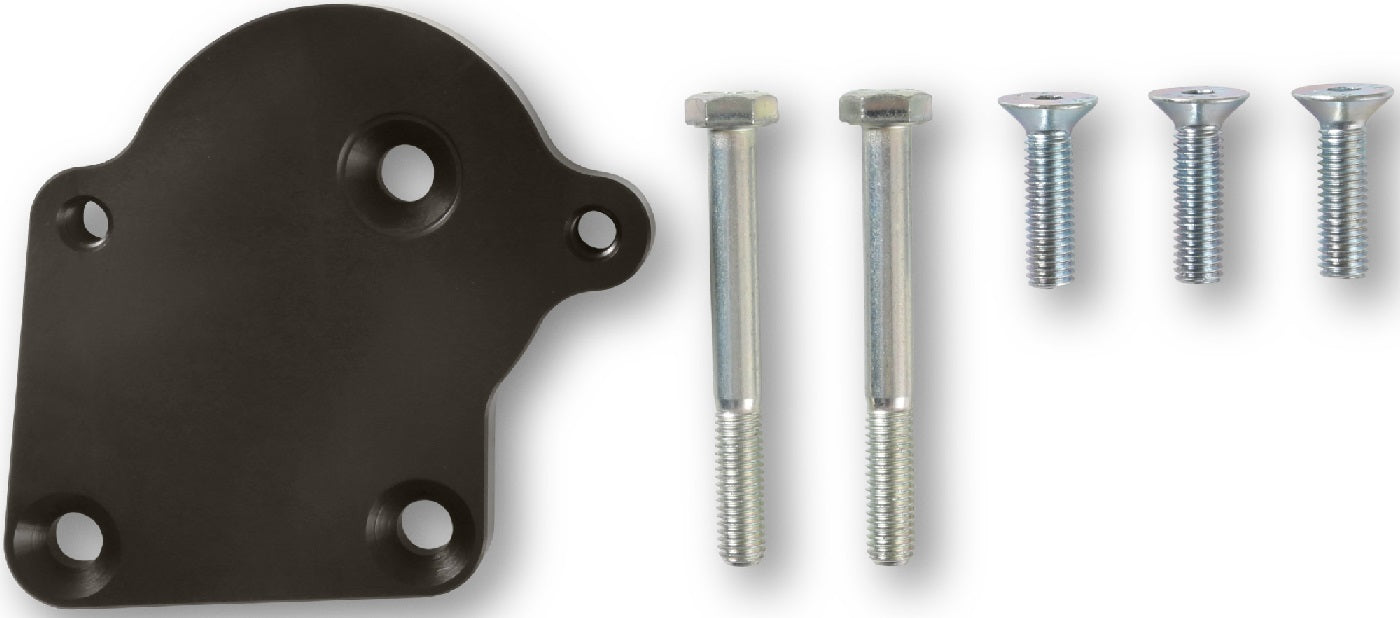

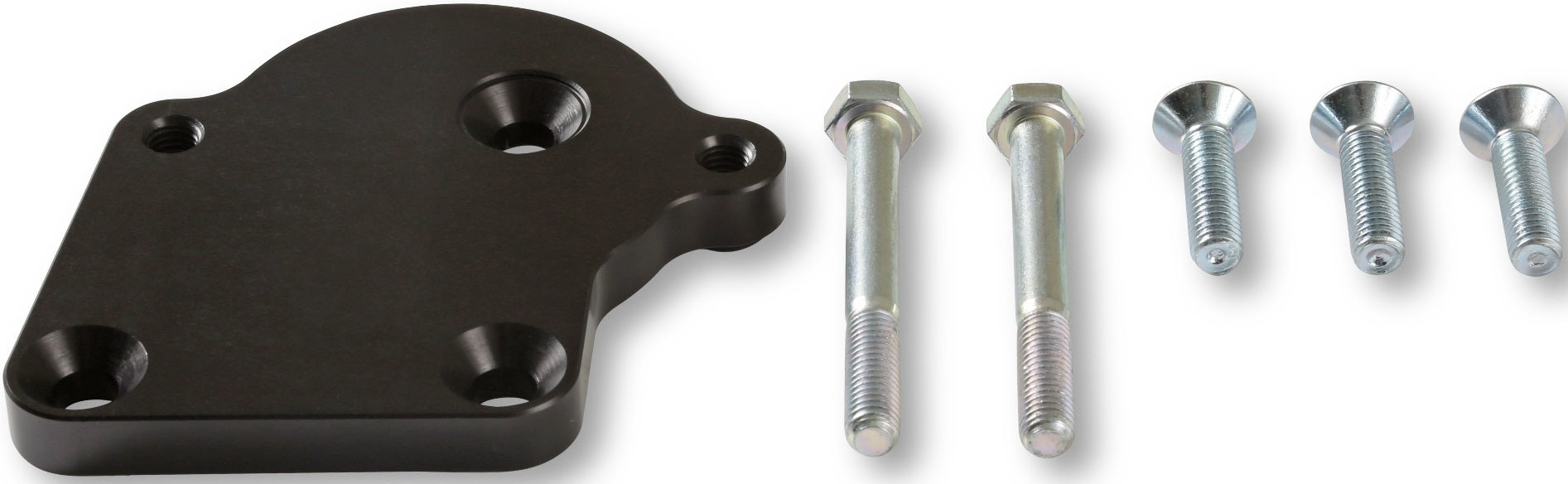

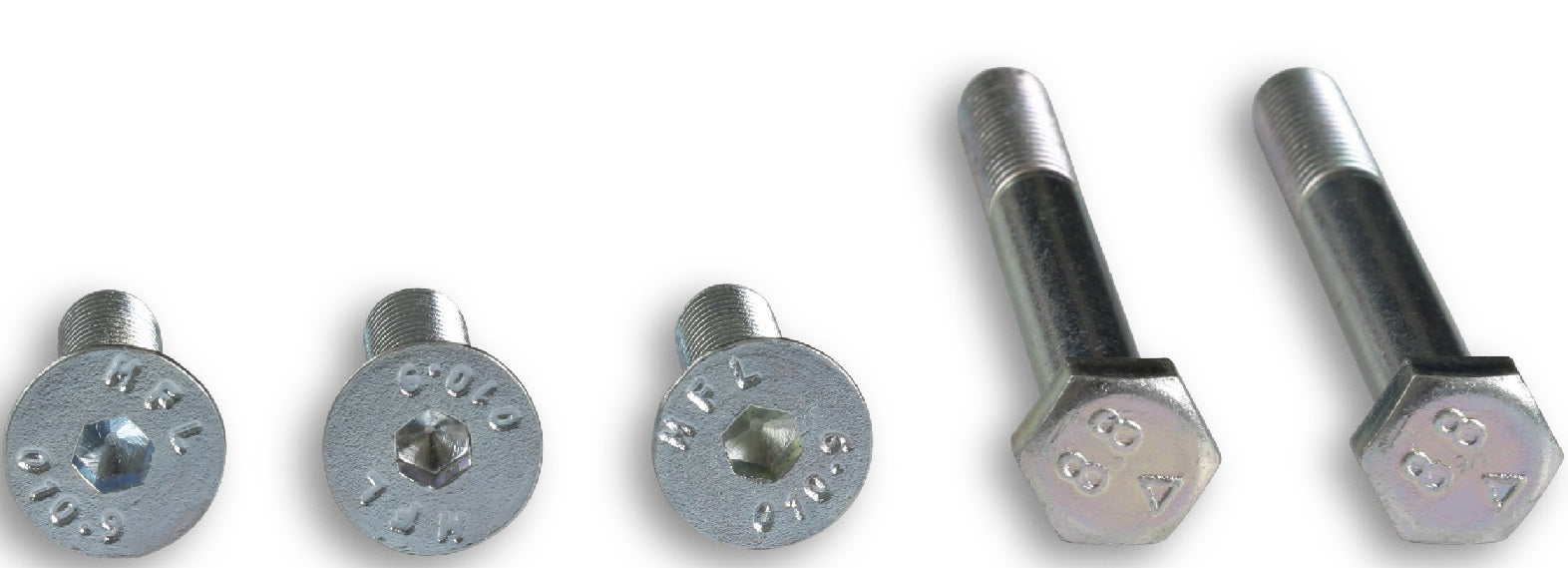

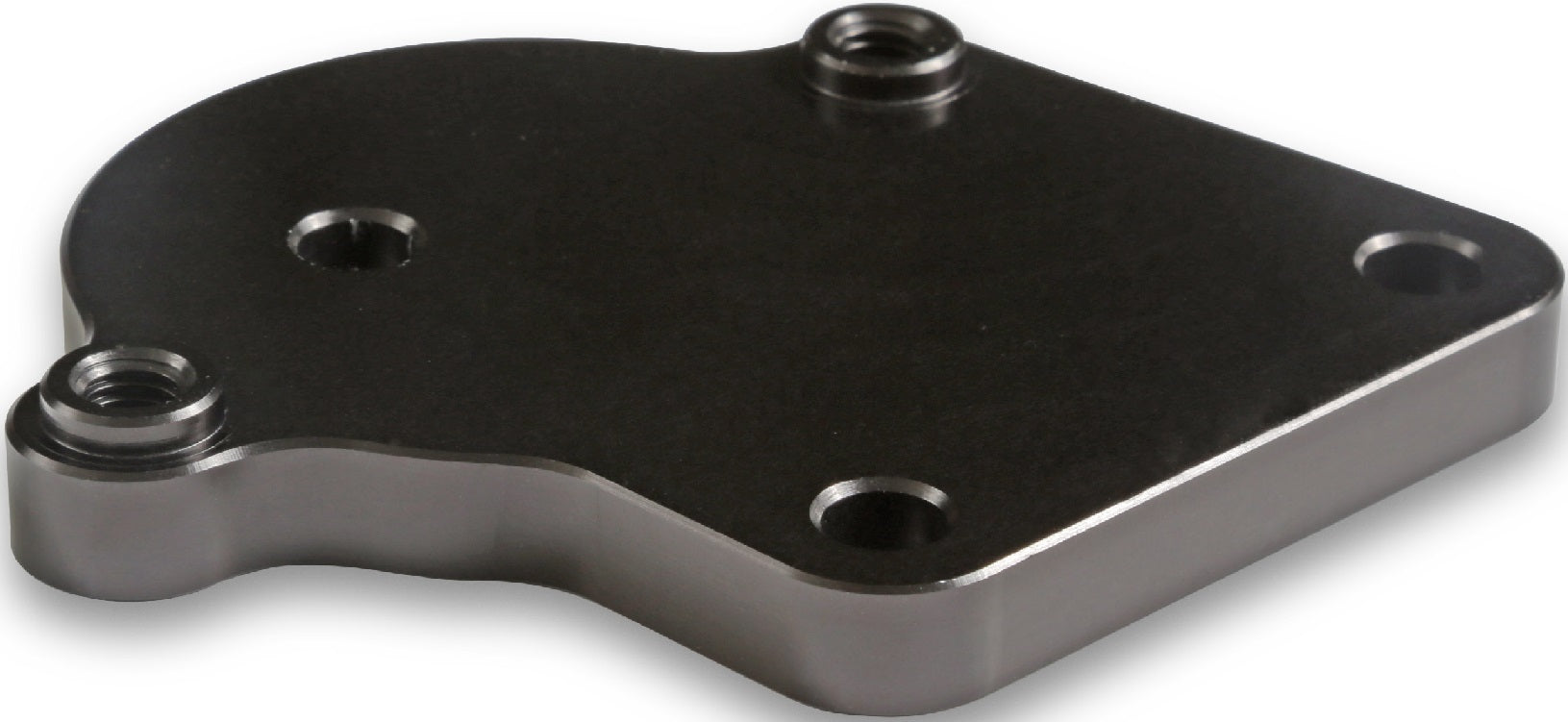

POWER STEERING BRACKET KIT,03-13 GEN III HEMI>GM TYPE II PUMP

BRAND NEW HOLLEY STEERING PUMP MOUNTING PLATE, BLACK FINISH, COMPATIBLE WITH CHRYSLER HEMI GEN III ENGINES

THE LATE-MODEL FACTORY POWER STEERING PUMP ON THE MOPAR GEN III HEMI ENGINES HAS TOO MUCH PRESSURE FOR THE STEERING BOX ON MOST OLDER MUSCLE CARS & TRUCKS. THIS MOUNTING PLATE IS DESIGNED TO MOUNT POWER STEERING PUMP 198-104 ON GEN III HEMI ENGINES.

THIS SPECIAL SAGINAW TYPE II POWER STEERING PUMP PRODUCES THE PROPER PRESSURE & WORKS WITH PULLEY 97-383 TO OPERATE THE PUMP AT THE PROPER SPEED WHEN USED WITH THE EXISTING DRIVE SYSTEM ON GEN III HEMI ENGINES. THE COMPLETE KIT (PART #VK090244) INCLUDES THE POWER STEERING PUMP WITH RESERVOIR, MOUNTING PLATE, HARDLINE ADAPTER, AND PULLEY.

NOTE: MOUNTING BRACKET BOLTS ONTO THE ENGINE WITH 3 TAPPED HOLES ON THE FRONT OF THE LEFT SIDE CYLINDER HEAD (SOME VEHICLES CAME FROM THE FACTORY WITH ELECTRIC POWER STEERING AND MAY NOT HAVE THE 3 TAPPED HOLES IN THE FRONT OF THE CYLINDER HEAD).

NOTE: COMPATIBLE WITH 2003-2008 5.7L & 2005-2010 6.1L & SOME 2009-2013 5.7L & 6.4L ENGINES WITH 4.34" DAMPER PULLEY SPACING.

NOTE: COMPATIBLE WITH "CAR STYLE" ACCESSORY DRIVE SYSTEMS.

FEATURES:

• PREVENTS DAMAGE TO STEERING BOX ON OLDER VEHICLES (DUE TO EXCESSIVE PRESSURE)
• BILLET ALUMINUM MOUNT WITH BLACK ANODIZED FINISH BOLTS TO EXISTING TAPPED HOLES ON LEFT SIDE CYLINDER HEAD OF GEN III HEMI ENGINES
• COMPATIBLE WITH POWER STEERING PUMP PART #198-104 & PULLEY #97-383
• IDEAL FOR GEN III HEMI ENGINE SWAPS IN MUSCLE CARS & TRUCKS

SPECS:

• BRAND: HOLLEY
• ENGINE: CHRYSLER HEMI GEN III
• FINISH: ANODIZED BLACK
• MATERIAL: 6061 ALUMINUM
• PRODUCT TYPE: ACCESSORY BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS ACCESSORY BRACKET HERE.
