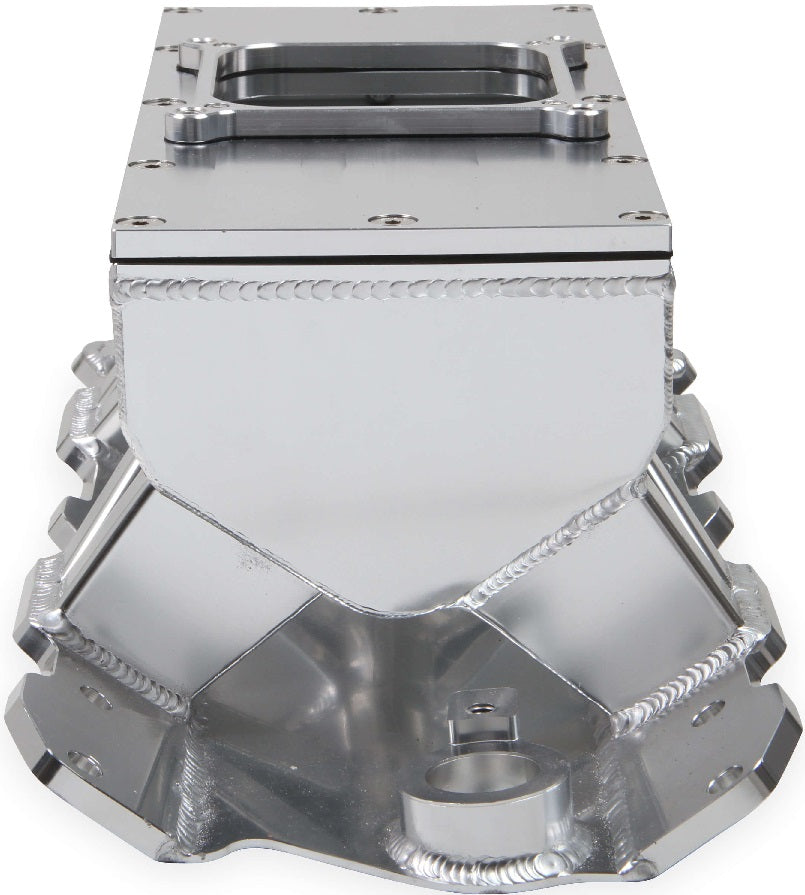

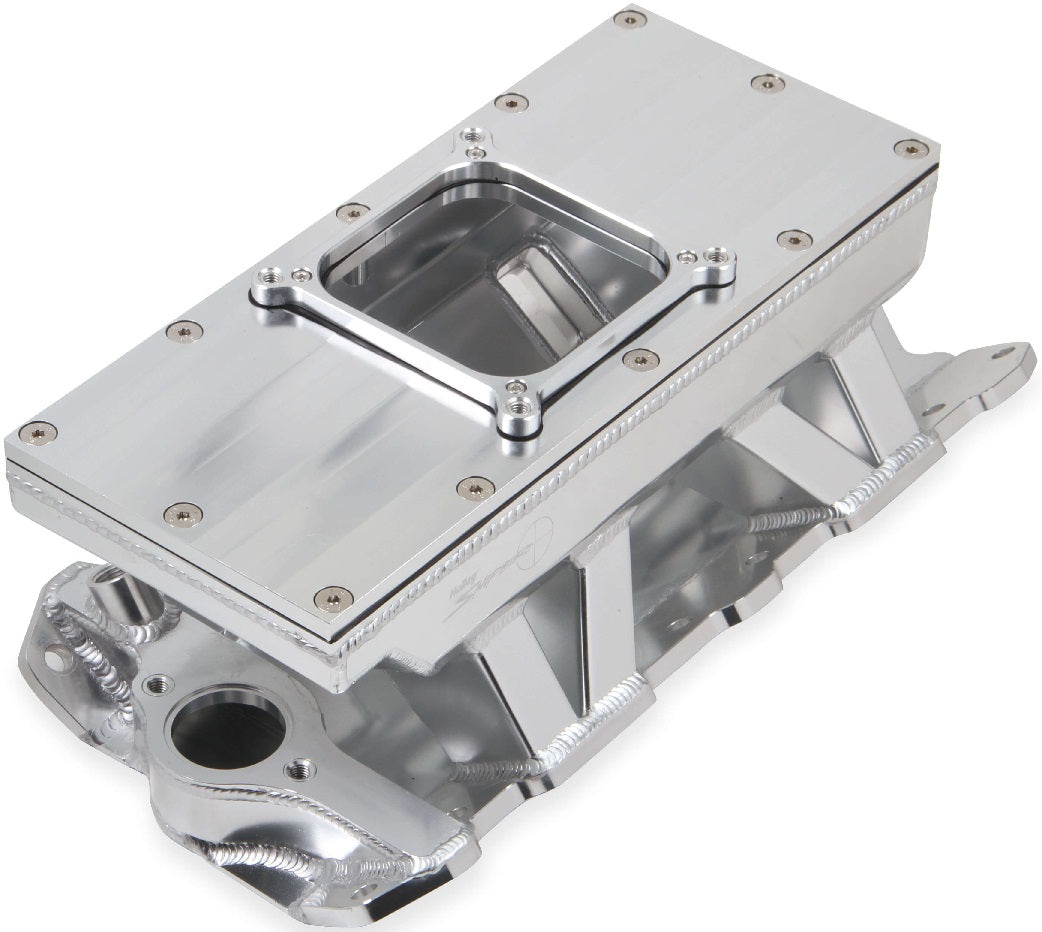

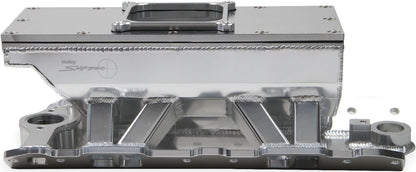

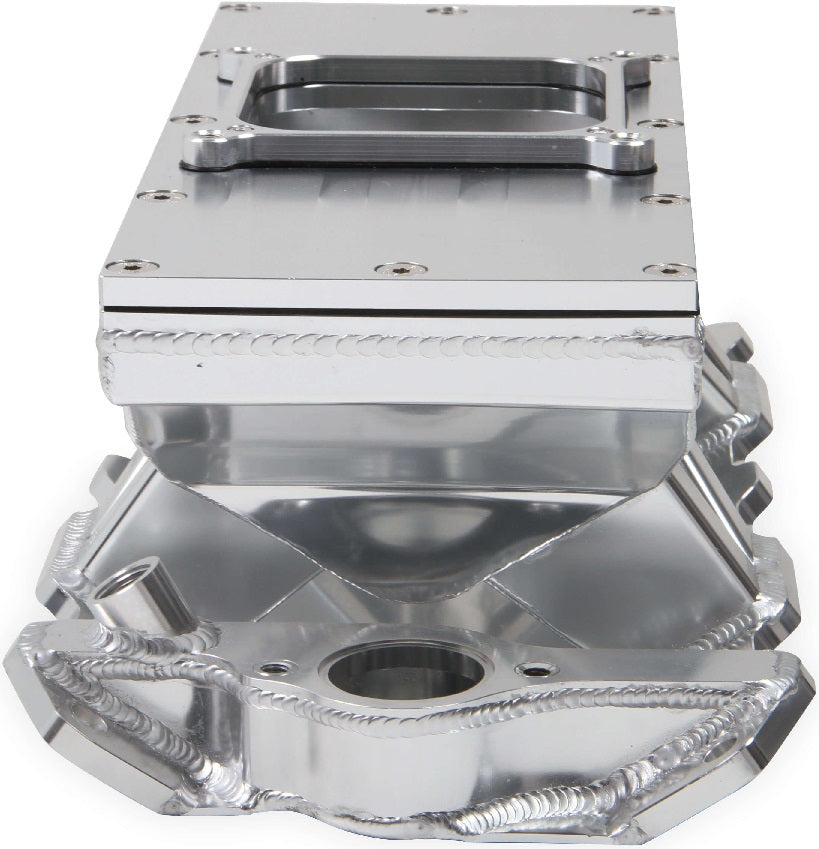

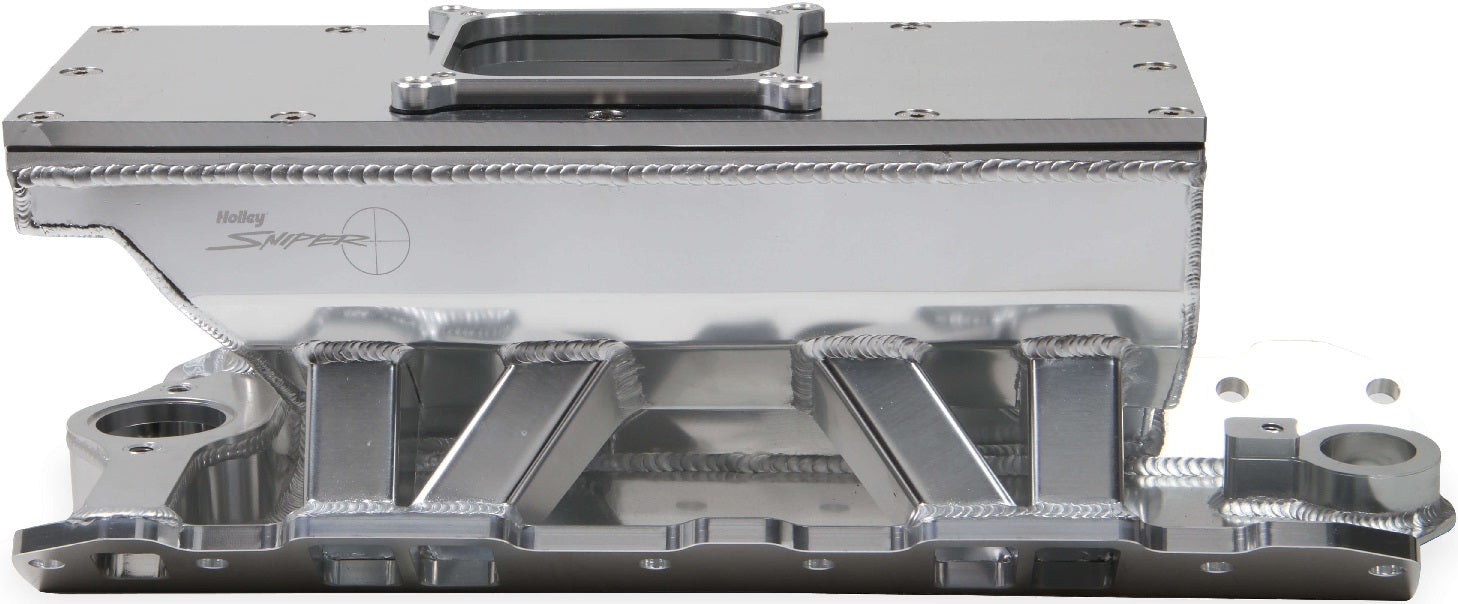

INTAKE MANIFOLD,SBC,4500,FAB,SILVER

BRAND NEW HOLLEY SNIPER SHEET METAL FABRICATED INTAKE MANIFOLD, SILVER FINISH, 1800-7000 RPM, 4500 STYLE FLANGE, COMPATIBLE WITH CHEVROLET SMALL BLOCK GEN I ENGINES

HOLLEY SNIPER CONTINUES TO PUSH THE AFTERMARKET BY INTRODUCING FABRICATED CARBURETED & EFI INTAKE MANIFOLDS FOR GM SMALL BLOCK ENGINES. THESE PERFORMANCE SHEET METAL INTAKES ARE GREAT LOOKING & AN EXCELLENT VALUE COMPARED TO OTHER FABRICATED INTAKE MANIFOLDS. EACH MANIFOLD IS READY TO BOLT-ON OUT OF THE BOX. THESE MANIFOLDS ARE PRECISION FIXTURED AND WELDED FOR A PERFECT FIT & MAX STRUCTURAL INTEGRITY.

FEATURES:

• EXPANDED DESIGNS TO ACCOMMODATE (1 X 4150) & (2 X 4150) CARBURETED APPLICATIONS
• MODULAR REMOVABLE TOP PLATES OPTIONS FOR SMALL BLOCK CHEVY NOW AVAILABLE (1 X 4150, 2 X 4150 & 1 X 4500 FLANGE OPTIONS)
• 3MM (1/8") THICK T6061 SHEET ALUMINUM CONSTRUCTION, STRONG & DURABLE EVEN UNDER HIGH HORSEPOWER & BOOSTED CONDITIONS
• 100% TIG WELDED
• EFI INTAKES INCLUDE 3/8" FUEL RAIL KITS WITH -8A FITTINGS & CROSSOVER BRAIDED LINE CAPABLE OF SUPPORTING 750+ HORSEPOWER (W/ LASER ENGRAVED SNIPER EFI LOGO)
• RUNNER LENGTHS WITH TAPERED TOP ON EFI INTAKES DESIGNED TO INCREASE VELOCITY & MORE EVENLY DISTRIBUTE AIRFLOW TO ALL 8 CYLINDERS

SPECS:

• BRAND: HOLLEY SNIPER
• CONSTRUCTION/FINISH: FABRICATED SILVER
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• FLANGE SIZE: 4500
• FRONT HEIGHT: 8.503"
• PORT SIZE: 1.90" X 1.15"
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 8.503"
• RPM POWER BAND: 1800-7000 RPM
• STYLE: CARBURETED
• VACUUM PORTS: NONE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
