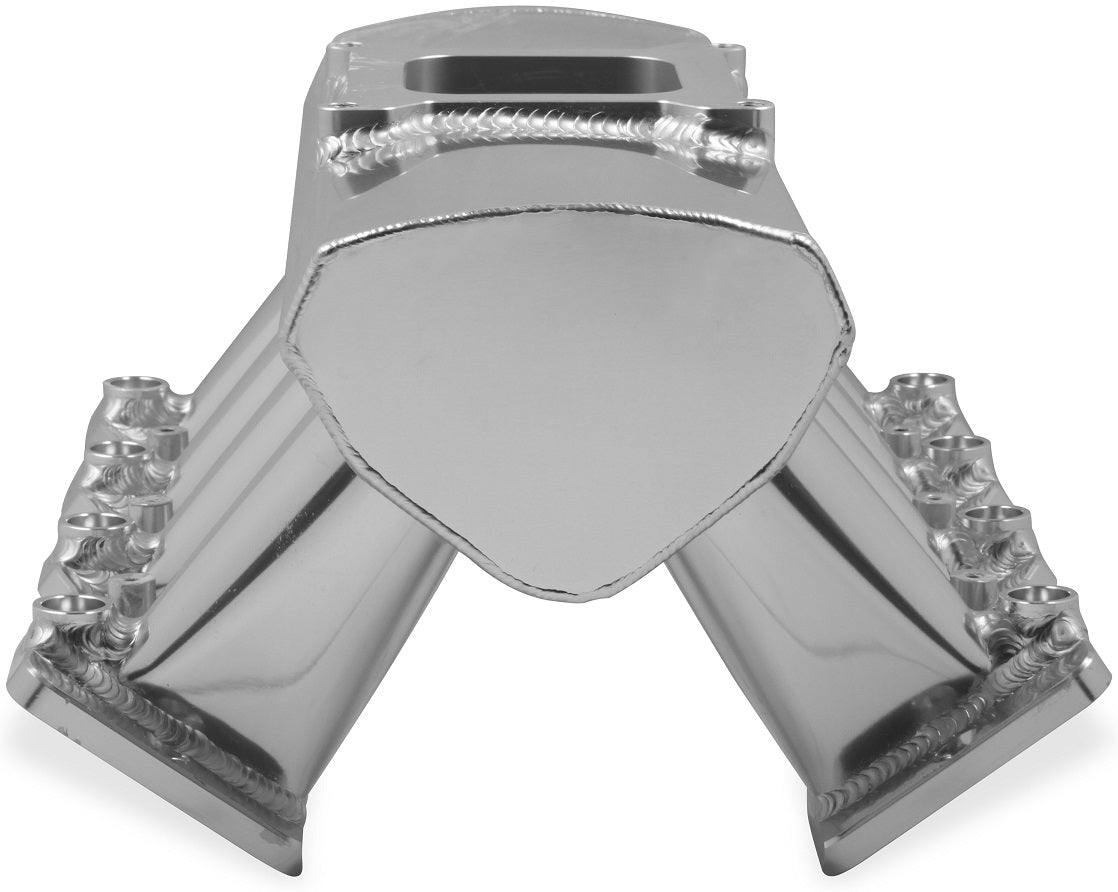

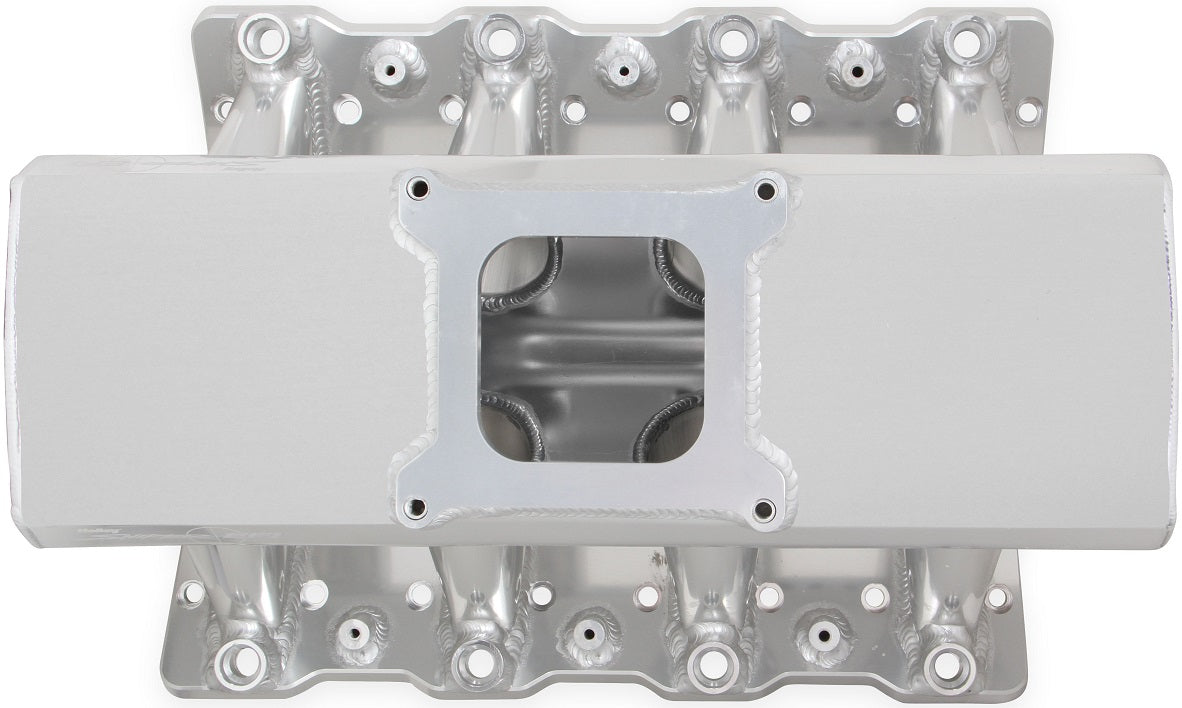

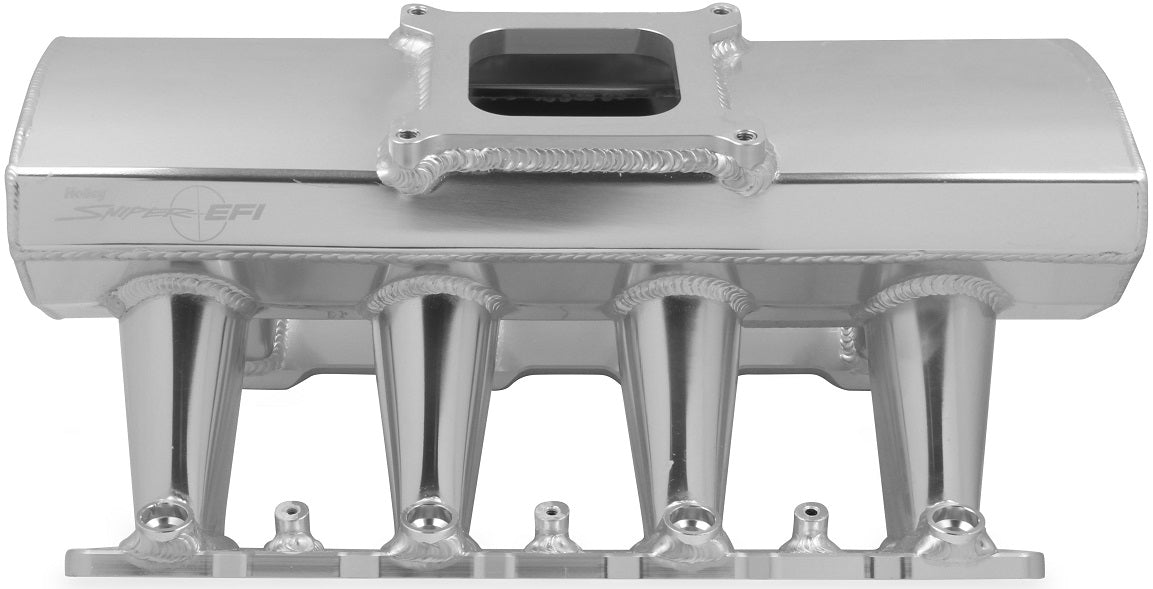

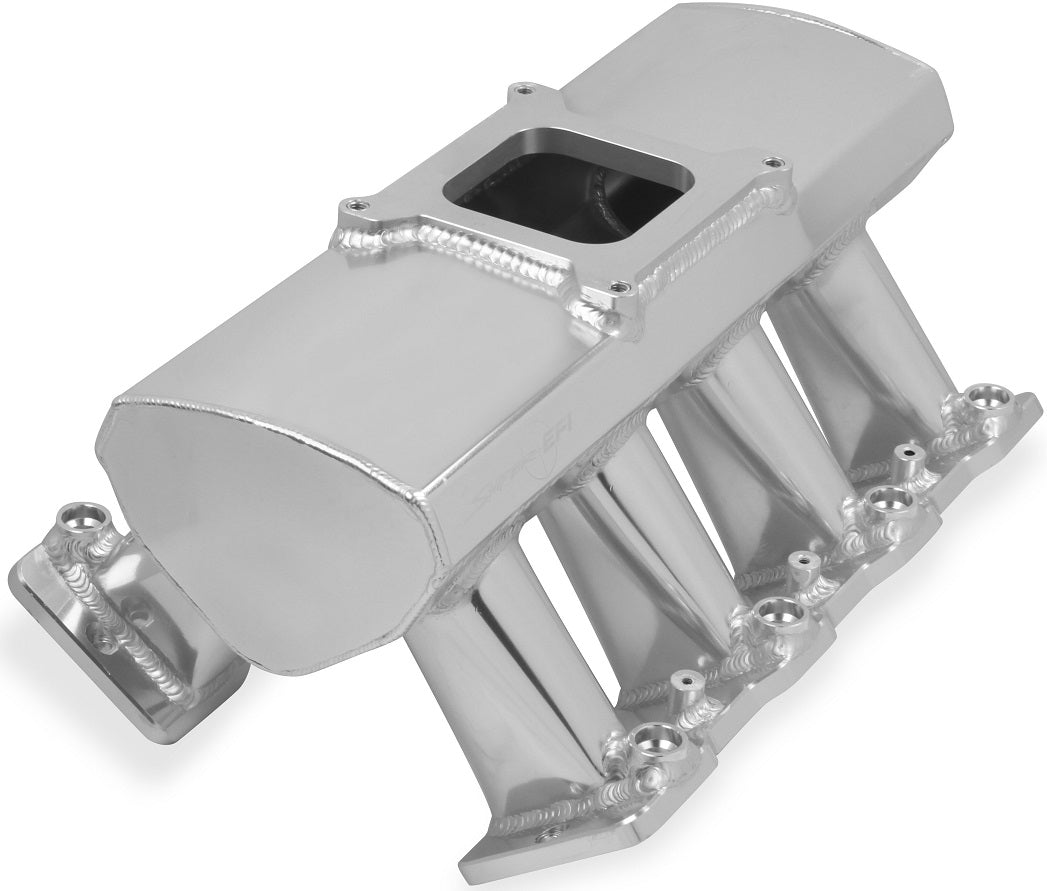

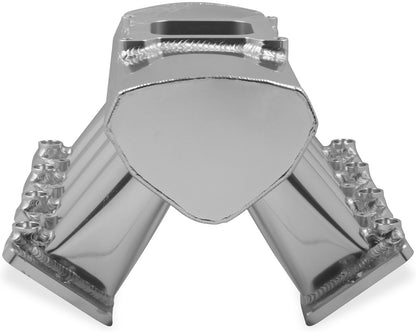

INTAKE MANIFOLD,LS1/2/6,4150,FAB,EV-1,SILVER

BRAND NEW HOLLEY SNIPER EFI SHEET METAL FABRICATED INTAKE MANIFOLD, SINGLE PLANE EFI WITH FUEL RAIL KIT, SILVER FINISH, COMPATIBLE WITH GM LS1, LS2 & LS6 ENGINES

HOLLEY IS NOW OFFERING BUDGET FRIENDLY FABRICATED INTAKE MANIFOLDS FOR LS, SMALL BLOCK CHEVY AND SMALL BLOCK FORD ENGINES IN CARBURETED & EFI VERSIONS!

FEATURES:

• SILVER FINISH CREATES HIGH IMPACT UNDER-HOOD STYLING
• 3MM (1/8") THICK T6061 SHEET ALUMINUM CONSTRUCTION FOR MAXIMUM DURABILITY
• 1 X 4150 FLANGE OPTION FOR INCREASED AIR FLOW
• 100% TIG WELDED FOR STRENGTH AND DURABILITY
• INCLUDES 3/8" FUEL RAIL KITS WITH SNIPER LOGO
• INTAKE RUNNERS WITH TAPERED TOP IS DESIGNED TO INCREASE AIR VELOCITY AND MORE EVENLY DISTRIBUTE AIRFLOW TO ALL 8 CYLINDERS IMPROVING PERFORMANCE AND THROTTLE RESPONSE
• PRODUCT INCLUDES ALL GASKETS AND HARDWARE FOR A HASSLE-FREE INSTALLATION
• ONLY ACCEPTS EV1 STYLE INJECTORS

SPECS:

• BRAND: HOLLEY SNIPER EFI
• CONSTRUCTION: FABRICATED
• ENGINE: GM LS1/LS2/LS6
• FINISH: SILVER
• FLANGE SIZE: 4150
• FRONT HEIGHT: 8.858 INCH
• INJECTOR STYLE PROVISION: EV1
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 8.858 INCH
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM
• RUNNER LENGTH: 4.921" (125MM)
• THROTTLE BORE: 4150 FLANGE
• VACUUM PORTS: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
