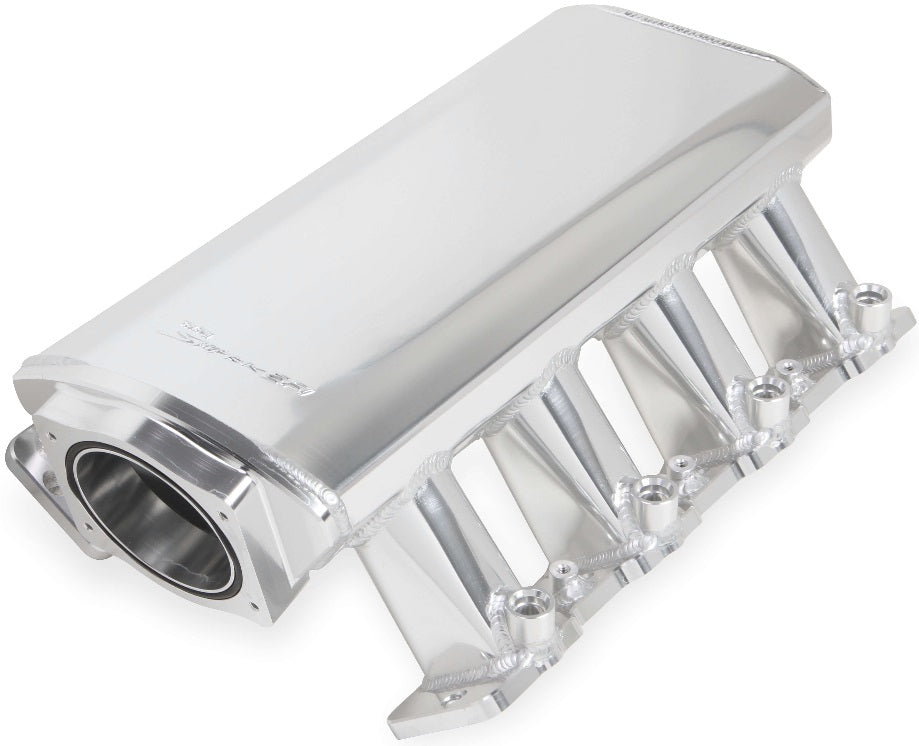

INTAKE MANIFOLD,LS1/2/6,FRONT 102MM,FAB,SILVER

BRAND NEW HOLLEY SNIPER EFI METAL FABRICATED INTAKE MANIFOLD, SILVER FINISH, 102MM THROTTLE BORE, COMPATIBLE WITH GM LS1/LS2/LS6 ENGINES

HOLLEY IS NOW OFFERING BUDGET FRIENDLY FABRICATED INTAKE MANIFOLDS FOR LS, SMALL BLOCK CHEVY & SMALL BLOCK FORD ENGINES IN CARBURETED AND EFI VERSIONS!

NOTE: THIS INTAKE IS COMPATIBLE WITH STOCK LS HEADS. THE USE OF SOME AFTERMARKET CYLINDER HEADS MAY RESULT IN PORT MISALIGNMENT.

FEATURES:

• SILVER FINISH CREATES HIGH IMPACT UNDER-HOOD STYLING
• 3MM (1/8") THICK T6061 SHEET ALUMINUM CONSTRUCTION FOR MAX DURABILITY

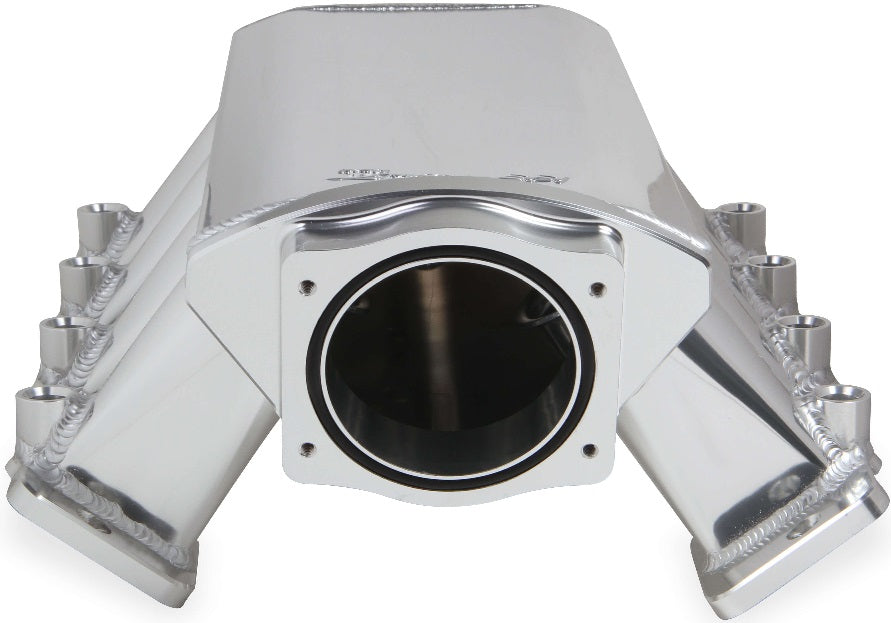

• 102MM THROTTLE BORE OPENING FOR INCREASED AIR FLOW

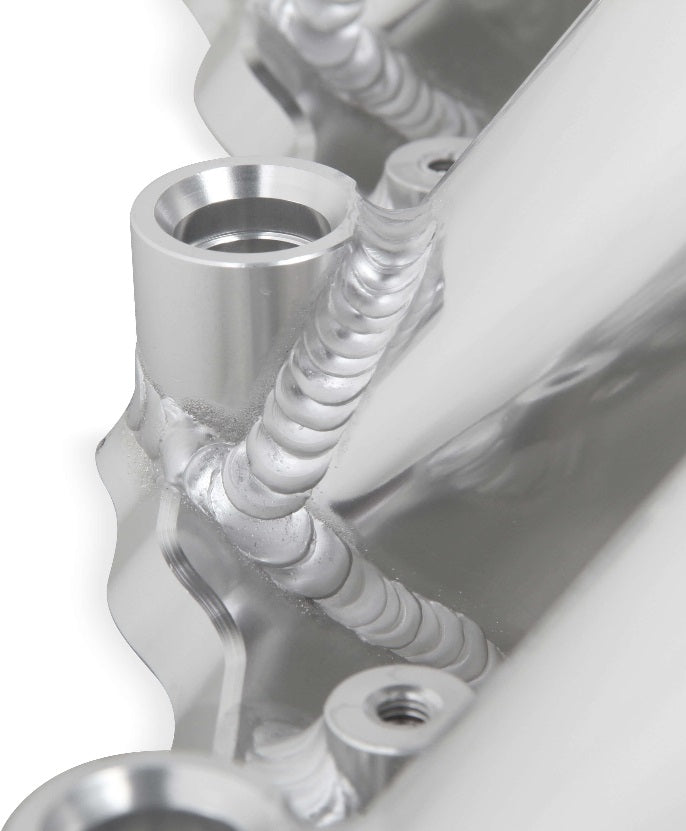

• 100% TIG WELDED FOR STRENGTH & DURABILITY
• INCLUDES 3/8" FUEL RAIL KITS (SNIPER LOGO LASER ENGRAVED)
• INTAKE RUNNERS WITH TAPERED TOP IS DESIGNED TO INCREASE AIR VELOCITY & MORE EVENLY DISTRIBUTE AIRFLOW TO ALL 8 CYLINDERS IMPROVING PERFORMANCE & THROTTLE RESPONSE
• INCLUDES ALL GASKETS AND HARDWARE FOR A HASSLE-FREE INSTALLATION
• WILL ONLY ACCEPT EV1 STYLE INJECTORS

SPECS:

• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• ENGINE: GM LS1/LS2/LS6
• FRONT HEIGHT: 8.267 INCH
• FUEL SYSTEM TYPE: EFI
• INJECTOR STYLE PROVISION: EV1
• MANIFOLD TYPE: FABRICATED
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 7.559 INCH
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM
• RUNNER LENGTH: 4.921" (125MM)
• THROTTLE BORE: 102MM
• VACUUM PORTS: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
