SNIPER EFI,HYPERSPARK,MASTER KIT,PONTIAC

SNIPER EFI,HYPERSPARK,MASTER KIT,PONTIAC

SKU:HOL 565-314K

Regular price $865.95
Regular price Sale price $865.95
View full details

BRAND NEW HOLLEY SNIPER EFI HYPERSPARK MASTER KIT, HALL EFFECT, BLACK & SILVER FINISH, COMPATIBLE WITH 1967-1979 PONTIAC FIREBIRD

OUR HYPERSPARK MASTER KITS WERE DESIGNED TO MAKE UPGRADING YOUR IGNITION ON A SNIPER EFI-EQUIPPED ENGINE SIMPLE. WHEN INSTALLED CONCURRENTLY WITH A NEW SNIPER EFI SYSTEM, THE COMBINATION CREATES THE EASIEST TO INSTALL EFI CONVERSION ON THE MARKET - ONLY 4 FLYING LEAD CONNECTIONS REQUIRED! THIS HARNESS ONLY REQUIRES ONE CONNECTION TO A SWITCHED POWER SOURCE, BATTERY POSITIVE, BATTERY NEGATIVE & FUEL PUMP POWER.

PRE-TERMINATED CONNECTORS AND A BUILT IN 40A RELAY PROVIDES POWER TO ALL COMPONENTS WITHIN THE SYSTEM. INCLUDED SNIPER EFI MAIN HARNESS REMOVES NEED TO RUN MULTIPLE WIRES TO PROVIDE SWITCHED POWER FOR EACH INDIVIDUAL COMPONENT. HELPS PREVENT WIRING CONFUSION & SPEED UP YOUR INSTALL TIME. ROUTE HARNESS & PRE-TERMINATED CONNECTORS TO YOUR HYPERSPARK COIL, DISTRIBUTOR & IGNITION BOX & PLUG THEM IN.

COMPATIBLE WITH EXISTING OR NEW SNIPER EFI INSTALLS. HARNESS RETAINS SAME FLYING LEAD WIRE COLORS AS SNIPER EFI MAIN HARNESS. NEW INSTALLATIONS WILL NOT USE THE SNIPER EFI STANDARD HARNESS OR COIL DRIVER.

NOTE: COMES WITH CAST GEAR INSTALLED - CONTACT CAMSHAFT MANUFACTURER FOR RECOMMENDED GEAR MATERIAL.

COMPATIBLE WITH:

  • PONTIAC:
    • 1959-1978 BONNEVILLE
    • 1959-1978 CATALINA
    • 1967-1970 EXECUTIVE
    • 1967-1979 FIREBIRD
    • 1973-1975 GRAND AM
    • 1975-1977 GRAND LEMANS
    • 1962-1977 GRAND PRIX
    • 1971-1978 GRAND SAFARI
    • 1971-1975 GRANDVILLE
    • 1964-1973 GTO
    • 1963-1977 LEMANS
    • 1970 PARISIENNE
    • 1959-1966 STAR CHIEF
    • 1961-1970 TEMPEST
    • 1960-61, 1972-75 VENTURA

FEATURES:

  • PLUG & PLAY SNIPER EFI MAIN HARNESS REPLACES THE STANDARD SNIPER EFI HARNESS WITH 4 LOOSE LEADS, BATTERY POSITIVE, BATTERY GROUND, SWITCHED 12V & FUEL PUMP POWER

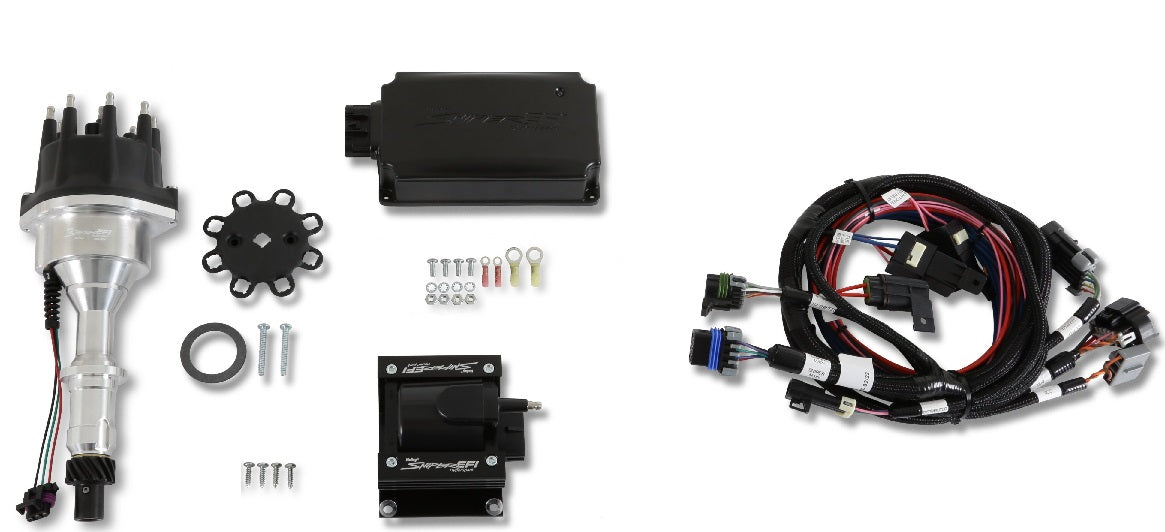

  • INCLUDES: HYPERSPARK IGNITION BOX, HYPERSPARK IGNITION COIL, HYPERSPARK DISTRIBUTOR (FOR YOUR APPLICATION) & PLUG & PLAY MAIN HARNESS

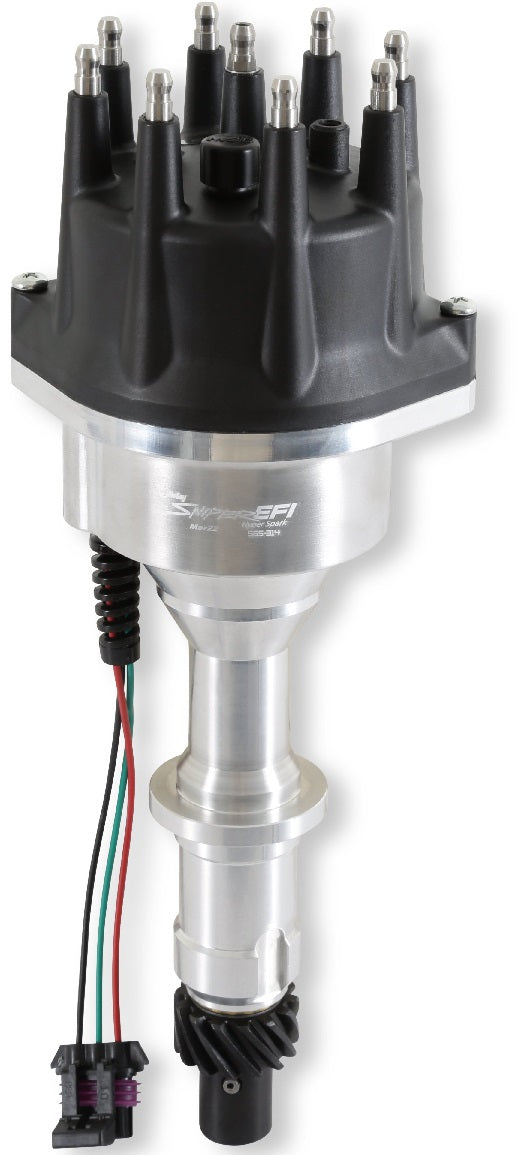

  • HYPERSPARK DISTRIBUTORS FEATURE HALL EFFECT CRANK TRIGGER SENSOR PROVIDING A NOISE-FREE RPM SIGNAL TO SNIPER ECU
  • CLEAR INSTALL CAP REMOVES CONFUSION WHILE INSTALLING DISTRIBUTOR

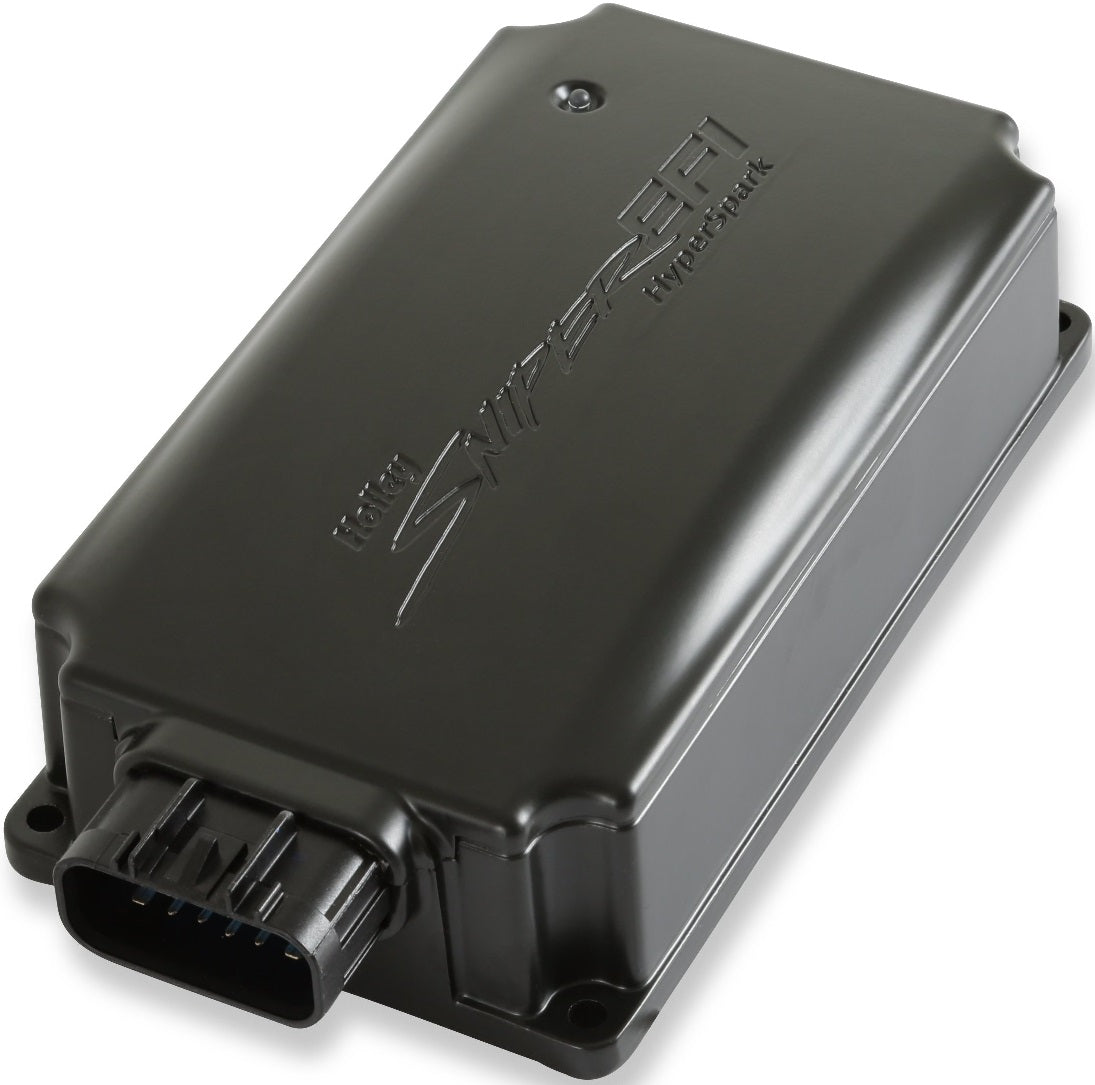

  • HYPERSPARK CD IGNITION BOX IS SEAL & POWDER COATED
  • EXTERNAL LED ON HYPERSPARK CD IGNITION BOX HELPS VERIFY 12V, CRANKING RPM & LOW BATTERY VOLTAGE
  • 135MJ OF SPARK ENERGY WHEN USED WITH HYPERSPARK IGNITION COIL ENSURES COMPLETE COMBUSTION

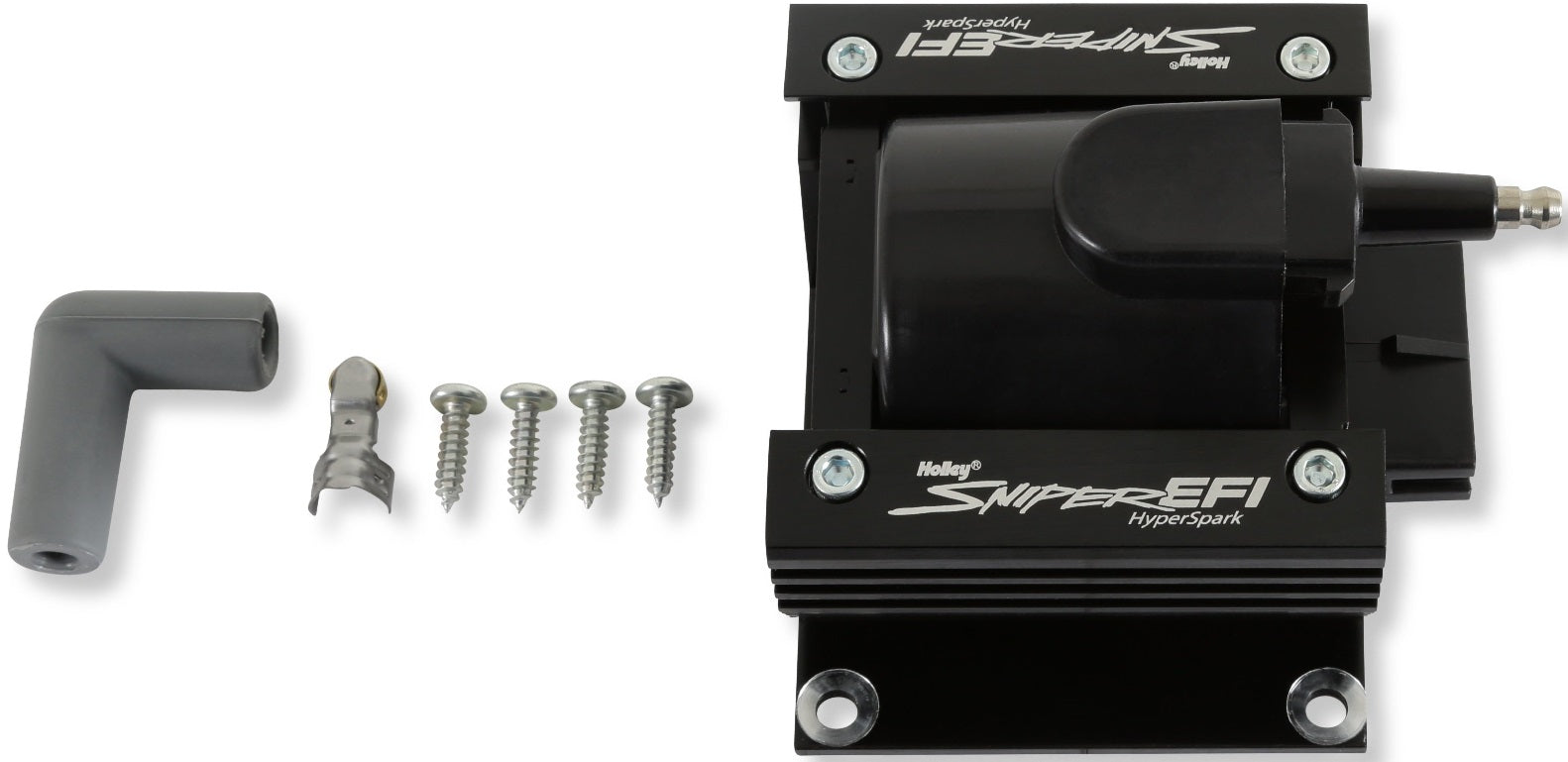

  • INTEGRATED IGNITION COIL BRACKET SIMPLIFIES MOUNTING IGNITION COIL
  • IGNITION COIL CONNECTOR REMOVES DOUBT OF LOOSE CONNECTIONS AT IGNITION COIL
  • ENABLES TIMING CONTROL ON A SNIPER EFI INSTALL

SPECS:

  • BRAND: HOLLEY SNIPER EFI
  • DISTRIBUTOR TYPE: HALL EFFECT
  • MATERIAL: BILLET ALUMINUM
  • PRODUCT TYPE: DISTRIBUTOR
