STAINLESS PRESSURE SENSOR,100,TRANSDUCER

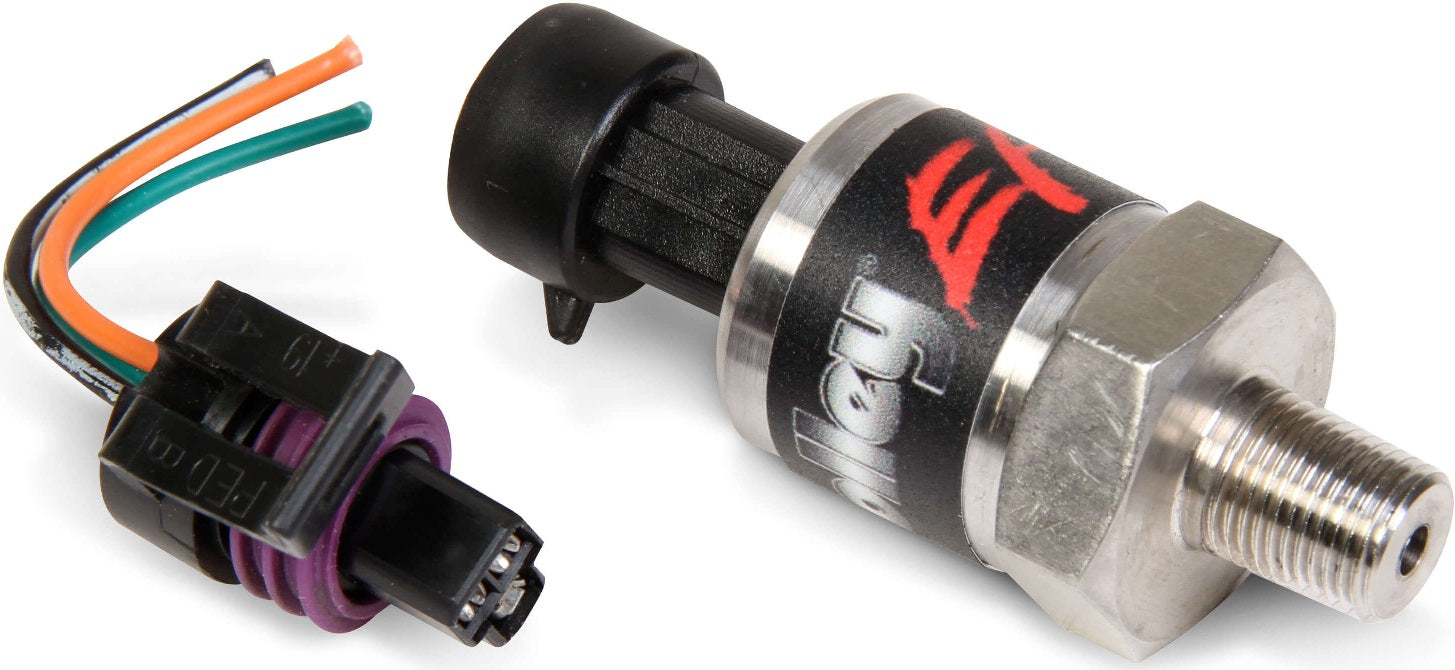

BRAND NEW HOLLEY 0-100 PSI STAINLESS STEEL PRESSURE SENSOR, COMPATIBLE WITH HOLLEY AVENGER, TERMINATOR, HP & DOMINATOR ECU FUEL & OIL PRESSURE INPUTS

PLUG & PLAY FOR HOLLEY AVENGER, TERMINATOR, HP & DOMINATOR ECU FUEL & OIL PRESSURE INPUTS.

NOTE: IT IS NOT RECOMMENDED TO DIRECTLY MOUNT A PRESSURE TRANSDUCER DIRECTLY TO THE ENGINE IT IS BEST TO REMOTE MOUNT THE TRANSDUCER. EXTREME VIBRATION CAN RESULT IN PREMATURE FAILURE.

FEATURES:

• PLUG & PLAY FOR BOTH FUEL AND OIL PRESSURE INPUTS WITH HOLLEY EFI SYSTEMS (TERMINATOR SYSTEMS MONITOR FUEL PRESSURE ONLY)
• STAINLESS STEEL CONSTRUCTION
• COMES WITH MATING CONNECTOR FOR CUSTOM CONFIGURATIONS
• LINEAR VOLTAGE OUTPUT OF 0.5-4.5 VOLTS

SPECS:

• BODY DIAMETER: .875"
• BODY LENGTH: 2.558"
• BRAND: HOLLEY EFI
• EMISSION CODE: 5
• INLET SIZE: 1/8" NPT
• LINEAR VOLTAGE OUTPUT: .5 - 4.5 VOLTS
• MATERIAL: STAINLESS STEEL
• PRESSURE RANGE: 0-100 PSI
• PRODUCT TYPE: PRESSURE SENSOR - TRANSDUCER
• REFERENCE VOLTAGE REQUIRED: 5 VOLTS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PRESSURE SENSOR HERE.
