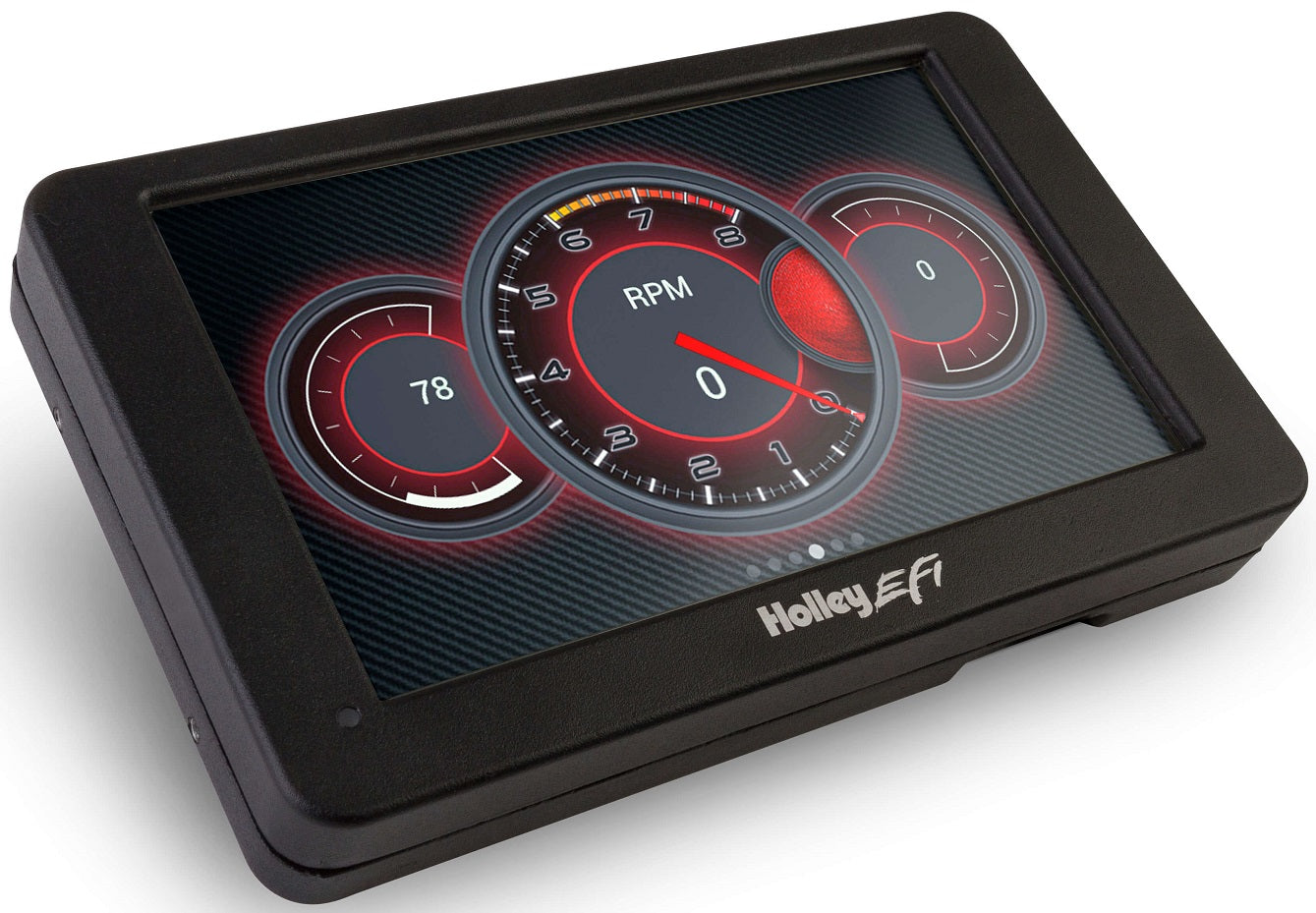

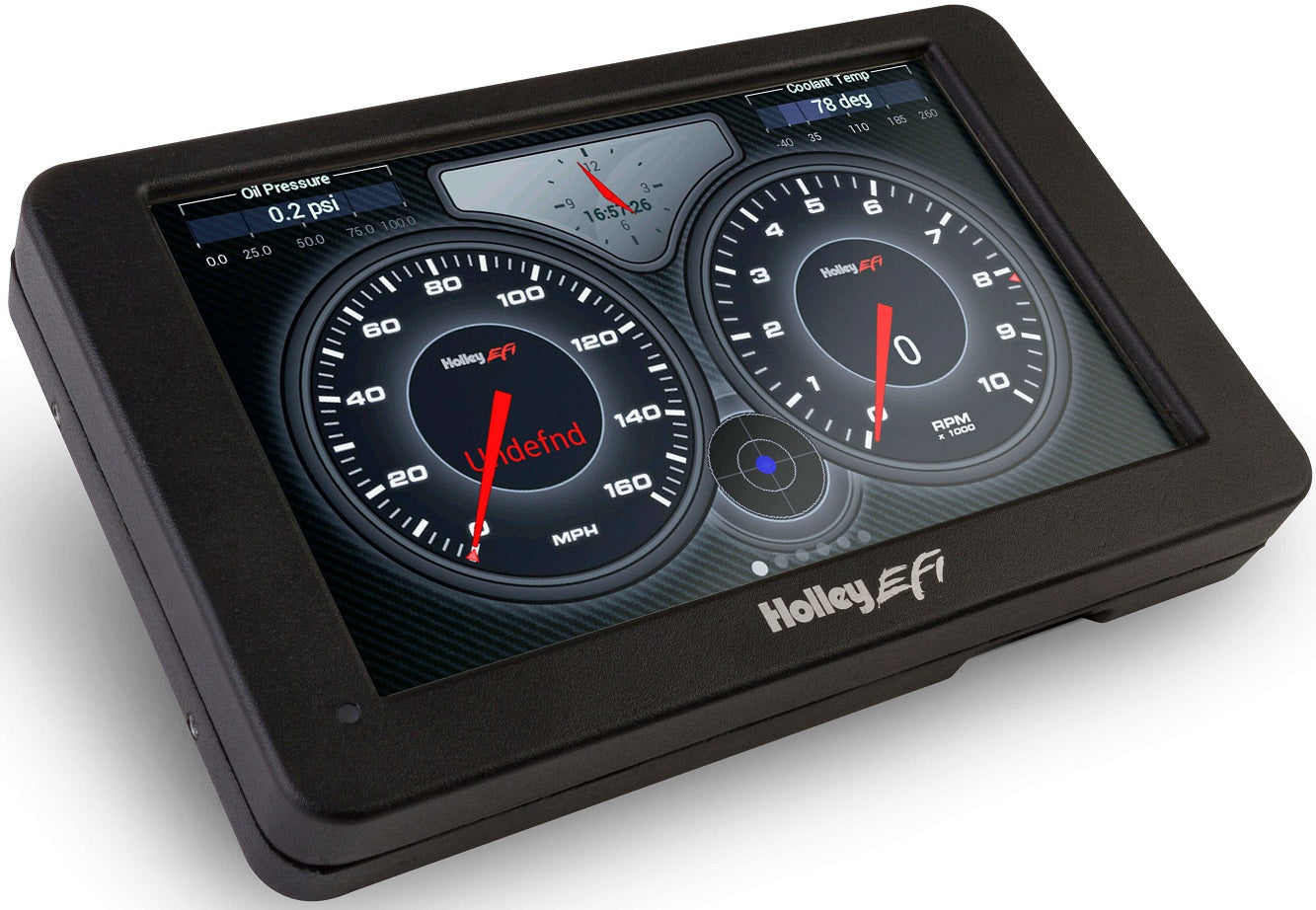

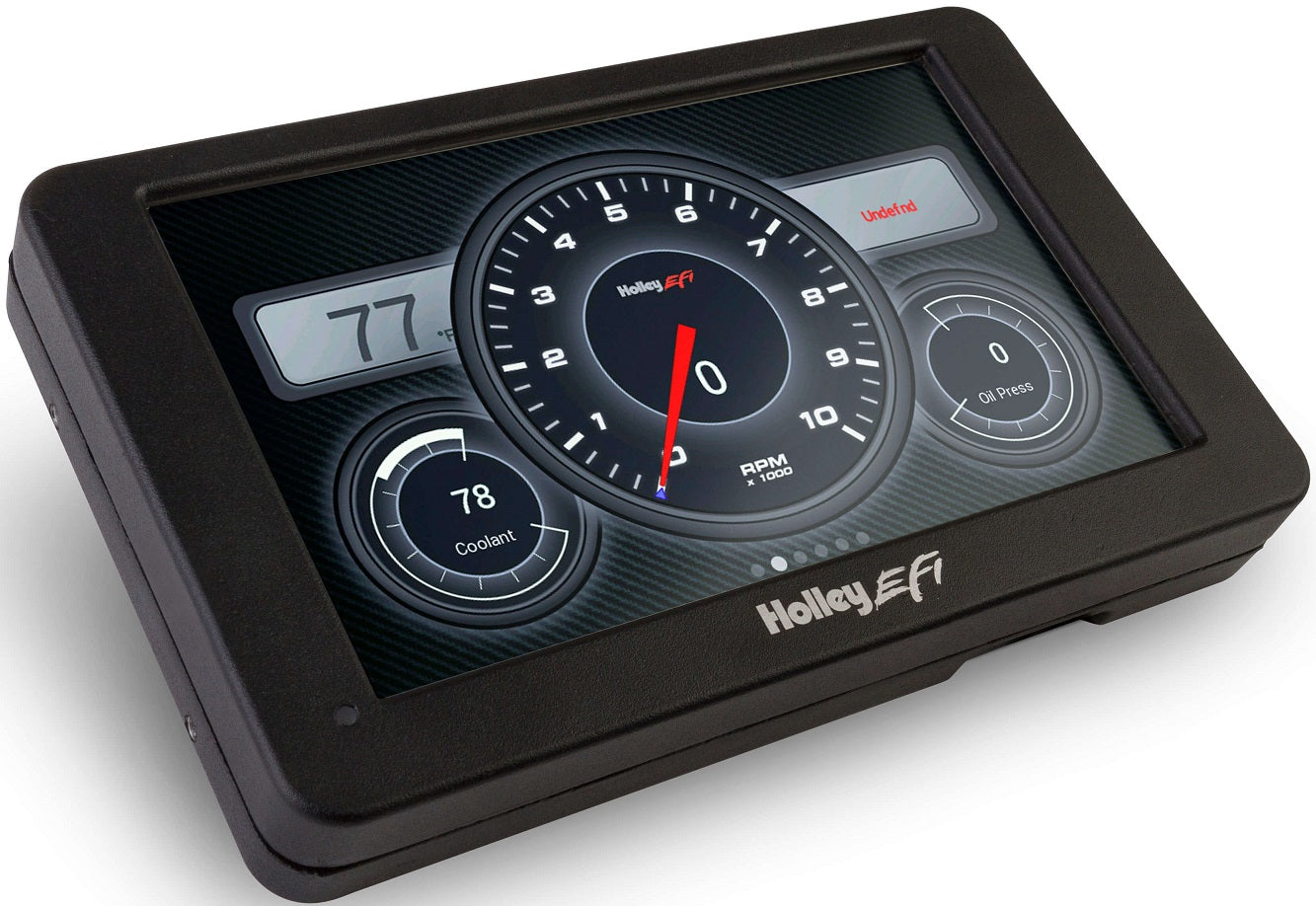

STAND ALONE DIGITAL DASH KIT,7"

BRAND NEW HOLLEY 7" STAND ALONE DIGITAL DASH KIT, COMPATIBLE WITH HOLLEY EFI, SNIPER EFI & TERMINATOR X SYSTEMS

HAVE YOU BEEN LOOKING FOR A DASH SOLUTION FOR YOUR VEHICLE, BUT JUST CANNOT FIND ANYTHING YOU LIKE OR THAT IS COST EFFECTIVE? NO NEED TO LOOK ANY FURTHER AS HOLLEY HAS CREATED A FULL COLOR TOUCH SCREEN DASH THAT INCLUDES SENSORS FOR MONITORING BASIC ENGINE PARAMETERS AS WELL AS A GPS SPEEDOMETER ALL IN A COST EFFECTIVE PACKAGE!

THE HOLLEY STAND-ALONE DIGITAL DASH HAS GREAT FEATURES SUCH AS; A WEATHER RESISTANT ALUMINUM HOUSING FOR DURABILITY, MULTIPLE GAUGE AND INDICATOR TYPE SELECTIONS, CUSTOMIZABLE SCREEN AND GAUGE LAYOUTS AND A VIRTUAL SWITCH PANEL JUST TO NAME A FEW. WITH THE INTEGRATED 3 AXIS ACCELEROMETER AND DATA-LOGGING, THE DASH IS IDEAL FOR ANYTHING FROM A JR DRAGSTER TO SPORTSMAN RACING. IT IS ALSO EQUALLY AT HOME IN A DAILY DRIVER, OR A SHOW WINNING ROADSTER.

TUNING IS NOT SUPPORTED WITH TERMINATOR X ECU.

FEATURES:

• 7" LOW GLARE, HIGH BRIGHTNESS, HIGH CONTRAST, FULL COLOR TOUCH SCREEN
• 800X480 RESOLUTION WITH AUTO BRIGHTNESS & DIMMING
• OPERATING VOLTAGE MIN 8V - 20V
• USB GPS FOR SPEEDOMETER DISPLAY WITH MAGNETIC BASE
• WEATHER RESISTANT ALUMINUM HOUSING WITH FLEXIBLE MOUNTING OPTIONS
• COMPLETELY CUSTOMIZABLE LAYOUTS WITH MULTIPLE DEFAULT CONFIGURATION
• MULTIPLE GAUGE & INDICATOR TYPES
• QUICKLY TOGGLE BETWEEN MULTIPLE ACTIVE SCREENS (TUNE, WARM-UP, RACE, DRIVE, ETC.)
• VIRTUAL SWITCH PANEL (REPLACES THE NEED FOR PHYSICAL SWITCHES) - 2 SWITCHED GROUND OUTPUTS TO BE ADDED TO TRIGGER AN EXTERNAL RELAY
• RETAINS THE SAME GAUGE CUSTOMIZATION FLEXIBILITY AS THE EFI DASH, BUT NOW ALLOWED WITH ANY VEHICLE
• POWERFUL DATA LOG SOFTWARE PROVIDES IN-DEPTH ANALYSIS (10 SAMPLES/SEC) OF ALL INPUTS/OUTPUTS, INCLUDING THE INTEGRATED 3 AXIS ACCELEROMETER & USB GPS-NO NEED FOR SEPARATE DATA LOGGING BOXES
• BUILT IN DATA LOGGING PLAYBACK
• ADDITIONAL SENSORS ARE AVAILABLE FOR DASH, INCLUDING FUEL PRESSURE, NITROUS PRESSURE, BOOST
• USER DEFINABLE WARNINGS FOR ANY INPUT
• CONFIGURABLE PROGRESSIVE SHIFT LIGHTS & LIGHT BAR
• EXPANDABLE INTERNAL STORAGE ON MICRO SD CARD

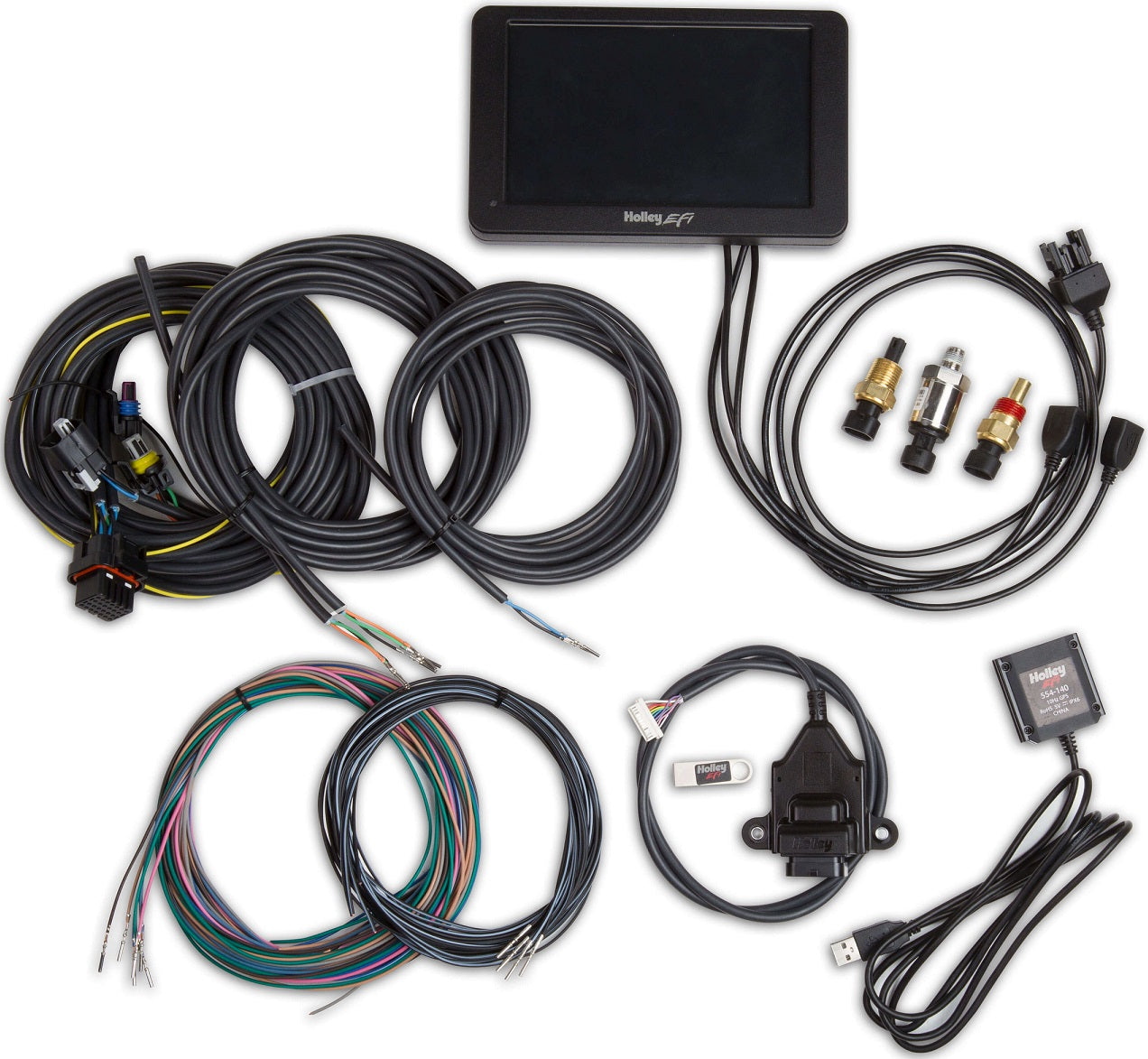

• INCLUDED PARTS: STANDALONE DIGITAL DASH KIT WITH I/O ADAPTER, USB MEMORY STICK, TERMINATED VEHICLE HARNESS, OIL PRESSURE SENSOR, CTS SENSOR, MAT SENSOR, USB GPS

SPECS:

• BRAND: HOLLEY EFI
• DEPTH: 1"
• EMISSION CODE: 5
• HEIGHT: 4.625"
• PRODUCT TYPE: EFI PART
• SCREEN SIZE: 7" DIAGONAL
• SCREEN TYPE: RESISTIVE TOUCH SCREEN
• WIDTH: 7.5"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DIGITAL DASH HERE.
