TERMINATOR X MAX MPFI ECU,LS1,LS6,EV1,TRANSMISSION

BRAND NEW HOLLEY TERMINATOR X MAX LS1 24X/1X MPFI KIT WITH TRANSMISSION CONTROL, GM LS 24X CRANK, 1X CAM, 4L60E/4L80E TRANSMISSION CONTROL, USB/CAN TUNING CABLE, FITS LS1/LS6 ENGINES

TAKE CONTROL OF YOUR LS ENGINE WITH TERMINATOR X! DO NOT SETTLE FOR A JUNKYARD ECU WITH A CUMBERSOME TUNING INTERFACE WHEN YOU CAN HAVE COMPLETE CONTROL OF YOUR ENGINE, SELF-LEARNING FUEL STRATEGIES AND THE PROVEN, RACE-WINNING TECHNOLOGY OF HOLLEY EFI AT A BUDGET-FRIENDLY PRICE!

TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS/OUTPUTS. THE INPUTS/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. TERMINATOR X COMES FULLY LOADED WITH BASE MAPS FOR COMMON LS ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE & ON THE ROAD/TRACK FAST. THE 3.5" TOUCH SCREEN LCD HANDHELD CONTAINS AN EASY TO USE CALIBRATION WIZARD AS WELL AS TUNING & GAUGE DISPLAY FUNCTIONS. INCLUDED IS THE HOLLEY EFI INDUSTRY-LEADING, EASY TO USE SOFTWARE SUITE THAT ALLOWS FULL LAPTOP ACCESS FOR ADVANCED USERS.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LEDS FACING UP.

FEATURES:

• DESIGNED FOR GM LS1/LS6 ENGINES WITH 24X CRANK RELUCTOR WITH EV1 INJECTORS AND 4L60E/4L80E TRANSMISSIONS
• REAL-TIME FUEL MAP LEARN, TAKES THE GUESS WORK OUT OF TUNING YOUR BASE FUEL TABLE.
• HIGH IMPEDANCE INJECTOR DRIVERS WILL SAFELY POWER MOST STOCK LS INJECTORS, AND HOLLEY EFI INJECTORS. INJECTOR SUPPORT CHART PROVIDED IN THE INSTRUCTIONS (WILL NOT CONTROL LOW IMPEDANCE INJECTORS)

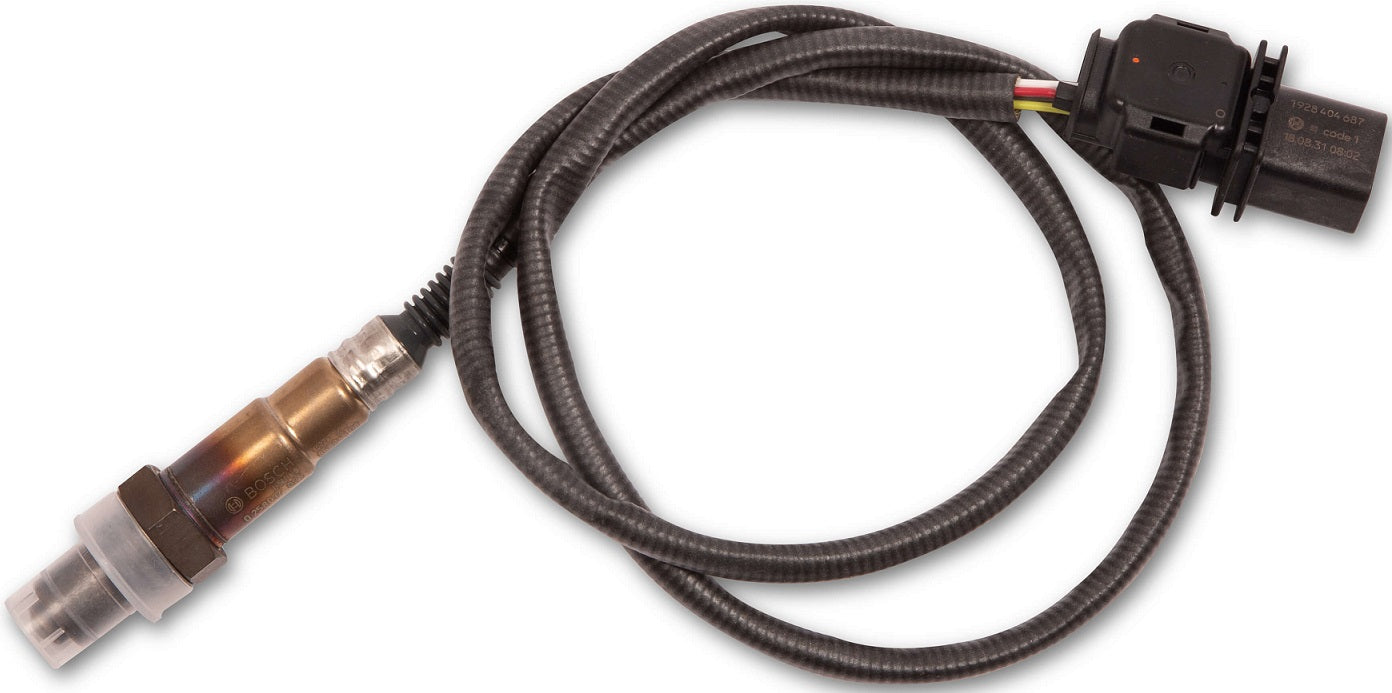

• ALL OF THE NEW TERMINATOR X SYSTEMS UTILIZE THE BOSCH LSU 4.9 WIDEBAND TO RELAY AFR INFORMATION TO THE ECU FOR ACCURATE READING AND PRECISE TUNING CONTROL.
• MAP SENSOR VACUUM HOSE ADAPTERS (1/8TH - 1/4 AND 3/16THS)
• 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT, AND MORE
• BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
• NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES, AND TARGET CLOSED LOOP AFR
• ON-BOARD DIAGNOSTIC LEDS FOR: ECU POWER - ENGINE RUN - WIDEBAND STATUS - TPS CALIBRATION - CRANK SIGNAL - CAM SIGNAL. ALLOW YOU TO IDENTIFY ANY CRITICAL ENGINE ISSUES AT A GLANCE
• ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE, CAN BE USED FOR ANY CUSTOM TABLES YOU CAN DREAM UP, SUCH AS FLEX FUEL SENSOR OFFSET TABLE, OR A CUSTOM FUEL OR OIL PRESSURE SAFETY!

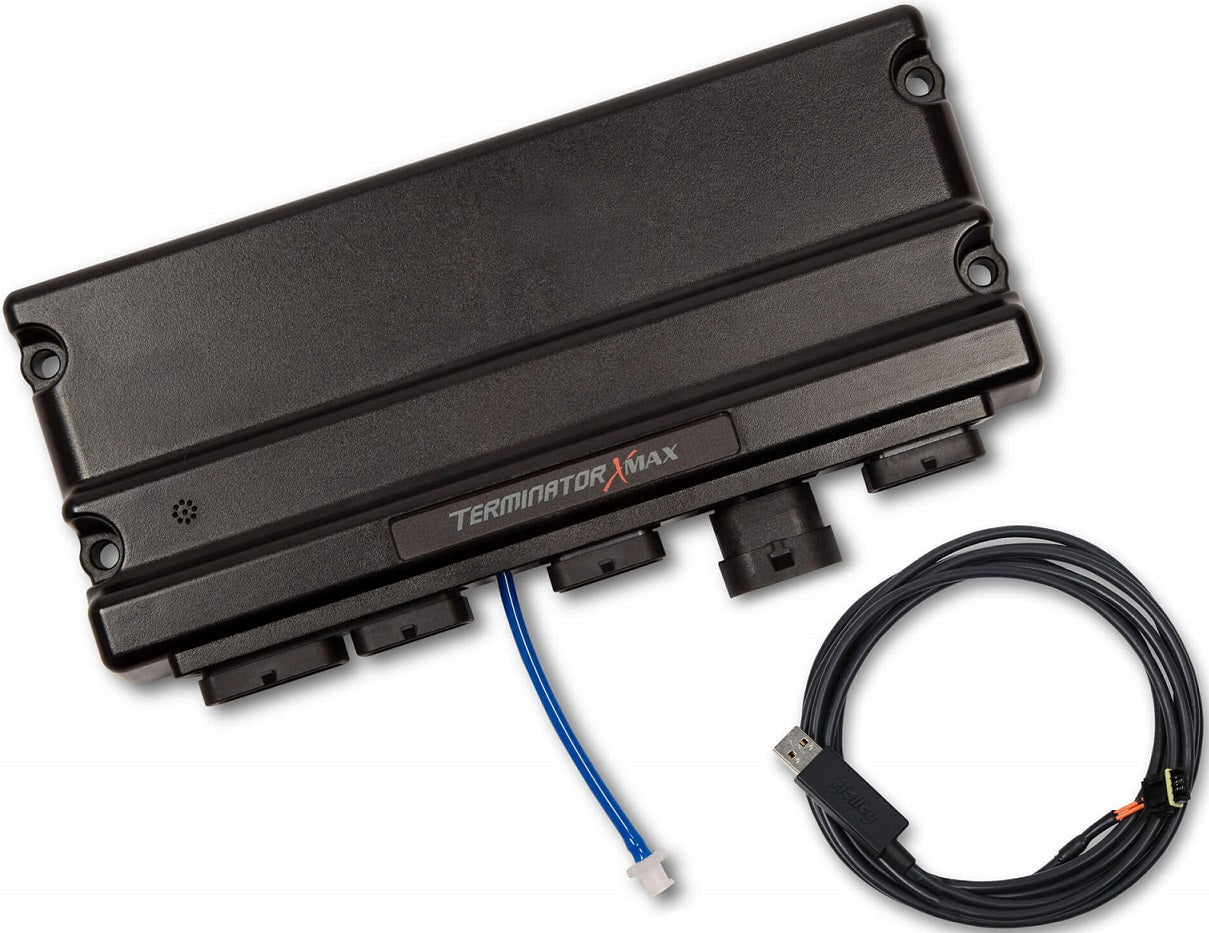

• INCLUDES CAN/USB TUNING CABLE ALLOWING YOU TO CONFIGURE YOUR ECU AND TUNING THE ENGINE IN REAL TIME.
• THE COMPACT ECU SIZE ALLOWS YOU TO MOUNT IT VIRTUALLY ANYWHERE. REMEMBER, DIAGNOSTIC LEDS MUST FACE UP!
• PLUG & PLAY COMPATIBLE WITH MORE HOLLEY EFI ACCESSORIES SUCH AS; ANALOG STYLE GAUGES, SHIFT LIGHTS, VARIOUS MODULES, AND COMING SOON, 12.3" DIGITAL DASH SUPPORT!
• FREE EFI TUNING SOFTWARE FOR COMPLETE CONTROL OF YOUR TERMINATOR X POWER PLANT

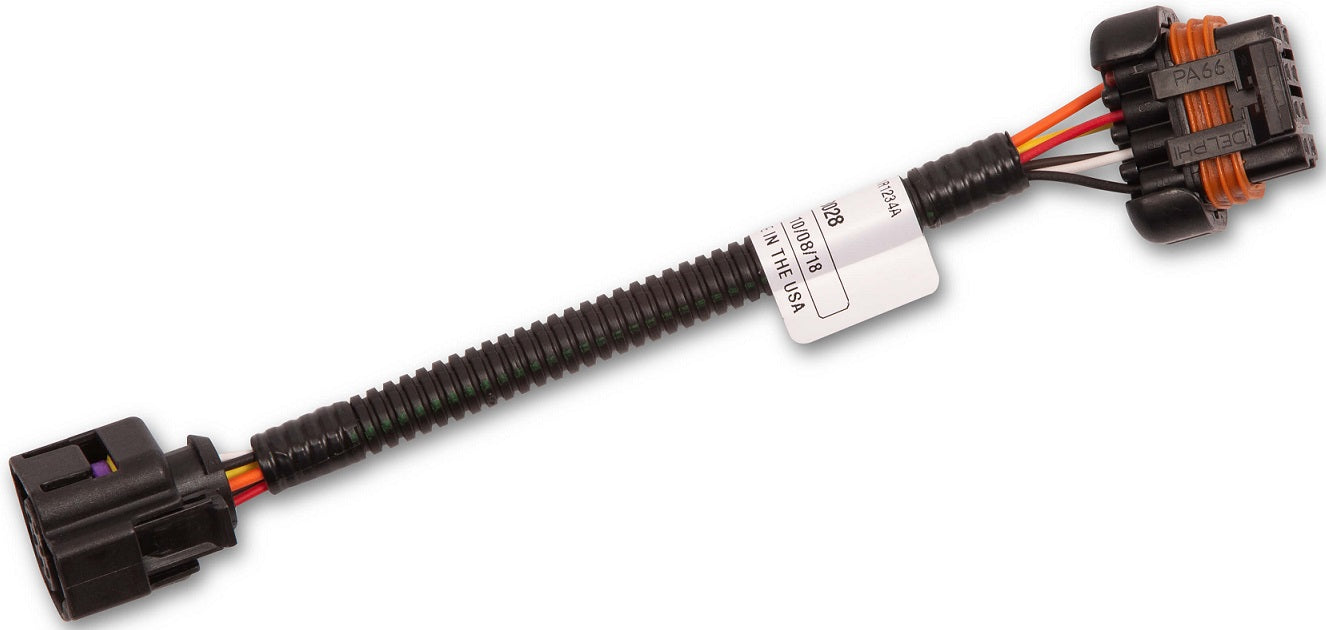

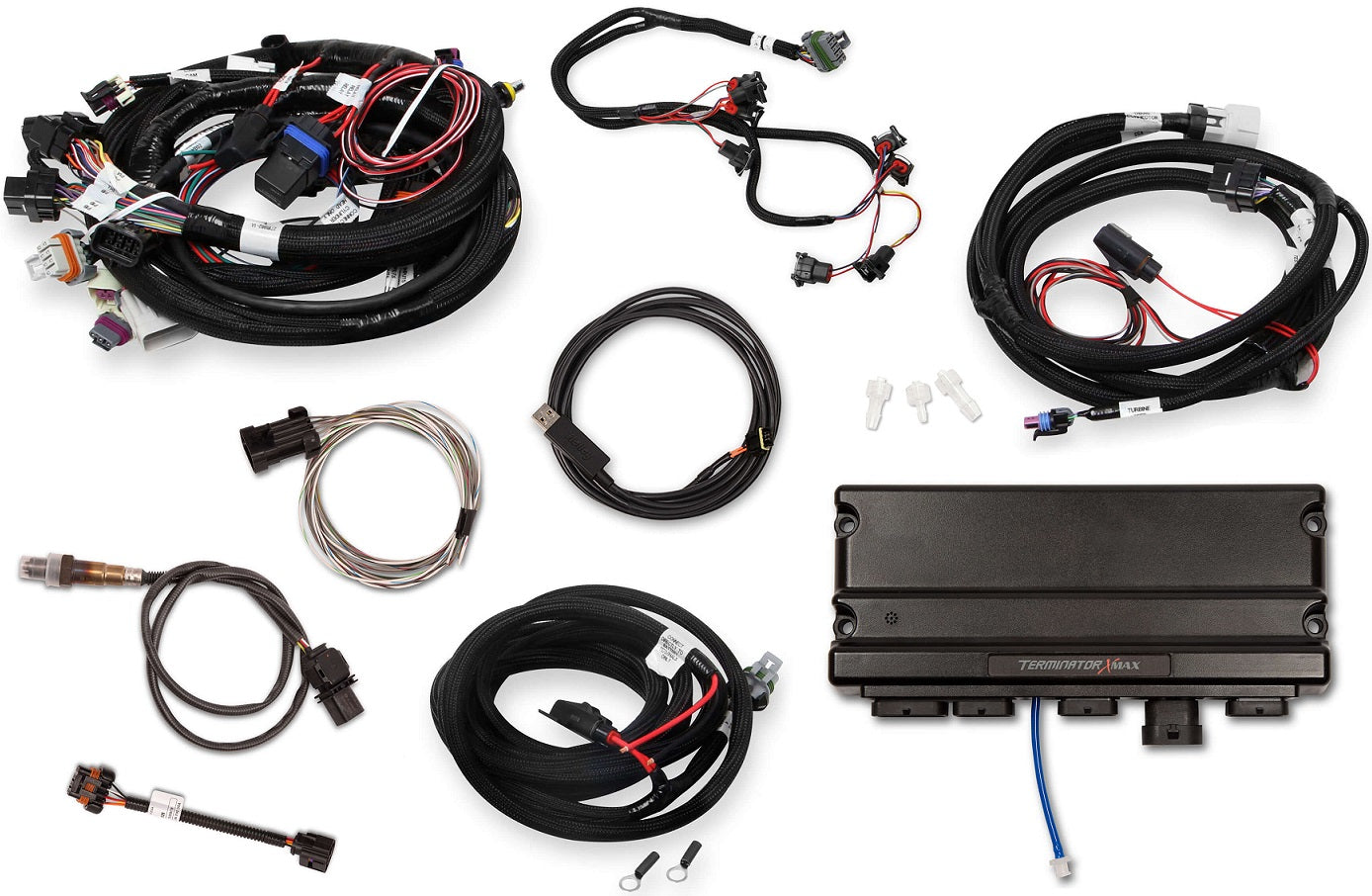

• INCLUDES: 24X LS ENGINE MAIN HARNESS - EV1 INJECTOR HARNESS - 4L60E/4L80E TRANSMISSION CONTROL HARNESS - TERMINATOR X MAX ECU - ECU MAIN POWER HARNESS - BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR - INPUT/OUTPUT HARNESS - AND ASSORTED VACUUM ADAPTERS.

SPECS:

• BRAND: HOLLEY EFI
• CRANK RELUCTOR: 24X
• IGNITION TYPE: GM LS 24X
• INJECTOR CONNECTOR: JETRONIC / MINITIMER (BOSCH)
• PRODUCT TYPE: TERMINATOR X MAX LS MPFI
• TERMINATOR LS OPTIONS: FUEL, SPARK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI UNIT HERE, AND THE HANDHELD & REFERENCE MANUAL HERE.
