TERMINATOR X MPFI ECU,LS2,3,LATE,TOUCHSCREEN

BRAND NEW HOLLEY TERMINATOR X LS2/LS3 & LATE 58X/4X LS TRUCK MPFI KIT, GM LS ENGINES WITH 58X CRANK, 4X CAM, 4.8/5.3/6.0 TRUCK ENGINES & LS2/LS3 - EV6 INJECTOR HARNESS, 3.5" TOUCHSCREEN INCLUDED

TAKE CONTROL OF YOUR LS ENGINE WITH TERMINATOR X! DO NOT SETTLE FOR A JUNKYARD ECU WITH A CUMBERSOME TUNING INTERFACE WHEN YOU CAN HAVE COMPLETE CONTROL OF YOUR ENGINE, SELF-LEARNING FUEL STRATEGIES AND THE PROVEN, RACE-WINNING TECHNOLOGY OF HOLLEY EFI AT A BUDGET-FRIENDLY PRICE!

TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS/OUTPUTS. THE INPUTS/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. TERMINATOR X COMES FULLY LOADED WITH BASE MAPS FOR COMMON LS ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE AND ON THE ROAD/TRACK FAST.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LEDS FACING UP.

FEATURES:

• DESIGNED FOR GM LS ENGINES WITH 58X CRANK, 4X CAM - AND EV6 INJECTORS.
• REAL-TIME FUEL MAP LEARN, TAKES THE GUESS WORK OUT OF TUNING YOUR BASE FUEL TABLE.
• HIGH IMPEDANCE INJECTOR DRIVERS WILL SAFELY POWER MOST STOCK LS INJECTORS, AND HOLLEY EFI INJECTORS. INJECTOR SUPPORT CHART PROVIDED IN THE INSTRUCTIONS (WILL NOT CONTROL LOW IMPEDANCE INJECTORS)

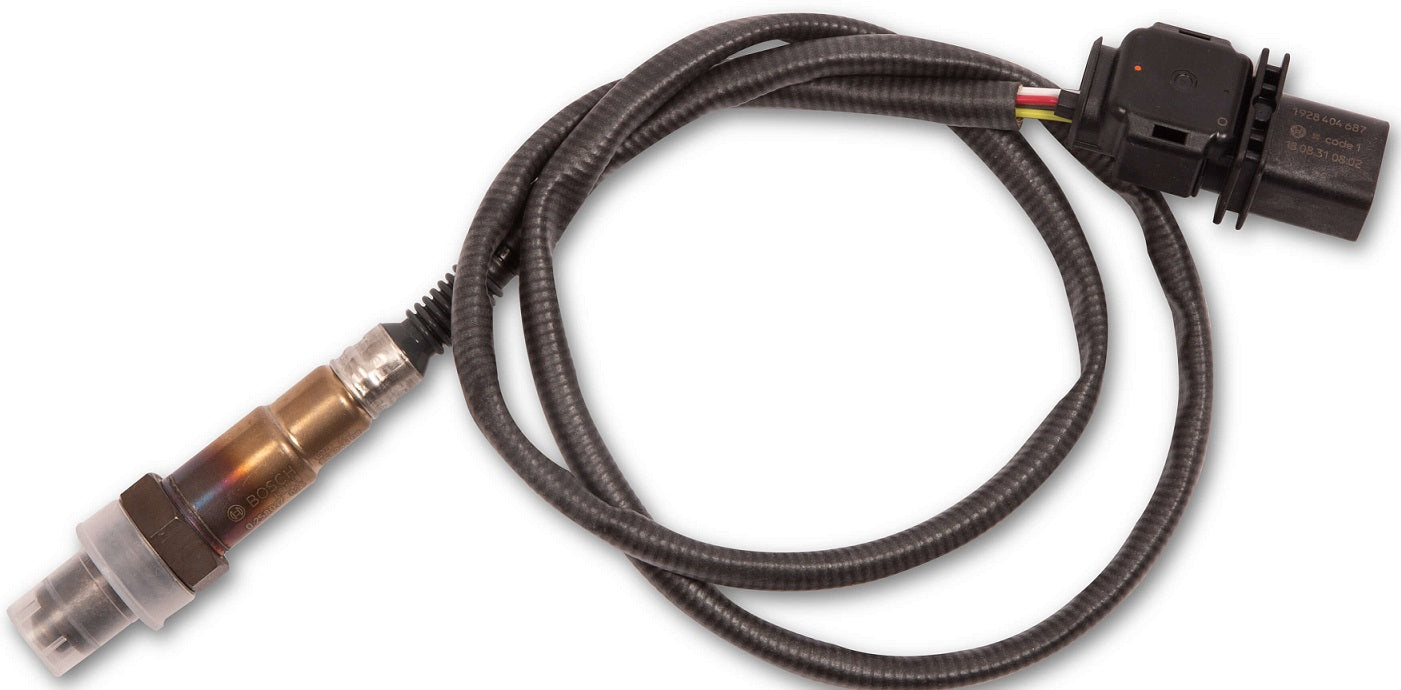

• ALL OF THE NEW TERMINATOR X SYSTEMS UTILIZE THE BOSCH LSU 4.9 WIDEBAND TO RELAY AFR INFORMATION TO THE ECU FOR ACCURATE READING AND PRECISE TUNING CONTROL.
• MAP SENSOR VACUUM HOSE ADAPTERS (1/8TH - 1/4 AND 3/16THS)
• 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT, AND MORE
• BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
• NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES, AND TARGET CLOSED LOOP AFR
• ON-BOARD DIAGNOSTIC LEDS FOR: ECU POWER - ENGINE RUN - WIDEBAND STATUS - TPS CALIBRATION - CRANK SIGNAL - CAM SIGNAL. ALLOW YOU TO IDENTIFY ANY CRITICAL ENGINE ISSUES AT A GLANCE
• ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE, CAN BE USED FOR ANY CUSTOM TABLES YOU CAN DREAM UP, SUCH AS FLEX FUEL SENSOR OFFSET TABLE, OR A CUSTOM FUEL OR OIL PRESSURE SAFETY!

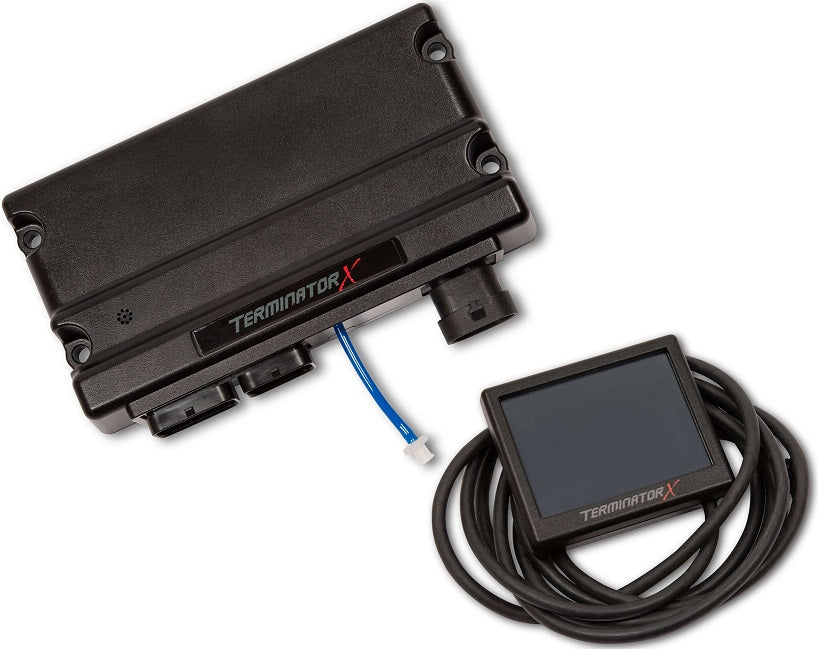

• THE INCLUDED 3.5" TOUCHSCREEN HANDHELD CONTAINS A CALIBRATION WIZARD, THAT ALLOWS YOU TO QUICKLY BUILD A BASE TUNE FOR ANY LS ENGINE. ADDITIONALLY THE HANDHELD PROVIDES INTERNAL DATA-LOGGING AND A FULLY CUSTOMIZABLE GAUGE DISPLAY.
• THE COMPACT ECU SIZE ALLOWS YOU TO MOUNT IT VIRTUALLY ANYWHERE. REMEMBER, DIAGNOSTIC LEDS MUST FACE UP!
• PLUG AND PLAY COMPATIBLE WITH MORE HOLLEY EFI ACCESSORIES SUCH AS; ANALOG STYLE GAUGES, SHIFT LIGHTS, VARIOUS MODULES, AND COMING SOON, 12.3" DIGITAL DASH SUPPORT!
• FREE EFI TUNING SOFTWARE FOR COMPLETE CONTROL OF YOUR TERMINATOR X POWER PLANT

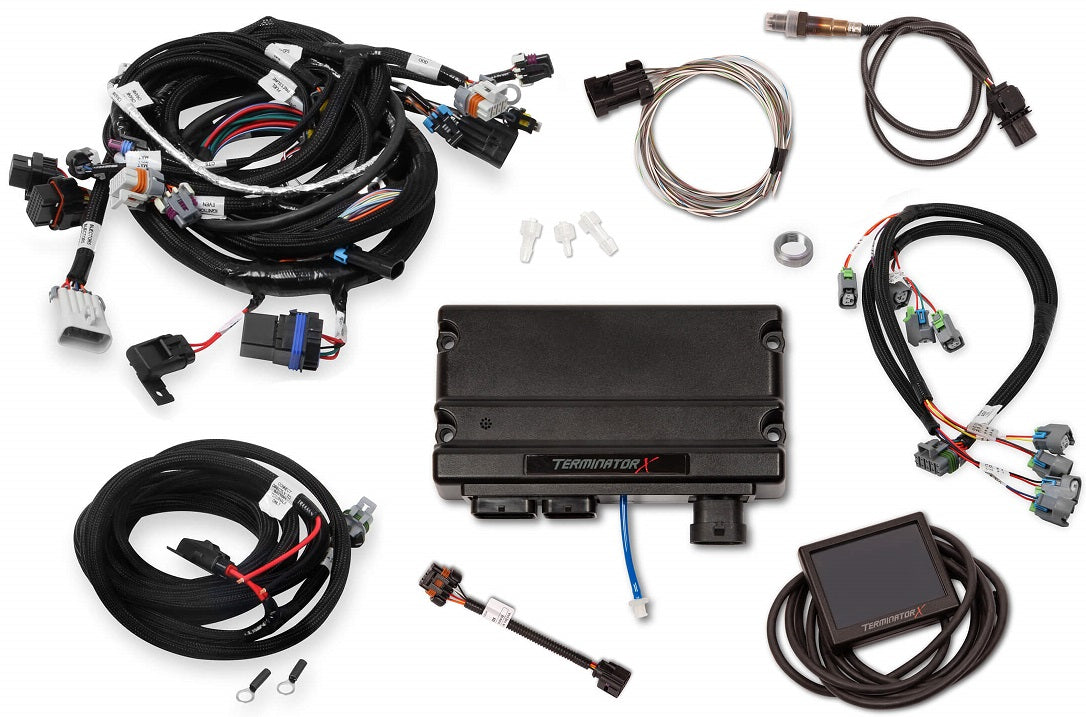

• INCLUDES: 58X/4X LS ENGINE MAIN HARNESS - EV6 INJECTOR HARNESS - TERMINATOR X ECU - ECU MAIN POWER HARNESS - BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR - INPUT/OUTPUT HARNESS - AND ASSORTED VACUUM ADAPTERS.

SPECS:

• BRAND: HOLLEY EFI
• CRANK RELUCTOR: 58X
• IGNITION TYPE: GM LS 58X
• INJECTOR CONNECTOR: USCAR (EV6)
• PRODUCT TYPE: TERMINATOR X LS MPFI
• TERMINATOR LS OPTIONS: FUEL, SPARK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI UNIT HERE, AND THE HANDHELD & REFERENCE MANUAL HERE.
