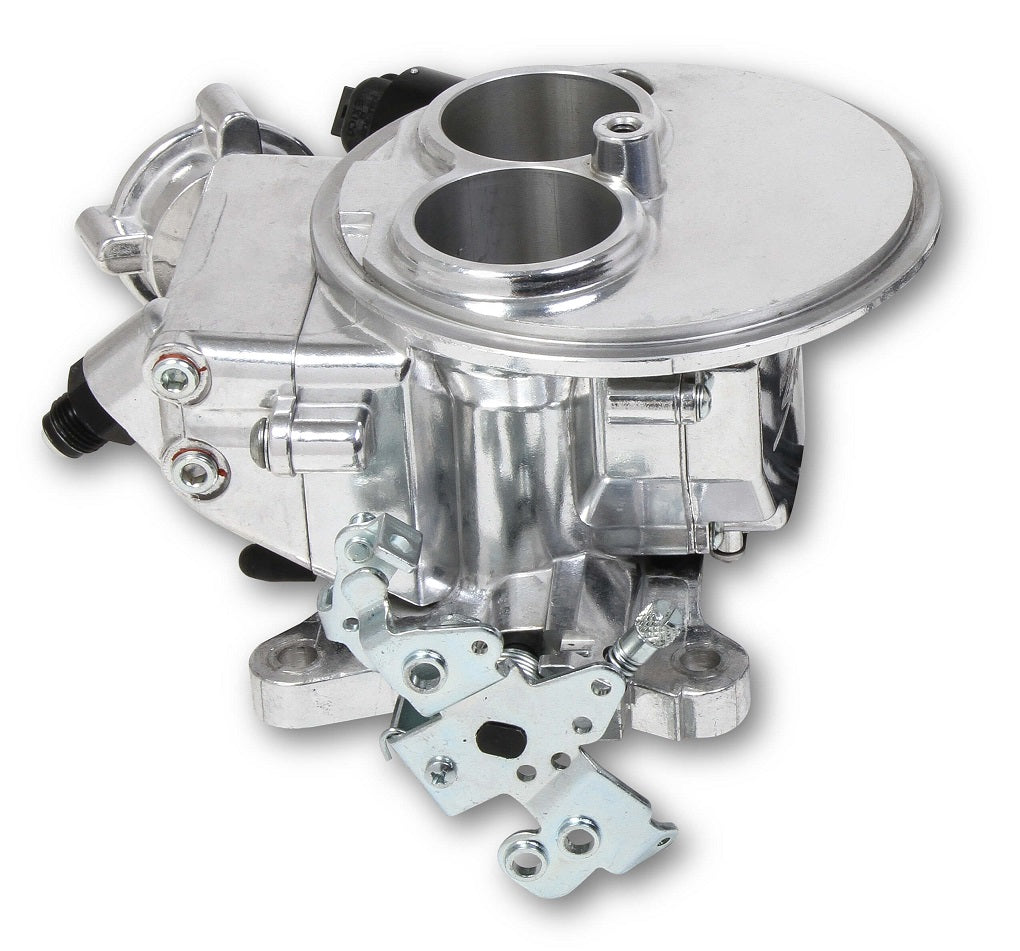

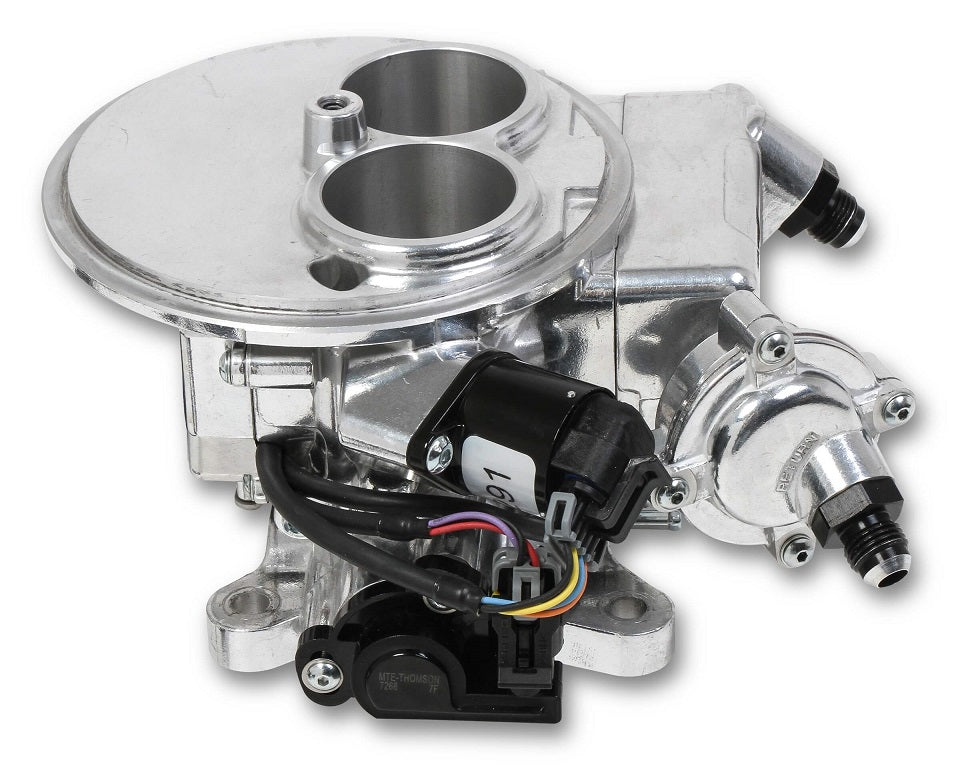

SNIPER 2300 EFI MASTER KIT,POLISHED

BRAND NEW HOLLEY SNIPER EFI 2300 SELF-TUNING KIT, 2 BBL FUEL INJECTION SYSTEM, 580 CFM, 350 HP, POLISHED, FITS 2300 FLANGE STYLE MANIFOLDS

INTRODUCING SNIPER EFI 2300! PUT AN END TO COLD START ISSUES, HESITATIONS, VAPOR LOCK, & FLOODING. PERFECT FOR ANY VEHICLE THAT CAME STANDARD W/ 2300 HOLLEY FLANGE SUCH AS FAIRLANES, GALAXIES, FALCONS, COMETS, F100S, JAVELINS, REBELS, MUSTANGS, THUNDERBIRDS, COUGARS & MORE. EASILY ADAPTS TO SQUARE FLANGE OR Q-JET FLANGE 4 BBL INTAKE W/ MR. GASKET ADAPTER P/N 1933 (4150 SQUARE FLANGE) OR 1929MRG (SPREAD BORE). BOLT-ON REPLACEMENT FOR CLASSIC HOLLEY CARBURETORS LIKE 0-4412 OR 0-7448.

NOTE: UNITED STATES COAST GUARD APPROVED: CERTIFIED TO ISO 8846, SAE J1171 REQUIREMENTS.

FORD TRANSMISSIONS MAY REQUIRE PART NUMBER 20-60 FORD TRANSMISSION KICKDOWN SPRING & BRACKET KIT.

A FLAME ARRESTOR IS REQUIRED FOR MARINE INSTALLATIONS, SUCH AS PART NUMBER, 720-1 OR 720-13.

FEATURES:

• BOLT ON 2300 FLANGE CARBURETOR REPLACEMENT
• SUPPORTS UP TO 350HP WITH 2 - 100 LBS/HR INJECTORS
• EQUIPPED W/ C4/C6 FORD TRANSMISSION KICKDOWN LEVER AS WELL AS TH350, 400 & 700R4 PROVISIONS
• ACCEPTS MANY COMMON 5 1/8" OEM OR AFTERMARKET AIR CLEANER ASSEMBLIES
• THROTTLE BODY MOUNTED ECU - NO EXTRA BOXES TO MOUNT
• INTEGRATED IGNITION TIMING CONTROL

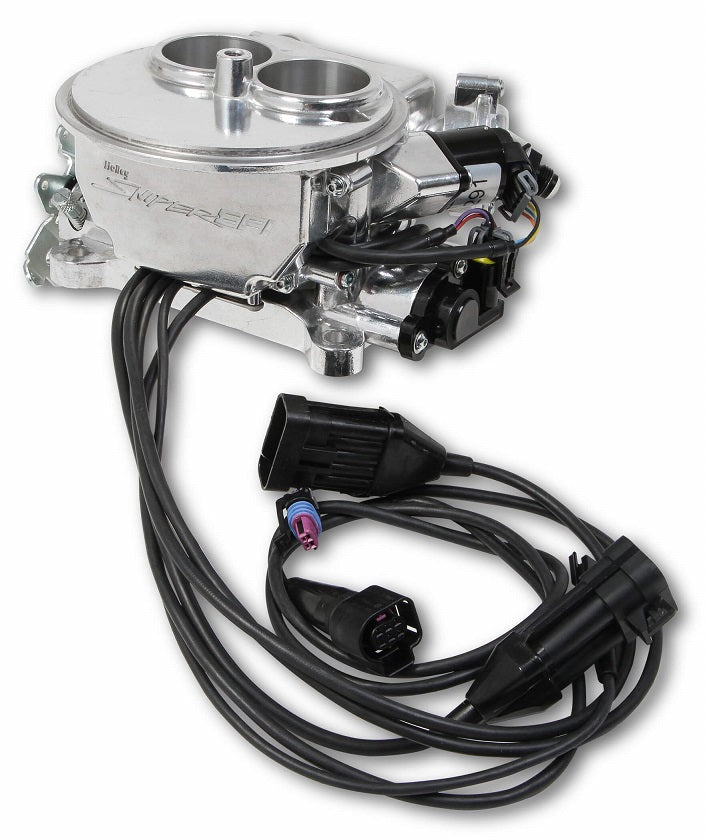

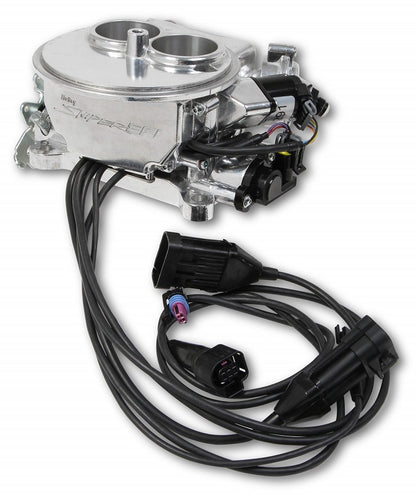

• 4 WIRING CONNECTIONS REQUIRED (BATTERY +, BATTERY - , SWITCHED IGNITION & RPM)
• INTERNAL FUEL PRESSURE REGULATOR ELIMINATES PLUMBING AN EXTERNAL FUEL PRESSURE REGULATOR (PRESET TO 58.5 PSI)
• HIGH RES COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
• SELF-TUNING ECU MEANS YOU DO NOT HAVE TO BE A COMPUTER/TUNING WIZ TO HAVE EFI
• OEM STYLE TPS/IAC AND FUEL PRESSURE REGULATOR
• CLAMP-ON OXYGEN SENSOR KIT FOR 2.25" EXHAUST ENSURES LEAK FREE OXYGEN SENSOR INSTALL W/ STAINLESS STEEL T-BOLT CLAMPS & STAINLESS STEEL (WELDABLE) OXYGEN SENSOR FLANGE
• SNIPER EFI SOFTWARE FREE TO DOWNLOAD ALLOWING REAL-TIME TUNING
• PRINTABLE THROTTLE BODY FLANGE TEMPLATE

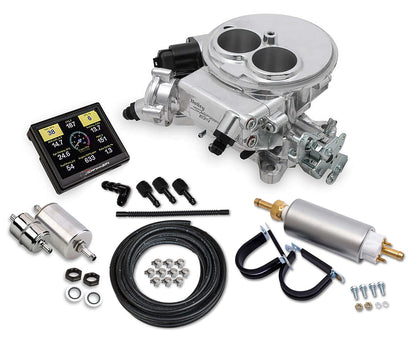

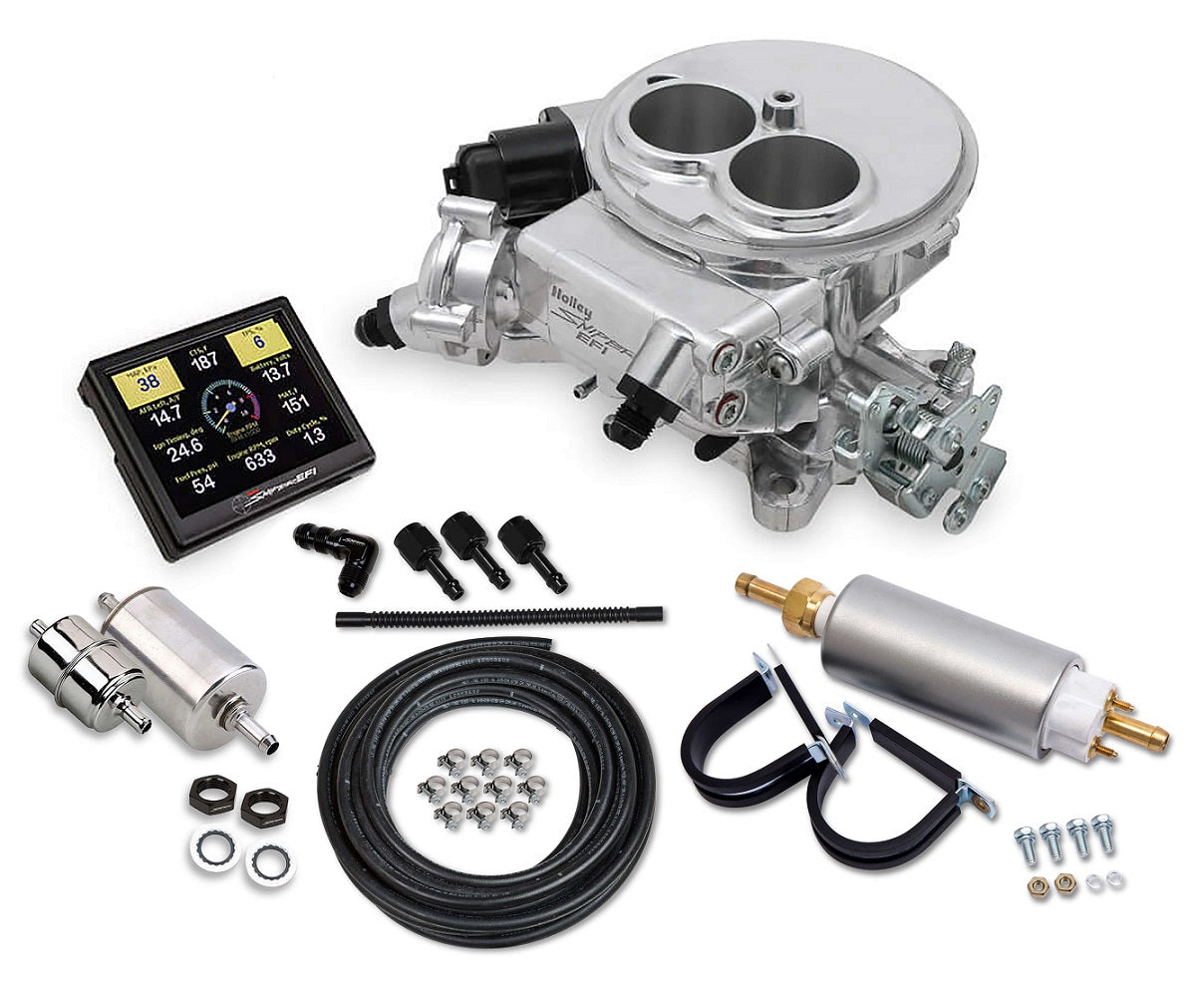

• INCLUDES COMPLETE FUEL SYSTEM:
• 20 FT OF 3/8" VAPOR GUARD FUEL HOSE
• FUEL FILTERS
• 12-920 ELECTRIC FUEL PUMP
• ALL HARDWARE & FITTINGS

SPECS:

• BRAND: HOLLEY SNIPER EFI
• CFM: 580
• COAST GUARD APPROVED: YES
• EMISSION CODE: 3
• FINISH: POLISHED
• FLANGE SIZE/STYLE: 2300
• FUEL PRESSSURE: 58.5 PSI
• HEIGHT: 3.28"
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• INLET / OUTLET SIZE: 9/16-18 FEMALE O-RING (AN 6)
• MAP SENSOR: 2 BAR
• MAX HORSEPOWER RATING: 350 NATURALLY ASPIRATED
• PRODUCT TYPE: SNIPER 2 BBL EFI KIT
• TRANSMISSION: 700R4/200R4, FORD C4/C6, TH350

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL INJECTION KIT HERE, THE SNIPER EFI 2300 APPLICATION GUIDE HERE, AND THE QUICKSTART GUIDE HERE.
