FORD COYOTE TI-VCT HP EFI KIT,NTK O2

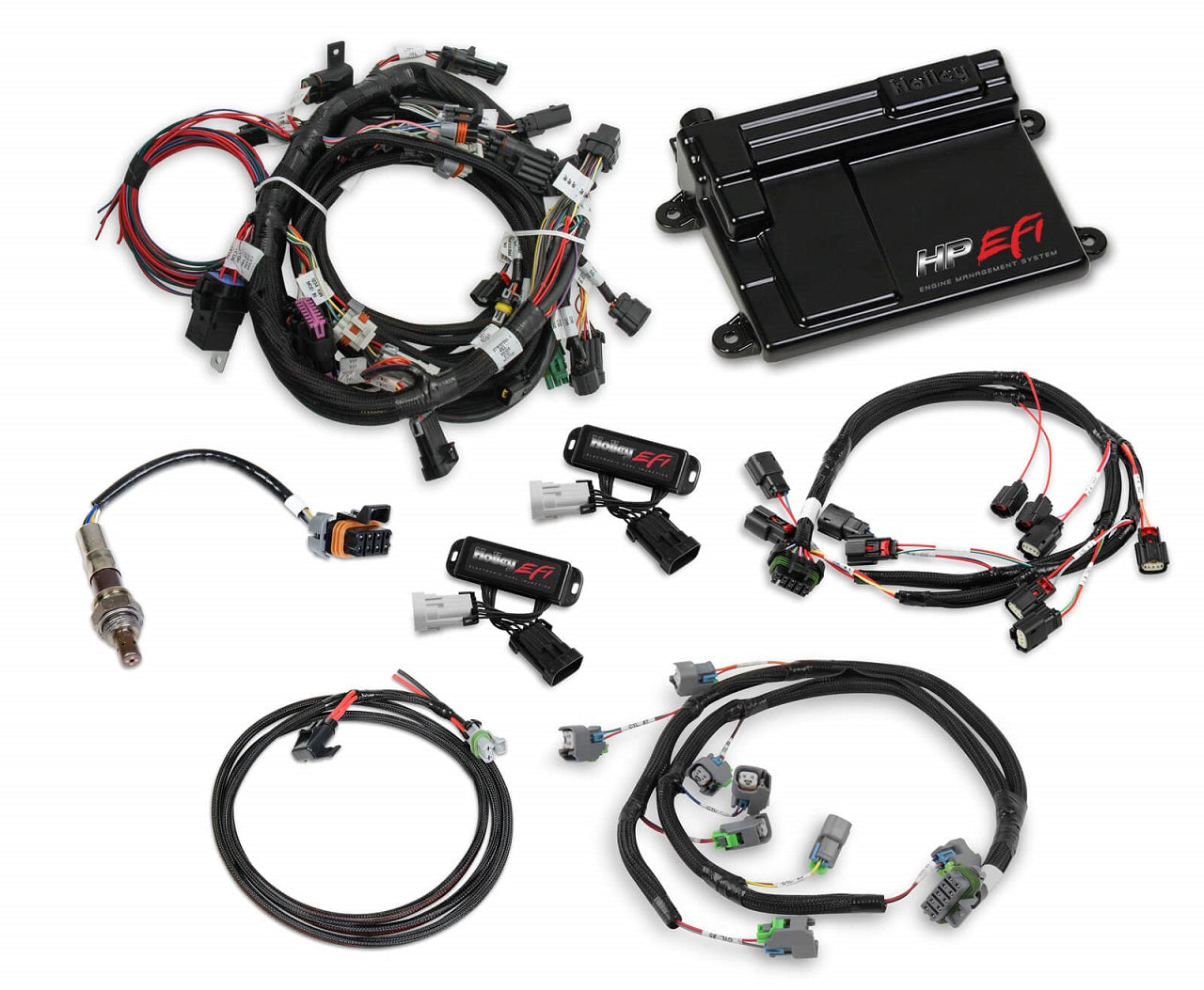

BRAND NEW HOLLEY FORD COYOTE HP EFI ECU WITH POWER HARNESS, MAIN HARNESS, COIL HARNESS, INJECTOR HARNESS AND SENSORS INCLUDES NTK OXYGEN SENSOR (DOES NOT INCLUDE TI-VCT CONTROLLER OR HARNESSES), FITS 2011-2017 FORD MODULAR 4 VALVE ENGINES

INTRODUCING COYOTE TWIN INDEPENDENT VARIABLE CAM TIMING CONTROL FROM HOLLEY EFI! DO YOU HAVE A COYOTE CRATE ENGINE GOING IN YOUR DREAM CAR? IS YOUR WEEKEND ROAD RACE WARRIOR POWERED BY A COYOTE JUNKYARD ENGINE WITH LOCKED CAMS? UNLOCK THE FULL POTENTIAL OF YOUR HIGH REVVING POWER PLANT WITH THE HOLLEY EFI PLUG AND PLAY COYOTE TI-VCT CONTROL MODULE.

NOTE: COMPLETE SYSTEM REQUIREMENTS: COYOTE TI-VCT CONTROL MODULE 554-145; AND THE SUB-HARNESS FOR YOUR ENGINE, 2011-2012 COYOTE ENGINES USE 558-124, 2013+ COYOTE ENGINES USE 558-125.

DESIGNED TO BE USED WITH A CABLE DRIVEN THROTTLE BODY.

FEATURES:

• NOW SUPPORTS 2015-2017 COYOTE ENGINES
• PLUG AND PLAY MAIN HARNESS FOR 2011-2017 COYOTE ENGINES W/ STOCK CAM SHAFTS USING STOCK COILS (558- 110)
• PLUG AND PLAY MAIN HARNESS FOR 2011-2017 COYOTE ENGINES W/ STOCK CAM SHAFTS USING HOLLEY EFI COILS (558-122)
• COMPATIBLE WITH HP OR DOMINATOR EFI
• PRE-CALIBRATED FORD SENSOR DROP DOWNS IN THE HOLLEY EFI SOFTWARE
• TI-VCT CAM CONTROL DOWN TO 400 RPM
• COMMANDED TIMING MATCHED WITHIN 1 DEGREE
• USER PROGRAMMABLE TABLES ENABLE THE END USER TO FINE TUNE AFTERMARKET TI-VCT COMPATIBLE CAMSHAFTS
• 4 BUILT IN DIAGNOSTIC LEDS MAKE DIAGNOSTICS EASY IN THE EVENT OF A CAM OR CRANK SENSOR FAILURE
• INTEGRATED STOCK CAM POSITION TABLES - ELIMINATE TUNING GUESS WORK, OPTIMAL DRIVE-ABILITY AND POWER RIGHT OUT OF THE BOX
• MAIN HARNESSES COME TERMINATED WITH FORD TPS AND IAC CONNECTORS, MAKING IT EASY TO CONVERT FROM A DBW THROTTLE BODY TO A MANUAL THROTTLE BODY
• INSTALLATION OF AN EXTERNAL MAP SENSOR IS REQUIRED, WE RECOMMEND PART NUMBER 538-13 FOR N/A APPLICATIONS
• MAIN HARNESSES INCLUDES A POWER TAP CONNECTOR, AS A CONVENIENT SOURCE FOR POWER AND GROUNDS WHEN ADDING ADDITIONAL SENSORS OR ACTUATORS
• CANBUS COMMUNICATION BETWEEN COYOTE TI-VCT AND HOLLEY EFI ECU FOR HIGH SPEED DATA TRANSFER AND DIAGNOSTICS

SPECS:

• BRAND: HOLLEY EFI
• EMISSION CODE: 4
• HARNESS APPLICATION: FORD
• HARNESS TYPE: IGNITION
• INJECTION TYPE: FORD COYOTE
• INJECTOR CONNECTOR: USCAR (EV6)
• PRODUCT TYPE: ECU ASSEMBLY
