11-12 FORD COYOTE HP EFI,NTK O2,USCAR

11-12 FORD COYOTE HP EFI,NTK O2,USCAR

SKU:HOL 550-619N

Regular price $4,604.95
Regular price Sale price $4,604.95
View full details

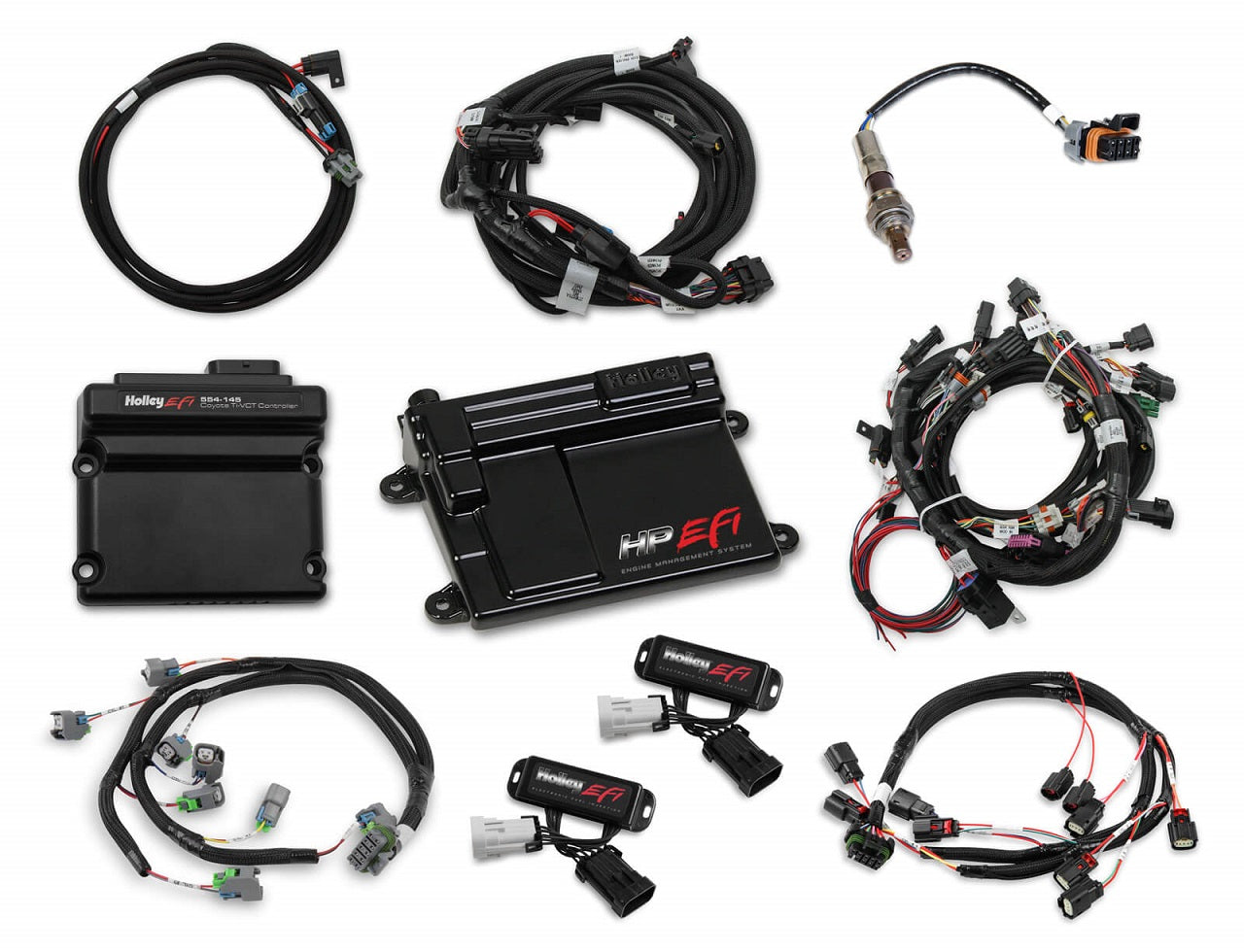

BRAND NEW HOLLEY FORD COYOTE TI-VCT HP EFI ECU AND TI-VCT CONTROLLER KIT WITH POWER HARNESS, MAIN HARNESS, COIL HARNESS, INJECTOR HARNESS AND SENSORS INCLUDES NTK OXYGEN SENSOR, FITS 2011-2012 FORD MODULAR 4 VALVE ENGINES

INTRODUCING COYOTE TWIN INDEPENDENT VARIABLE CAM TIMING CONTROL FROM HOLLEY EFI! DO YOU HAVE A COYOTE CRATE ENGINE GOING IN YOUR DREAM CAR? IS YOUR WEEKEND ROAD RACE WARRIOR POWERED BY A COYOTE JUNKYARD ENGINE WITH LOCKED CAMS? UNLOCK THE FULL POTENTIAL OF YOUR HIGH REVVING POWER PLANT WITH THE HOLLEY EFI PLUG AND PLAY COYOTE TI-VCT CONTROL MODULE.

NOTE: DESIGNED TO BE USED WITH A CABLE DRIVEN THROTTLE BODY.

FEATURES:

  • NOW SUPPORTS 2015-2017 COYOTE ENGINES
  • HP EFI KITS AVAILABLE
  • PLUG AND PLAY MAIN HARNESS FOR 2011-2017 COYOTE ENGINES W/ STOCK CAM SHAFTS USING STOCK COILS (558- 110)
  • PLUG AND PLAY MAIN HARNESS FOR 2011-2017 COYOTE ENGINES W/ STOCK CAM SHAFTS USING HOLLEY EFI COILS (558-122)
  • COMPATIBLE WITH HP OR DOMINATOR EFI
  • PRE-CALIBRATED FORD SENSOR DROP DOWNS IN THE HOLLEY EFI SOFTWARE
  • TI-VCT CAM CONTROL DOWN TO 400 RPM
  • COMMANDED TIMING MATCHED WITHIN 1 DEGREE
  • USER PROGRAMMABLE TABLES ENABLE THE END USER TO FINE TUNE AFTERMARKET TI-VCT COMPATIBLE CAMSHAFTS
  • 4 BUILT IN DIAGNOSTIC LEDS MAKE DIAGNOSTICS EASY IN THE EVENT OF A CAM OR CRANK SENSOR FAILURE
  • INTEGRATED STOCK CAM POSITION TABLES - ELIMINATE TUNING GUESS WORK, OPTIMAL DRIVE-ABILITY AND POWER RIGHT OUT OF THE BOX
  • MAIN HARNESSES COME TERMINATED WITH FORD TPS AND IAC CONNECTORS, MAKING IT EASY TO CONVERT FROM A DBW THROTTLE BODY TO A MANUAL THROTTLE BODY
  • INSTALLATION OF AN EXTERNAL MAP SENSOR IS REQUIRED, WE RECOMMEND PART NUMBER 538-13 FOR N/A APPLICATIONS
  • MAIN HARNESSES INCLUDES A POWER TAP CONNECTOR, AS A CONVENIENT SOURCE FOR POWER AND GROUNDS WHEN ADDING ADDITIONAL SENSORS OR ACTUATORS
  • CANBUS COMMUNICATION BETWEEN COYOTE TI-VCT AND HOLLEY EFI ECU FOR HIGH SPEED DATA TRANSFER AND DIAGNOSTICS

SPECS:

  • BRAND: HOLLEY EFI
  • EMISSION CODE: 4
  • HARNESS APPLICATION: FORD
  • HARNESS TYPE: IGNITION
  • INJECTION TYPE: FORD COYOTE
  • INJECTOR CONNECTOR: USCAR (EV6)
  • PRODUCT TYPE: ECU ASSEMBLY
