HP EFI ECU & HARNESS KIT,LS2,LS7,NTK

HP EFI ECU & HARNESS KIT,LS2,LS7,NTK

SKU:HOL 550-603N

Regular price $3,170.95
Regular price Sale price $3,170.95
View full details

BRAND NEW HOLLEY HP EFI ECU & HARNESS KIT, GM LS2/3/7 (58X CRANK SENSOR) WITH USCAR (EV6 STYLE) CONNECTORS ON INJECTOR HARNESS, INCLUDES NTK OXYGEN SENSOR

LOOKING FOR A PLUG AND PLAY KIT FOR YOUR GM LS ENGINE? THE HP ECU ALLOWS YOU TO ACCURATELY CONTROL THE FUEL AND IGNITION OF YOUR ENGINE PLUS MUCH MORE! GOT A STOCK LS ENGINE? SIMPLY DOWNLOAD A BASE MAP AND YOU ARE ON YOUR WAY. GOT A TURBOCHARGED, NITROUS FED LS ENGINE ON WATER/METH? THIS HP EFI KIT CAN CONTROL THAT TOO! STOP RE-FLASHING YOUR FACTORY ECU EVERY TIME YOU MAKE A PERFORMANCE MODIFICATION. GET HOLLEY EFI TODAY!

NOTE: ECU IS CERTIFIED TO ISO 8846, SAE J1171 & UNITED STATES COAST GUARD REQUIREMENTS FOR IGNITION PROTECTION & FIRE RESISTANCE.

NOTE: HOLLEY HP EFI SYSTEMS ARE EQUIPPED WITH 4 PROGRAMMABLE INPUTS AND 4 PROGRAMMABLE OUTPUTS THAT ARE IDEAL FOR MOST VEHICLES WITH A SINGLE POWER ADDER. THIS FEATURE ALLOWS THE USER TO CONFIGURE THE SYSTEM TO SUPPORT A WIDE RANGE OF CONTROLS INCLUDING BOOST CONTROL, PROGRESSIVE NITROUS, WATER/METH INJECTION, SPEED INPUTS, FUEL PUMP CONTROL, AC INPUTS, TIMING RETARD INPUTS AND VARIOUS OTHER USES.

NOTE: WHEN SELECTING AN ECU, USERS NEED TO ENSURE THEIR PLANNED CONTROLS CAN BE RUN WITH THE 4 INPUTS AND 4 OUTPUTS AS CERTAIN COMBINATIONS MAY USE MORE I/OS THAN ARE AVAILABLE. IF MORE I/OS ARE REQUIRED, USERS SHOULD CHOOSE THE DOMINATOR VMS.

FEATURES:

  • SIMPLE INSTALLATION - PLUG & PLAY CONTROL OF GM LS2/LS3/LS7 ENGINES. PLUG THE HARNESS INTO YOUR FACTORY SENSORS, WIRE THE POWER & GROUNDS
  • MORE FUNCTIONALITY - PROVIDES SIGNIFICANTLY MORE FUNCTIONALITY THAN OEM OR OTHER COMPETITIVE ECUS (BOOST CONTROL, NITROUS CONTROL, WATER/METH INJECTION, PLUS A HOST OF ADDITIONAL INPUTS & OUTPUTS TO CONTROL FANS, PUMPS, RELAYS ETC.)
  • EASY TO USE - LAPTOP PROGRAMMABLE ECU INCLUDES A VARIETY OF BASE MAPS THAT WILL HAVE YOU HITTING THE CRUISE OR TRACK IN NO TIME
  • IDEAL FOR EVERYTHING - STOCK 5.3L ENGINE SWAPS OR ALL OUT 3,000+ HP RACE CARS THAT NEED A SIMPLE & POWERFUL ECU & HARNESS SOLUTION
  • INDUSTRY LEADING SELF TUNING FUEL STRATEGY - MEANS LESS TIME TUNING
  • THE NTK OXYGEN SENSOR IS RECOMMENDED WHEN USING LEADED OR METHANOL FUELS, HIGH EXHAUST AND FORCED INDUCTION APPLICATIONS OR FOR HIGHEST PRECISION FEEDBACK
  • ECU IS FULLY POTTED & CAN BE MOUNTED IN ENGINE COMPARTMENT OR INTERIOR
  • SEALED AUTOMOTIVE & MARINE GRADE CONNECTORS
  • 1-5 BAR MAP SENSOR CAPABILITY
  • OPTIONAL PLUG & PLAY HAND-HELD PROGRAMMER, 5.7" TOUCHSCREEN & DIGITAL GAUGES ARE AVAILABLE FOR ULTIMATE CONTROL & VEHICLE MONITORING

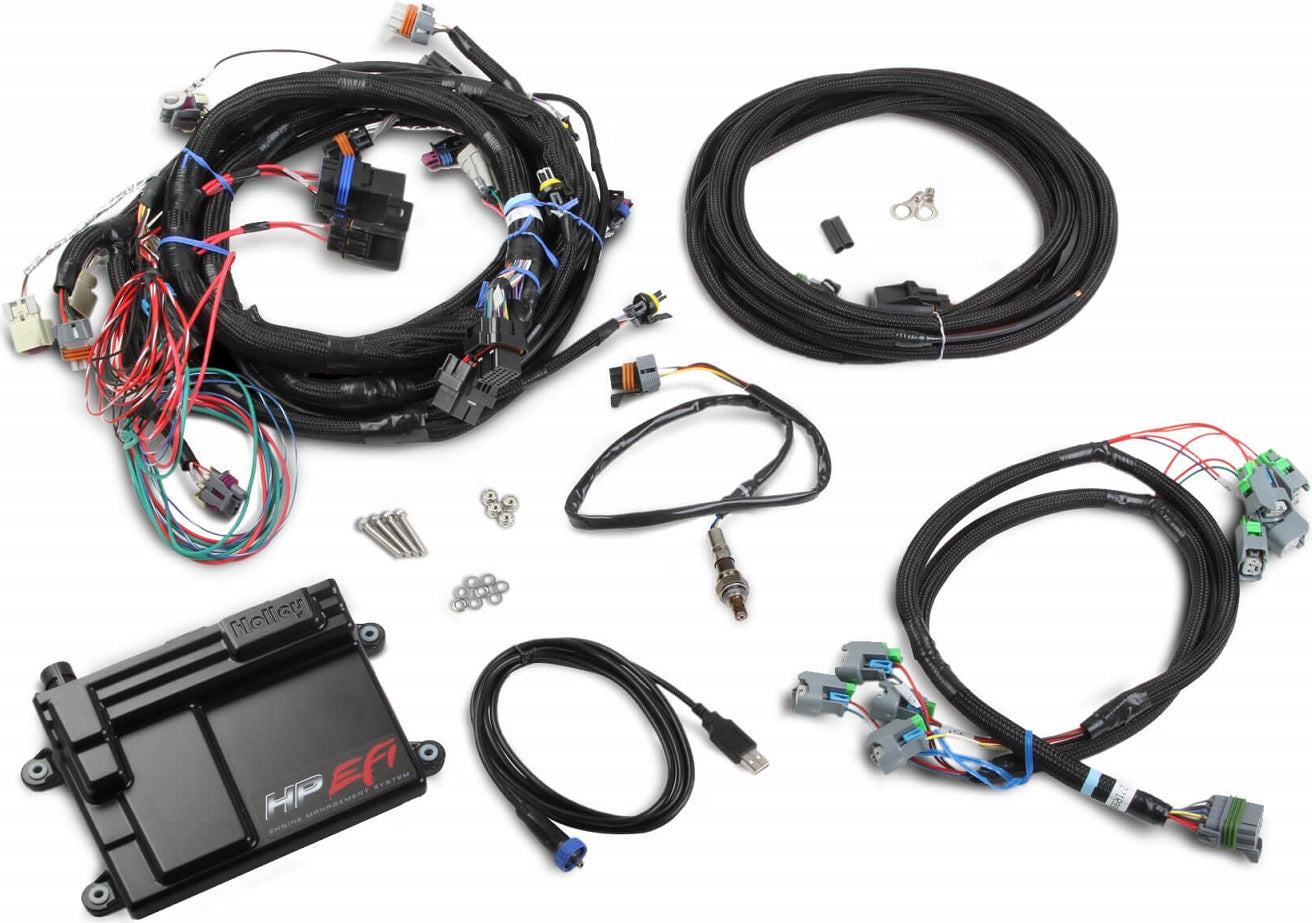

INCLUDES:

  • ECU
  • HARNESS
  • COMMUNICATION CABLE & SOFTWARE
  • USCAR (EV6 STYLE) INJECTOR CONNECTORS
  • BOSCH WIDEBAND O2 SENSORS DESIGNED FOR GM LS2/LS3/LS7 CNGINES WITH FACTORY GM COILS
  • 58 TOOTH CRANK SENSOR

SPECS:

  • BRAND: HOLLEY EFI
  • CRANK RELUCTOR: 58X
  • IGNITION TYPE: GM LS 58X
  • INJECTOR CONNECTOR: USCAR (EV6)
  • PRODUCT TYPE: HP EFI KIT

YOU CAN VIEW AND DOWNLOAD THE IMPORTANT NOTICE FOR THIS EFI ECU & HARNESS KIT HERE, AND THE EFI FEATURES HERE.
