HP EFI UNIVERSAL RETROFIT EMS,4150

BRAND NEW HOLLEY HP EFI UNIVERSAL MPI RETROFIT KIT, SINGLE PLANE 4 BBL 4150 CARBURETOR STYLE INTAKE MANIFOLDS,1000 CFM, FITS V8 INTAKE MANIFOLDS

DO YOU HAVE A MOPAR, FORD OR OTHER TYPE ENGINE YOU WANT TO INSTALL MULTI-PORT FUEL INJECTION ON? THE HOLLEY HP UNIVERSAL MPI RETROFIT EFI KITS ARE DESIGNED TO BE USED WITH ANY V-8 INTAKE MANIFOLD. THE KIT COMES WITH INJECTOR BUNGS AND UN-MACHINED FUEL RAILS SO YOU CAN MODIFY TO FIT ANY SINGLE PLANE 4BBL INTAKE MANIFOLD. THE HP UNIVERSAL RETROFIT KITS ALSO COME WITH THE NECESSARY WIRING, ECU, SENSORS AND THROTTLE BODY. JUST SELECT THE FUEL PUMP AND INJECTORS OF CHOICE AND YOU ARE OFF AND RUNNING.

NOTE: THE FOLLOWING SENSORS ARE INCLUDED: TPS - IAC - MAP - CTS - MAT - WIDEBAND O2

ECU IS CERTIFIED TO ISO 8846, SAE J1171 & UNITED STATES COAST GUARD REQUIREMENTS FOR IGNITION PROTECTION & FIRE RESISTANCE.

HOLLEY HP EFI SYSTEMS ARE EQUIPPED WITH 4 PROGRAMMABLE INPUTS AND 4 PROGRAMMABLE OUTPUTS THAT ARE IDEAL FOR MOST VEHICLES WITH A SINGLE POWER ADDER. THIS FEATURE ALLOWS THE USER TO CONFIGURE THE SYSTEM TO SUPPORT A WIDE RANGE OF CONTROLS INCLUDING BOOST CONTROL, PROGRESSIVE NITROUS, WATER/METH INJECTION, SPEED INPUTS, FUEL PUMP CONTROL, AC INPUTS, TIMING RETARD INPUTS AND VARIOUS OTHER USES. WHEN SELECTING AN ECU, USERS NEED TO ENSURE THEIR PLANNED CONTROLS CAN BE RUN WITH THE 4 INPUTS AND 4 OUTPUTS AS CERTAIN COMBINATIONS MAY USE MORE I/OS THAN ARE AVAILABLE. IF MORE I/OS ARE REQUIRED, USERS SHOULD CHOOSE THE DOMINATOR VMS.

FITS:

• V8 INTAKE MANIFOLDS

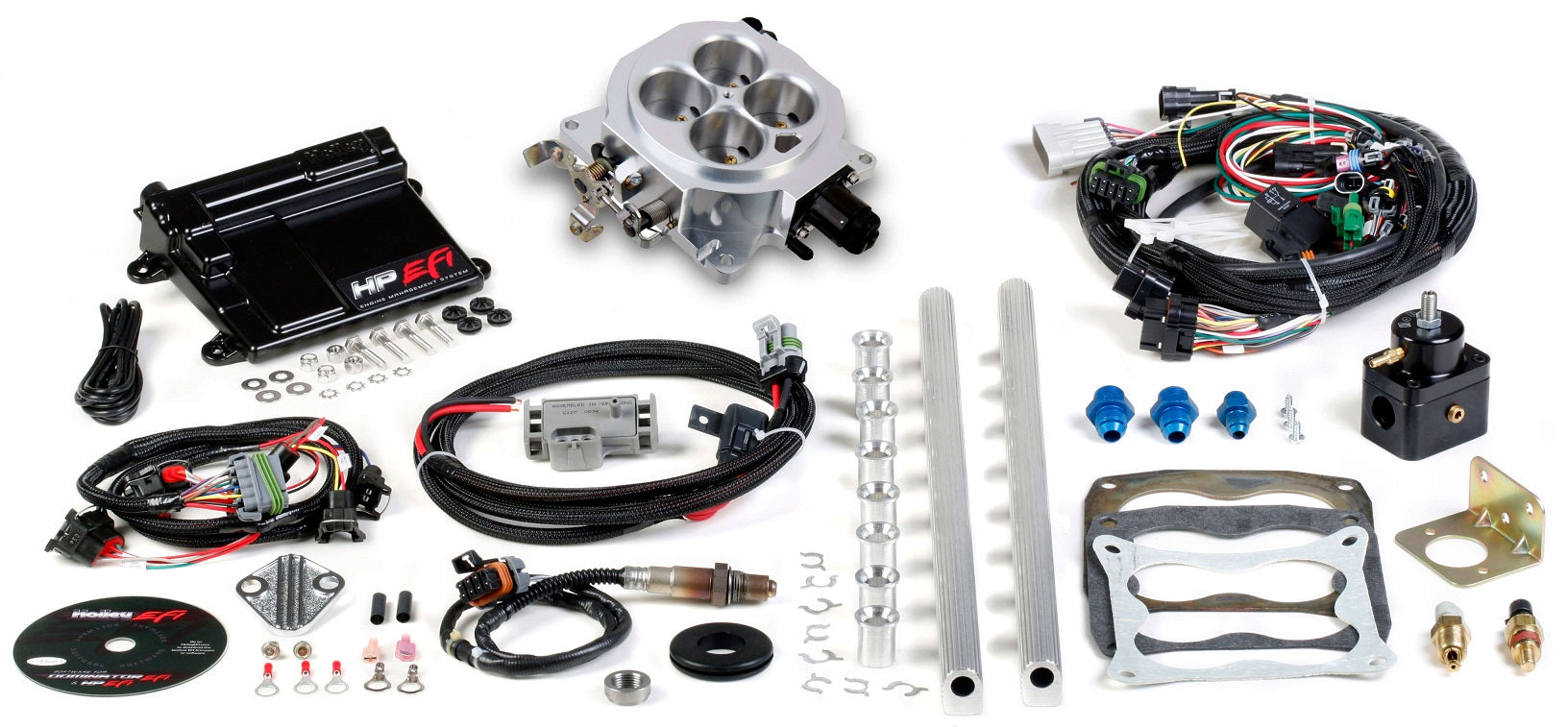

INCLUDES:

• INJECTOR BUNGS
• UN-MACHINED FUEL RAILS
• ECU
• SENSORS & THROTTLE BODY

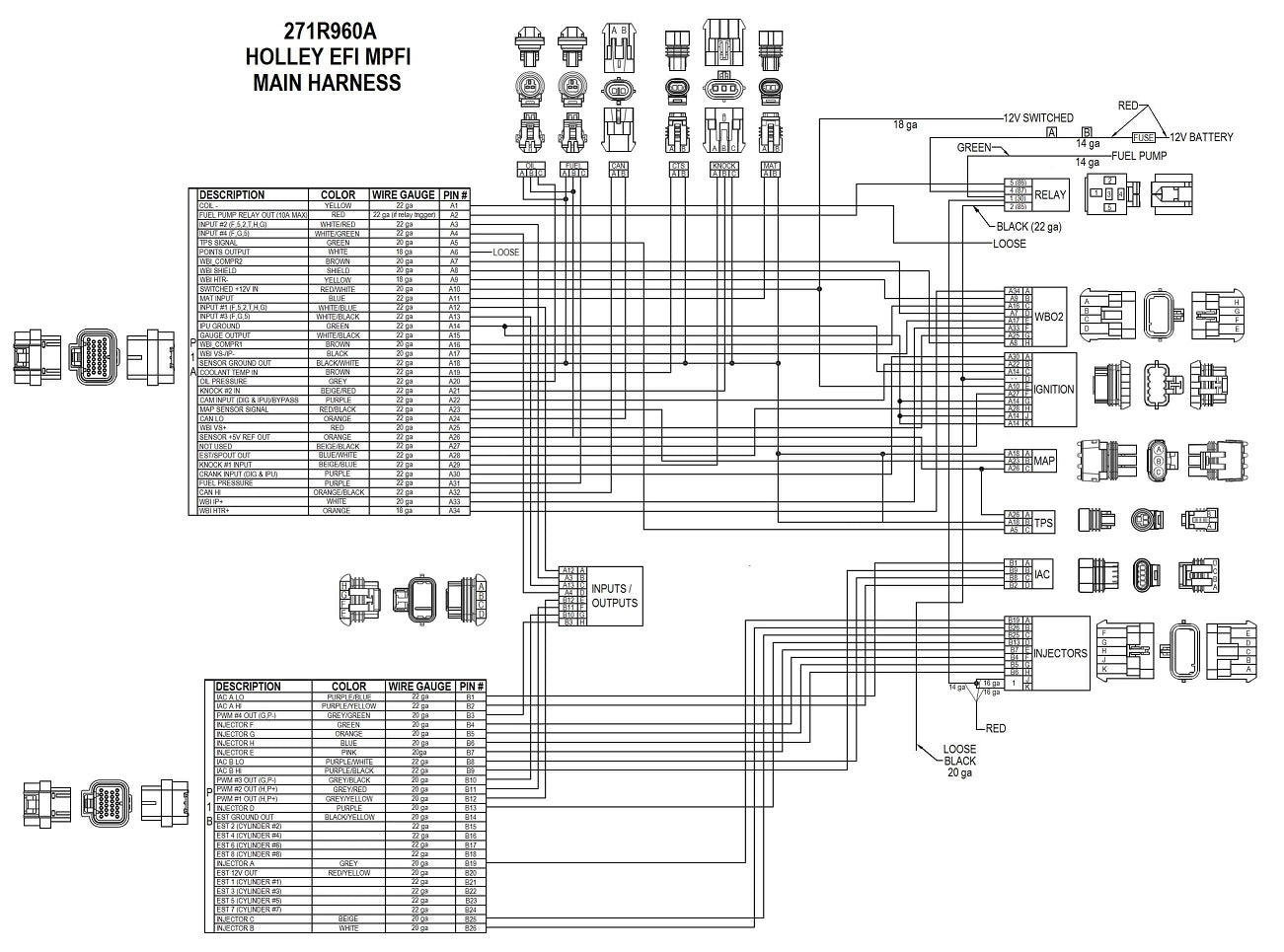

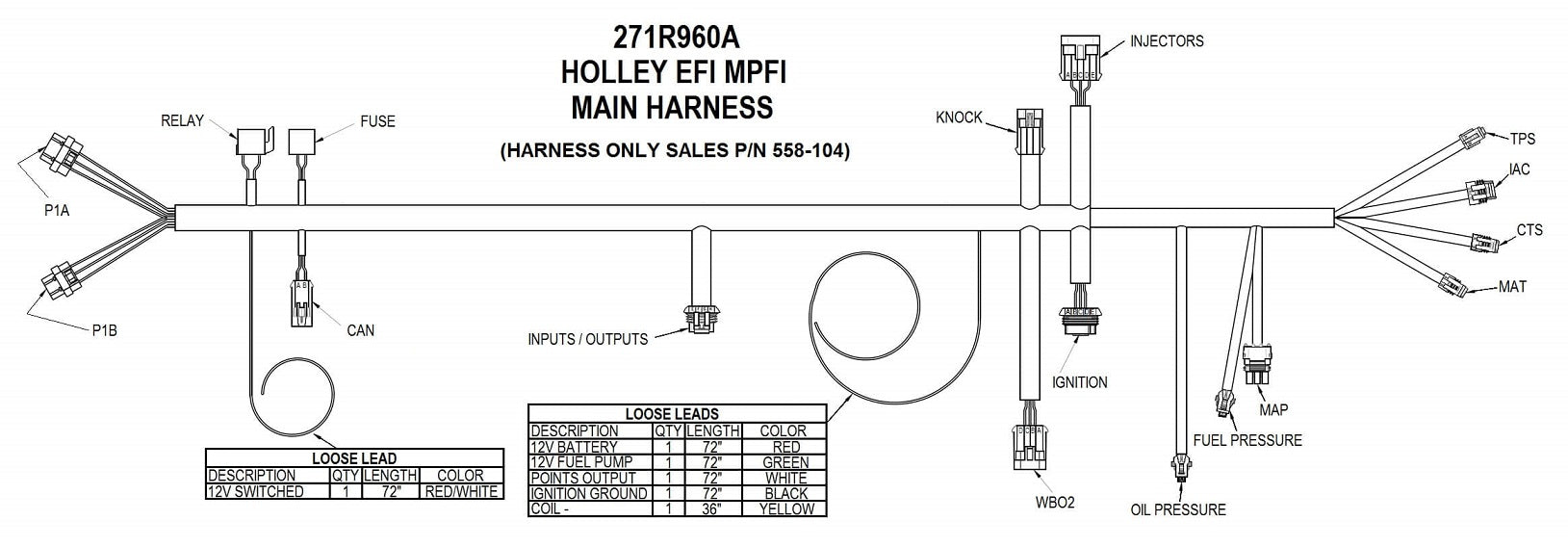

• ALL NECESSARY WIRING & HARDWARE

SPECS:

• EMISSION CODE: 3
• PRODUCT TYPE: UNIVERSAL MULTI PORT

FEATURES:

• OPTIONAL 5.7" FULL-COLOR TOUCHSCREEN LCD ALLOWS EASY ON-THE-FLY TUNING,DATA-LOGGING OR CAN BE USED AS AN EASY TO SEE GRAPHICAL GAUGE PANEL
• EIGHT SEQUENTIALLY DRIVEN 8:2 PEAK AND HOLD INJECTOR DRIVERS, CAPABLE OF DRIVING UP TO 16 LOW OR HIGH IMPEDANCE INJECTORS AS A STANDARD FEATURE. MULTIPLE STAGED INJECTOR STRATEGIES
• EIGHT CHANNEL DISTRIBUTORLESS IGNITION (DIS)OUTPUTS CAPABLE OF DIRECTLY DRIVING "SMART" IGNITION COILS OR HOLLEY DIS COILS. WILL DRIVE 2 WIRE COILS WITH THE ADDITION OF PN 554-112 HIGH CURRENT COIL DRIVER MODULE
• PLUG AND PLAY CONTROL OF FACTORY GM 24X AND 58X LSX ENGINES
• INTEGRATED SINGLE CHANNEL WIDE BAND OXYGEN SENSOR CONTROL. WORKS WITH NTK OR BOSCH SENSORS
• INTERNAL DATA-LOGGING STANDARD WITH A HUGE 2GB OF MEMORY
• 4 STAGE PROGRESSIVE NITROUS CONTROL
• TURBO BOOST CONTROL
• INTEGRATED WATER/METHANOL INJECTION CONTROL
• SELF-TUNING FUEL TABLE STRATEGY GREATLY SIMPLIFIES TUNING PROCESS
• INDIVIDUAL CYLINDER FUEL AND SPARK CONTROL ALLOWS YOU TO UNLOCK YOUR ENGINES POTENTIAL
• WORKS WITH 4, 6, 8 CYLINDER ENGINES
• UNIQUE LB/HR BASED FUELING STRATEGY GREATLY SIMPLIFIES AND COMMONIZES TUNING
• ADVANCED IDLE, CLOSED LOOP, AND ENRICHMENT STRATEGIES ALLOW FOR VERY STABLE OPERATION
• ECU IS FULLY POTTED AND CAN BE MOUNTED IN THE ENGINE COMPARTMENT OR INTERIOR
• SEALED AUTOMOTIVE AND MARINE GRADE CONNECTORS
• ALLOWS FOR USE OF COMMON OEM SENSORS AS WELL AS CUSTOMER SENSOR CALIBRATION INPUT
• IGNITION PLUG AND PLAY WITH GM 24X AND 58X LSX ENGINES, GM HEI, FORD TFI, MAGNETIC AND HALL EFFECT TRIGGER, AND OTHER IGNITION SYSTEMS. NEW PLUG AND PLAY APPLICATIONS IN PROCESS. CUSTOM SETTINGS CAN BE CONFIGURED TO ALLOW MANY OTHER APPLICATIONS
• 1-5 BAR MAP SENSOR CAPABILITY
• TWO CHANNEL KNOCK CONTROL SENSOR INPUTS FOR BOTH ONE OR TWO WIRE KNOCK SENSORS
• DEDICATED FUEL AND OIL PRESSURE INPUTS
• CONTROLS BOTH STEPPER AND PWM IDLE AIR CONTROL (IAC) MOTORS
• SPEED DENSITY, ALPHA-N, OR COMBINATION FUELING STRATEGIES
• 4 PROGRAMMABLE HIGH OR LOW PULSE WIDTH MODULATED (PWM) OUTPUTS AND 4 FULLY CONFIGURABLE INPUTS CAN BE CONFIGURED FOR USE
• 4 STAGE NITROUS OXIDE CONTROL
• FULLY FEATURED NITROUS CONTROL ELIMINATES THE NEED FOR A SEPARATE NITROUS CONTROLLER DEVICE
• CAN BE CONFIGURED "WET" OR "DRY" WITH CLOSED LOOP FEEDBACK
• PROGRESSIVE CONTROL BASED ON TIME, RPM, OR BOOST, REQUIRES PART # 554-111
• LEAN OR RICH SAFETY CUTOFF
• FULL TIMING RETARD/CONTROL CONFIGURABILITY PER STAGE BASED ON RPM OR TIME
• INTEGRATED WATER/METHANOL INJECTION CONTROL
• USES HOLLEY WATER/METH SOLENOIDS SPECIALLY DESIGNED AND CALIBRATED FOR USE WITH THIS EFI SYSTEM TO ALLOW THE USER TO ENTER WATER/METH FLOW AS A PERCENTAGE OF FUEL INJECTOR FLOW FOR WATER/METH TUBING.

NEW V2 SOFTWARE FEATURES:

• "QUICK START" IGNITION AND FUELING STRATEGY FOR LS X ENGINES
• DATA LOGGER. SCALABLE AXES, SMOOTHING, MULTIPLE GRAPH VIEW ABILITY, PRE-DEFINED NOTES FIELDS AND MANY MORE
• STRIP CHART REAL-TIME DATA VIEWER
• INTEGRATED BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR (TIME OR RPM), BOOST VS RPM, BOOST VS SPEED, LAUNCH CONTROL. BOOST LAUNCH BUILDER, OVER-BOOST SAFETIES, BOOST SCRAMBLE
• TRACTION CONTROL - POWER REDUCTION VIA TIMING, NITROUS PERCENTAGE OR BOOST (REQUIRES DAVIS TECHNOLOGIES HOLLEY MODULE)
• "QUICK START" FUELING FOR ALL ENGINES
• OPTION FOR VE BASED FUELING STRATEGY
• FUEL MAP AND LEARN FUNCTION SMOOTHING
• CONFIGURABLE USER PASSWORD PROTECTION
• FULLY CONFIGURABLE LAP TOP GAUGE PANEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THE CRANK & CAM SENSOR REQUIREMENTS HERE, THE HP EFI UNIVERSAL RETROFIT KIT INSTRUCTIONS HERE, THE EFI SELECTION CHART HERE, AND THE INJECTOR BUNG INSTALLATION INSTRUCTIONS HERE.
