TERMINATOR EFI FUEL KIT,LSX 24X,GRAY TB

BRAND NEW HOLLEY TERMINATOR LS TBI KIT THROTTLE BODY FUEL INJECTION SYSTEM, HARD CORE GRAY, 950 CFM, RANGE 600 HP, FITS FOR GM LS1/LS6 ENGINES & 1999-2007 4.8, 5.3 & 6.0L TRUCK ENGINES WITH 24X CRANK RELUCTOR

GET ALL THE GREAT FEATURES OF TERMINATOR THROTTLE BODY FUEL INJECTION SYSTEMS IN A BOLT-ON SYSTEM FOR GM POPULAR LS ENGINES! THESE SYSTEMS ARE DESIGNED SPECIFICALLY FOR LS ENGINES WITH CARBURETED STYLE INTAKE MANIFOLDS. ALL KITS INCLUDE THE POPULAR TERMINATOR EFI THROTTLE BODY FOR FUEL DELIVERY INTO THE INTAKE PLENUM, AS WELL AS THE NECESSARY WIRING TO PLUG DIRECTLY INTO THE FACTORY LS COIL SUB-HARNESSES AND FACTORY SENSORS.

FITS:

• GM LS1/LS6 ENGINES & 1999-2007 4.8,5.3 & 6.0L TRUCK ENGINES W/ 24X CRANK RELUCTOR & CARBURETED INTAKE MANIFOLDS

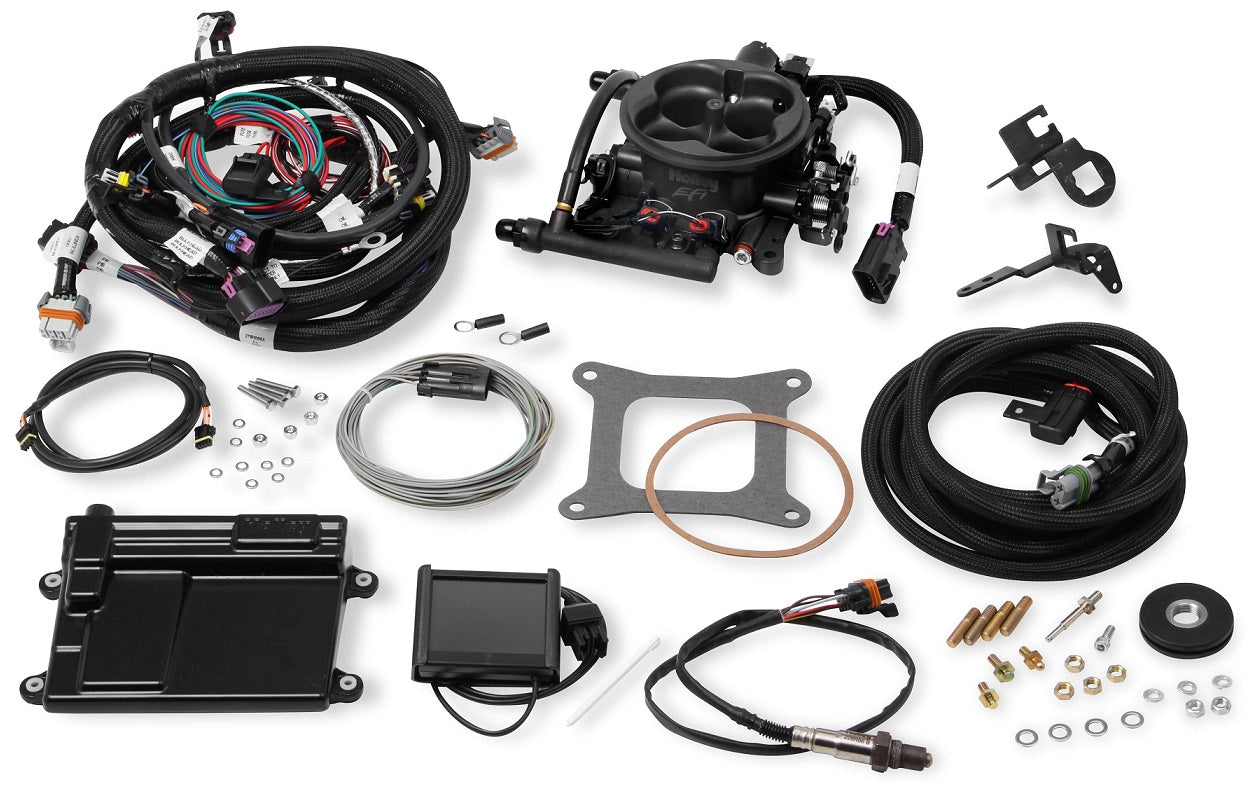

INCLUDES:

• THROTTLE BODY UNIT

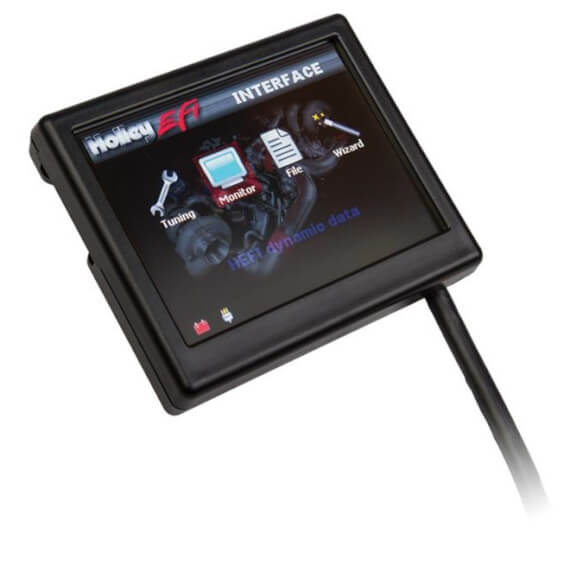

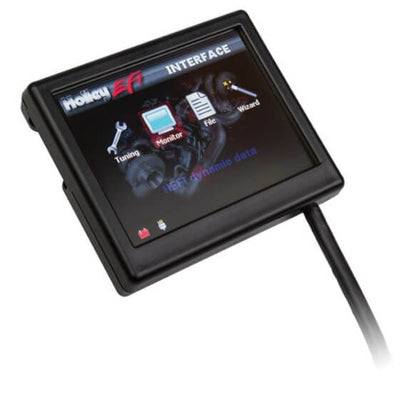

• 3.5" TOUCH SCREEN CONTROL UNIT
• WIRING TO PLUG DIRECTLY INTO FACTORY LS COIL SUB-HARNESS & SENSORS

SPECS:

• CFM: 950
• CRANK RELUCTOR: 24X
• EMISSION CODE: 3
• FINISH: HARD CORE GRAY
• FUEL PRESSURE: 43 PSI
• HEIGHT: 3"
• INJECTOR SIZE: 80 LBS./HR AT 43 PSI
• PRODUCT TYPE: TERMINATOR LS TBI KIT
• TERMINATOR LS OPTIONS: FUEL, SPARK
• THROTTLE BORE: 1.750"

FEATURES:

• HARD CORE GRAY ANODIZED FINISH FOR GREAT LOOKS & CORROSION PROTECTION
• INTERGRATED TRANSMISSION CONTROL WITH GM 4L60E, 4L65E & 4L80E
• FOR GM LS1/LS6 ENGINES & 1999-2007 4.8, 5.3 & 6.0L TRUCK ENGINES W/ 24X CRANK RELUCTOR & CARBURETED INTAKE MANIFOLDS
• PLUG AND PLAY WITH FACTORY SENSORS AND COIL SUB-HARNESSES
• BOSCH WIDEBAND OXYGEN SENSOR INCLUDED
• CONTROLS FUEL AND SPARK
• PRE-CALIBRATED FOR NO-HASSLE INSTALLATION & TUNING

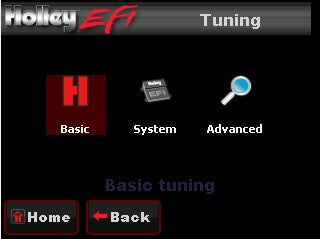

• FULLY ADJUSTABLE THROUGH INCLUDED 3.5" FULL COLOR TOUCHSCREEN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THE 4BBL THROTTLE BODY FUEL INJECTION SYSTEM HERE.
