TERMINATOR X MAX,GEN3 HEMI,LATE,EV6,DBW,06-12

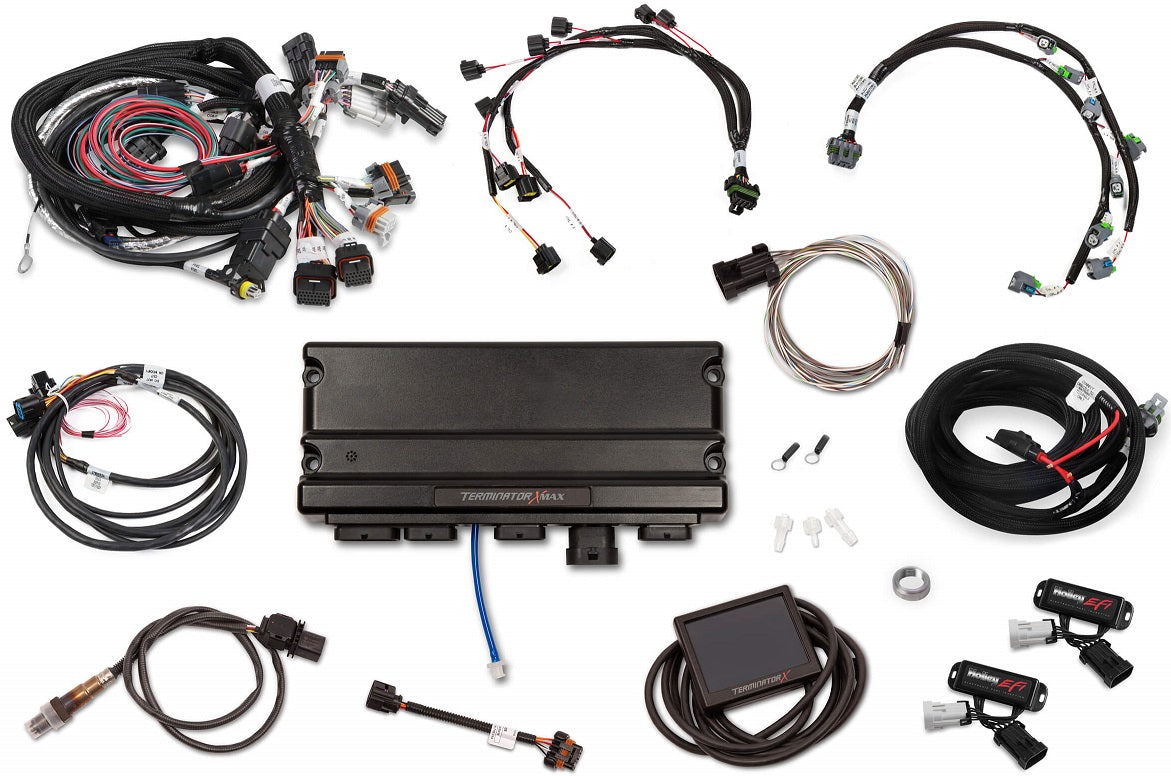

BRAND NEW HOLLEY TERMINATOR X MAX GEN III HEMI KIT, COMPATIBLE WITH 2007-2012 CHRYSLER GEN III HEMI ENGINES WITH EV6 INJECTORS & DRIVE-BY-WIRE THROTTLE BODY CONTROL

TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS/OUTPUTS. THE INPUTS/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. IT COMES FULLY LOADED WITH BASE MAPS FOR COMMON HEMI ENGINE COMBINATIONS, AND THE 3.5" TOUCH SCREEN LCD HANDHELD CONTAINS AN EASY TO USE CALIBRATION WIZARD & TUNING & GAUGE DISPLAY FUNCTIONS.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LED LIGHTS FACING UP.

FEATURES:

• PLUG & PLAY CHRYSLER GEN III HEMI CONTROL - 2003-2006 ENGINES LIKE 5.7L, 6.1L & 6.4L ENGINES UTILIZING THE FACTORY DBW (DRIVE BY WIRE) THROTTLE BODY. (NON-VVT ONLY)
• PLUG & PLAY COMPATIBLE W/ HOLLEY EFI ACCESSORIES - ANALOG GAUGES, SHIFT LIGHTS, MODULES & BOTH 6.86" & 12.3" PRO DASH
• EV6 INJECTOR HARNESS INCLUDED
• HIGH IMPEDANCE INJECTOR DRIVERS POWER HOLLEY EFI & MOST STOCK INJECTORS (WILL NOT SUPPORT LOW IMPEDANCE INJECTORS)
• BOSCH LSU 4.9 WIDEBAND O2 SENSORS FOR ACCURATE READINGS & PRECISE TUNING CONTROL
• BUILT IN 1-BAR MAP (MANIFOLD ABSOLUTE PRESSURE) SENSOR INCLUDED
• VACUUM HOSE ADAPTERS INCLUDED (1/8", 1/4" & 3/16" SIZES)
• 4 INPUTS - 12V, GROUND, 5V & FREQUENCY FOR ITEMS LIKE PRESSURE SENSORS, ACTIVATION TRIGGERS, NITROUS ACTIVATION OR TRANS BRAKE
• BOOST CONTROL - BOOST VS. TIME, BOOST VS. GEAR, BOOST VS. RPM, BOOST VS. SPEED & BOOST SAFETIES
• NITROUS CONTROL - CHANNELS FOR WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES & TARGET CLOSED LOOP AFR (AIR/FUEL RATIO)
• ADVANCED TABLES - ( 4X 1D TABLES, 1X 1D GEAR TABLE, 4X 2D TABLE & 1X 2D GEAR TABLES) FOR NEARLY UNLIMITED TABLE CONFIG OPTIONS
• ON-BOARD DIAGNOSTIC LEDS - ECU POWER, ENGINE RUN, TPS CALIBRATION, CAM SIGNAL. IDENTIFY CRITICAL ENGINE PARAMETERS AT A GLANCE
• 3.5" TOUCHSCREEN HANDHELD INCLUDED - INTERNAL DATA-LOGGING, CUSTOM GAUGE DISPLAY & CALIBRATION WIZARD ALLOW QUICK BUILDING BASES TUNES FOR ANY DOMESTIC V8 ENGINE
• COMPACT ECU (ENGINE CONTROL UNIT) AT ONLY 7.45" X 4.1" X 1.66" THE COMPACT PACKAGING ALLOWS MANY MOUNTING OPTIONS (XMAX ECU = 9.6" X 4.1" X 1.66")
• FREE EFI TUNING SOFTWARE

SPECS:

• BRAND: HOLLEY EFI
• EMISSION CODE: 3
• INJECTOR CONNECTOR: USCAR (EV6)
• PRODUCT TYPE: TERMINATOR X GEN III HEMI KIT

YOU CAN VIEW AND DOWNLOAD THE QUICKSTART INSTRUCTIONS HERE, AND THE HARNESS INSTRUCTIONS HERE.
