TERMINATOR X ECU,11-12 COYOTE,TI-VCT,EV6

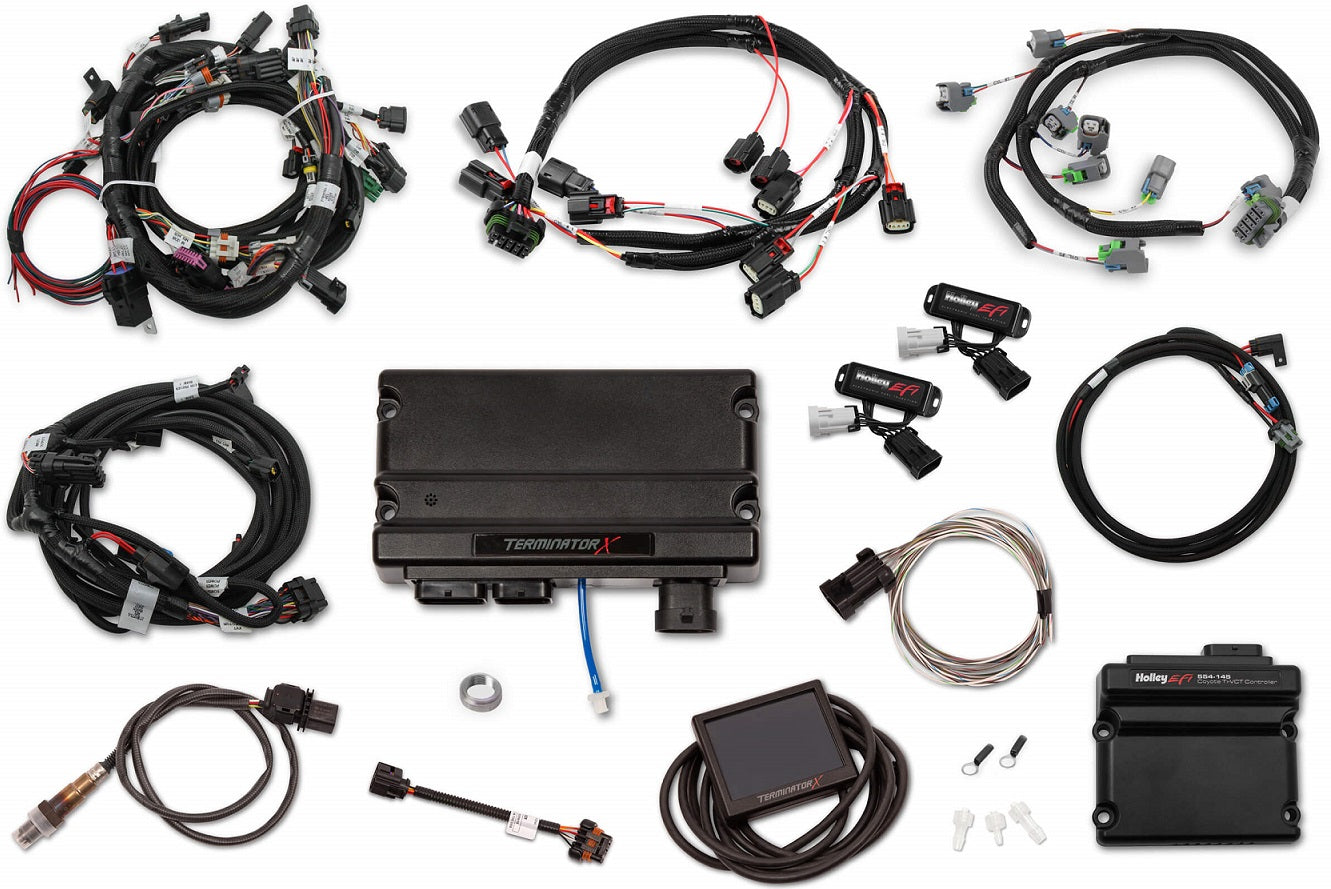

BRAND NEW HOLLEY TERMINATOR MPFI KIT, COMPATIBLE WITH 2011-12 FORD COYOTE ENGINES WITH TI-VCT & EV6 INJECTORS

TERMINATOR X & X MAX COYOTE SYSTEMS SUPPORTS FORD COYOTE PLATFORM WITH TI-VCT. TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, INTEGRATED 1BAR MAP SENSOR, AND 4 PROGRAMMABLE INPUTS AND OUTPUTS. THESE ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE.

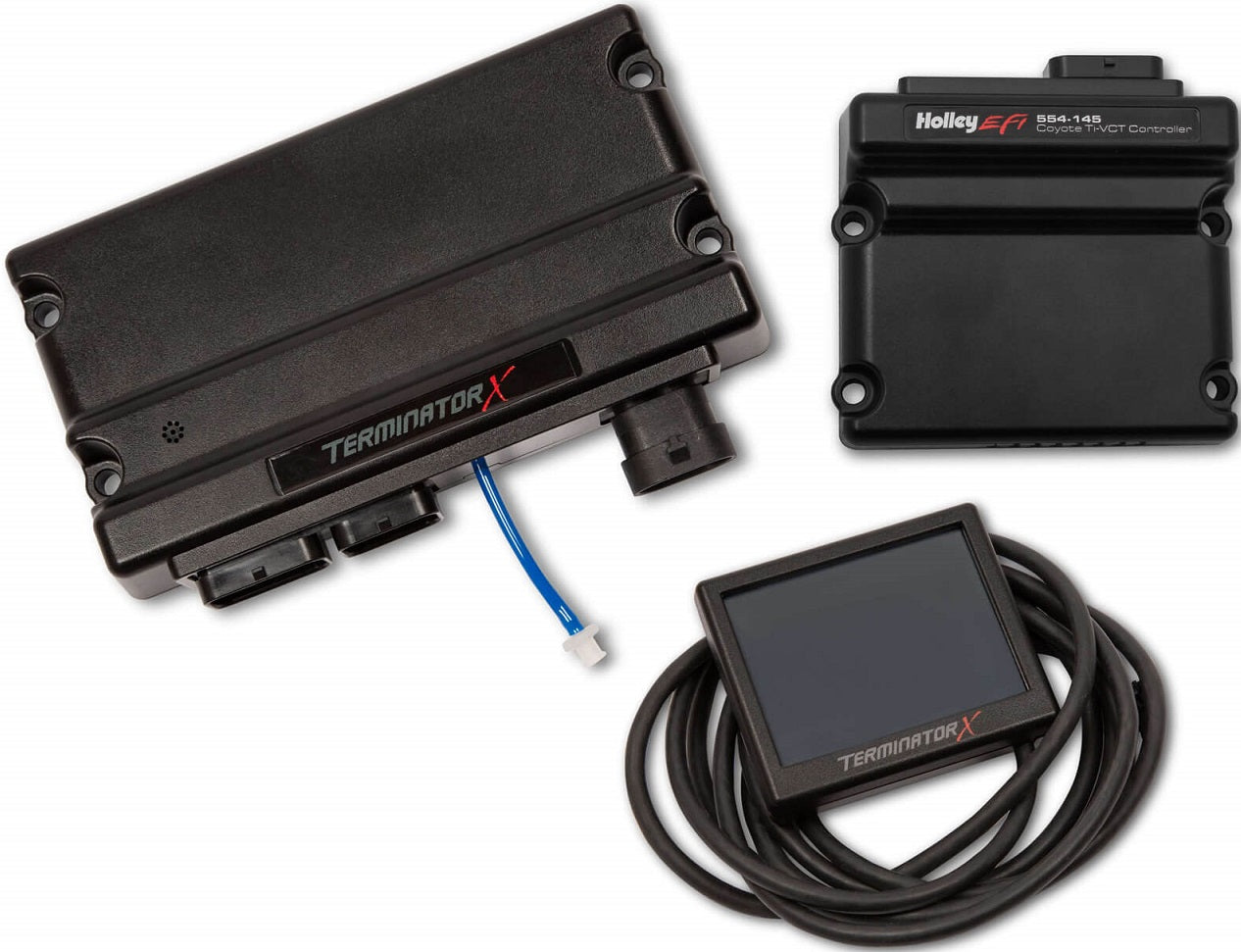

TERMINATOR X ECU COMES FULLY LOADED WITH BASE MAPS FOR COMMON COYOTE ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE AND ON THE ROAD/TRACK FAST. THE INCLUDED 3.5" LCD TOUCH SCREEN HANDHELD CONTAINS AN EASY TO USE CALIBRATION WIZARD AS WELL AS TUNING AND GAUGE DISPLAY FUNCTIONS. INCLUDED WITH THE TERMINATOR X IS HOLLEY EFI INDUSTRY LEADING SUPPORT, EASY TO USE SOFTWARE SUITE THAT ALLOWS FULL LAPTOP ACCESS/COMPATIBILITY FOR ADVANCE USERS.

THE TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LEDS FACING UP.

FEATURES:

• PLUG & PLAY ENGINE CONTROL (FOR FORD 5.0L COYOTE WITH TI-VCT (TWIN INDEPENDENT VARIABLE CAMSHAFT TIMING)
• PLUG & PLAY COMPATIBLE WITH HOLLEY EFI ACCESSORIES - ANALOG GAUGES, SHIFT LIGHTS, MODULES & BOTH 6.86" & 12.3" PRO DASH
• EV1 OR EV6 INJECTOR HARNESS INCLUDED
• HIGH IMPEDANCE INJECTOR DRIVERS POWER HOLLEY EFI & MOST STOCK INJECTORS
• BOSCH LSU 4.9 WIDEBAND O2 SENSORS FOR ACCURATE READINGS & PRECISE TUNING CONTROL
• BUILT IN 1-BAR MAP (MANIFOLD ABSOLUTE PRESSURE) SENSOR INCLUDED
• VACUUM HOSE ADAPTERS INCLUDED - (1/8", 1/4" & 3/16" SIZES)
• 4 INPUTS - 12V, GROUND, 5V & FREQUENCY FOR ITEMS LIKE PRESSURE SENSORS, ACTIVATION TRIGGERS, NITROUS ACTIVATION, OR TRANS BRAKE
• BOOST CONTROL - BOOST VS. TIME, BOOST VS. GEAR, BOOST VS. RPM, BOOST VS. SPEED & BOOST SAFETIES NITROUS CONTROL - CHANNELS FOR WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES & TARGET CLOSED LOOP AFR (AIR/FUEL RATIO)
• ADVANCED TABLES - ( 4X 1D TABLES, 1X 1D GEAR TABLE, 4X 2D TABLE & 1X 2D GEAR TABLES) FOR NEARLY UNLIMITED TABLE CONFIGURATION OPTIONS
• ON-BOARD DIAGNOSTIC LEDS - ECU POWER, ENGINE RUN, TPS CALIBRATION, CAM SIGNAL. IDENTIFY CRITICAL ENGINE PARAMETERS AT A GLANCE
• 3.5" TOUCHSCREEN HANDHELD INCLUDED - INTERNAL DATA-LOGGING, CUSTOM GAUGE DISPLAY & CALIBRATION WIZARD ALLOW QUICK BUILDING BASES TUNES FOR ANY DOMESTIC V8 ENGINE
• COMPACT ECU (ENGINE CONTROL UNIT) AT ONLY 7.45" X 4.1" X 1.66" THE COMPACT PACKAGING ALLOWS MOUNTING VIRTUALLY ANYWHERE (XMAX ECU = 9.6" X 4.1" X 1.66")
• FREE EFI TUNING SOFTWARE

SPECS:

• INJECTOR CONNECTOR: USCAR (EV6)
• PRODUCT TYPE: TERMINATOR X FORD MPFI KIT

YOU CAN VIEW AND DOWNLOAD THE QUICK START INSTRUCTIONS HERE, THE HARNESS INSTRUCTIONS HERE, AND THE CONTROLLER INSTRUCTIONS HERE.
