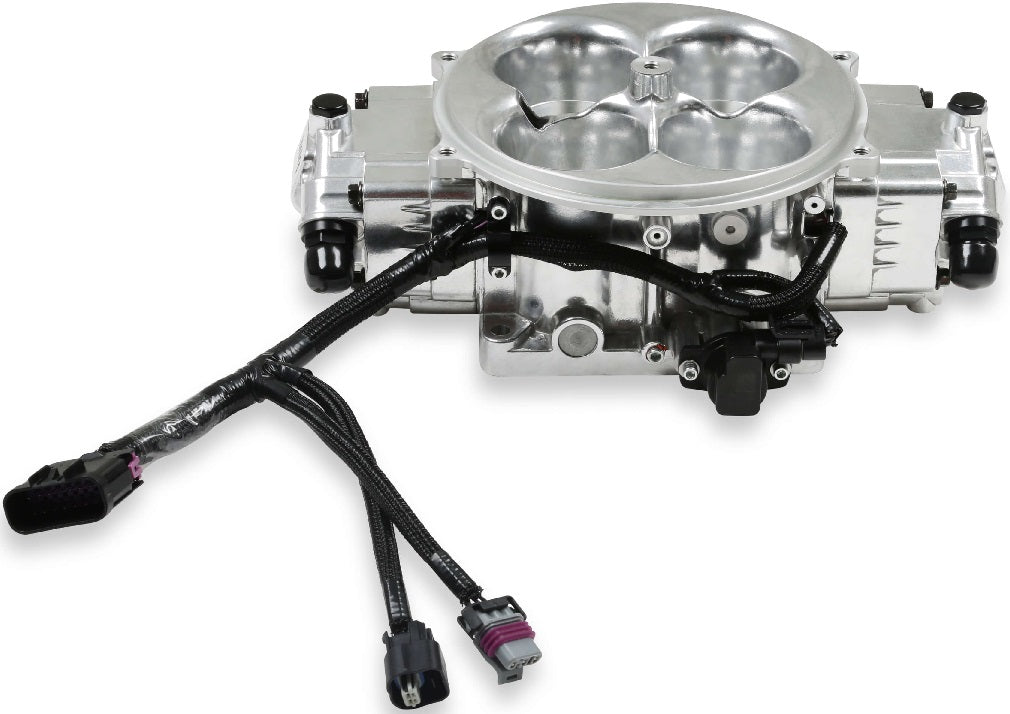

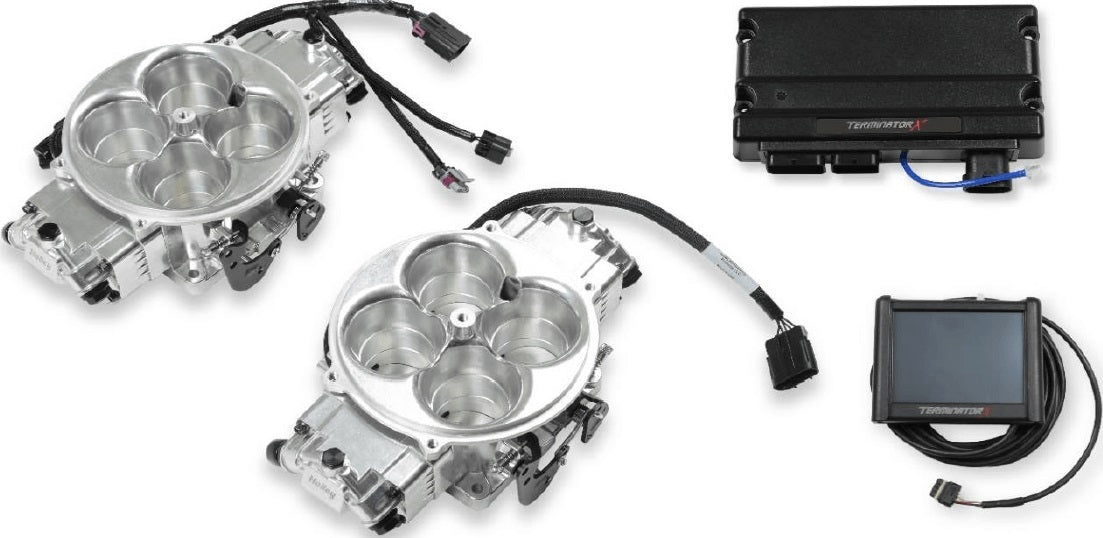

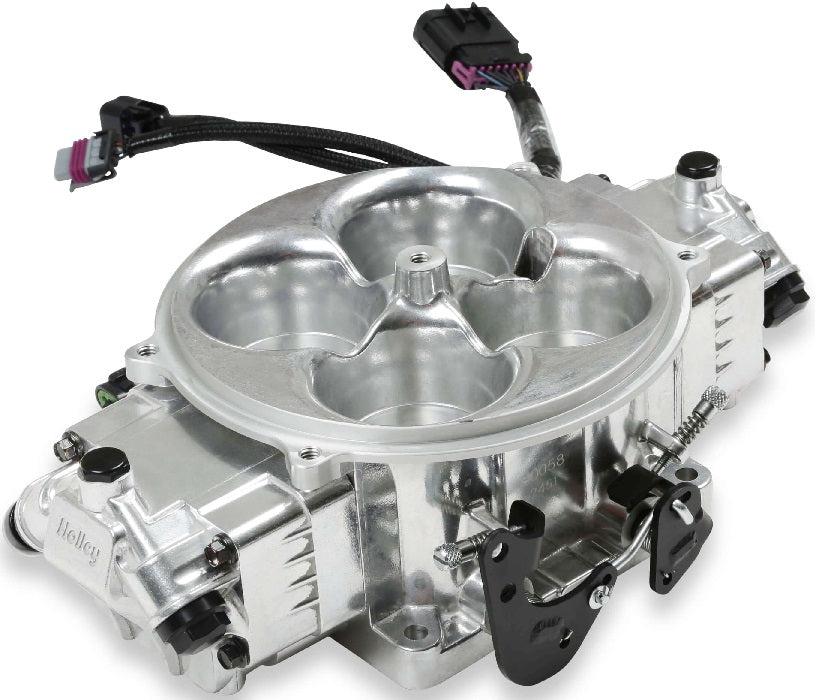

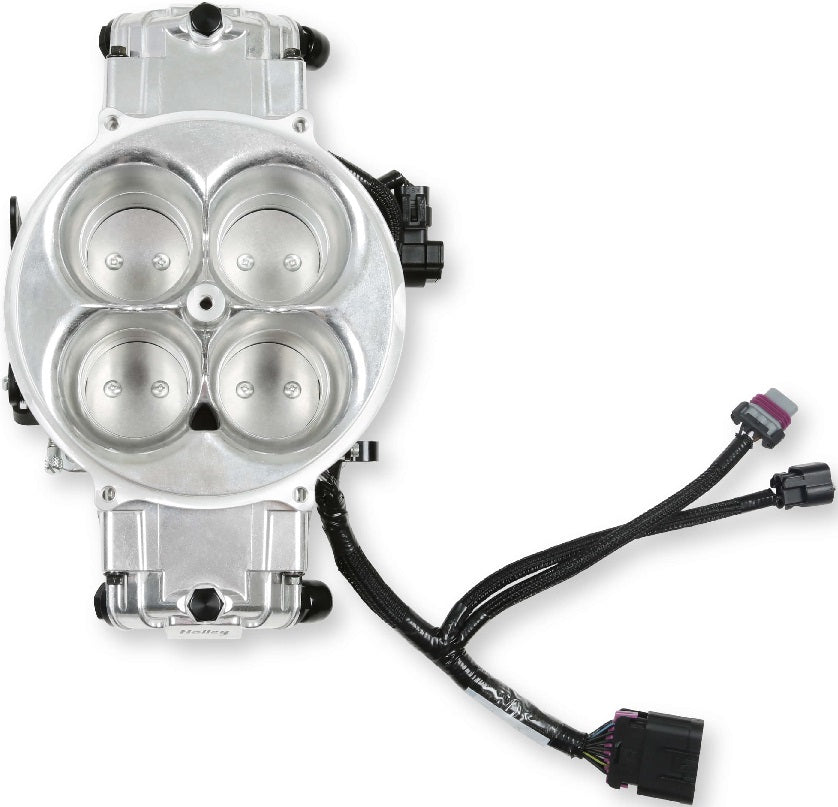

TERMINATOR X STEALTH 4500X2,8 INJ,SHINY

BRAND NEW HOLLEY SNIPER EFI TERMINATOR X STEALTH 2X4 4500 KIT, SHINY FINISH, 1440 CFM, 8 AN INLET/OUTLET, 8 INJECTOR, 800-1500 HORSEPOWER

TERMINATOR X STEALTH 4500 2X4 EFI SYSTEMS FROM HOLLEY FEATURES 8, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 1500 HP NATURALLY ASPIRATED OR 1250 HP ON FORCED INDUCTION APPLICATIONS.

TERMINATOR X IS CAPABLE OF FUEL MAP SELF-LEARNING AND IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY, AND WIDE-OPEN THROTTLE HORSEPOWER! DESIGNED TO FIT WITH GEN 3 ULTRA DOMINATOR AIR CLEANERS AND FUEL CROSSOVERS, ALLOWING YOU TO EASILY CONVERT YOUR 4500 EQUIPPED 800+ HORSEPOWER DRAGSTER OR DOOR CAR!

NOTE: NOT FOR USE WITH ENGINES PRODUCING LESS THAN 800 HP.

NOTE: GASOLINE ONLY; USE OF LEADED RACE FUELS MAY SHORTEN THE SERVICE LIFE OF WBO2 SENSOR.

FEATURES:

• BOLT ON 4500 FLANGE CARBURETOR REPLACEMENT FOR 2X4 INTAKE MANIFOLDS
• SUPPORTS UP TO 1500 HP NATURALLY ASPIRATED OR 1250 HP FORCED INDUCTION WITH 8 - 100 LB/HR INJECTORS
• 2.125" THROTTLE PLATES, FLOW 1440 CFM EACH FOR LARGE CUBIC INCH ENGINES
• GEN 3 ULTRA DOMINATOR STYLE 4 BOLT AIR CLEANER FLANGE OFFERING A VARIETY OF AIR CLEANER OPTIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED(PART #12-848)
• THROTTLE LINKAGE NOT INCLUDED
• EACH THROTTLE BODY CONTAINS 4X 100LB/HR FUEL INJECTORS
• UNIVERSAL ENGINE HARNESS ALLOWS YOU TO EASILY INSTALL THE TERMINATOR X 2X4 4500 SYSTEM ON A WIDE VARIETY OF ENGINE COMBINATIONS
• TIMING CONTROL SUPPORT INTEGRATED USING SUPPORTING COMPONENTS (DISTRIBUTOR, IGNITION BOX, OR CRANK TRIGGER)
• HIGH RES FULL COLOR TOUCHSCREEN FOR INITIAL SETUP & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD, CREATES THE BASE MAP
• GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN!
• WELD-IN O2 SENSOR BUNG FOR THE EXHAUST ENSURES LEAK FREE OXYGEN SENSOR INSTALLATION
• PLUG AND PLAY WITH HOLLEY EFI ACCESSORIES, SUCH AS 12.3" & 6.86" PRO DASH, CAN EGT & DIGITAL ANALOG STYLE EFI GAUGES

SPECS:

• CFM: 1440
• FINISH: SHINY
• FLANGE STYLE: 4500
• FUEL PRESSURE: 58.5 PSI
• HEIGHT: 3.85"
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• INLET / OUTLET SIZE: 8AN
• MAP SENSOR: 1BAR
• MAX HP RATING: 1250 FORCED INDUCTION | 1500 NATURALLY ASPIRATED
• PRODUCT TYPE: TERMINATOR STEALTH 2X4
• THROTTLE BORE: 2.125"
