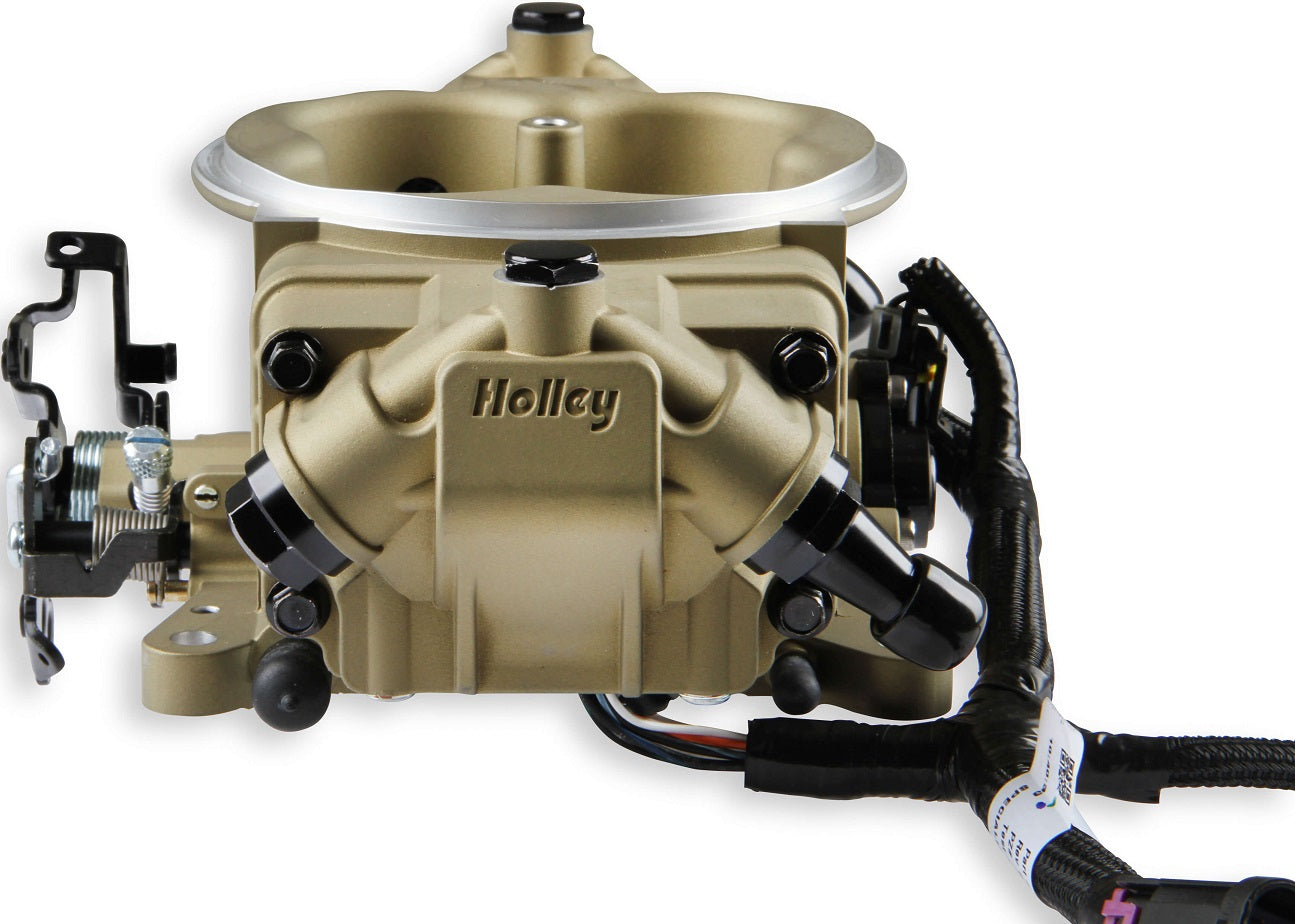

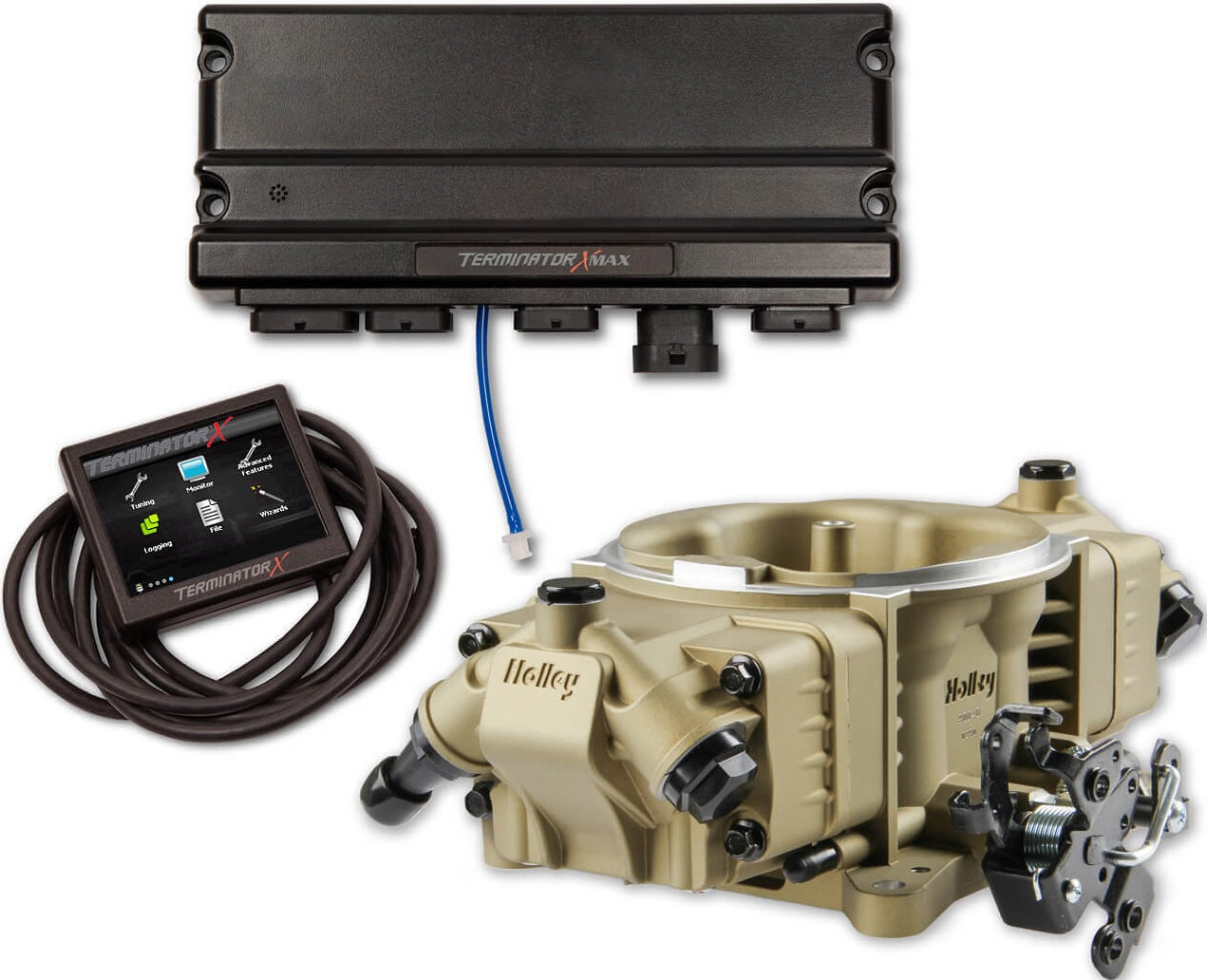

TERMINATOR XMAX STEALTH,4150,4INJ,58X,TRANSMISSION,GOLD

BRAND NEW HOLLEY EFI TERMINATOR X MAX STEALTH 4150, GOLD FINISH, 58X CRANK, TRANSMISSION CONTROL, 650 HP, 3.5" TOUCHSCREEN, COMPATIBLE WITH GM LS ENGINES

THE TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4 - 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. FEATURES FUEL MAPS THAT SELF-LEARN & INTEGRATED IGNITION TIMING CONTROL, YIELDING IMPROVED IDLE STABILITY, DRIVABILITY & HORSEPOWER AT WIDE-OPEN THROTTLE!

ALSO INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 & FORD C4/C6 APPLICATIONS. TERMINATOR X MAX KITS PROVIDE PLUG & PLAY TRANSMISSION CONTROL FOR GM 4L60 & 4L80 TRANSMISSIONS.

FEATURES:

• SUPPORTS UP TO 650HP WITH FOUR 100LB./HR. INJECTORS
• INTERNAL 1BAR MAP SENSOR, BUILT INTO THE TERMINATOR X ECU
• ALL OF THE WIRING EXITS BELOW THE FUEL INJECTOR BOWLS, FOR A COMPLETELY STEALTH INSTALLATION
• AIR ENTRY MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI
• INTEGRATED IGNITION TIMING CONTROL - PLUG & PLAY WITH FACTORY LS COIL SUB HARNESS & OEM LS COILS - NO EXTERNAL BOXES/MODULES NEEDED TO RUN COIL NEAR PLUG
• HIGH RES FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
• SELF-TUNING ECU
• 4 INPUTS - 12V, GROUND, 5V & FREQUENCY
• 4 OUTPUTS
• BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
• OEM STYLE TPS/IAC
• COMPATIBLE WITH HOLLEY EFI DIGITAL DASHES, GAUGES & FUEL SYSTEM ACCESSORIES

SPECS:

• BRAND: HOLLEY EFI
• COLOR: GOLD
• IGNITION TYPE: GM LS 58X
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM
• TERMINATOR LS OPTIONS: FUEL, SPARK, TRANSMISSION

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI SYSTEM HERE.
