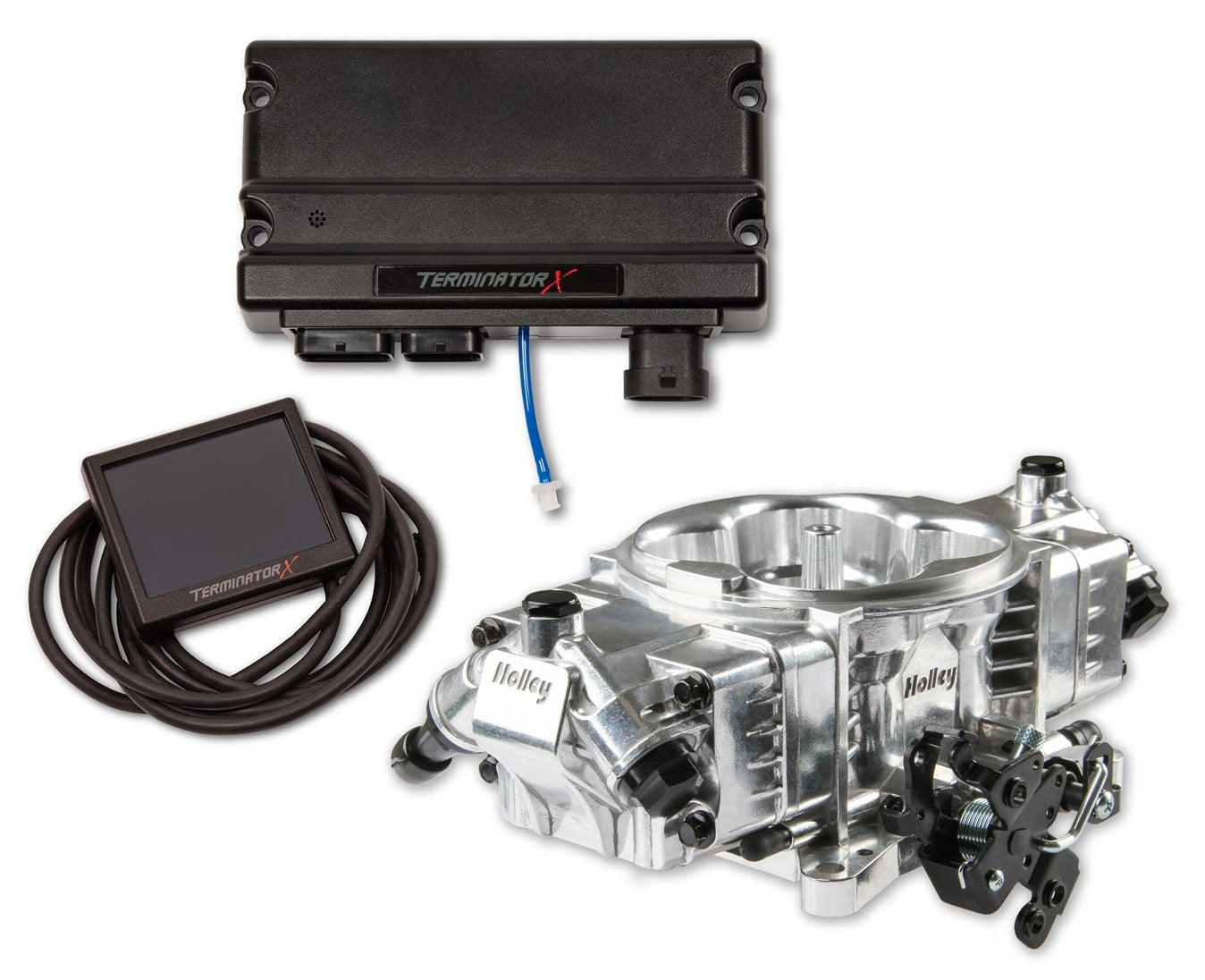

TERMINATOR X,STEALTH 4150,24X CRANK,SHINY

BRAND HOLLEY TERMINATOR EFI X STEALTH GM LS 4150, SHINY FINISH, 4 INJECTORS, 24X CRANK, 650 HP (PART # 550-1020)

THE TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. THE TERMINATOR X ECU FEATURES FUEL MAPS THAT SELF-LEARN AND INTEGRATED IGNITION TIMING CONTROL, YIELDING IMPROVED IDLE STABILITY, DRIVABILITY, AND HORSEPOWER AT WIDE-OPEN THROTTLE! DID WE MENTION THAT THE STEALTH 4150 ALSO INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 AND FORD C4/C6 APPLICATIONS? TERMINATOR X MAX KITS PROVIDE PLUG AND PLAY TRANSMISSION CONTROL FOR GM 4L60 AND 4L80 TRANSMISSIONS.

FEATURES:

• TERMINATOR X STEALTH 4150 KITS FOR 24X LS ENGINES
• SUPPORTS UP TO 650HP WITH FOUR 100LB./HR. INJECTORS
• TERMINATOR X MAX KITS PROVIDE PLUG AND PLAY TRANSMISSION CONTROL FOR GM TRANSMISSIONS
• INTERNAL 1BAR MAP SENSOR, BUILT INTO THE TERMINATOR X ECU.
• ALL OF THE WIRING EXITS BELOW THE FUEL INJECTOR BOWLS, FOR A COMPLETELY STEALTH INSTALLATION
• AIR ENTRY MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI, SUCH AS 12-886
• INTEGRATED IGNITION TIMING CONTROL - PLUG AND PLAY WITH FACTORY LS COIL SUB HARNESS AND OEM LS COILS - NO EXTERNAL BOXES/MODULES NEEDED TO RUN COIL NEAR PLUG
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING, AND GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD (ANSWER A FEW QUESTIONS ABOUT YOUR ENGINE AND IT CREATES THE BASE MAP, THEN STARTS TUNING ON ITS OWN!) - NO LAPTOP REQUIRED!
• SELF-TUNING ECU MEANS YOU DONT HAVE TO BE A COMPUTER/TUNING WIZ TO HAVE EFI!
• 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE (FUEL AND OIL PRESSURE INPUTS ARE PRE-TERMINATED)
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT, AND MORE
• THE INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN!
• OEM STYLE TPS/IAC, FOR YEARS OF DEPENDABLE SERVICE
• COMPATIBLE WITH HOLLEY EFI DIGITAL DASHES, GAUGES AND FUEL SYSTEM ACCESSORIES

SPECS:

• BRAND: HOLLEY EFI
• COLOR: SHINY
• IGNITION TYPE: GM LS 24X
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTION BOOKLET HERE.
