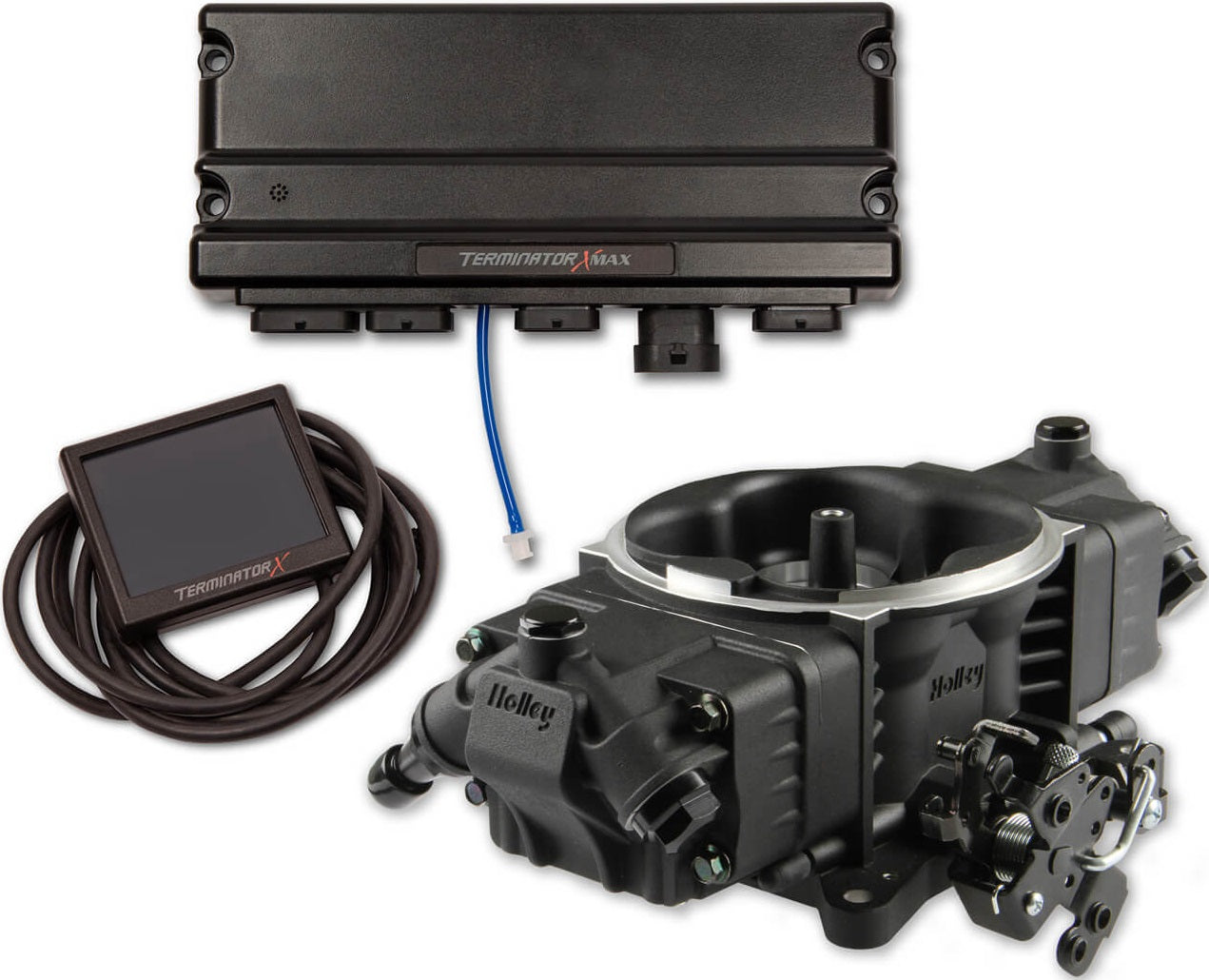

TERMINATOR X MAX STEALTH 4150,1250HP,8INJ,TRANSMISSION,BLACK

BRAND NEW TERMINATOR X MAX STEALTH 4150 EFI SYSTEM, BLACK, COMPATIBLE WITH PRE-2009 GM 4L60E/4L80E TRANSMISSIONS

THE TERMINATOR X MAX STEALTH 4150 1250HP EFI SYSTEM FROM HOLLEY FEATURES 8, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 1250 HP ON FORCED INDUCTION APPLICATIONS. THE SYSTEM IS CAPABLE OF FUEL MAP SELF-LEARNING & IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY & WIDE-OPEN THROTTLE HORSEPOWER! TERMINATOR X MAX STEALTH 4150 KITS PROVIDE TRANSMISSION CONTROL FOR PRE-2009 GM 4L60E/4L80E TRANSMISSIONS.

FEATURES:

• BOLT ON 4150 FLANGE CARBURETOR REPLACEMENT
• SUPPORTS UP TO 1250HP WITH 8 - 100LB/HR INJECTORS
• INCLUDES HIGH PRESSURE FUEL CROSSOVER LINE
• ALL OF THE WIRING EXITS BELOW THE REAR FUEL INJECTOR COVER
• TIMED SPARK PART FOR VACUUM ADVANCED DISTRIBUTORS LOCATED UNDER THE FRONT FUEL BOWL, FOR EASY ACCESS TO THE DISTRIBUTOR
• AIR ENTRY IS MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI
• INTEGRATED IGNITION TIMING CONTROL IMPROVES IDLE STABILITY, FUEL ECONOMY & WIDE OPEN THROTTLE PERFORMANCE
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
• GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
• OEM STYLE TPS/IAC

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 1250 FORCED INDUCTION / 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE QUICK START GUIDE FOR THIS FUEL INJECTION SYSTEM HERE.
