TERMINATOR X MAX STEALTH 4150,650HP,4INJ,TRANSMISSION,GOLD

TERMINATOR X MAX STEALTH 4150,650HP,4INJ,TRANSMISSION,GOLD

SKU:HOL 550-1013

Regular price $2,471.95
Regular price Sale price $2,471.95
View full details

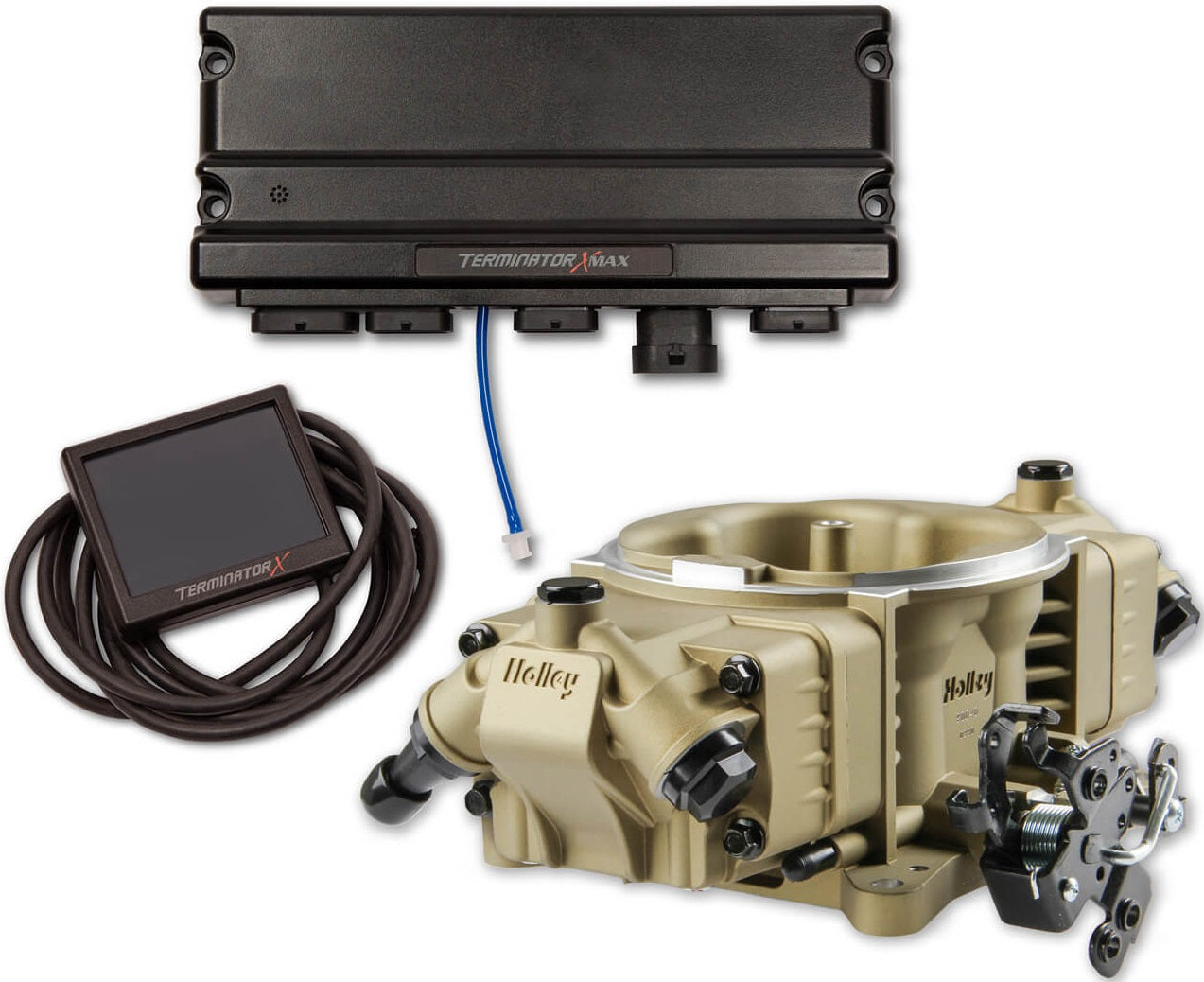

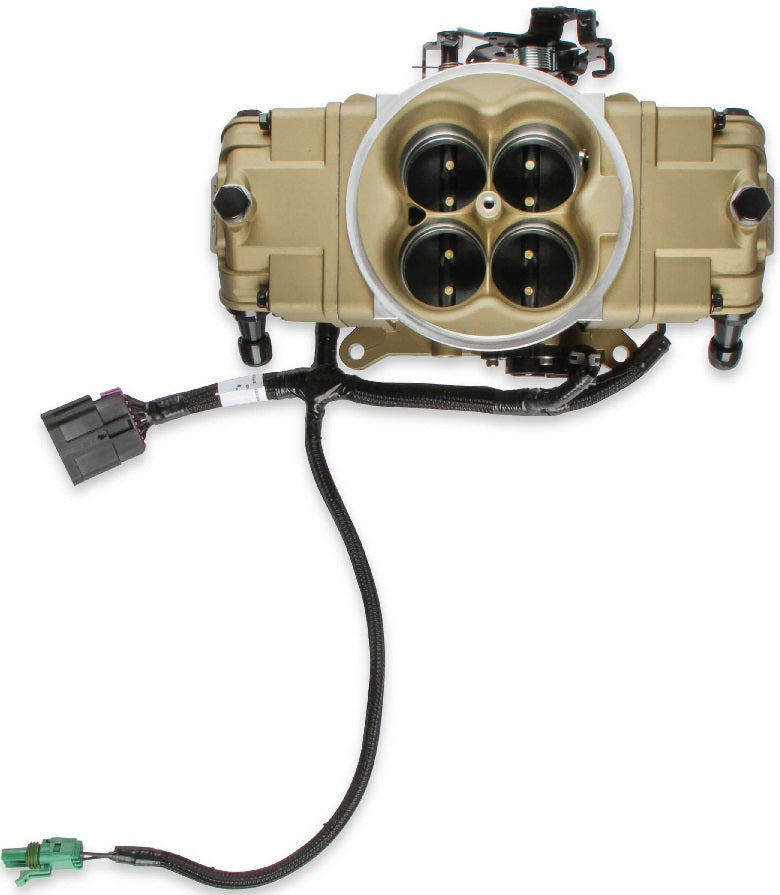

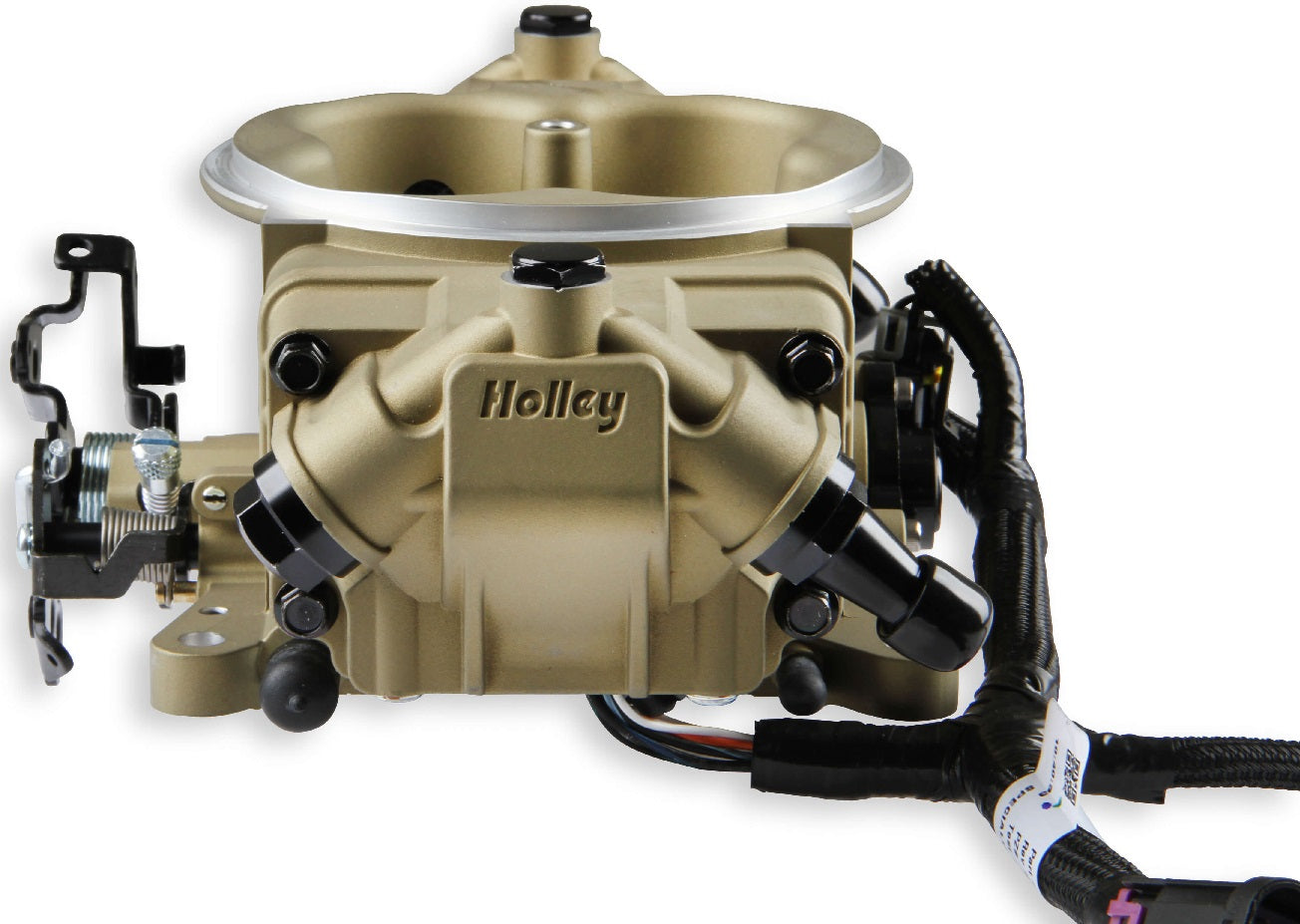

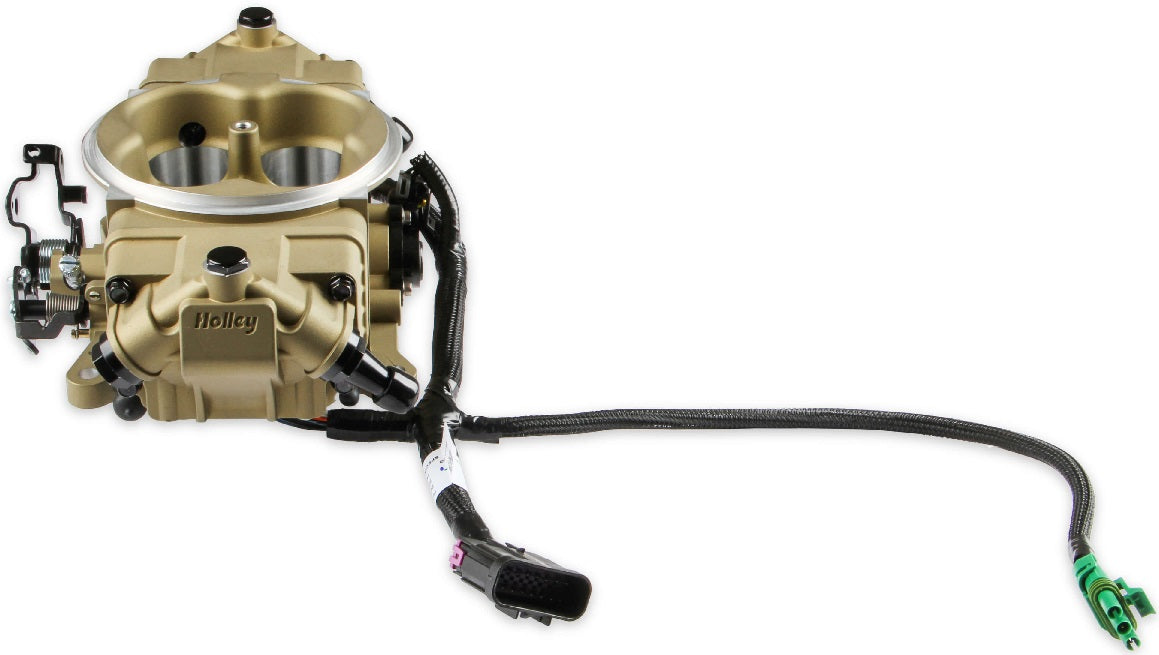

BRAND NEW HOLLEY TERMINATOR X STEALTH 4150 EFI SYSTEM WITH TRANSMISSION CONTROL, GOLD, 650 HP, COMPATIBLE WITH PRE-2009 GM 4L60E/4L80E TRANSMISSIONS

TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4 - 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. IT IS CAPABLE OF FUEL MAP SELF-LEARNING & IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY & WIDE-OPEN THROTTLE HORSEPOWER!

IT ALSO INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 & FORD C4/C6 APPLICATIONS. THIS KIT PROVIDES TRANSMISSION CONTROL FOR PRE-2009 GM 4L60E/4L80E TRANSMISSIONS (PART NUMBERS 550-1011, 550-1012, 550-1013)

FEATURES:

  • BOLT ON 4150 FLANGE CARBURETOR REPLACEMENT
  • SUPPORTS UP TO 650HP WITH 4 - 100LB/HR INJECTORS
  • PROVIDE TRANSMISSION CONTROL FOR PRE-2009 GM 4L60E/4L80E TRANSMISSIONS (PART # 550-1011, 550-1012,550-1013)
  • INCLUDES HIGH PRESSURE FUEL CROSSOVER LINE
  • ALL WIRING EXITS BELOW THE REAR FUEL INJECTOR COVER, FOR A COMPLETE STEALTH INSTALL
  • TIMED SPARK PORT FOR VACUUM ADVANCED DISTRIBUTORS LOCATED UNDER THE FRONT FUEL BOWL, FOR EASY ACCESS TO THE DISTRIBUTOR
  • AIR ENTRY IS MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
  • EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI, LIKE HOLLEY PART # 12-886
  • INTEGRATED IGNITION TIMING CONTROL IMPROVES IDLE STABILITY, FUEL ECONOMY & WIDE OPEN THROTTLE PERFORMANCE
  • HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
  • SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
  • INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
  • OEM STYLE TPS/IAC

SPECS:

  • BRAND: HOLLEY EFI
  • COLOR: GOLD
  • INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
  • MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
  • PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE QUICK START INSTRUCTION BOOKLETS FOR THIS EFI SYSTEM HERE.
