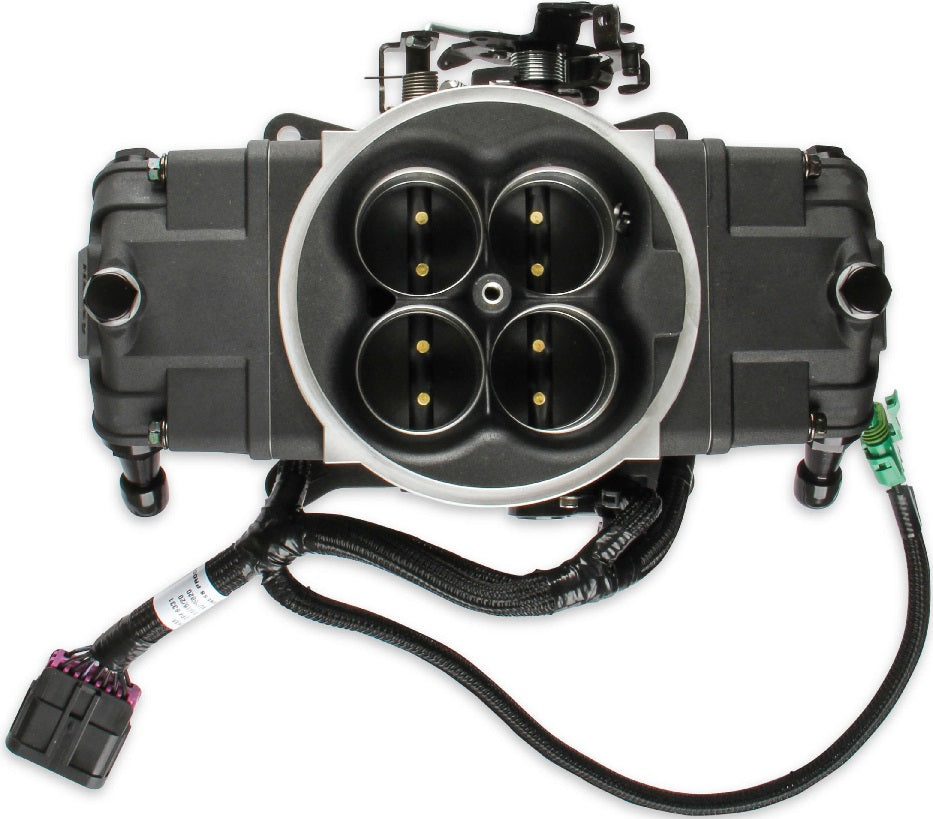

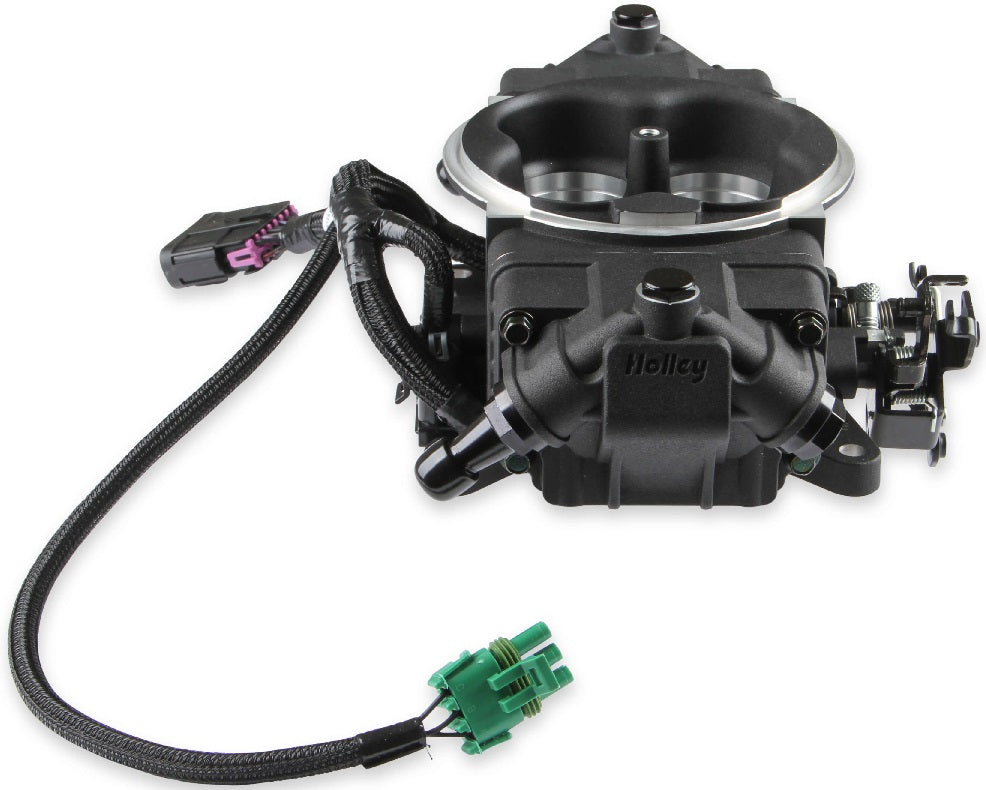

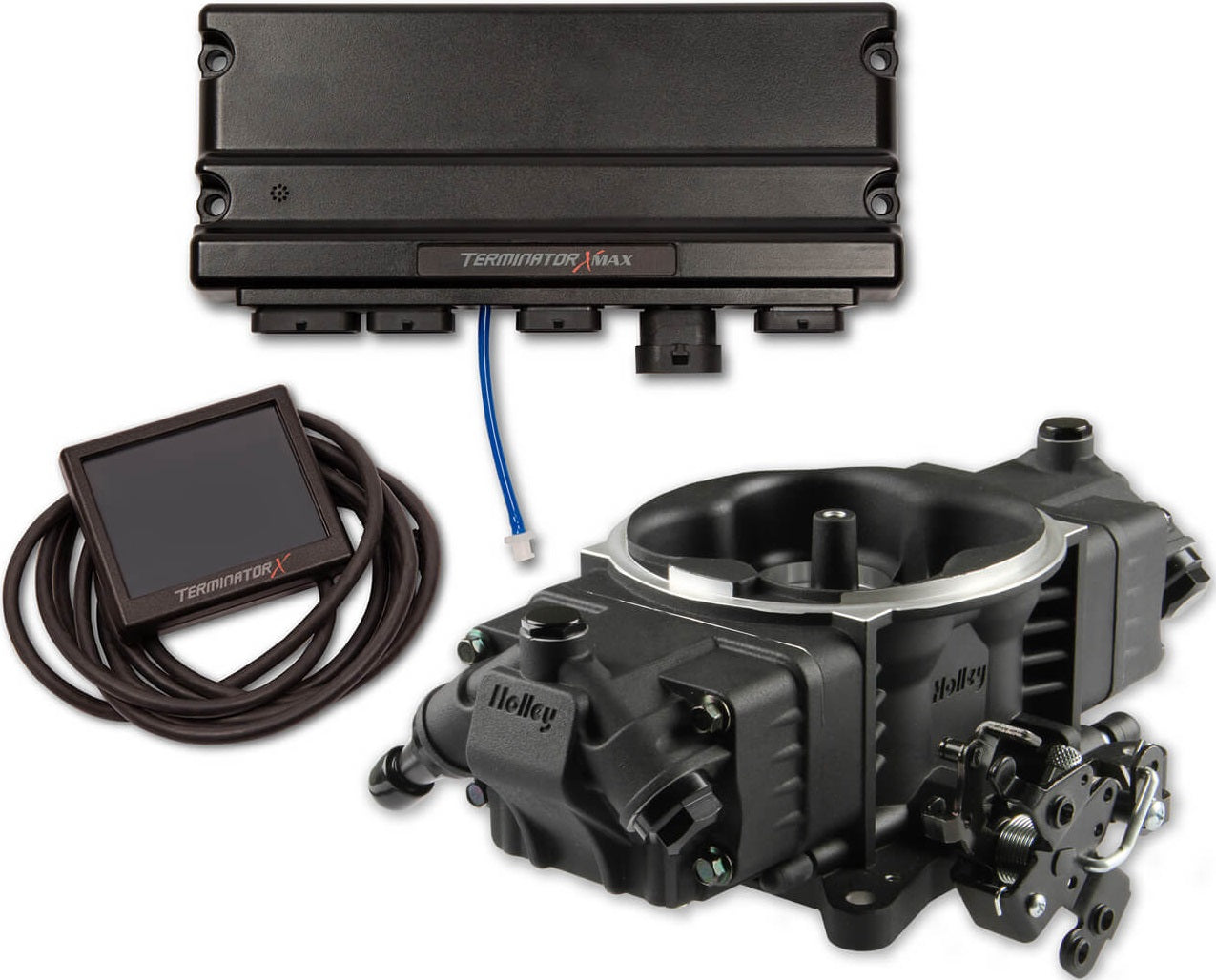

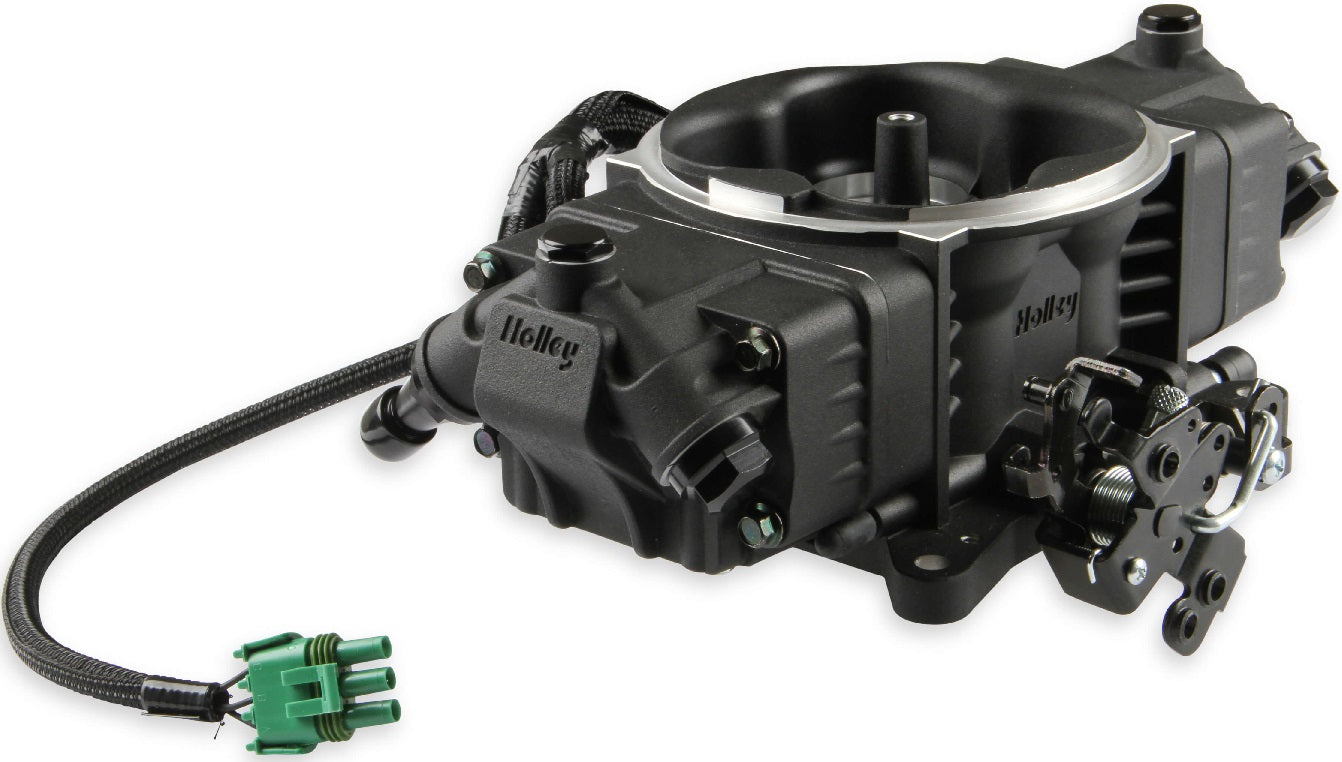

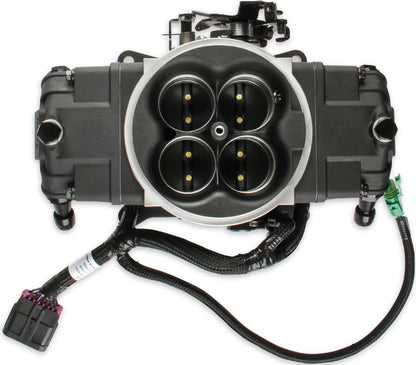

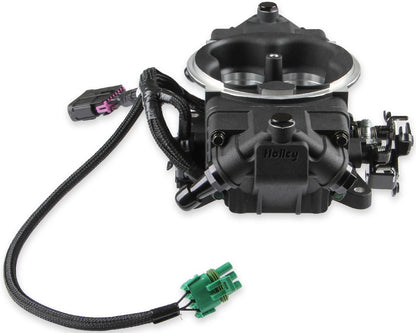

TERMINATOR X MAX STEALTH 4150,650HP,4INJ,TRANSMISSION,BLACK

BRAND NEW HOLLEY TERMINATOR X STEALTH 4150 EFI SYSTEM WITH TRANSMISSION CONTROL, BLACK, 650 HP, COMPATIBLE WITH PRE-2009 GM 4L60E/4L80E TRANSMISSIONS

TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4 - 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. IT IS CAPABLE OF FUEL MAP SELF-LEARNING & IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY & WIDE-OPEN THROTTLE HORSEPOWER!

IT ALSO INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 & FORD C4/C6 APPLICATIONS. THIS KIT PROVIDES TRANSMISSION CONTROL FOR PRE-2009 GM 4L60E/4L80E TRANSMISSIONS (PART NUMBERS 550-1011, 550-1012, 550-1013)

FEATURES:

• BOLT ON 4150 FLANGE CARBURETOR REPLACEMENT
• SUPPORTS UP TO 650HP WITH 4 - 100LB/HR INJECTORS
• PROVIDE TRANSMISSION CONTROL FOR PRE-2009 GM 4L60E/4L80E TRANSMISSIONS (PART # 550-1011, 550-1012,550-1013)
• INCLUDES HIGH PRESSURE FUEL CROSSOVER LINE
• ALL WIRING EXITS BELOW THE REAR FUEL INJECTOR COVER, FOR A COMPLETE STEALTH INSTALL
• TIMED SPARK PORT FOR VACUUM ADVANCED DISTRIBUTORS LOCATED UNDER THE FRONT FUEL BOWL, FOR EASY ACCESS TO THE DISTRIBUTOR
• AIR ENTRY IS MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI, LIKE HOLLEY PART # 12-886
• INTEGRATED IGNITION TIMING CONTROL IMPROVES IDLE STABILITY, FUEL ECONOMY & WIDE OPEN THROTTLE PERFORMANCE
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
• INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
• OEM STYLE TPS/IAC

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE QUICK START INSTRUCTION BOOKLETS FOR THIS EFI SYSTEM HERE.
