FUEL RAIL KIT,FORD 7.3 GODZILLA,W/PLUMBING

BRAND NEW HOLLEY BILLET FUEL RAIL AND PLUMBING KIT, BLACK FINISH, COMPATIBLE WITH FORD 7.3L GODZILLA ENGINES

THE NEW HI-FLOW BILLET FUEL RAILS ARE A DIRECT FIT FOR THE FORD 7.3L GODZILLA ENGINES. THE FUEL RAILS FEATURE A 5/8" DIAMETER FUEL PASSAGE THAT PROVIDES MORE FLOW CAPACITY FOR HIGH HORSEPOWER APPLICATIONS OVER THE STOCK RAILS.

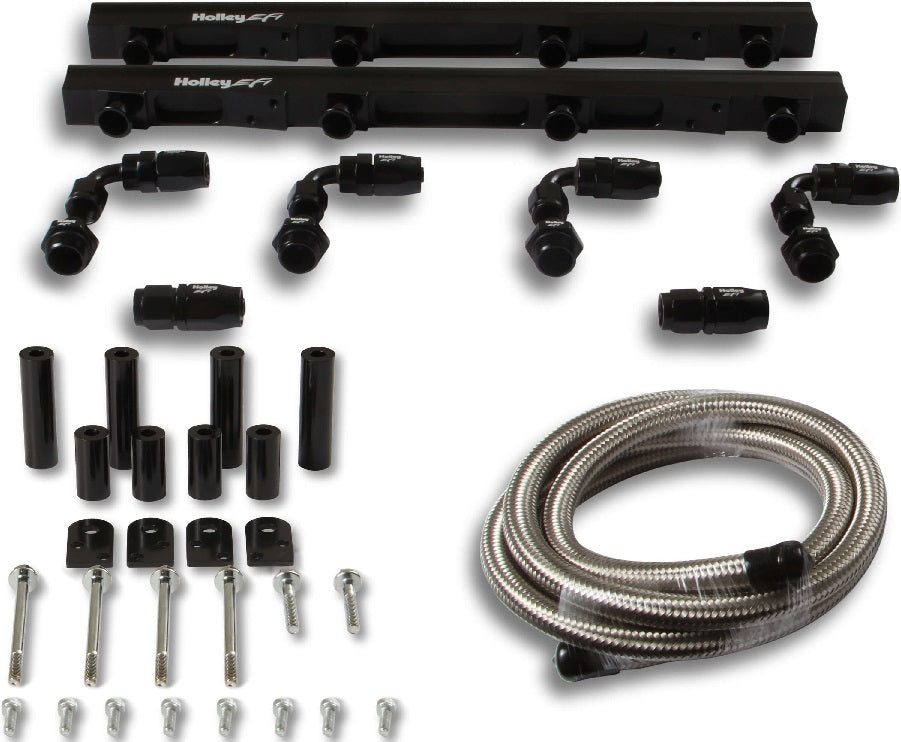

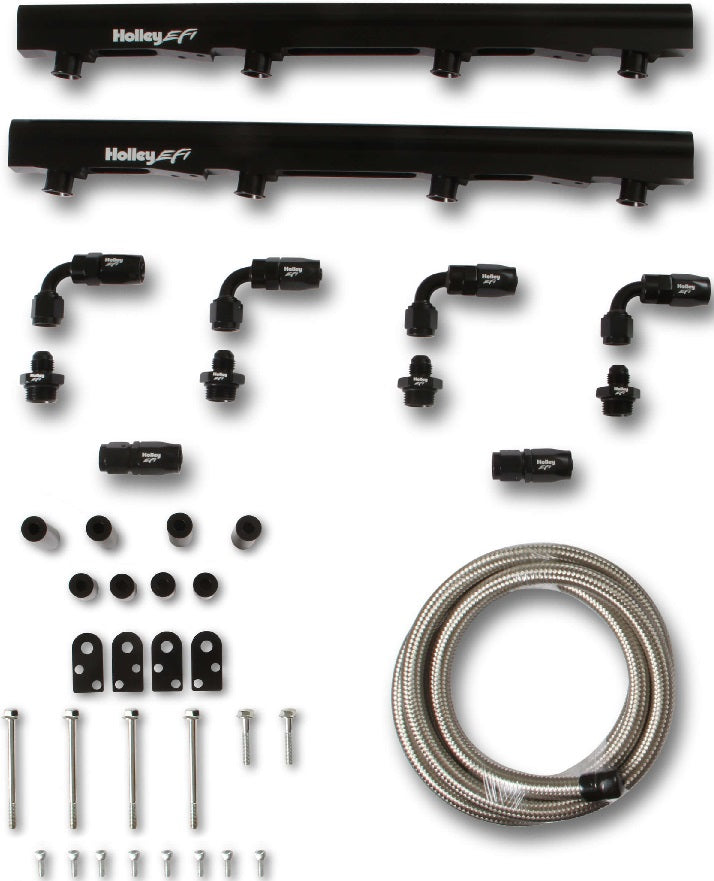

THE BLACK ANODIZED RAILS HAVE -8 ORB PORTS ON EACH END AND AN 1/8" NPT PORT FOR A FUEL GAUGE INSTALLATION IF YOU CHOOSE TO DO SO. THE 534-266 FUEL RAIL KIT INCLUDES EVERYTHING FROM THE 534-265 PLUS (6FT) BRAIDED HOSE, (4) 90 DEGREE & (2) STRAIGHT -6 HOSE ENDS.

FEATURES:

• BRIGHT DIP, BLACK ANODIZED FINISH WITH LASER ETCHED EFI LOGO FOR LONG LASTING GOOD LOOKS
• 5/8" DIAMETER FUEL PASSAGE PROVIDES THE FLOW CAPACITY FOR HIGH HORSEPOWER APPLICATIONS
• FUEL RAILS ARE MACHINED TO ACCEPT -8 (3/4-16) O-RING FITTINGS
• FUEL RAILS FIT YOUR STOCK INTAKE MANIFOLD

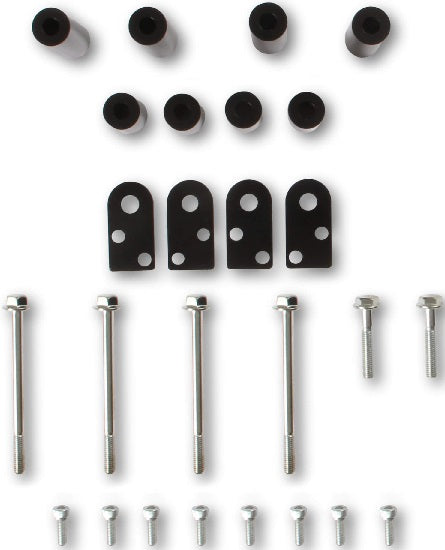

• INCLUDES (4) -6 TO 3/4-16 O-RING ADAPTERS
• WORKS WITH FACTORY INJECTORS

SPECS:

• BRAND: HOLLEY EFI
• ENGINE: FORD 7.3 GODZILLA
• MATERIAL: ALUMINUM
• PRODUCT TYPE: FUEL RAIL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE FUEL RAILS HERE.
