BELLHOUSING KIT,LATE LS 8 BOLT,09 UP,26 SPLINE

BRAND NEW HOLLEY COMPLETE TRANSMISSION INSTALLATION KIT, CONNECTS 8-BOLT LS OR LT ENGINE TO A TREMEC TKX OR TKO TRANSMISSION

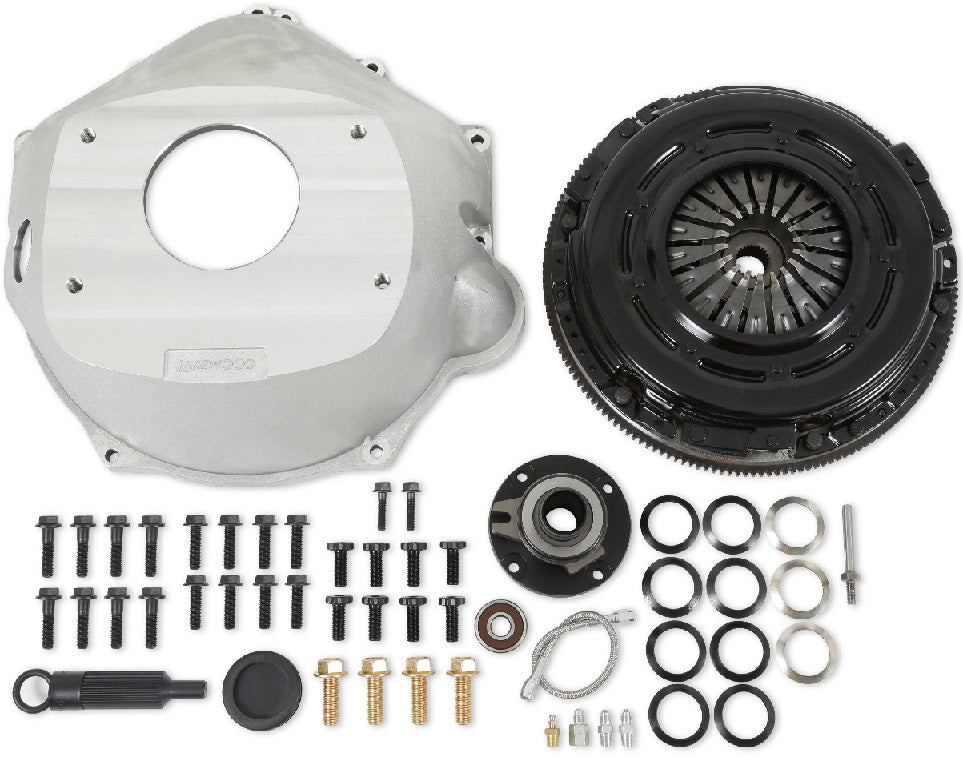

THESE HOLLEY TRANSMISSION INSTALLATION KITS COME COMPLETE WITH EVERYTHING YOU NEED TO BOLT A TKX OR TKO TRANSMISSION TO GEN IV & GEN V SMALL BLOCK CHEVROLET ENGINES WITH AN 8-BOLT FLYWHEEL. THIS KIT INCLUDES A BELLHOUSING, BILLET STEEL FLYWHEEL, CLUTCH AND PRESSURE PLATE, HYDRAULIC RELEASE BEARING, ROLLER PILOT BEARING, AND ALL HARDWARE NEEDED TO INSTALL THESE COMPONENTS.

THE 319-505 IS VERY SIMILAR TO THE 319-504 BUT IS DESIGNED TO BE USED WITH THE 8-BOLT FLYWHEEL LS AND GEN V LT ENGINES THAT COME AFTER 2009 (LSA, LT1, LT4, L83, AND SIMILAR TRUCK ENGINES).

FEATURES:

• COMPATIBLE WITH GEN IV LS OR GEN V LT SMALL BLOCK CHEVROLET ENGINES WITH 8-BOLT CRANK/FLYWHEEL USING A TKX OR TKO TRANSMISSION

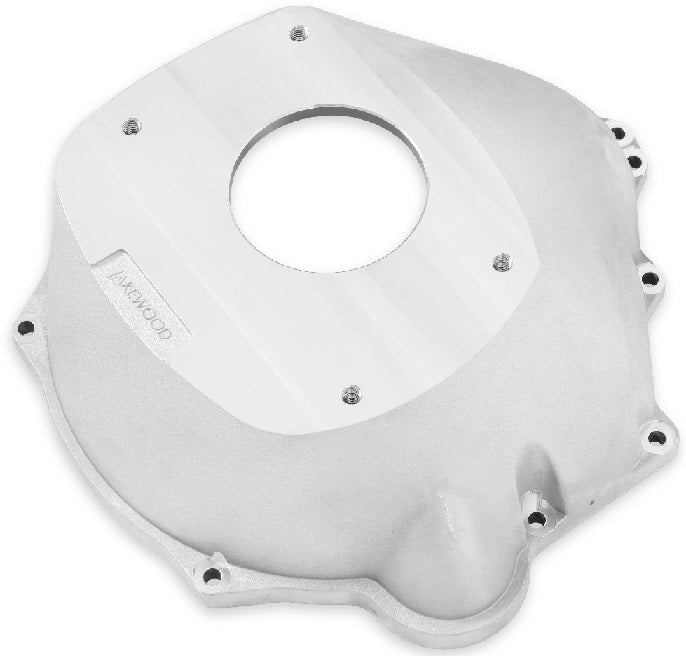

• LIGHT WEIGHT CAST ALUMINUM BELLHOUSING AND STAMPED STEEL DUST COVER PROVIDES FACTORY-LIKE INSTALLATION AND APPEARANCE

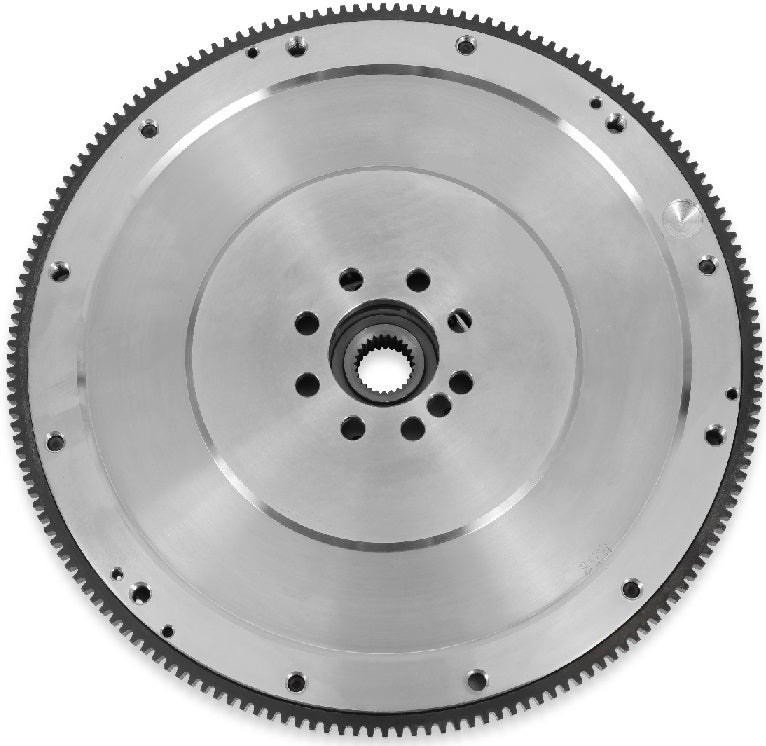

• BILLET STEEL FLYWHEEL FOR LIGHT WEIGHT (28 POUNDS) AND ADDITIONAL STRENGTH
• ROLLER STYLE PILOT BEARING OFFERS IMPROVED SHIFTING BY REDUCING PARASITIC DRAG AND TRANSMISSION WEAR

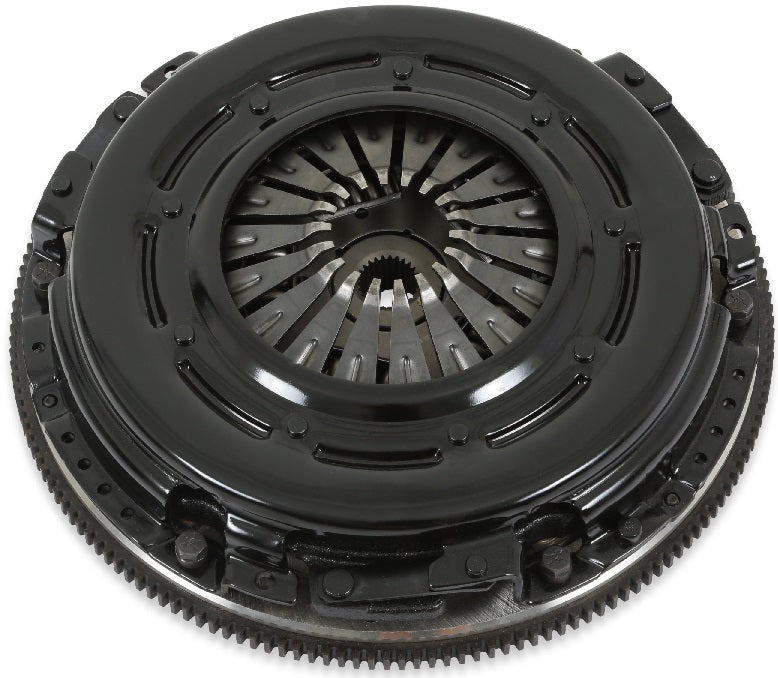

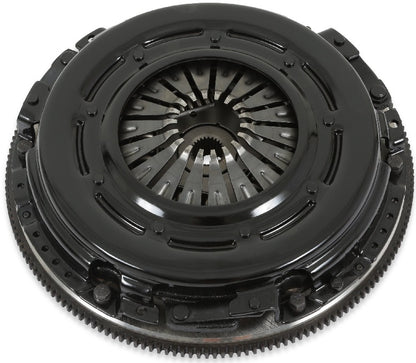

• 26-SPLINE, 12-INCH ORGANIC SPRUNG CLUTCH OFFERS SUPERIOR CLAMPING FORCE AND SMOOTH ENGAGEMENT FOR ENGINES UP TO 550 NATURALLY ASPIRATED HORSEPOWER (500 W/ POWER ADDER)
• ADJUSTABLE HYDRAULIC RELEASE BEARING OFFERS REDUCED PEDAL EFFORT AND EASY INSTALLATION
• WORKS WITH OE (ORIGINAL EQUIPMENT) OR MSD HIGH TORQUE STARTERS
• ALL HARDWARE INCLUDED

SPECS:

• BRAND: HOLLEY
• CRANKSHAFT BOLT HOLE COUNT: 8
• DISC DIAMETER: 12
• DISC STYLE: SPRING HUB
• ENGINE: GM SMALL BLOCK GEN IV LS OR GEN V LT
• FLYWHEEL MATERIAL: BILLET STEEL
• INPUT SHAFT DIAMETER: 1-1/8 IN.
• INPUT SPLINE: 26
• PILOT BEARING: ROLLER
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: INSTALLATION KIT
• RELEASE BEARING: HYDRAULIC
• TRANSMISSION: TKO GM / TKX GM
