BELLHOUSING KIT,70-90 BBC,168T,26 SPLINE,EXT BALANCE>GM TKO/TKX

BELLHOUSING KIT,70-90 BBC,168T,26 SPLINE,EXT BALANCE>GM TKO/TKX

SKU:HOL 319-502

Regular price $1,847.95
Regular price Sale price $1,847.95
View full details

BRAND NEW HOLLEY TRANSMISSION INSTALLATION KIT, 26 SPLINE, 168 TOOTH FLYWHEEL, 11" CLUTCH DISK, TKO GM & TKX GM COMPATIBLE WITH 1970-1990 EXTERNALLY BALANCED 454 BIG BLOCK CHEVROLET ENGINES

THESE HOLLEY TRANSMISSION INSTALLATION KITS COME COMPLETE WITH EVERYTHING YOU NEED TO BOLT A TKX OR TKO TRANSMISSION TO A 1970-1990 454 BIG BLOCK CHEVROLET ENGINE. BUILT WITH A MIXTURE OF OUR BEST BRANDS INCLUDING LAKEWOOD, HAYS & MR. GASKET.

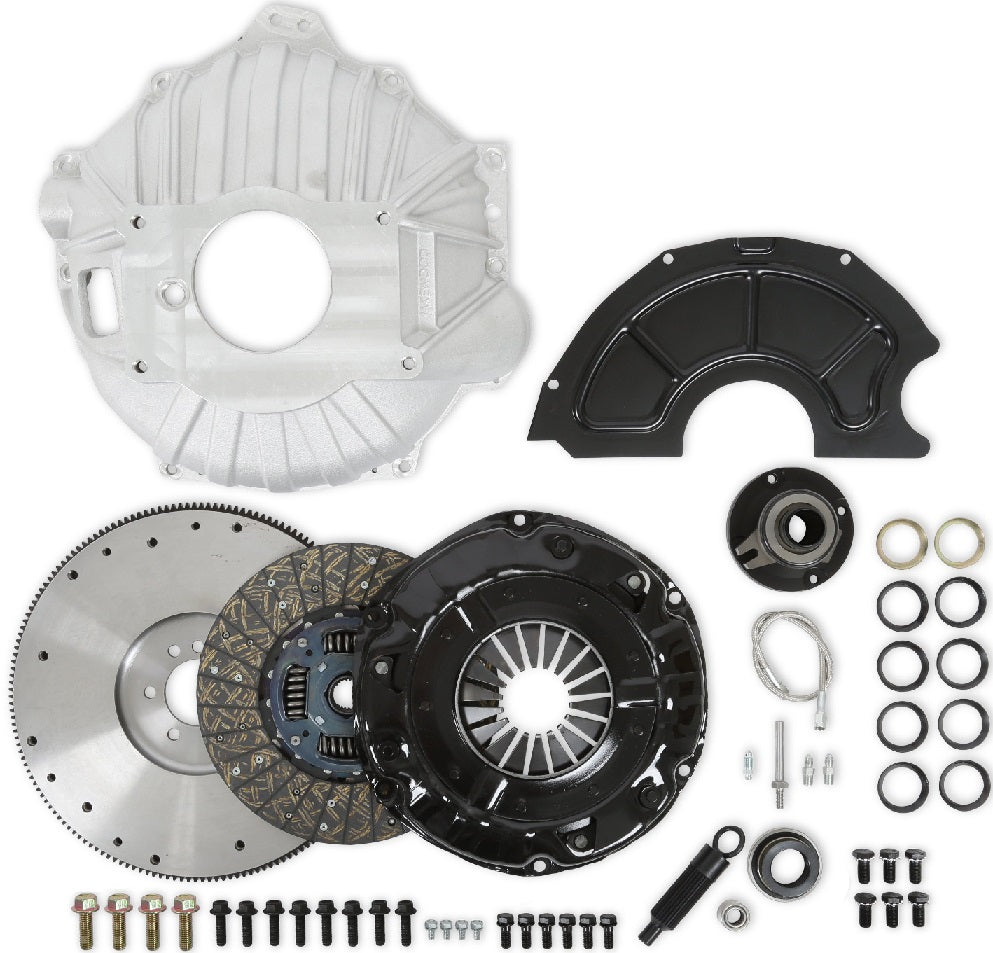

KIT INCLUDES: A ROLLER PILOT BEARING, BELLHOUSING WITH DUST SHIELD, BILLET STEEL FLYWHEEL, CLUTCH AND PRESSURE PLATE, HYDRAULIC RELEASE BEARING, AND ALL HARDWARE NEEDED TO INSTALL THESE COMPONENTS.

NOTE: COMPATIBLE WITH INTERNALLY BALANCED 454 BIG BLOCK CHEVY ENGINES WITH 2-PC REAR MAIN SEAL AND A 2.485-INCH CRANK REGISTER DIAMETER.

FEATURES:

  • COMPATIBLE WITH 1970-1990 454 BIG BLOCK BLOCK CHEVROLET ENGINES USING A TKX OR TKO TRANSMISSION

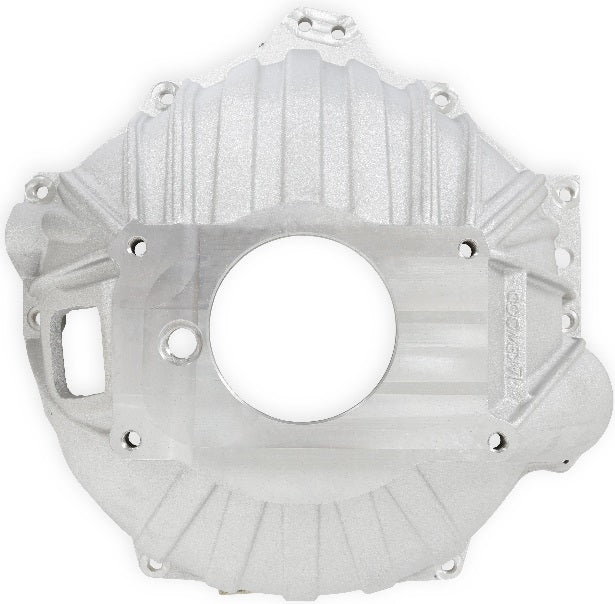

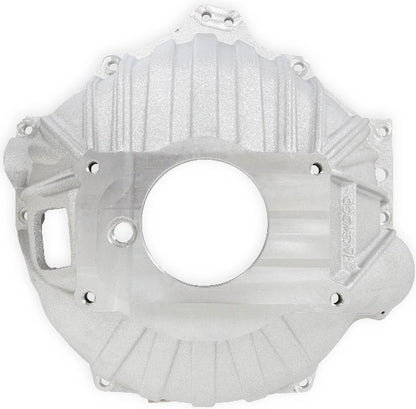

  • LIGHT WEIGHT CAST ALUMINUM BELLHOUSING AND STAMPED STEEL DUST COVER PROVIDES FACTORY-LIKE INSTALLATION AND APPEARANCE

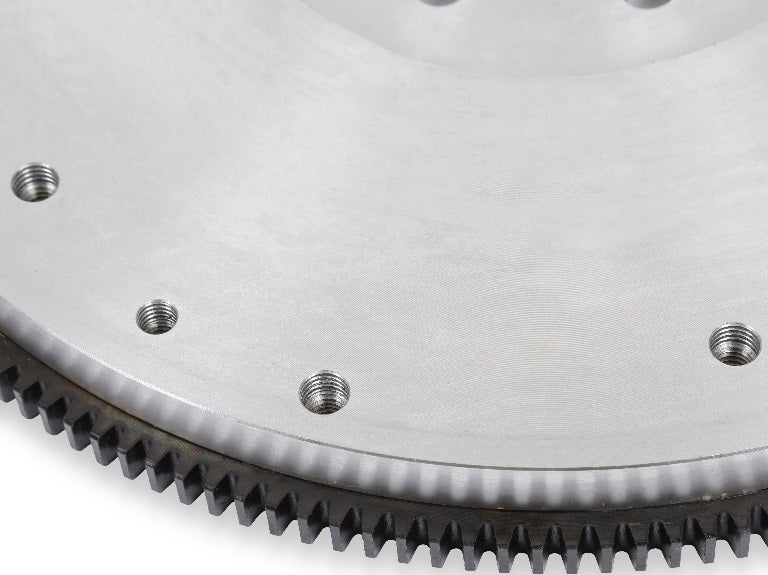

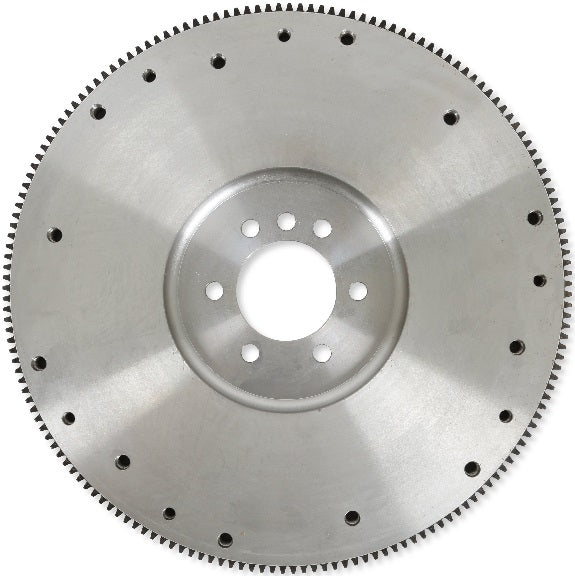

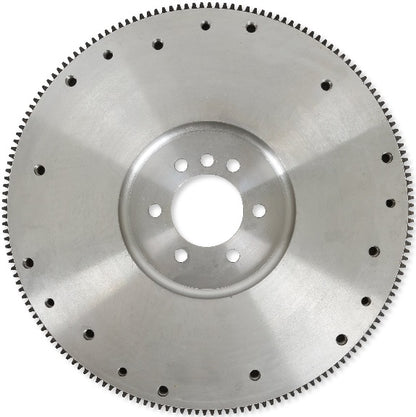

  • BILLET STEEL 36 LB, 168 TOOTH EXTERNALLY BALANCED FLYWHEEL FOR LIGHT WEIGHT AND STRENGTH
  • ROLLER STYLE PILOT BEARING OFFERS IMPROVED SHIFTING BY REDUCING PARASITIC DRAG AND TRANSMISSION WEAR
  • 26 SPLINE, 11-INCH CLUTCH DISK OFFERS SUPERIOR CLAMPING FORCE FOR ENGINES UP TO 500 HP
  • ADJUSTABLE HYDRAULIC RELEASE BEARING OFFERS REDUCED PEDAL EFFORT AND EASY INSTALLATION
  • ORGANIC CLUTCH DISC FEATURES HEAVY-DUTY HUB SPRING ASSEMBLY FOR INCREASED LOAD CAPACITY
  • COMPATIBLE WITH OE (ORIGINAL EQUIPMENT) OR MSD HIGH TORQUE STARTERS
  • ALL HARDWARE INCLUDED

SPECS:

  • BELLHOUSING MATERIAL: ALUMINUM
  • BRAND: HOLLEY
  • DISC DIAMETER: 11
  • DISC MATERIAL: ORGANIC
  • DISC STYLE: SPRING HUB
  • ENGINE: BIG BLOCK CHEVY
  • ENGINE BALANCE: EXTERNAL
  • ENGINE MAKE: GM
  • FLYWHEEL MATERIAL: BILLET STEEL
  • HARDWARE: STEEL
  • INPUT SHAFT DIAMETER: 1-1/8 IN.
  • INPUT SPLINE: 26
  • PILOT BEARING: ROLLER
  • PRESSURE PLATE STYLE: DIAPHRAGM
  • PRODUCT TYPE: INSTALLATION KIT
  • RELEASE BEARING: HYDRAULIC
  • TRANSMISSION: TKO GM & TKX GM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
