BELLHOUSING KIT,86-93 SBC,153T,26 SPLINE,EXT BALANCE>GM TKO/TKX

BRAND NEW HOLLEY TRANSMISSION INSTALLATION KIT, 26 SPLINE, 153 TOOTH FLYWHEEL, 10.5" CLUTCH DISK, TKO GM & TKX GM COMPATIBLE WITH 1986-1993 EXTERNALLY BALANCED SMALL BLOCK CHEVROLET ENGINES

THESE HOLLEY TRANSMISSION INSTALLATION KITS COME COMPLETE WITH EVERYTHING YOU NEED TO BOLT A TKX OR TKO TRANSMISSION TO A 1986-1993 SMALL BLOCK CHEVROLET ENGINE. BUILT WITH A MIXTURE OF OUR BEST BRANDS INCLUDING LAKEWOOD, HAYS & MR. GASKET.

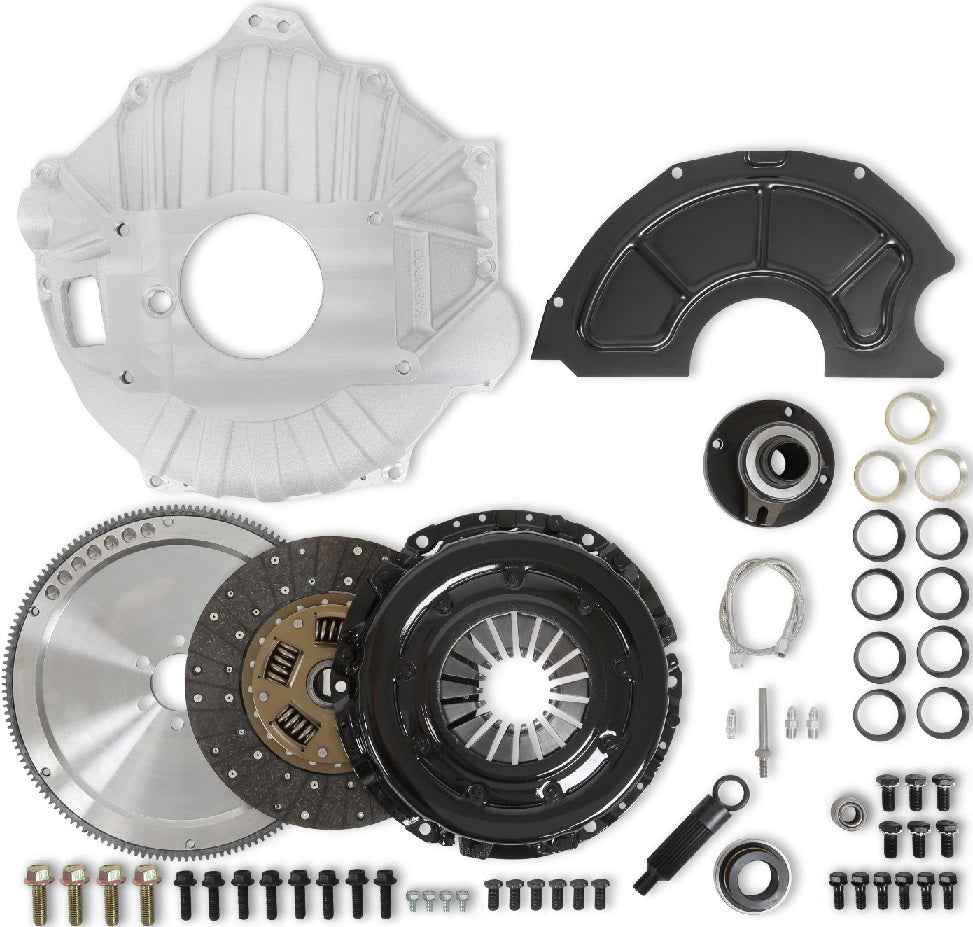

KIT INCLUDES: A ROLLER PILOT BEARING, BELLHOUSING WITH DUST SHIELD, BILLET STEEL FLYWHEEL, CLUTCH AND PRESSURE PLATE, HYDRAULIC RELEASE BEARING, AND ALL HARDWARE NEEDED TO INSTALL THESE COMPONENTS.

NOTE: COMPATIBLE WITH INTERNALLY BALANCED SMALL BLOCK CHEVY ENGINES WITH 1-PC REAR MAIN SEAL AND A 2.067-INCH CRANK REGISTER DIAMETER.

FEATURES:

• COMPATIBLE WITH 1986-1993 SMALL-BLOCK BLOCK CHEVROLET ENGINES USING A TKX OR TKO TRANSMISSION

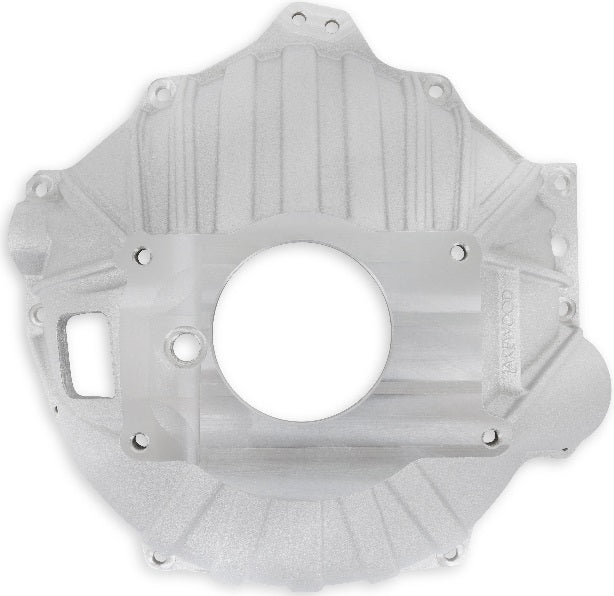

• LIGHT WEIGHT CAST ALUMINUM BELLHOUSING AND STAMPED STEEL DUST COVER PROVIDES FACTORY-LIKE INSTALLATION AND APPEARANCE

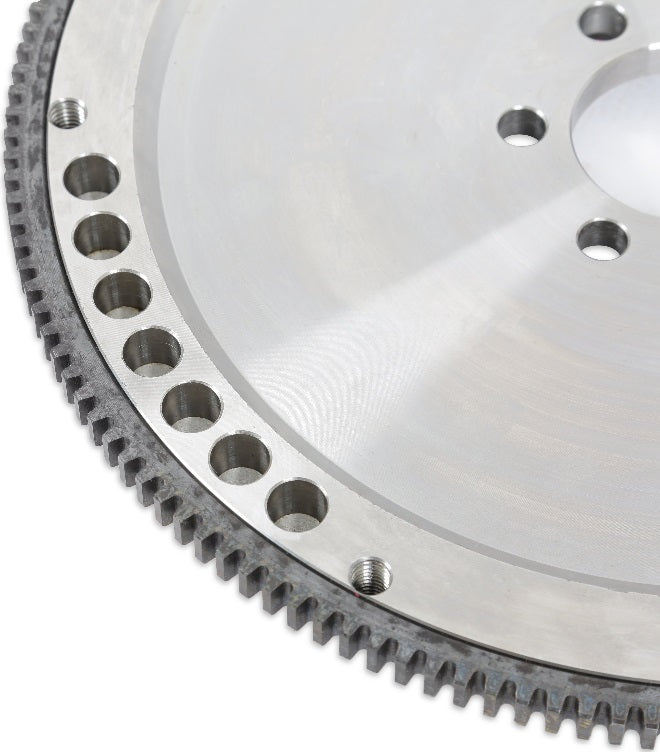

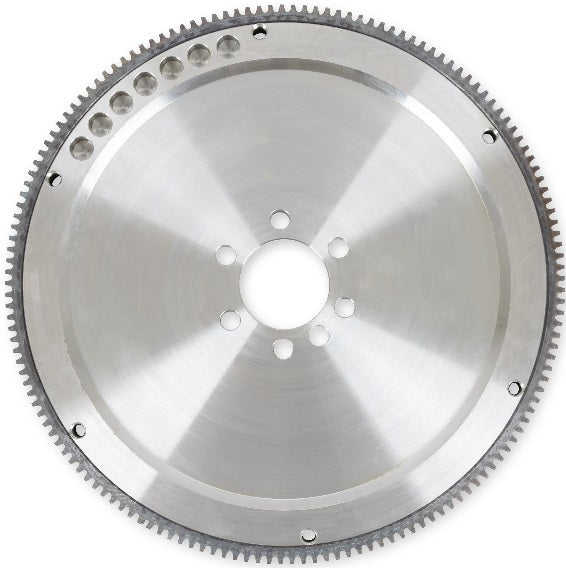

• BILLET STEEL 30 LB, 153 TOOTH EXTERNALLY BALANCED FLYWHEEL FOR LIGHT WEIGHT AND STRENGTH
• ROLLER STYLE PILOT BEARING OFFERS IMPROVED SHIFTING BY REDUCING PARASITIC DRAG AND TRANSMISSION WEAR
• 26 SPLINE, 10.50-INCH CLUTCH DISK OFFERS SUPERIOR CLAMPING FORCE FOR ENGINES UP TO 500 HP
• ADJUSTABLE HYDRAULIC RELEASE BEARING OFFERS REDUCED PEDAL EFFORT AND EASY INSTALLATION
• ORGANIC CLUTCH DISC FEATURES HEAVY-DUTY HUB SPRING ASSEMBLY FOR INCREASED LOAD CAPACITY
• COMPATIBLE WITH OE (ORIGINAL EQUIPMENT) OR MSD HIGH TORQUE STARTERS
• ALL HARDWARE INCLUDED

SPECS:

• BELLHOUSING MATERIAL: ALUMINUM
• BRAND: HOLLEY
• DISC DIAMETER: 10.5
• DISC MATERIAL: ORGANIC
• DISC STYLE: SPRING HUB
• ENGINE: SMALL BLOCK CHEVY
• ENGINE BALANCE: EXTERNAL
• ENGINE MAKE: GM
• FLYWHEEL MATERIAL: BILLET STEEL
• HARDWARE: STEEL
• INPUT SHAFT DIAMETER: 1-1/8 IN.
• INPUT SPLINE: 26
• PILOT BEARING: ROLLER
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: INSTALLATION KIT
• RELEASE BEARING: HYDRAULIC
• TRANSMISSION: TKO GM & TKX GM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
