OIL PAN KIT,GEN III HEMI SWAP,MID-SUMP,NON-VVT,BLACK

BRAND NEW HOLLEY OIL PAN, MID-SUMP NON-VVT, BLACK FINISH, COMPATIBLE WITH NON-VVT GEN III HEMI ENGINES - 2003-2008 5.7L, 2005-2010 6.1L, 2007-2010 392 HEMI CRATE ENGINES. MID-SUMP DESIGN FITS 1963-1974 MOPAR A-BODY, B-BODY, C-BODY & E-BODY

MOPAR POPULAR GEN III HEMI ENGINES ARE IDEAL FOR SWAPPING INTO MUSCLE CARS SINCE THEY ARE DURABLE, RELIABLE AND MAKE GREAT POWER. THE FACTORY OIL PANS THAT COME ON THESE ENGINE USUALLY DO NOT FIT AND HANG TOO LOW FOR YOUR SWAP. THESE NEW CAST ALUMINUM OIL PANS (PATENT PENDING) FIT 1963-1974 MOPAR A-BODY, B-BODY, C-BODY & E-BODY VEHICLES (SEE THE APPLICATIONS TAB FOR COMPLETE VEHICLE APPLICATION DATA).

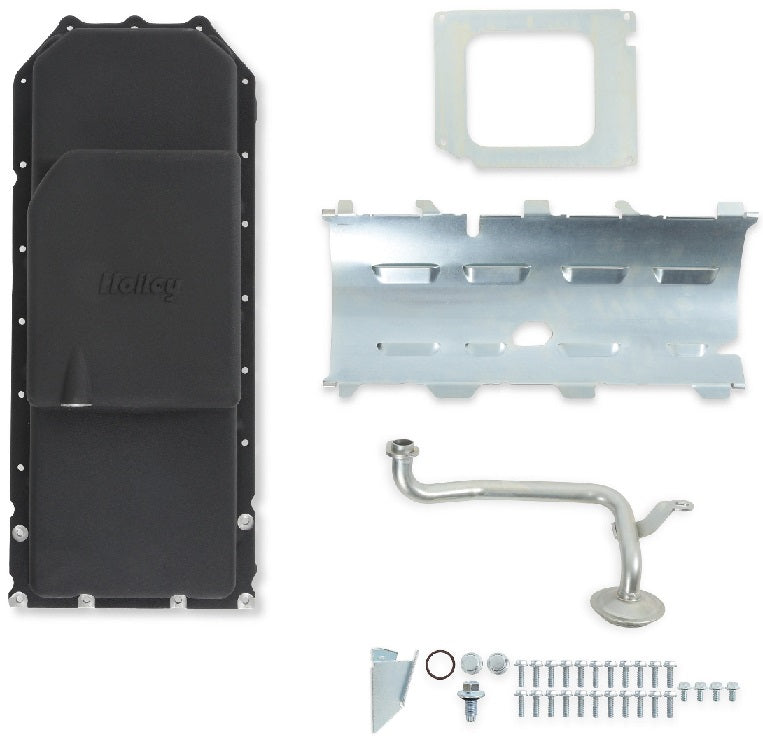

THE CAST ALUMINUM CONSTRUCTION & INTEGRATED WINDAGE TRAY ON THE OIL PANS COMBINED WITH O-RING SEALING PROVIDE AN ATTRACTIVE LEAK-FREE SOLUTION FOR YOUR ENGINE SWAP. COMPLETE OIL PAN KIT THAT INCLUDES ALL THE PARTS NEEDED FOR INSTALLATION (I.E. OIL PAN, PICKUP ASSEMBLY, O-RING SEAL, WINDAGE TRAY, BAFFLING & MOUNTING BOLTS).

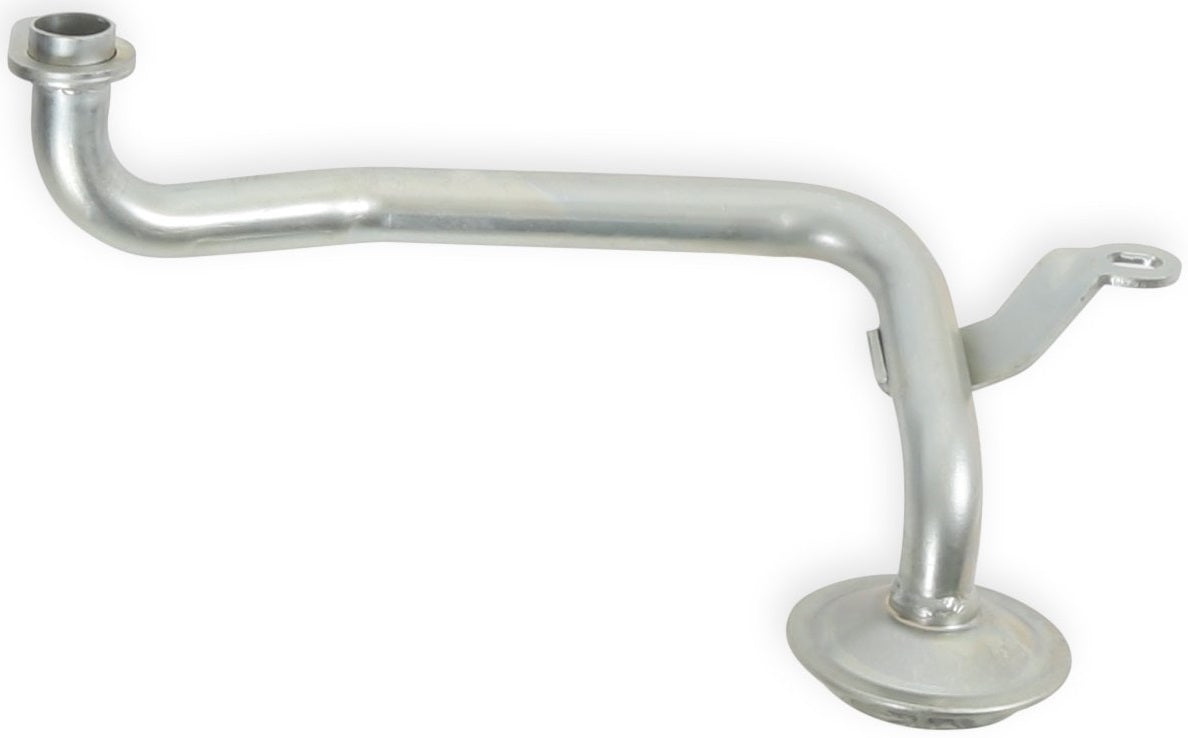

NOTES: MOST ENGINES CAME FROM THE FACTORY WITH A STUD IN THE BLOCK THAT IS REUSED TO MOUNT THE OIL PICKUP. IF YOU DO NOT HAVE THIS STUD IT CAN BE PURCHASED FROM MOPAR - PART NUMBER 06513100AA.

NOTES: RECOMMENDED DIPSTICK: ANY DIPSTICK FROM A DODGE OR RAM TRUCK THAT WAS ORIGINALLY EQUIPPED WITH A GEN III HEM ENGINE IS COMPATIBLE WITH THIS OIL PAN. THESE DIPSTICKS MATE TO THE ENGINE BLOCK DIPSTICK PORT.

NOTES: FITMENT NOT GUARANTEED WHEN USING AFTERMARKET EXHAUST.

FEATURES:

• THE FACTORY OIL PANS ON GEN III HEMI ENGINES DO NOT FIT OR HANG TOO LOW FOR MUSCLE CAR ENGINE SWAPS
• COMPLETE OIL PAN KIT THAT INCLUDES OIL PAN, PICKUP ASSEMBLY, O-RING SEAL, WINDAGE TRAY, BAFFLING & MOUNTING BOLTS - NO EXTRAS THAT MUST BE PURCHASED SEPARATELY (I.E. GASKETS, PICKUP, WINDAGE TRAY, BOLTS)
• CAST ALUMINUM MID-SUMP ENGINE SWAP OIL PAN
• UNIQUE O-RING SEAL TO BLOCK AND CAPTURED WINDAGE TRAY
• INCLUDES TWO 1/2-INCH NPT OIL RETURN PORTS TO PROVIDE A CONVENIENT OIL RETURN FOR TURBOCHARGERS (ONE PORT ON EACH FRONT CORNER)

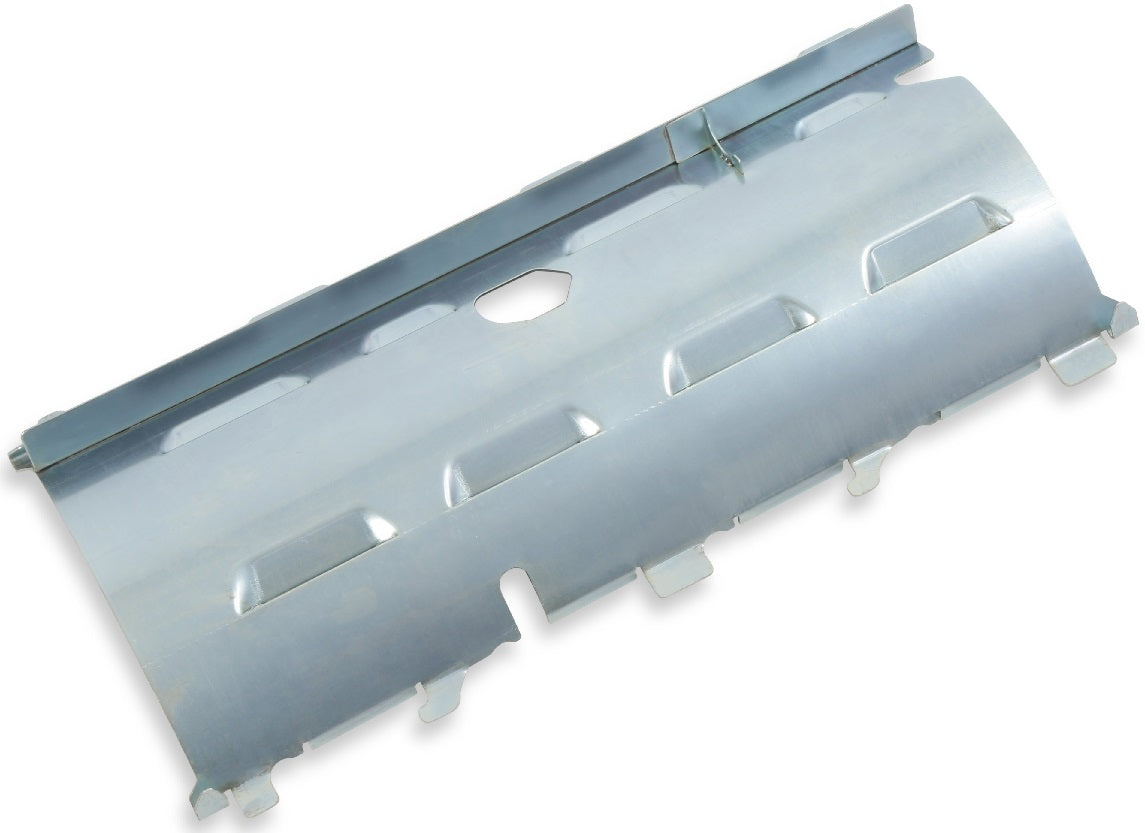

• INTEGRATED WINDAGE TRAY & BAFFLE TO CONTROL OIL (FITS UP TO 4.060" STROKE)
• COMPATIBLE WITH EARLY ENGINES WITHOUT VARIABLE VALVE TIMING (NON-VVT) 2003-2008 5.7L, 2005-2010 6.1L & 2007-2010 392 HEMI CRATE ENGINE
• COMPATIBLE WITH 1963-1974 MOPAR A-BODY, B-BODY, C-BODY, AND E-BODY
• OIL CAPACITY - 6 QUARTS (6.5 QUARTS WITH FILTER)
• WORKS WITH MOST FACTORY & AFTERMARKET DIPSTICKS

SPECS:

• APPLICATION: GEN III HEMI
• BRAND: HOLLEY
• CAM STYLE: NON-VVT
• FINISH: BLACK
• MATERIAL: ALUMINUM
• MAXIMUM STROKE: 4.060"
• OIL PAN CAPACITY: 6.0 QUARTS
• OIL PAN TYPE: CAST
• OIL RETURN SIZE: 1/2" NPT
• PRODUCT TYPE: OIL PAN KIT
• SUMP LOCATION: CENTER
• TURBO OIL DRAINBACK: YES
• WINDAGE TRAY INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN KIT HERE.
