OIL PAN KIT,GEN 3 HEMI SWAP,MID-SUMP,NON-VVT

BRAND NEW HOLLEY GEN III HEMI SWAP OIL PAN KIT, 6 QUARTS, SILVER CAST FINISH, MID-SUMP NON-VVT, COMPATIBLE WITH 1966-1974 CHARGER

MOPAR POPULAR GEN III HEMI ENGINES ARE IDEAL FOR SWAPPING INTO MUSCLE CARS SINCE THEY ARE DURABLE, RELIABLE & MAKE GREAT POWER. THE FACTORY OIL PANS THAT COME ON THESE ENGINE USUALLY DO NOT FIT & HANG TOO LOW FOR YOUR SWAP. THESE NEW CAST ALUMINUM OIL PANS FIT 1963-1974 MOPAR A, B, C & E-BODY VEHICLES.

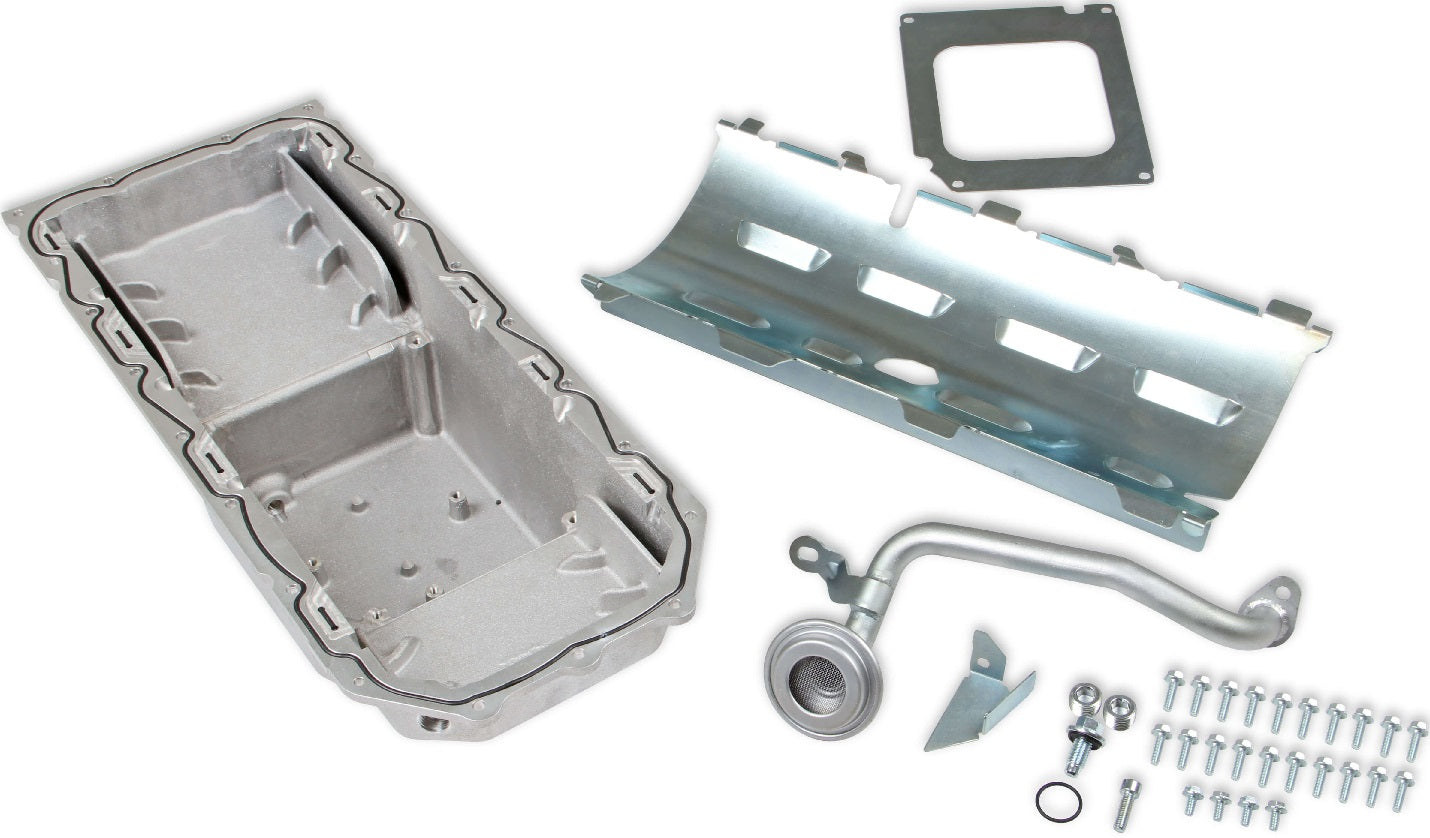

THE CAST ALUMINUM CONSTRUCTION & INTEGRATED WINDAGE TRAY ON THE OIL PANS COMBINED WITH O-RING SEALING PROVIDE AN ATTRACTIVE LEAK-FREE SOLUTION FOR YOUR ENGINE SWAP. COMPLETE OIL PAN KIT THAT INCLUDES ALL THE PARTS NEEDED FOR INSTALLATION.

NOTE: MOST ENGINES CAME FROM THE FACTORY WITH A STUD IN THE BLOCK THAT IS REUSED TO MOUNT THE OIL PICKUP. IF YOU DO NOT HAVE THIS STUD IT CAN BE PURCHASED FROM MOPAR, PART #06513100AA.

NOTE: RECOMMENDED DIPSTICK: ANY DIPSTICK FROM A DODGE OR RAM TRUCK THAT WAS ORIGINALLY EQUIPPED WITH A GEN III HEM ENGINE IS COMPATIBLE WITH THIS OIL PAN. THEY MATE TO THE ENGINE BLOCK DIPSTICK PORT. FITMENT NOT GUARANTEED WHEN USING AFTERMARKET EXHAUST.

COMPATIBLE WITH:

• PLYMOUTH:
• 1964-1974 BARRACUDA
• 1963-1971 BELVEDERE
• 1970-1974 DUSTER
• 1963-1974 FURY
• 1965-1974 FURY III
• 1972-1974 GRAN FURY
• 1967-1971 GTX
• 1968-1974 ROAD RUNNER
• 1965-1974 SATELLITE
• 1963-1964 SAVOY
• 1971-1974 SCAMP
• 1970 SUPERBIRD
• 1963-1974 VALIANT
• DODGE:
• 1963-1964 330
• 1963-1964 440
• 1970-1974 CHALLENGER
• 1966-1974 CHARGER
• 1963-1974 CORONET
• 1963-1974 DART
• 1965-1974 MONACO
• 1963-1973 POLARA
• CHRYSLER:
• 1963-1974 IMPERIAL
• 1963-1974 NEWPORT
• 1963-1974 NEW YORKER
• 1963-1974 TOWN & COUNTRY

FEATURES:

• FACTORY OIL PANS ON GEN III HEMI ENGINES DO NOT FIT OR HANG TOO LOW FOR MUSCLE CAR ENGINE SWAPS

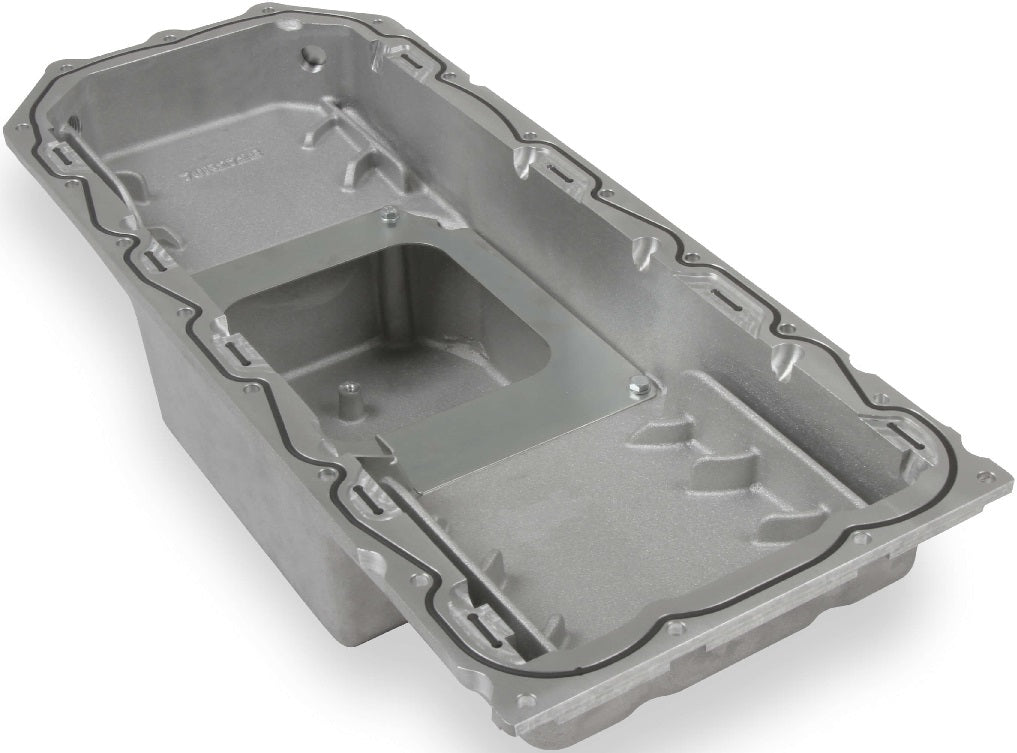

• CAST ALUMINUM MID-SUMP ENGINE SWAP OIL PAN

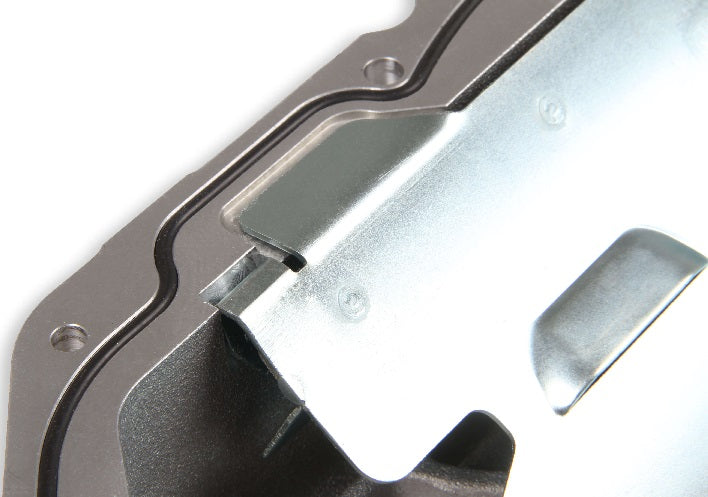

• UNIQUE O-RING SEAL TO BLOCK & CAPTURED WINDAGE TRAY

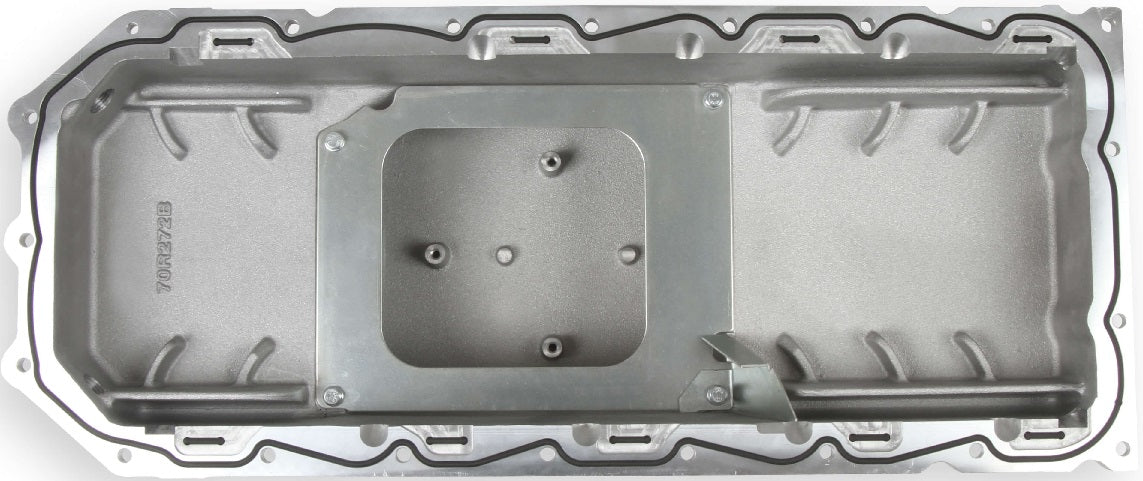

• INTEGRATED WINDAGE TRAY & BAFFLE TO CONTROL OIL (FITS UP TO 4.060" STROKE)
• FITS EARLY ENGINES WITHOUT VARIABLE VALVE TIMING (NON-VVT) 2003-2008 5.7L, 2005-2010 6.1L & 2007-2010 392 HEMI CRATE ENGINE
• FITS 1963-1974 MOPAR A, B, C & E-BODY
• OIL CAPACITY 6 QUARTS (6.5 QUARTS W/ FILTER)
• WORKS WITH MOST FACTORY & AFTERMARKET DIPSTICKS
• OPTIONAL TURBO OIL DRAINBACK PORTS (2) 1/2" NPT PORTS

SPECS:

• APPLICATION: GEN III HEMI
• CAM STYLE: NON-VVT
• FINISH: NATURAL CAST ALUMINUM
• MAX STROKE: 4.060"
• CAPACITY: 6 QUARTS
• SUMP LOCATION: CENTER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN HERE.
