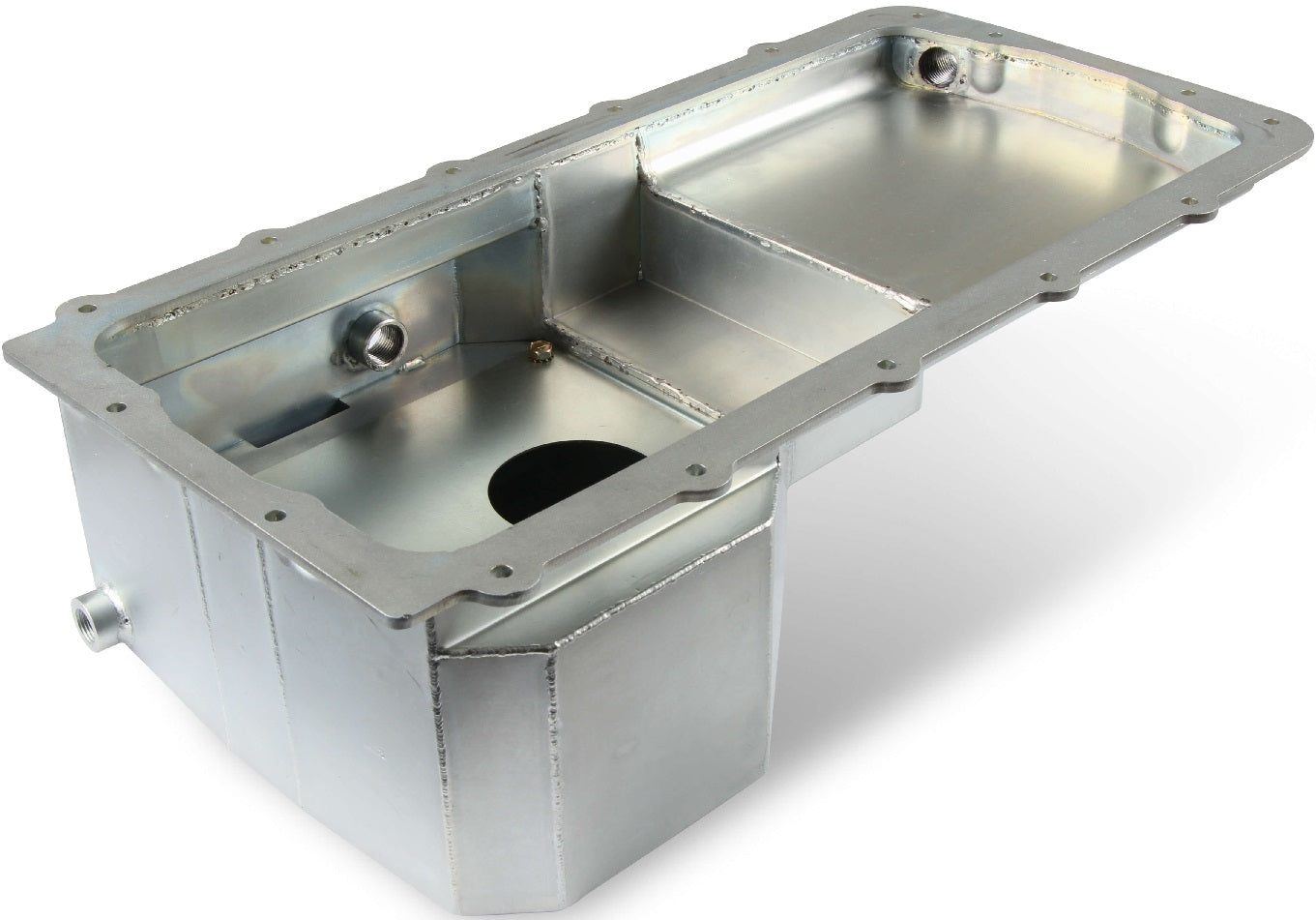

OIL PAN KIT,11-17 FORD COYOTE SWAP,97-04 MUSTANG,5.0

BRAND NEW HOLLEY FORD COYOTE SWAP FABRICATED OIL PAN, ZINC PLATED FINISH, 8.0 QUARTS, COMPATIBLE WITH 1979-2004 MUSTANG 5.0L

HOLLEY NEW GEN1/GEN2 COYOTE OIL PAN MAKES YOUR FOX BODY MUSTANG SWAP EASIER. THE OIL PAN DESIGN MAINTAINS THE OIL CAPACITY OF STOCK MUSTANG COYOTE OIL PAN (8 QT. NOMINAL) TO ENSURE ADEQUATE OIL SUPPLY IN ALL STREET PERFORMANCE & FACTORY-STOCK TYPE RACING APPLICATIONS. THE NEW DESIGN INSTALLS USING STOCK COYOTE ENGINE GASKET/BAFFLE ASSEMBLY TO PROVIDE FACTORY-LIKE SEALING & BAFFLING/WINDAGE CHARACTERISTICS. A PROPRIETARY DESIGN PICK-UP TUBE/O-RING & LOWER SUMP BAFFLE PLATE ARE INCLUDED.

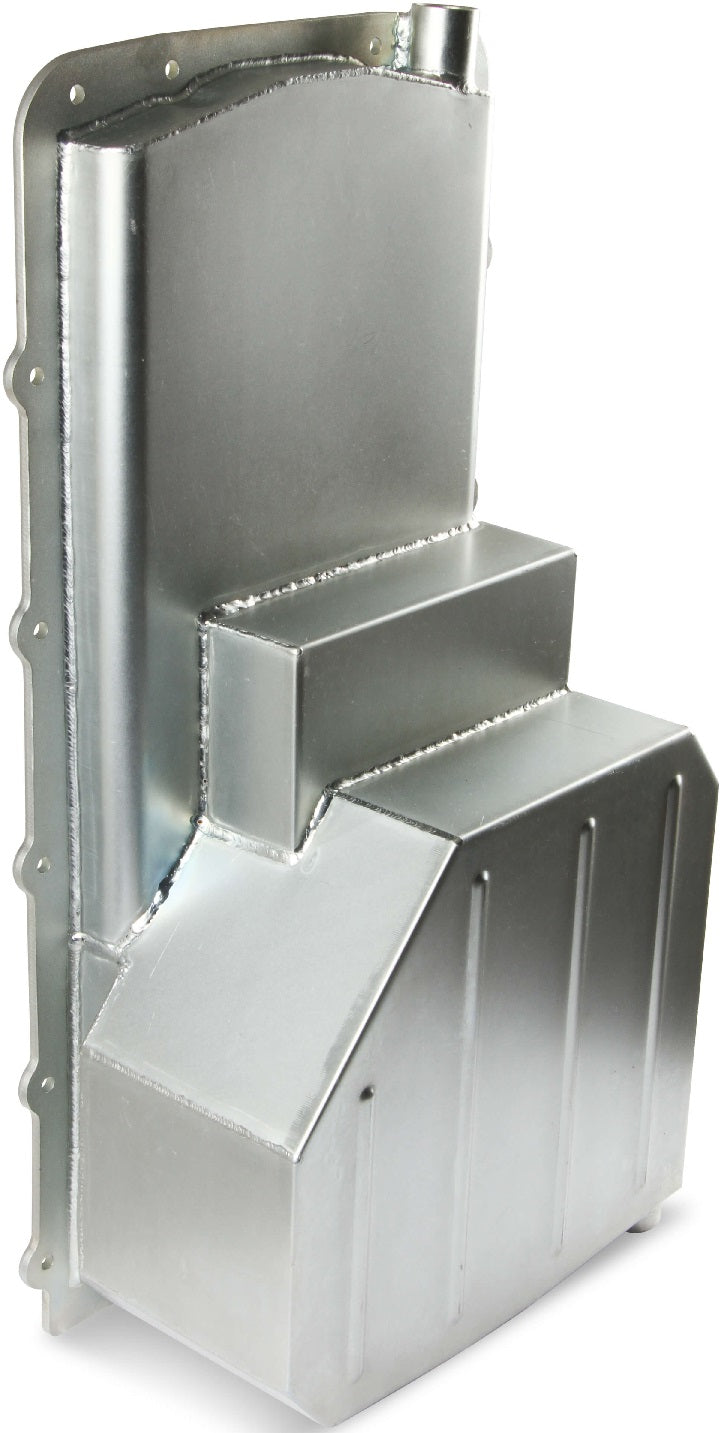

THE NEW LOW-PROFILE FRONT PAN GEOMETRY PERMITS COYOTE ENGINE INSTALLATION ON STOCK 1984-2004 MUSTANG K-MEMBERS (1984-1995 K-MEMBERS REQUIRE THE USE OF SPECIFIC PROPRIETARY DESIGN HOOKER BLACKHEART ENGINE MOUNTING BRACKETS) & SPECIFIC AFTERMARKET K-MEMBERS FROM AJE, TEAM Z, MAXIMUM MOTORSPORTS & UPR FOR 1979-2004 MUSTANGS. APPLICATION FITMENT IS COMPATIBLE WITH HOOKER BLACKHEART & OTHER BRAND COYOTE SWAP HEADERS FOR 1979-2004 MUSTANGS.

THE 302-50 COMES EQUIPPED WITH -10 O-RING BOSS (ORB) PORT BUNG AT FRONT OF PAN FOR EASY CONNECTION OF TURBO DRAIN PLUMBING (FITTING &/OR PLUG IS USER-SUPPLIED AS NEEDED)

NOTE: COMPATIBLE WITH GEN 1 & GEN 2 5.0L COYOTE ENGINES.

FEATURES:

• LOW-PROFILE FRONT PAN GEOMETRY PERMITS COYOTE ENGINE INSTALLATION ON STOCK 1984-2004 MUSTANG K-MEMBERS (1984-1995 K-MEMBERS REQUIRE THE USE OF SPECIFIC PROPRIETARY DESIGN HOOKER BLACKHEART ENGINE MOUNTING BRACKETS)
• ALSO FITS SPECIFIC AFTERMARKET K-MEMBERS FROM AJE, TEAM Z, MAXIMUM MOTORSPORTS & UPR
• MAINTAINS OIL CAPACITY OF STOCK MUSTANG COYOTE OIL PAN (8 QT. NOMINAL) TO ENSURE ADEQUATE OIL SUPPLY IN ALL STREET PERFORMANCE & FACTORY-STOCK TYPE RACING APPLICATIONS
• INSTALLS USING STOCK COYOTE ENGINE GASKET/BAFFLE ASSEMBLY TO PROVIDE FACTORY-LIKE SEALING & BAFFLING/WINDAGE CHARACTERISTICS
• DESIGN INCLUDES A BUNG ON THE LEFT SIDE OF THE SUMP FOR THE STOCK MUSTANG COYOTE OIL LEVEL SENSOR

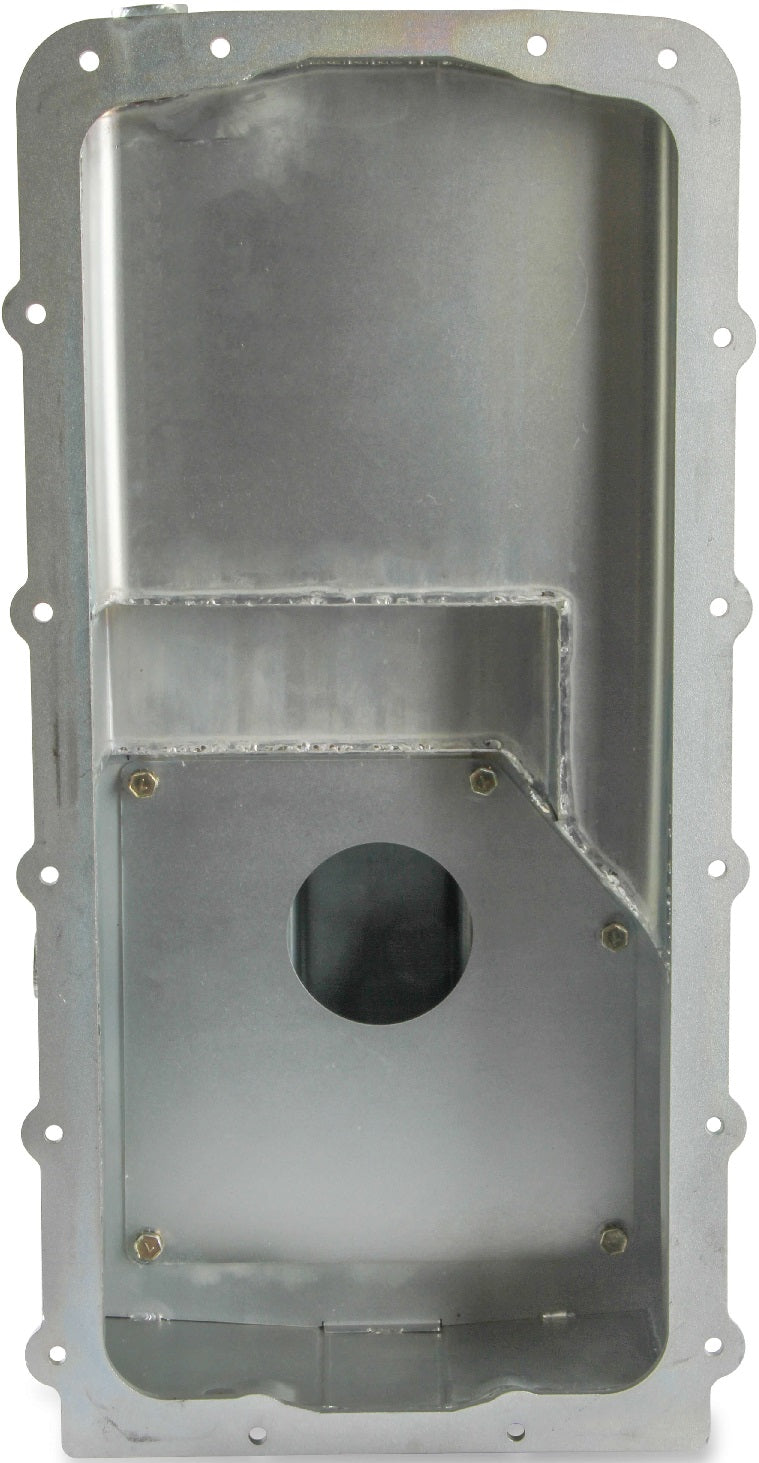

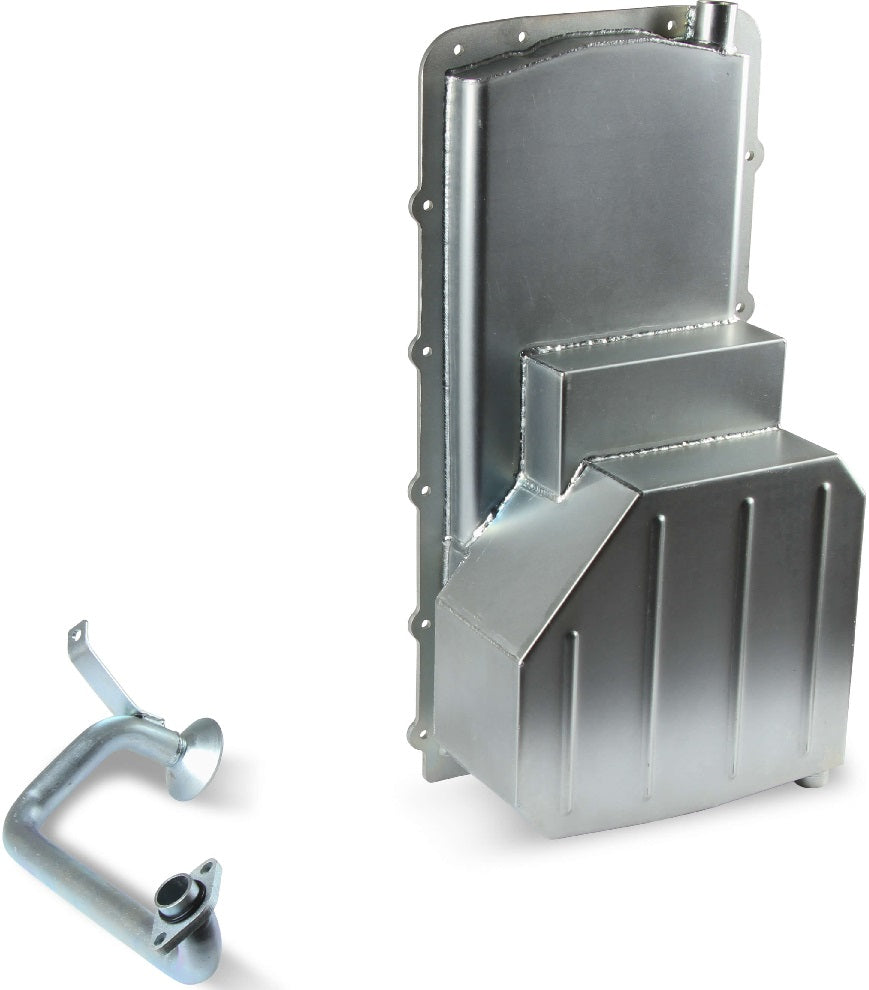

• PROPRIETARY DESIGN PICK-UP TUBE/O-RING & LOWER SUMP BAFFLE PLATE ARE INCLUDED
• EQUIPPED WITH -10 O-RING BOSS (ORB) PORT BUNG AT FRONT OF PAN FOR EASY CONNECTION OF TURBO DRAIN PLUMBING (FITTING A&/OR PLUG IS USER-SUPPLIED AS NEEDED)
• ZINC PLATED FINISH PROVIDES CORROSION RESISTANCE ON THE INSIDE & OUTSIDE OF THE PAN
• FITMENT COMPATIBLE WITH HOOKER BLACKHEART & OTHER BRAND COYOTE SWAP HEADERS FOR 1979-2004 MUSTANGS

SPECS:

• APPLICATION: COYOTE
• MATERIAL: STEEL
• OIL PAN CAPACITY: 8.0 QUARTS
• OIL PAN TYPE: FABRICATED
• PRODUCT TYPE: OIL PAN KIT
• SUMP LOCATION: REAR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN HERE.
