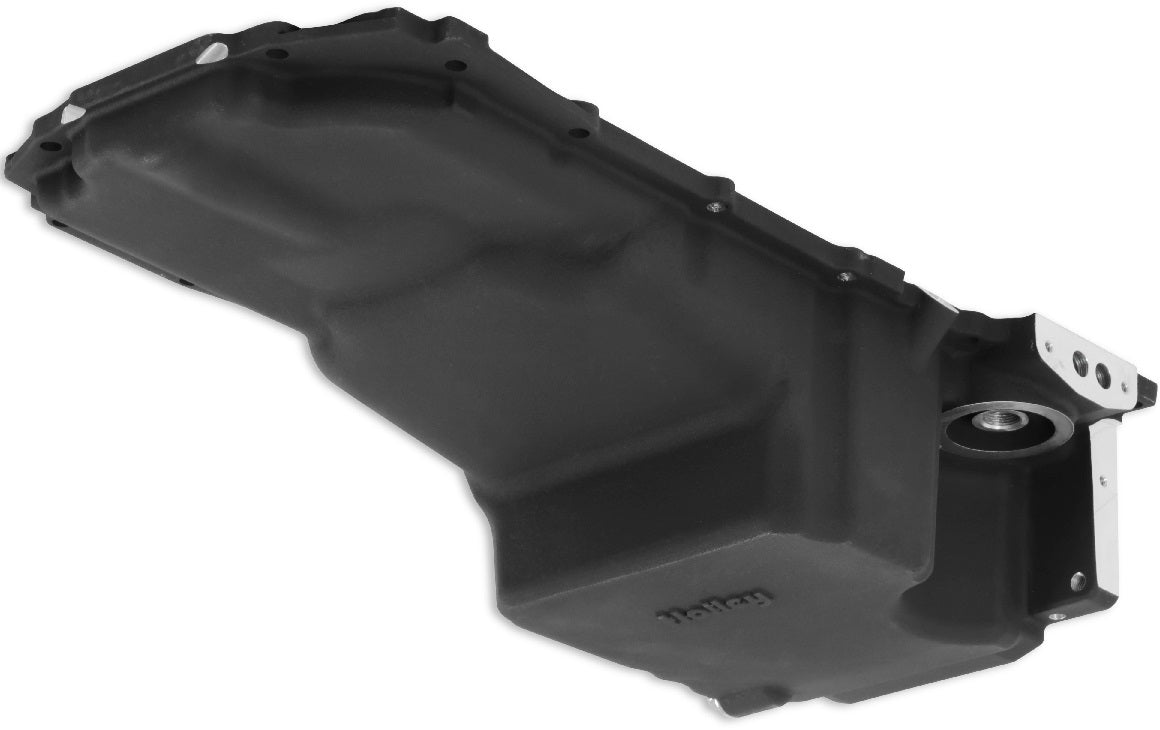

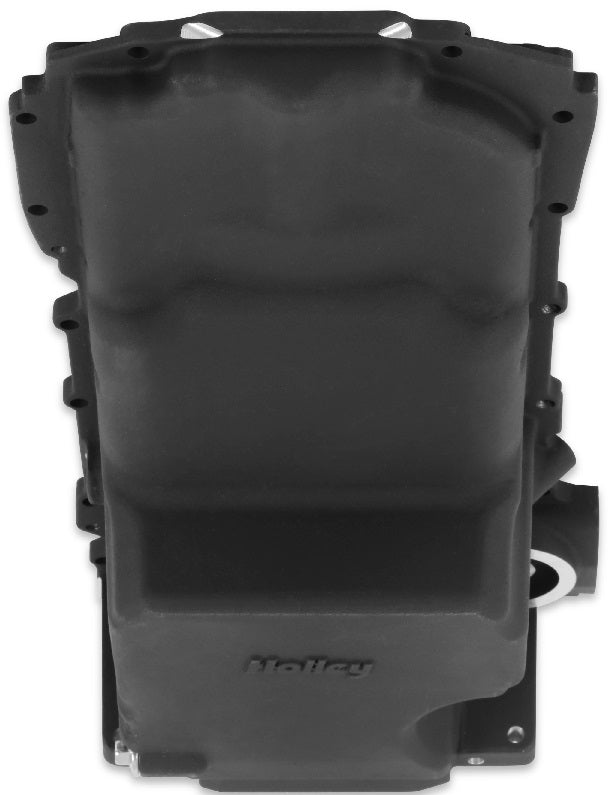

OIL PAN KIT,GM V LT RETROFIT,GM 64-92 & 73-98 C-10,W/RETURN,BLACK

BRAND NEW HOLLEY GM GEN V LT SWAP OIL PAN WITH TURBO OIL OR PVC RETURN PORT, BLACK ALUMINUM FINISH, COMPATIBLE WITH GM GEN V LT ENGINES

GM GEN V LT DIRECT INJECTED ENGINES ARE STARTING TO FIND THEIR WAY INTO A LARGE VARIETY OF VEHICLES. THEY MAKE GREAT POWER, VERY DURABLE & ARE RELIABLE. FACTORY OIL PANS DO NOT ALWAYS FIT OR THEY HANG TOO LOW FOR MODERN DAY HOT RODS. HOLLEY LT SWAP ENGINE OIL PAN ARE DESIGNED TO HELP! PROVIDES MAXIMUM CLEARANCE TO THE CHASSIS AND GROUND, PLUS PROVIDES AN OE (ORIGINAL EQUIPMENT) STYLE FITMENT FOR DURABILITY AND PROPER SEALING.

NOTE: THIS OIL PAN IS NOT FOR USE ON ENGINES THAT ORIGINALLY USED A DRY SUMP OILING SYSTEM.

NOTE: RECOMMENDED LT DIPSTICK & DIPSTICK TUBE - GM PART #12661062 DIPSTICK & #12678823 DIPSTICK TUBE

NOTE: SOME FACTORY LT1 APPLICATIONS INCLUDE AN OIL TEMPERATURE SENSOR. CURRENTLY THIS PAN DOES NOT HAVE A BOSS TO INSTALL THAT TEMPERATURE SENSOR. IF THE SENSOR IS DESIRED, IT WILL HAVE TO BE RELOCATED AND MACHINING WOULD BE REQUIRED.

FEATURES:

• COMPATIBLE WITH LT ENGINE SWAP INSTALLATIONS IN CLASSIC CAR & TRUCK CHASSIS REQUIRING MORE OIL PAN TO CHASSIS CLEARANCE AROUND THE FRONT HALF OF THE OIL PAN
• ALLOWS FOR UP TO 4.00" CRANKSHAFT STROKE
• CAN BE USED ANYWHERE A GM F-BODY OIL PAN CAN BE USED
• PROVIDES OE STYLE FITMENT - OE OIL FILTER MOUNTING, OE OIL COOLER PORT PROVISION, OE ENGINE NVH SUPPRESSION, OE FLANGE GASKET AND SEALING, PROPER STRUCTURAL RIGIDITY & OE BELL-HOUSING ATTACHMENTS
• TRADITIONAL HIGH-QUALITY CAST ALUMINUM APPEARANCE WITH CLEAN EXTERIOR STYLING
• PROVIDES MAX CLEARANCE FOR VEHICLES WHERE STEERING LINKAGE IS BEHIND ENGINE CROSSMEMBER
• CAST AND MACHINED ALUMINUM
• OIL COOLER PORT PROVISION
• 1/2" NPT PORT - IDEAL FOR TURBO OIL RETURN OR PCV OIL RETURN
• HINGE DOOR BAFFLES AVAILABLE

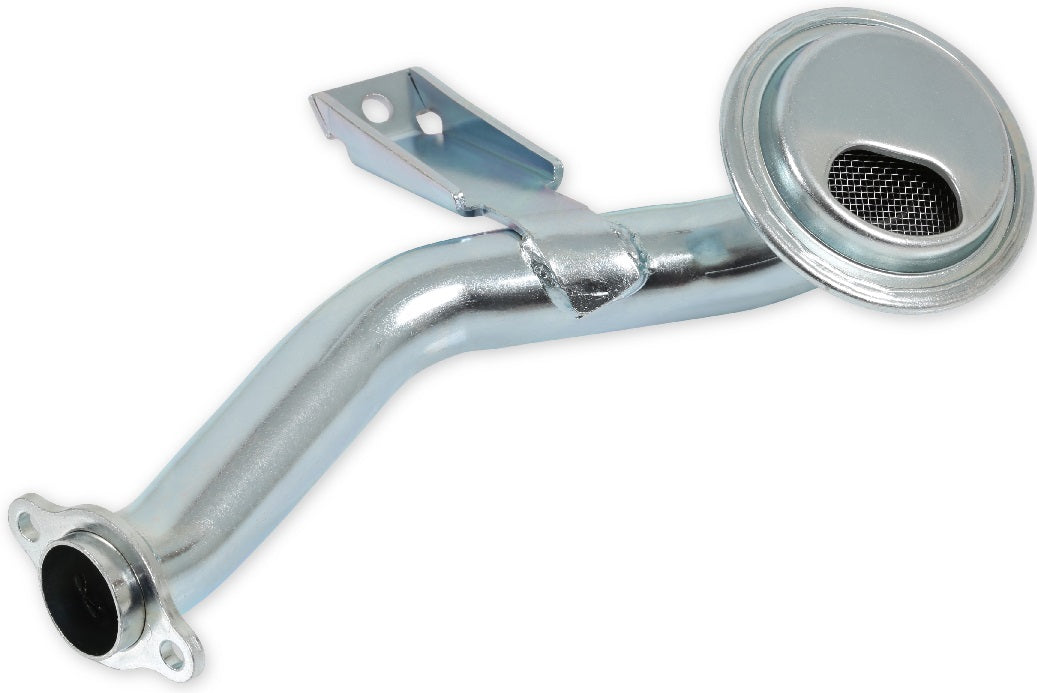

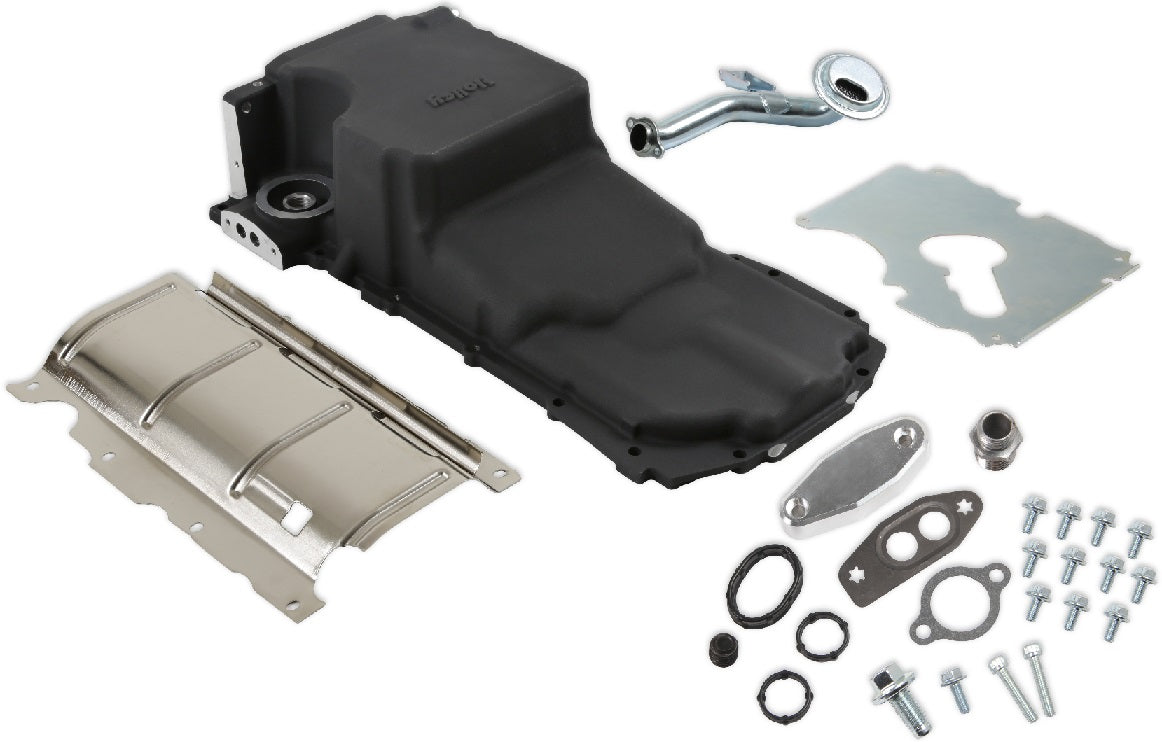

• COMPLETE KIT INCLUDES: WINDAGE TRAY, SUMP BAFFLE, OE STYLE PICK-UP TUBE, SUMP PORT PLUG, OIL FILTER STUD, BILLET OIL PASSAGE COVER, ETC.

SPECS:

• APPLICATION: GM GEN V LT
• BRAND: HOLLEY
• MATERIAL/FINISH: BLACK ALUMINUM
• MAXIMUM STROKE: 4.00"
• OIL PAN CAPACITY: 6.1 QUARTS
• OIL PAN TYPE: CAST
• PRODUCT TYPE: OIL PAN KIT
• SUMP LOCATION: REAR
• TURBO OIL DRAINBACK: YES
• WINDAGE TRAY INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN KIT HERE.
