IM KIT,105MM EFI TOP,BBC HI-RAM SATIN

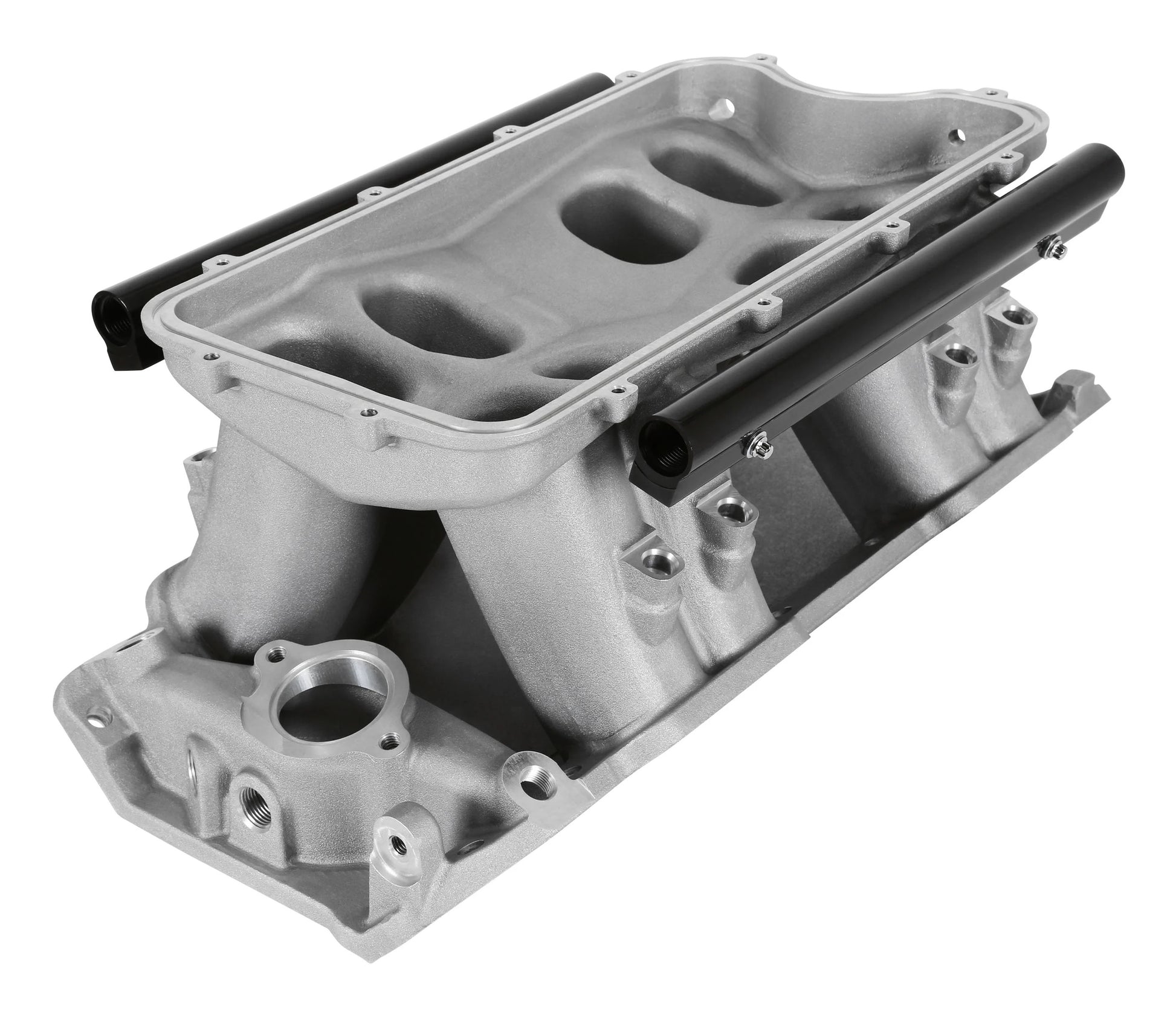

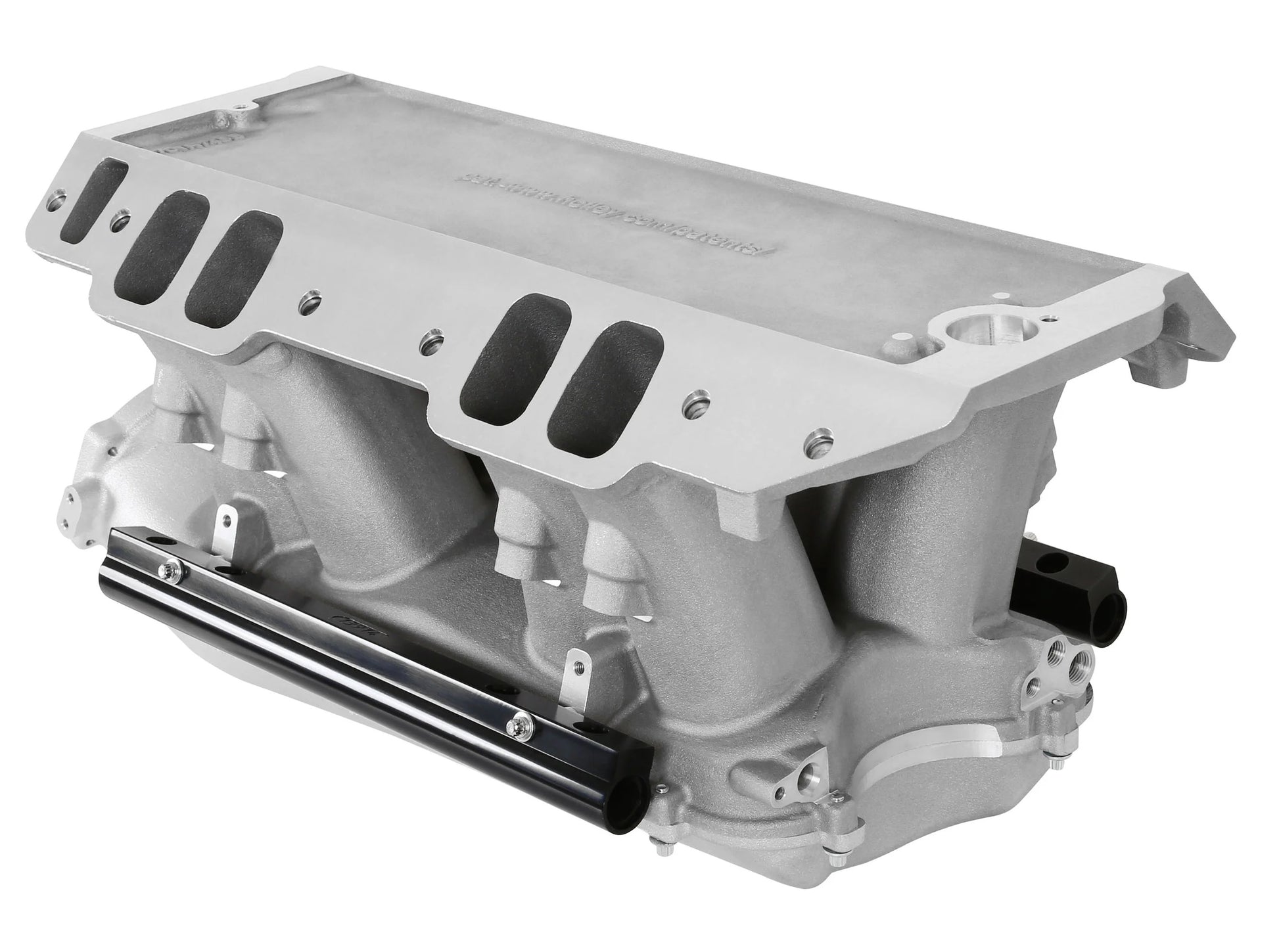

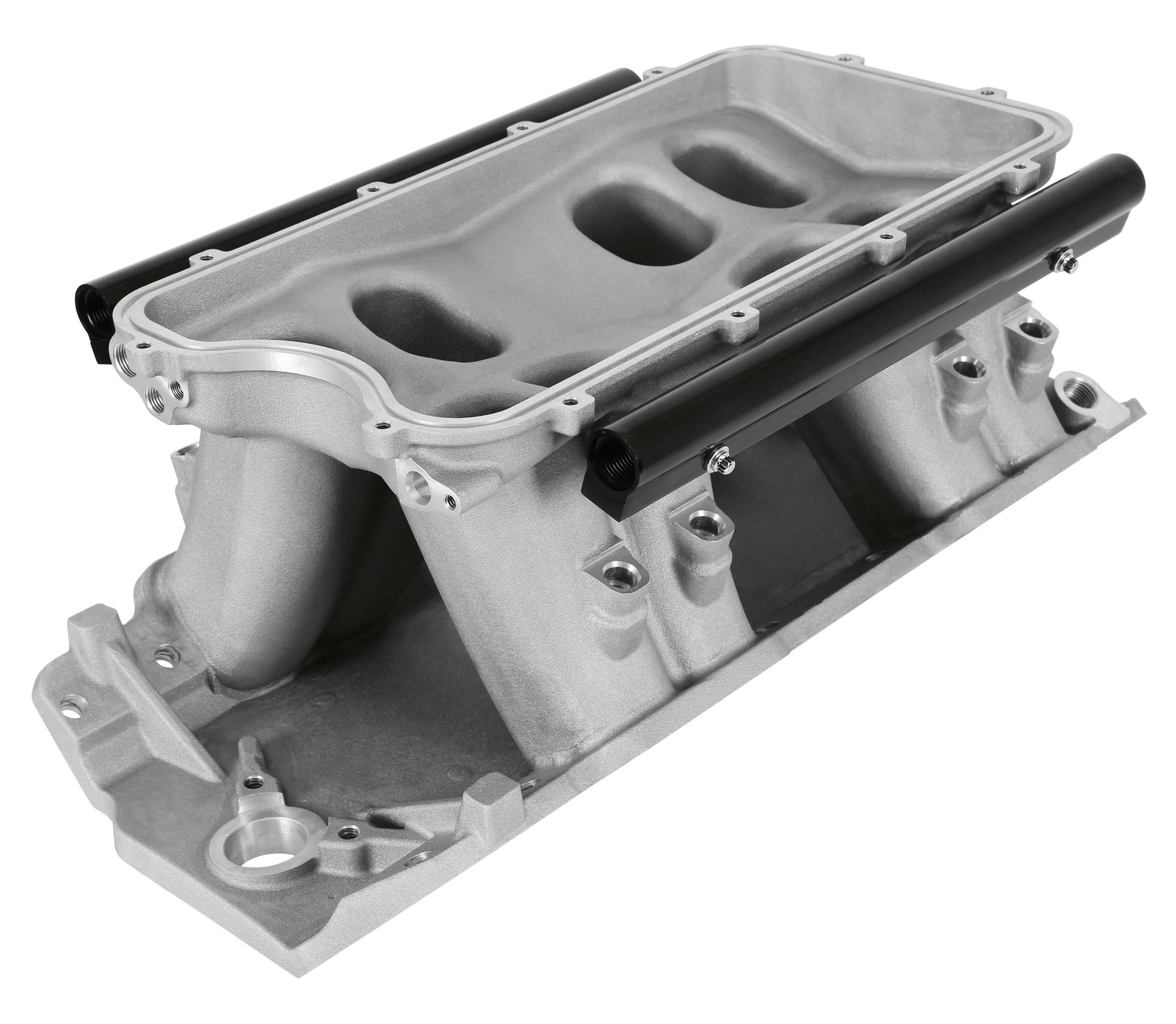

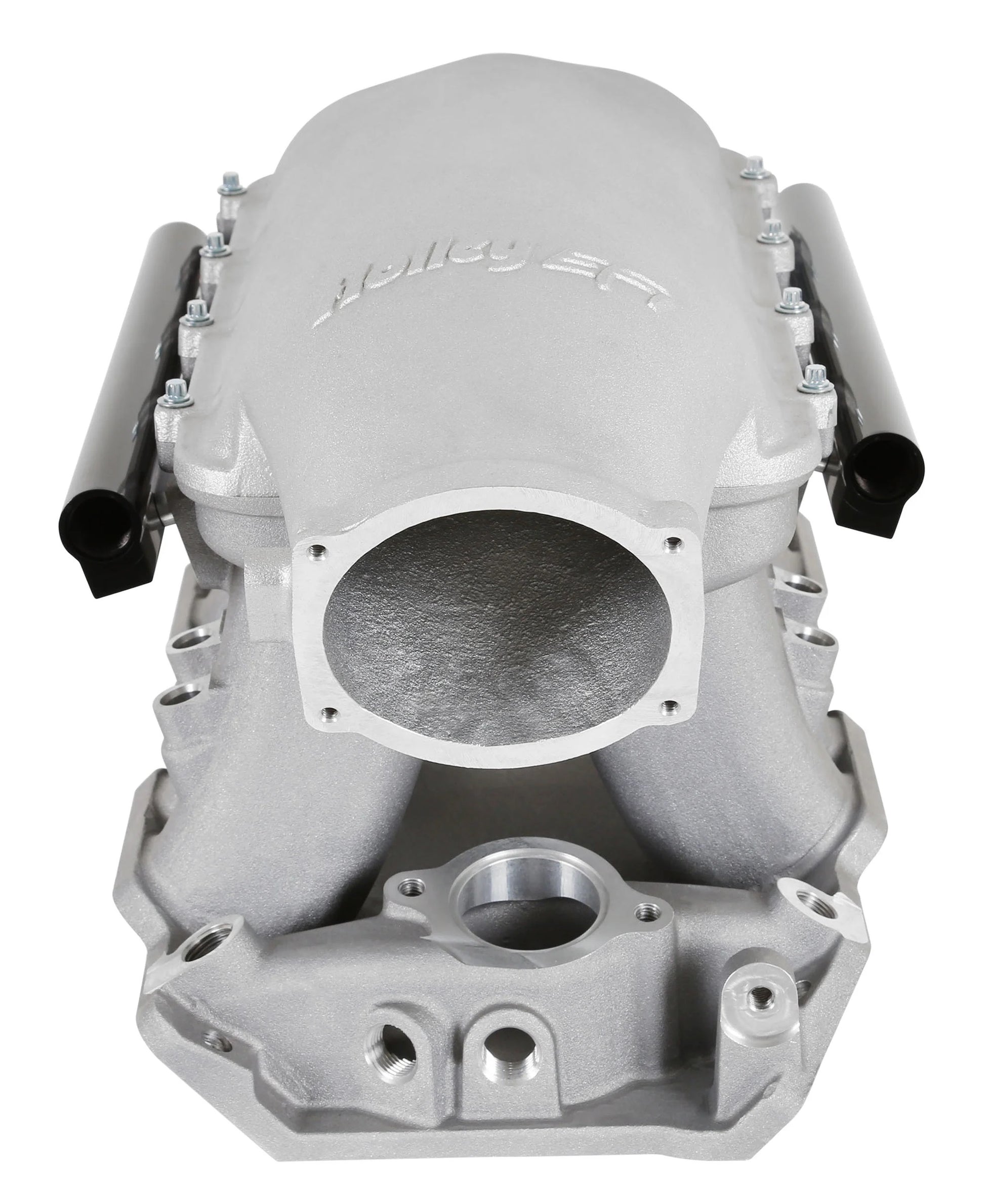

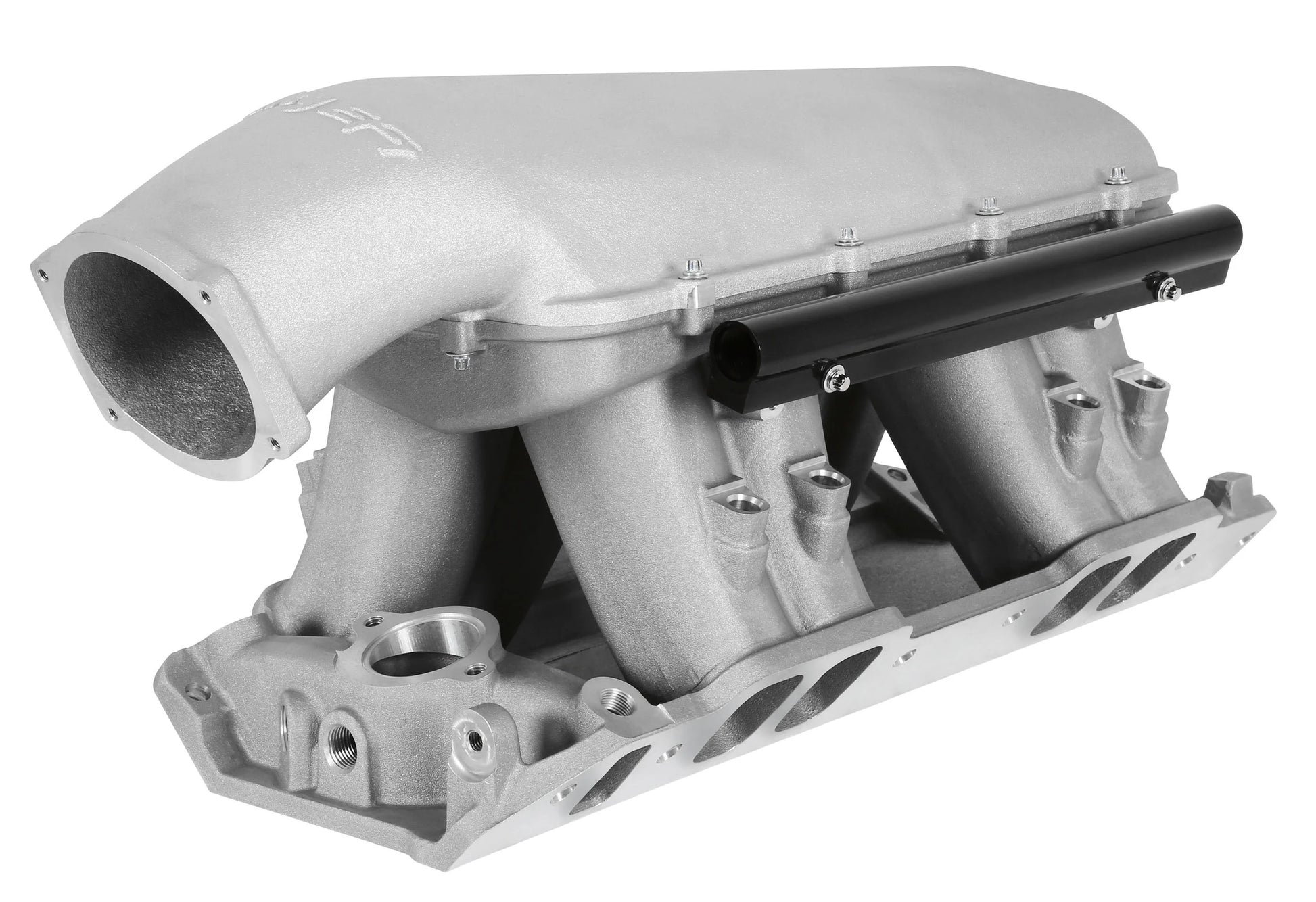

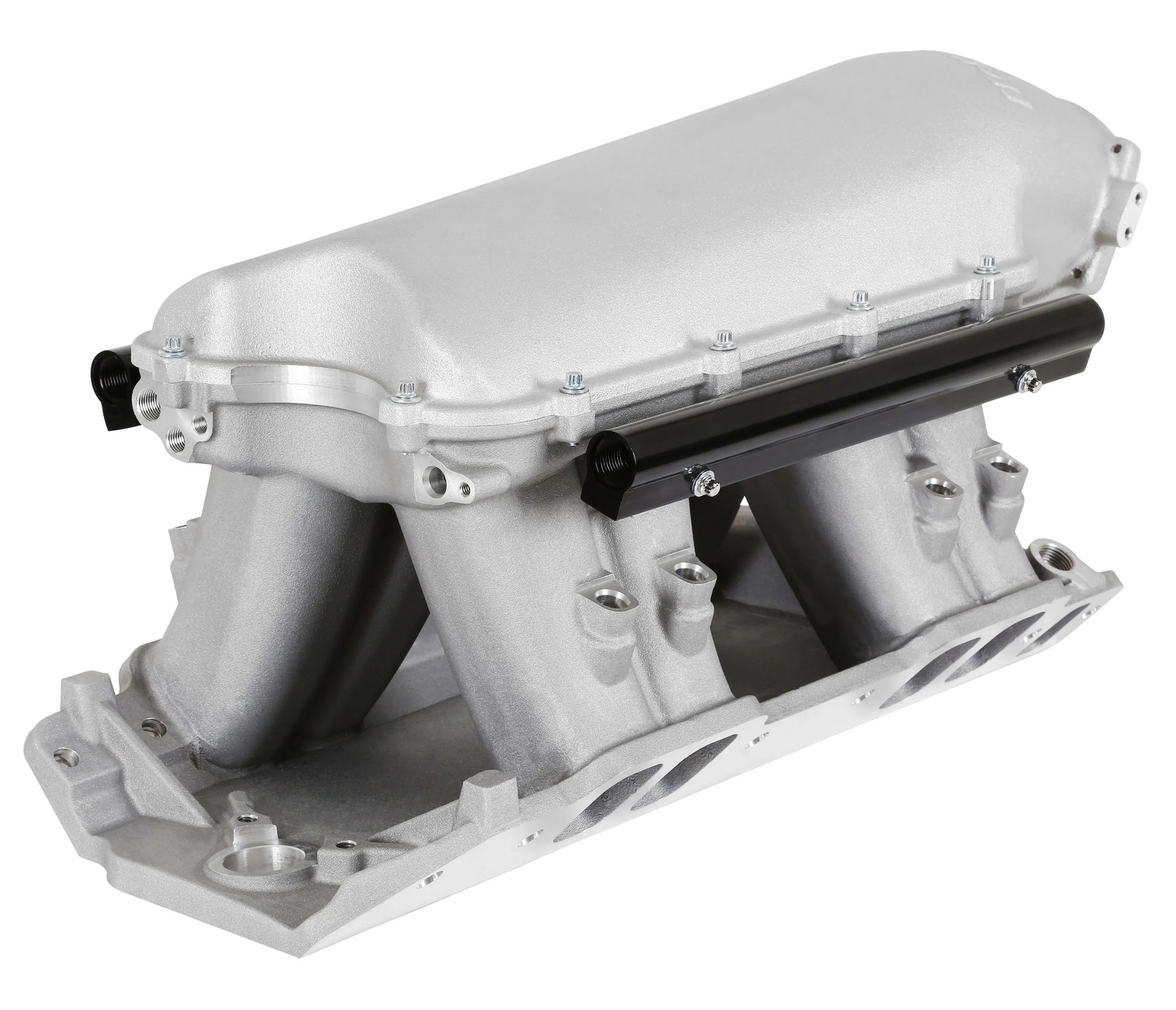

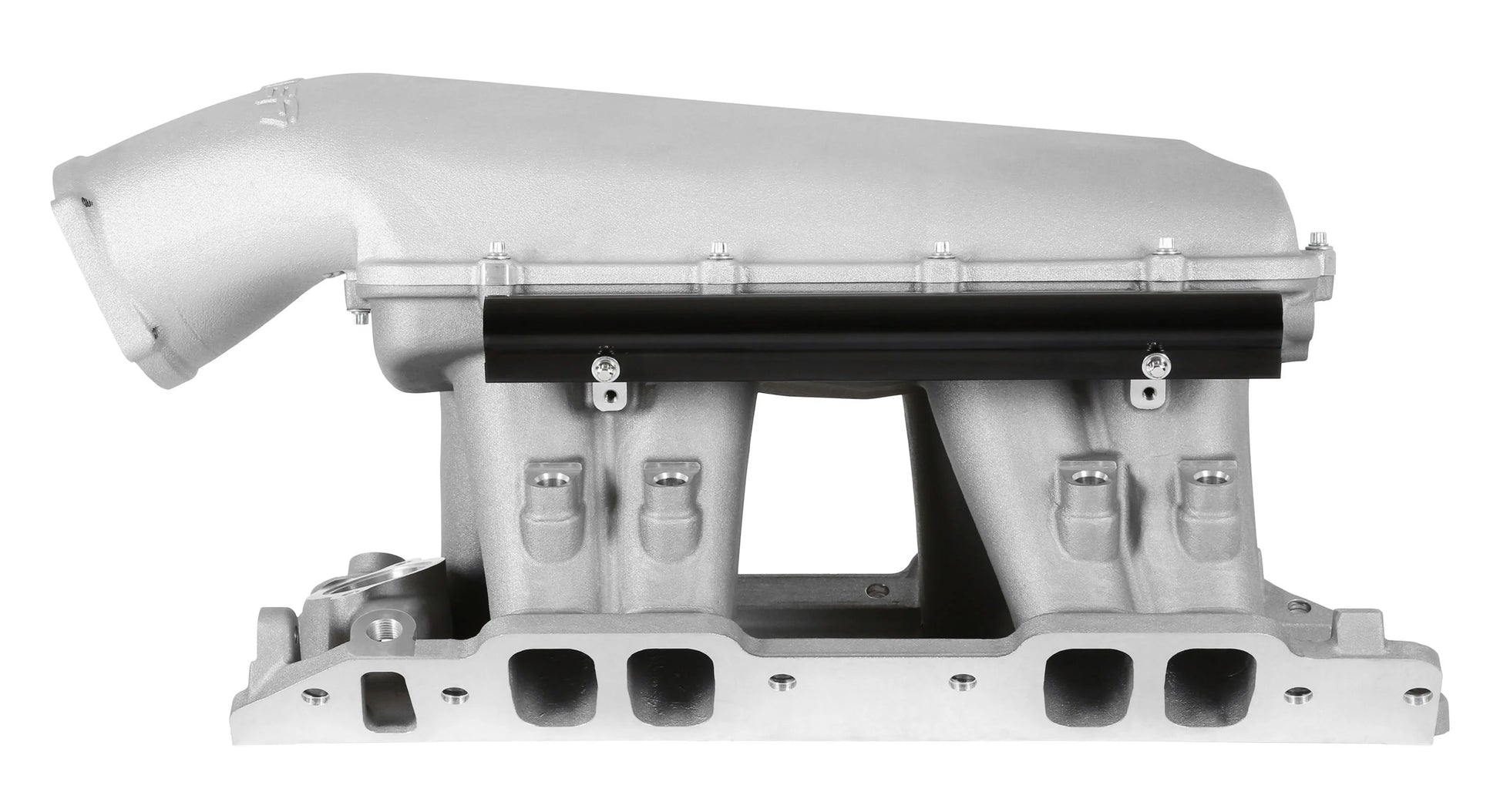

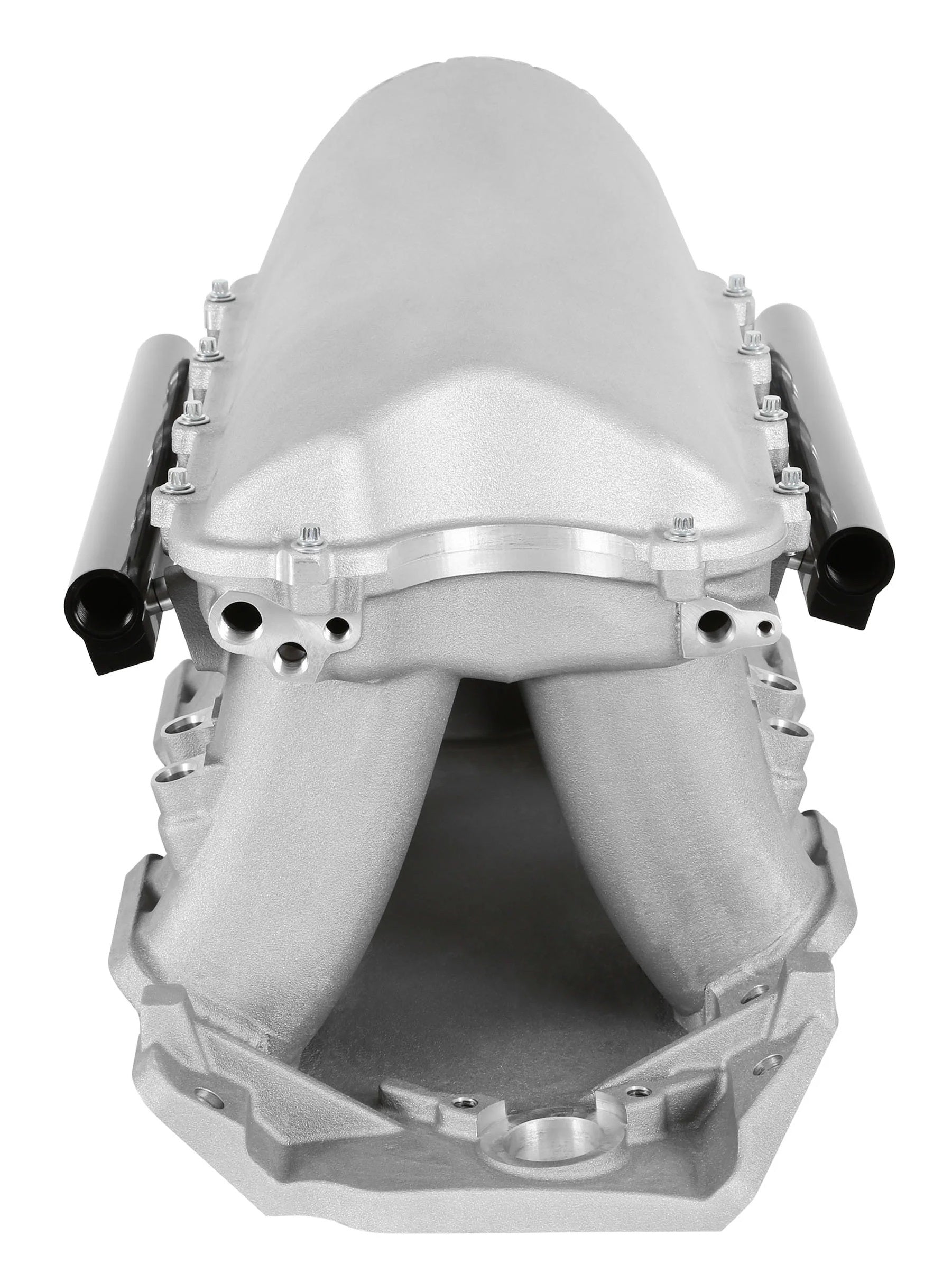

Brand New Holley Hi-Ram EFI Intake Manifold Kit with 105mm LS Gen IV Throttle Body Flange for Big Block Chevy (Part #300-963).

Holley Hi-Ram EFI intake manifolds are now available for 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with standard intake flange rectangle-port cylinder heads. Traditional Big Block Chevy engines can now also be fitted with the Holley Brand Hi-Ram type EFI intake manifolds that have so well served GM LS & LT, Gen 3 Hemi, SBF Ford, and Ford Coyote engine platforms. The iconic Chevy SBC & BBC platforms are primed for 21st century induction systems, Holley EFI engine management, and Holley fuel systems.

Fits:

• Chevrolet:
  • 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with Standard Intake Flange & Rectangle Port Cylinder Heads

Features:

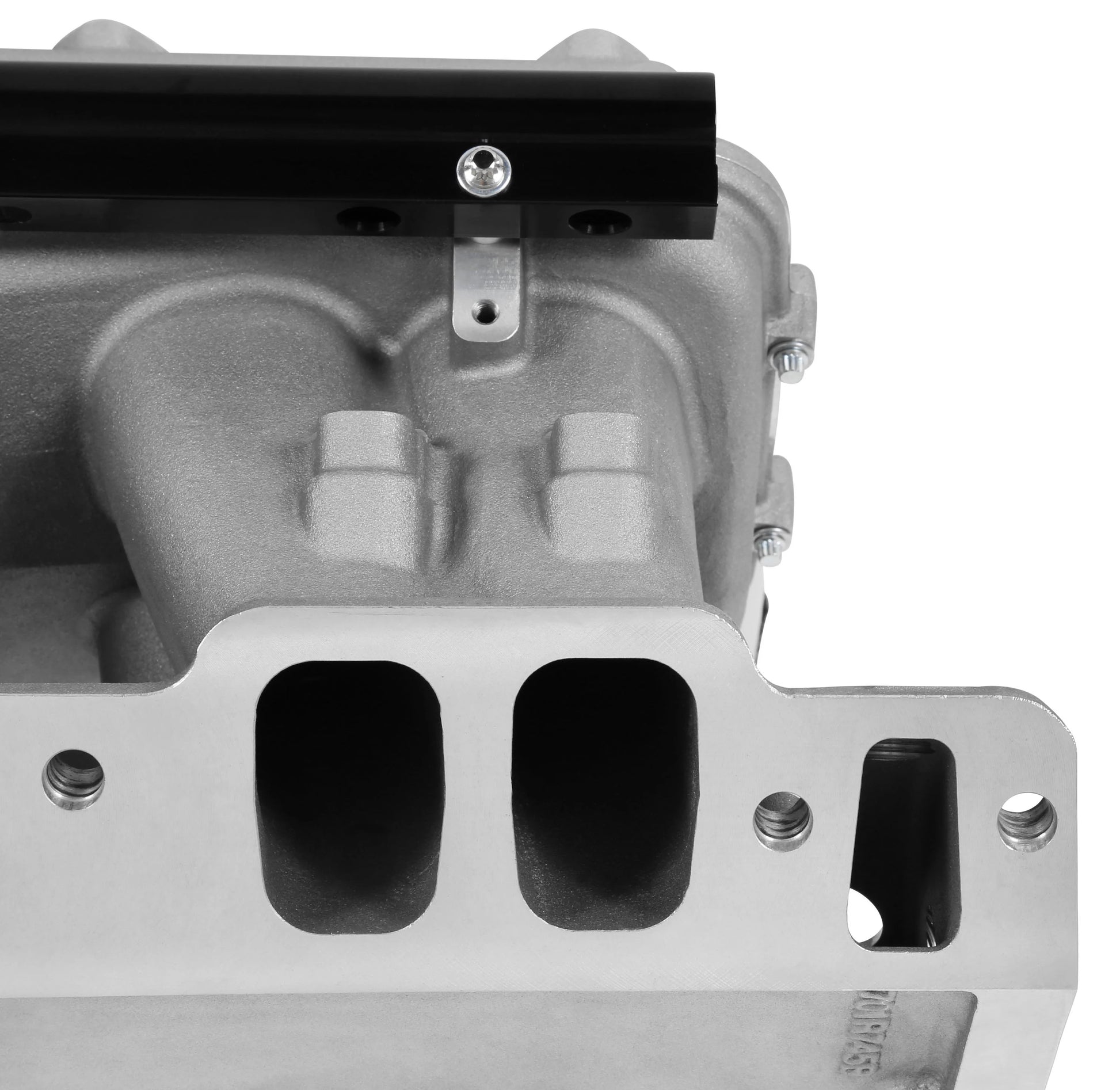

• 2.40” tall x 1.60” wide port flange openings, uses Mr. Gasket intake manifold gasket #5817

• Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish

• Throttle Cable Bracket is supplied in the kit

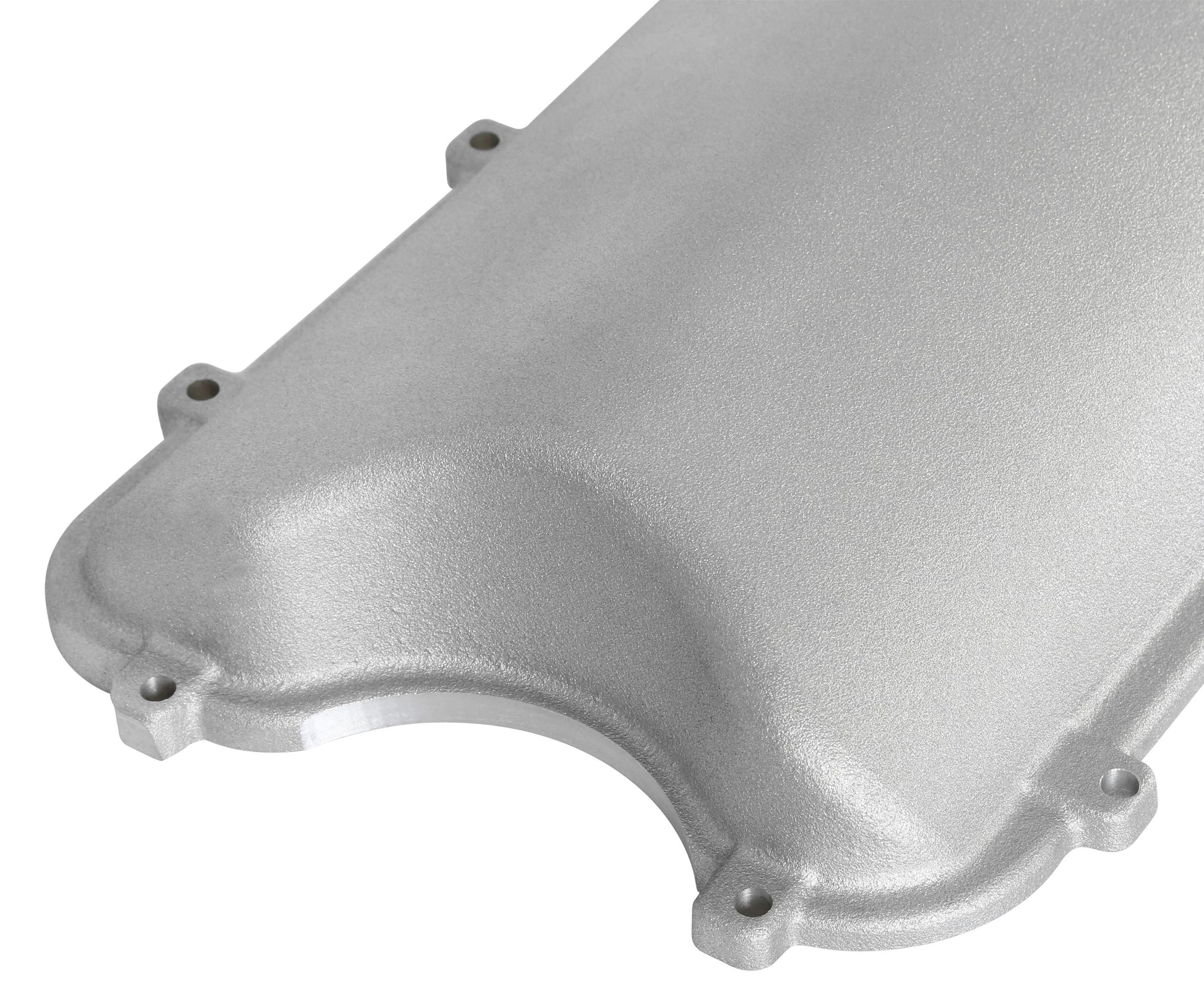

• Plenum Top Gasket Type – 3/32” Round O-ring Cord

• Power Band: 1500-8000 RPM

• Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors

• Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies

• Black anodized EFI fuel rails are machined for -10AN O-ring fittings and come included with these EFI Hi-Ram kits.

• The coolant outlet is a standard Chevy thermostat housing flange. and (2) 1/2 NPT and (1) 3/8 NPT coolant ports are provided.

• Hi-Ram intake manifolds are a cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited

• 300-961, 300-963, and 300-964 are designed for 1965 & later 396-502+ MKIV-MKVI standard 9.80” deck height Big Block Chevy engines with standard intake flange rectangle-port cylinder heads.

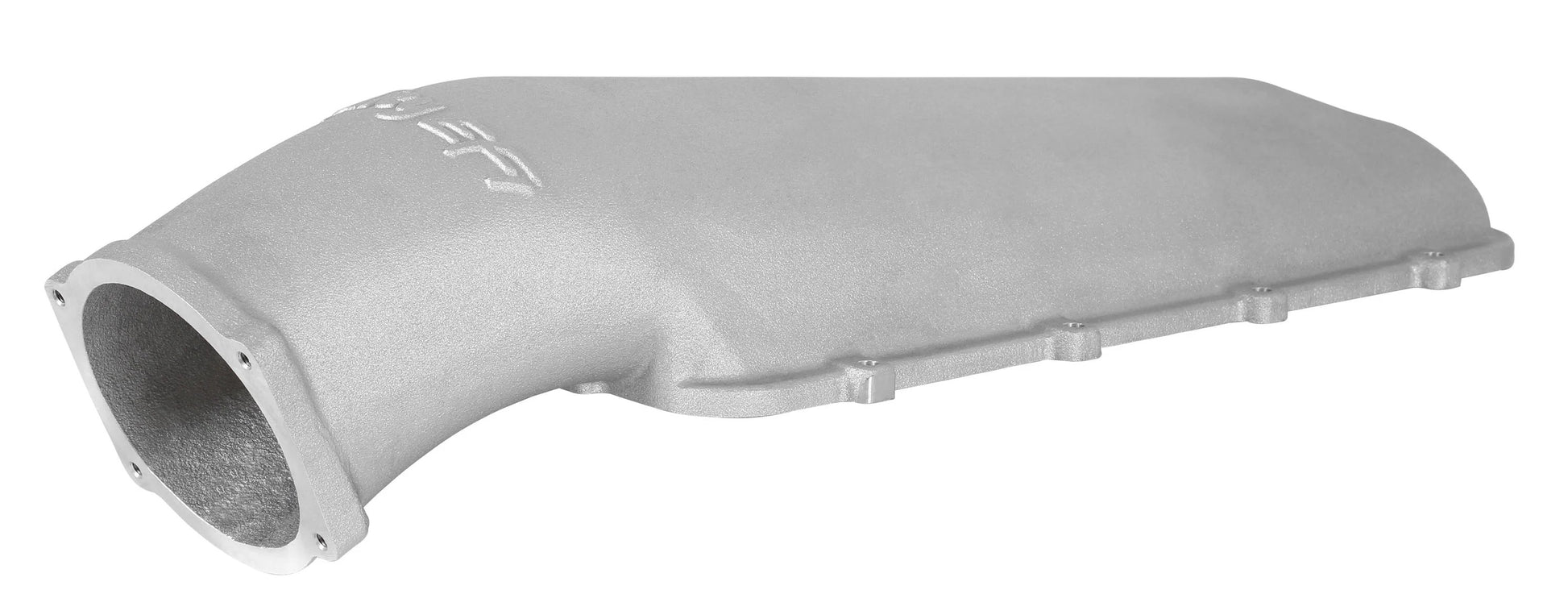

• The Big Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum top or with a 2 x 4150 4-barrel throttle body plenum top options

• MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum

Specs:

• Basic Operating RPM Range: 1500-8000 RPM

• Brand: Holley

• Category: Intake Manifolds

• CNC Ported: No

• Construction: Cast

• Cylinder Head Port Shape: Rectangle

• Deck Height: 9.8 IN

• EGR Port: No

• Engine: Chevy Big Block V8

• Fuel Injectors Included: No

• Fuel Rail(s) Included: Yes

• Fuel System Type: EFI

• Grade Type: Performance

• Intake Port Gasket(s) Included: No

• Manifold Type: Hi-Ram

• Material: Aluminum

• Nitrous Bung(s) Included: No

• Part Type: Engine Intake Manifold

• Plenum Finish: Natural

• Removable Runners: No

• Removable Top/Lid: Yes

• Single Or Dual Plane Type: Single Plane

• Throttle Body Bore Diameter: 105

• Throttle Body Gasket Included: Yes

• Throttle Body Included: No

• Vacuum Ports: Yes


You can view and download the instruction booklet here.
