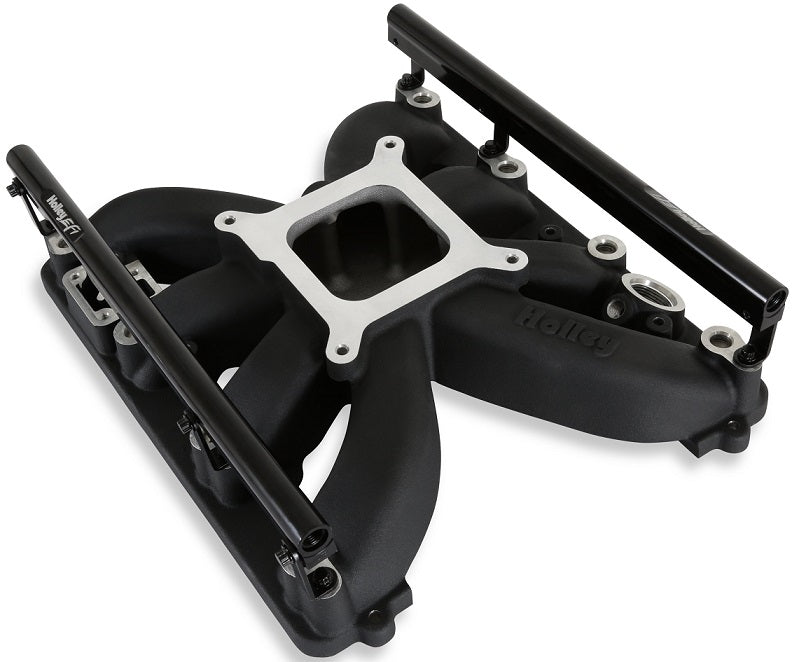

INTAKE MANIFOLD KIT,GEN III HEMI,W/FUEL RAILS,4150 EFI,BLACK

Brand New Holley Single Plane Intake Manifold, Black, Compatible with 2009-2023 5.7L, 2005-2010 6.1L & 2011-2023 6.4L Chrysler Gen III Hemi Engines (Part #300-930BK).

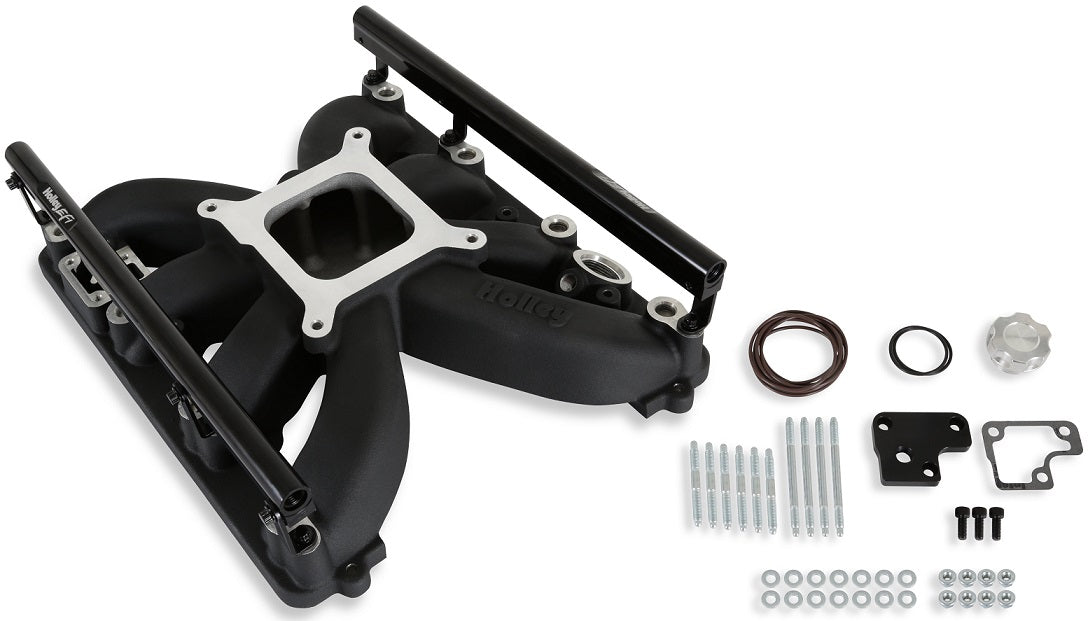

These new single-plane intake manifold kits are designed for 2009-Current 5.7-liter, 2005-2010 6.1-liter, and 2011-Current 6.4-liter Chrysler Gen III Hemi engines. Provides maximum hood clearance combined with plenum and runner geometry that provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The isolated design of the air/fuel passages helps to increase charge air density & performance. 300-930 & 300-930BK are designed for 4150 type throttle valves. Included are billet fuel rails along with mounting brackets for either Bosch EV-1 type fuel injectors or most Gen III Hemi OEM injectors.

Fits:

• Chrysler:
  • 2009-Current 5.7L Gen III Hemi
  • 2005-2010 6.1L Gen III Hemi
  • 20011-Current 6.4L Gen III Hemi

Notes:

• This intake manifold is for use with a carburetor-style throttle body such as part #112-577, 112-587, & 112-588 (Sold Separately). This intake manifold does not work with non-carb style throttle bodies.
• Adapter plates 300-652 will allow use with early, small port engines.

Features:

• Designed for use with either Bosch EV1 or Gen III Hemi OEM fuel injectors

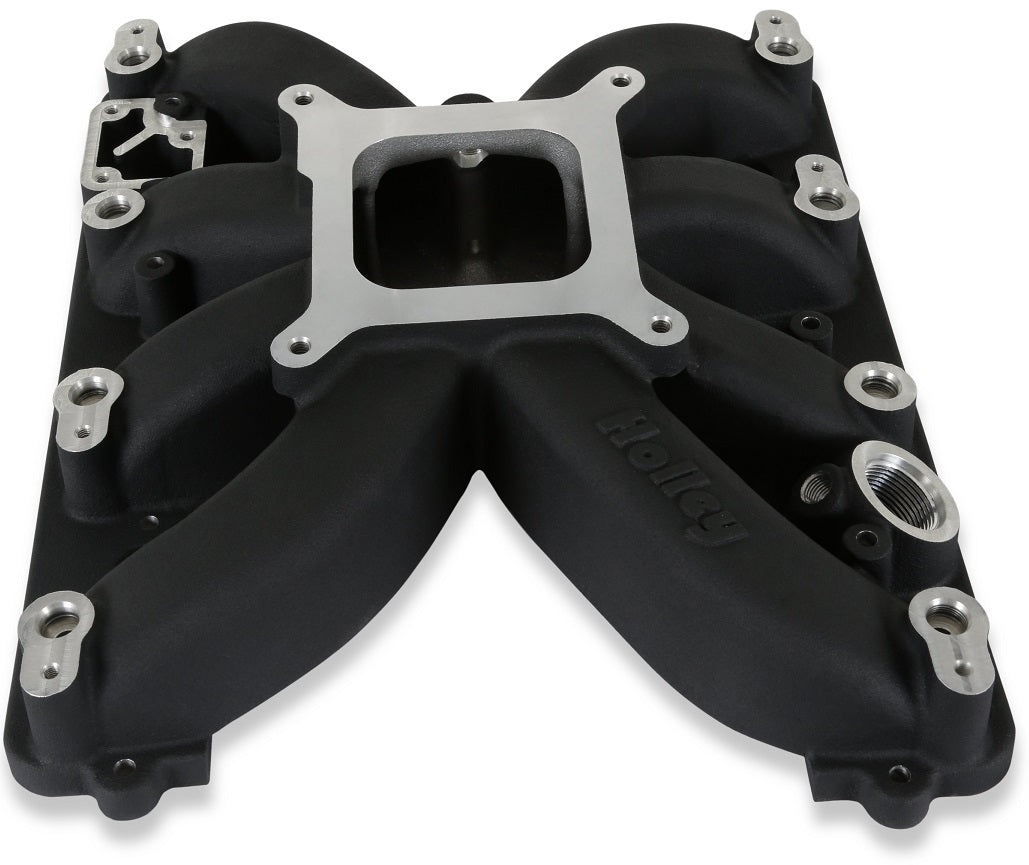

• Unique casting for 300-931, 300-931BK without injector bungs for clean appearance
• Minimum carb flange height for maximum clearance to hood
• Height to throttle valve flange in front is 3.31-inch, rear is 4.25-inch
• Cast aluminum construction. Great for turbocharger, centrifugal blower or NOS power adders
• Billet aluminum oil fill cap included

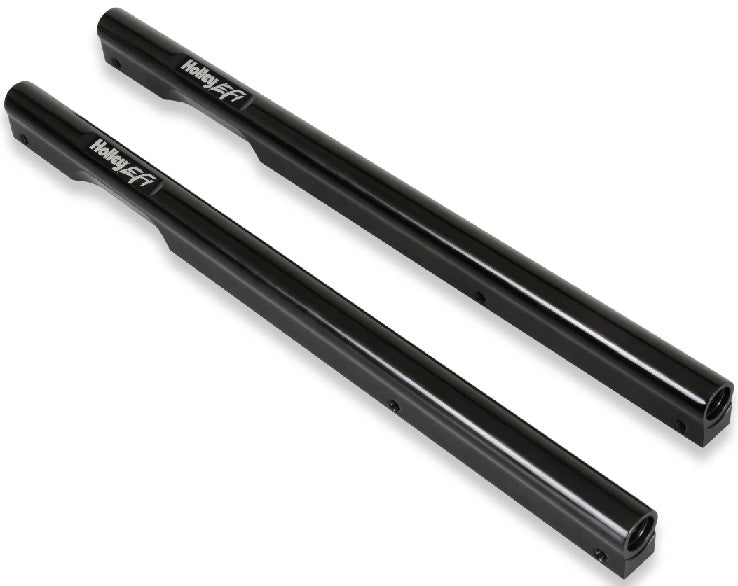

• Billet fuel rails included with 300-930, 300-930BK
• Port size: 1.72-inches tall, 1.75-inches wide
• 4150 type throttle/carb flange
• O-ring seals around ports

Specs:

• Brand: Holley
• Carburetor Flange: 4150 Square Bore
• Carburetor Studs Included: No
• CNC Ported: No
• Deck Height: 9.25"
• EGR Port: No
• Engine: GEN 3 HEMI
• Fuel Injectors Included: No
• Fuel Rail(s) Included: Yes
• Operating RPM Range: 2500-7500 RPM
• Material: Aluminum
• Throttle Body Bore Diameter: 3.6

You can view and download the complete assembly instruction booklets for this intake manifold here.
