MANIFOLD BASE,ULTRA LO-RAM,GEN V LT,OE INJECTION,FF,BLACK

BRAND NEW HOLLEY ULTRA LO-RAM MANIFOLD BASE, BLACK SATIN FINISH, FRONT FEED, OE DIRECT INJECTION ONLY, COMPATIBLE WITH GM GEN V LT ENGINES

THE HOLLEY GM GEN V LT LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM GEN V LT ENGINES EQUIPPED WITH GM LT CYLINDER HEADS. COMPATIBLE WITH OE OR AFTERMARKET CYLINDER HEADS. THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7,000-8,000 RPM DEPENDING ON THE APPLICATION.

THE FRONT ENTRY THROTTLE BODY FLANGE HAS A 105MM OPENING TO WORK WITH THROTTLE BODY PART NUMBER 112-581 OR SIMILAR MODELS. THE FRONT-FEED BASE INTAKE MANIFOLD IS DESIGNED WITH A LOWER OVERALL HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD. THE ULTRA LO-RAM PROVIDES A VERY LOW-PROFILE MODULAR INTAKE MANIFOLD ALONG WITH VARIOUS FABRICATION FLANGES TO AID THE FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLATIONS. AVAILABLE FOR OE DIRECT FUEL INJECTION ONLY AND WITH PORT FUEL INJECTION PROVISIONS AND A BURST PANEL FLANGE OPTIONS.

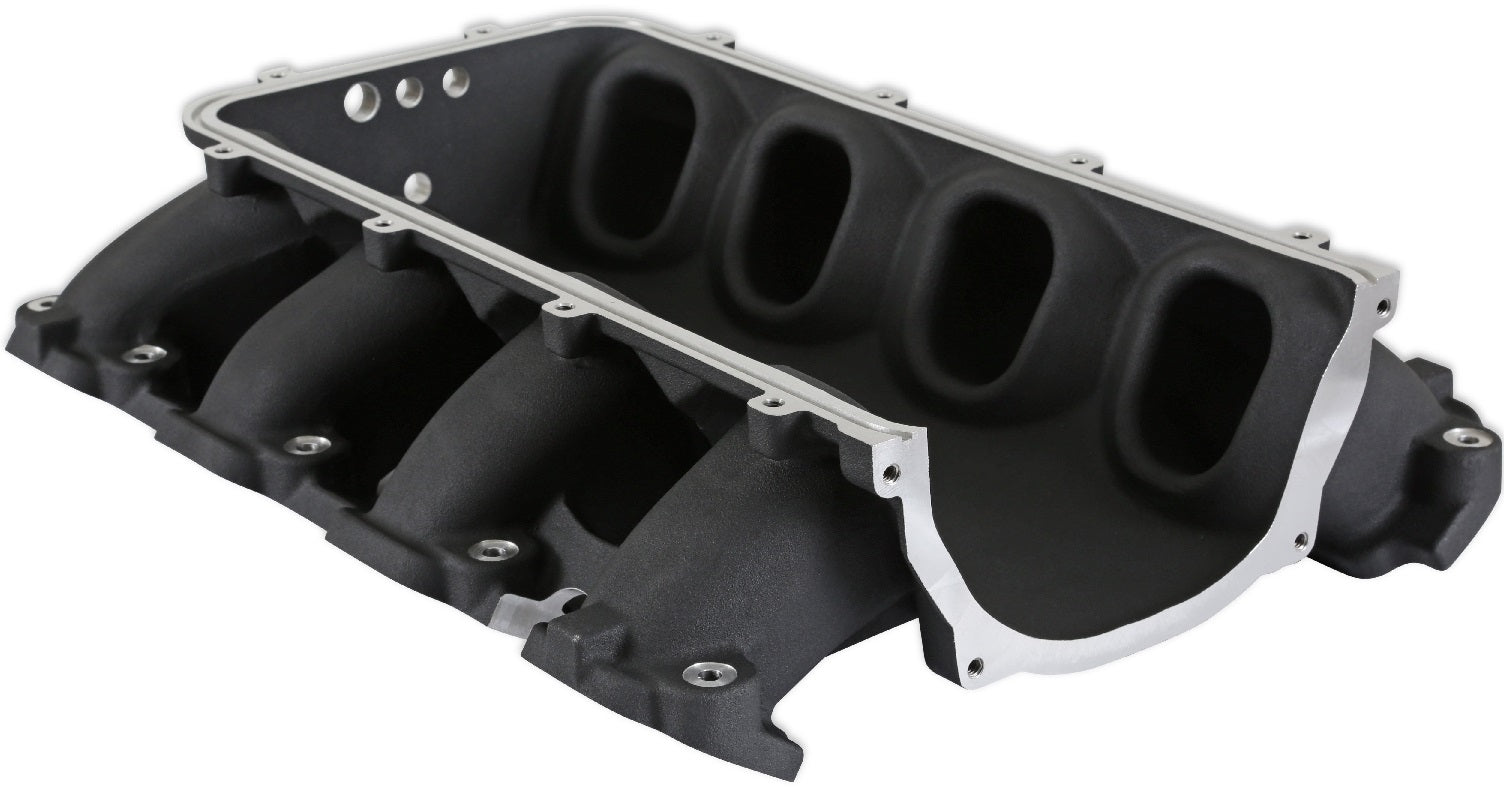

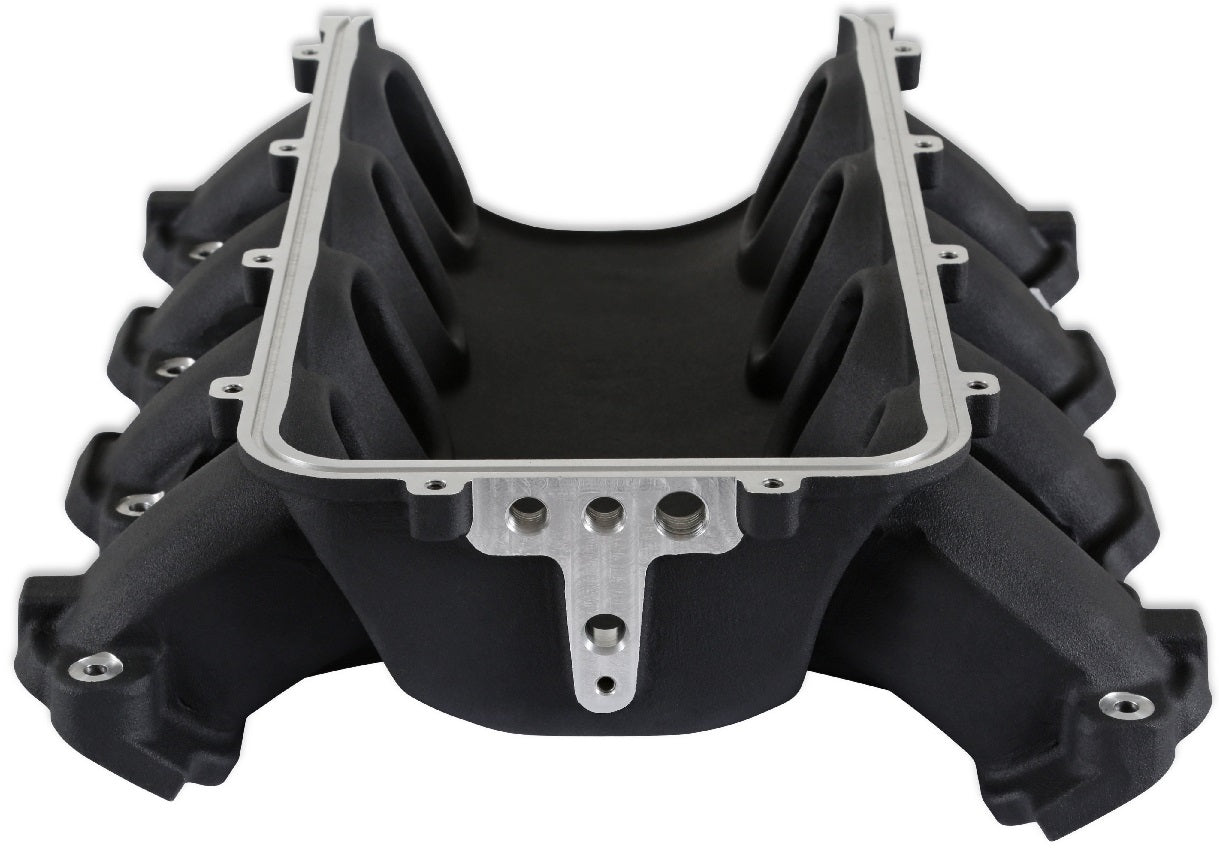

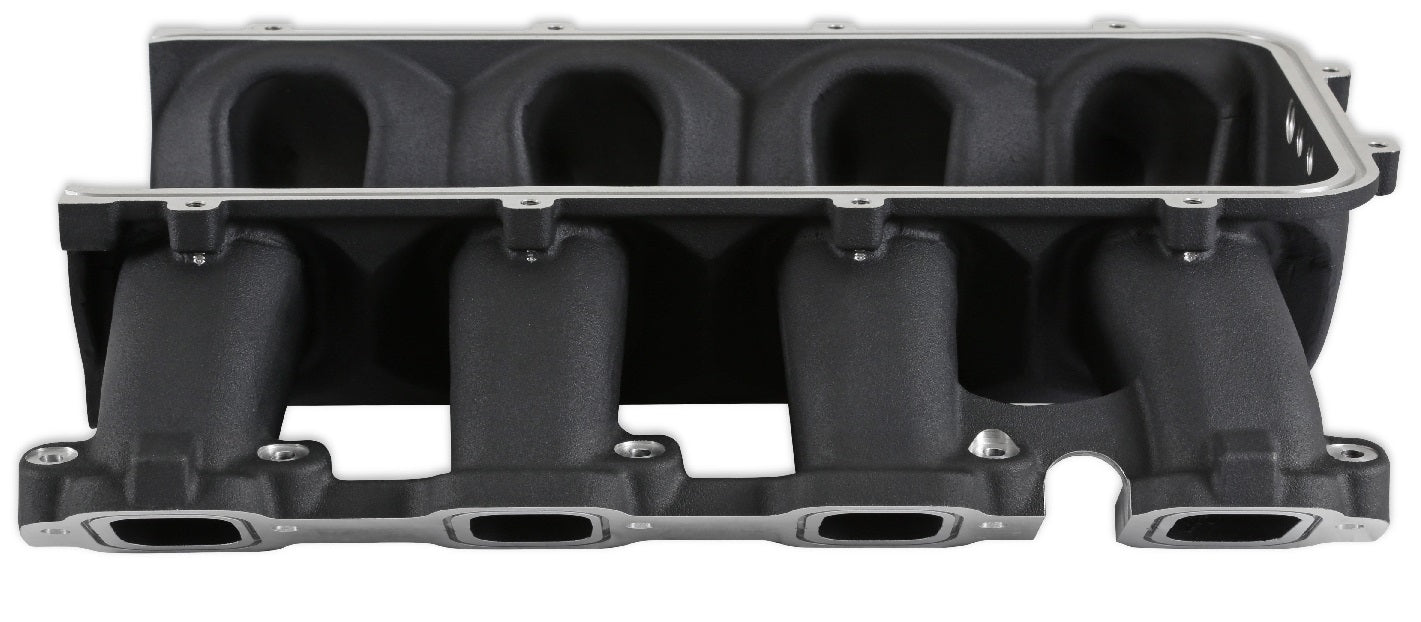

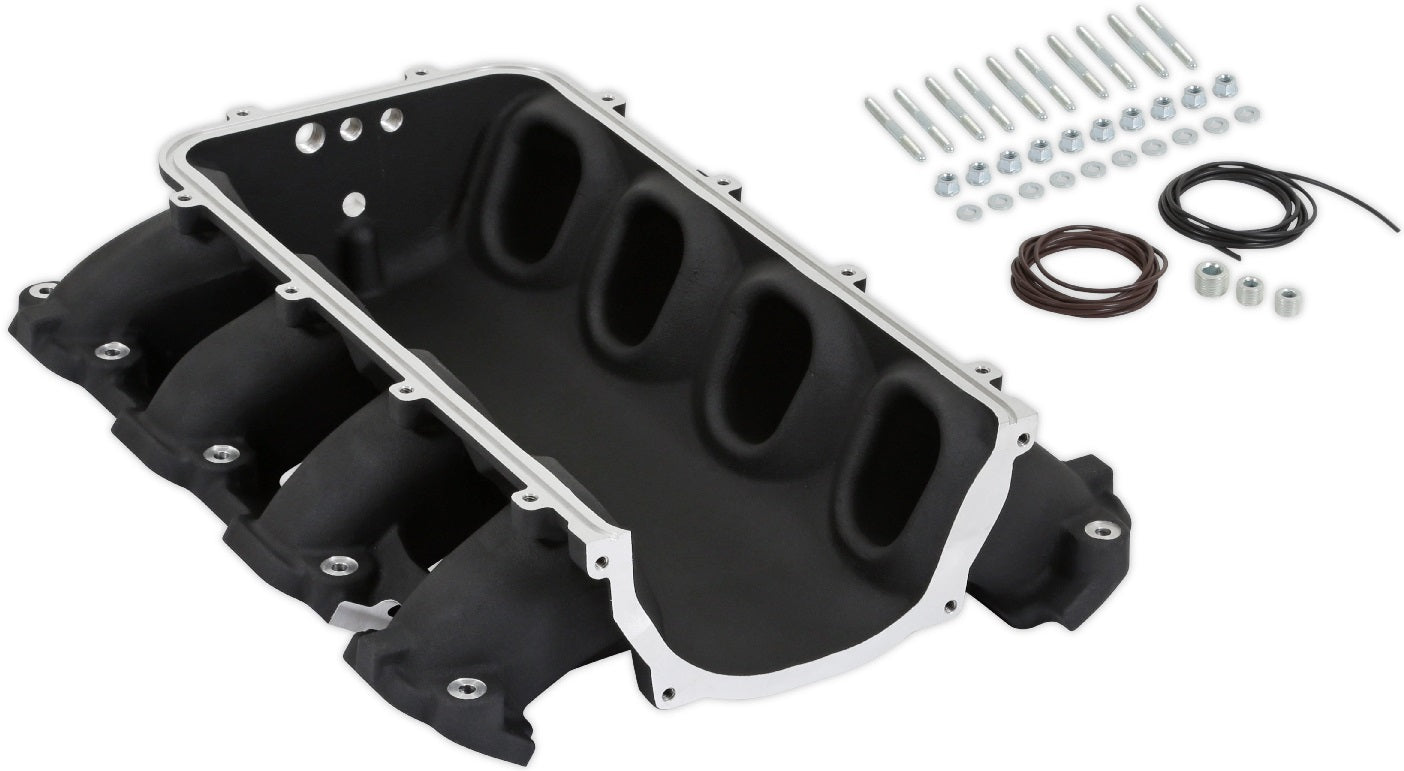

NOTE: NOTE: PART #300-712 (SILVER SATIN FINISH) IS USED IN THE IMAGES TO SHOW PRODUCT. PART #300-712BK IS A BLACK SATIN FINISH.

FEATURES:

• COMPATIBLE WITH GM GEN V ENGINES EQUIPPED WITH GM LT TYPE CYLINDER HEADS
• 105MM DIAMETER THROTTLE BODY OPENING ACCEPTS OEM 4-BOLT LS/LT DBW OR HOLLEY LS/LT THROTTLE BODIES
• ENGINEERED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7,000-8,000 RPM DEPENDING ON APPLICATION
• ONLY 0.97-INCH TALLER THAN A FACTORY LT1 MANIFOLD PROVIDES MAXIMUM CLEARANCE UNDER A STOCK OR MILDLY MODIFIED HOOD
• MODULAR DESIGN & FRONT ENTRY PLENUM FLANGE ALLOWS DESIGN & FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLATIONS
• CLEARS C7 CORVETTE COWLS AND HOODS WITHOUT MODIFICATION
• AVAILABLE FOR OE DIRECT FUEL INJECTION ONLY OR WITH ADDED PORT FUEL INJECTION PROVISIONS
• KITS WITH PORT INJECTION PROVIDE HIGH VOLUME FUEL RAILS WITH 3/4-16 O-RING PORTS (8 AN). MOUNTING HARDWARE IS INCLUDED

SPECS:

• BRAND: HOLLEY EFI
• ENGINE: GM GEN V LT1
• FINISH: SATIN
• FLANGE STYLE: EFI
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 3500-8000

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
