MANIFOLD BASE & RAILS,LO-RAM,GEN V LT,PORT INJ,TF,BLACK

BRAND NEW HOLLEY LO-RAM MANIFOLD BASE & PORT INJECTION FUEL RAILS, BLACK SATIN FINISH, TOP FEED, COMPATIBLE WITH GM GEN V LT ENGINES

THE HOLLEY GM GEN V LT LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM GEN V LT ENGINES EQUIPPED WITH GM LT CYLINDER HEADS. COMPATIBLE WITH OE OR AFTERMARKET CYLINDER HEADS. THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7,000-8,000 RPM DEPENDING ON THE APPLICATION.

THE TOP-FEED PLENUM BASE INTAKE MANIFOLD IS DESIGNED WITH A REDUCED OVERALL HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD. THE LO-RAM PROVIDES A LOW PROFILE MODULAR INTAKE MANIFOLD SUITABLE FOR USE WITH PLENUM MOUNTED AIR-TO-WATER INTERCOOLERS FOR BOOSTED APPLICATIONS. AVAILABLE FOR OE DIRECT FUEL INJECTION ONLY & WITH PORT FUEL INJECTION PROVISIONS

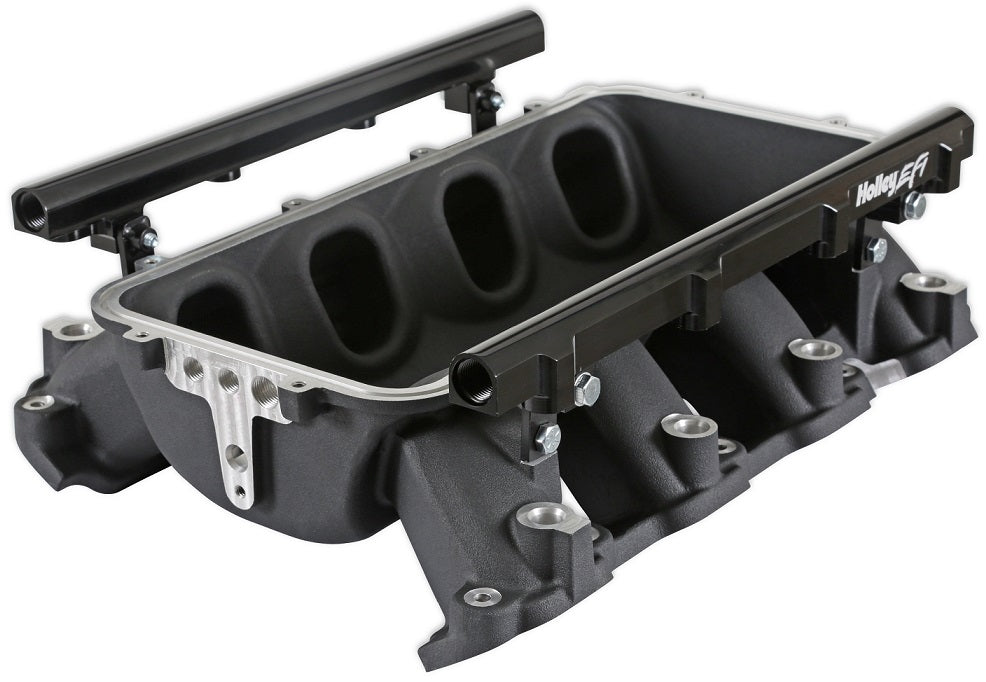

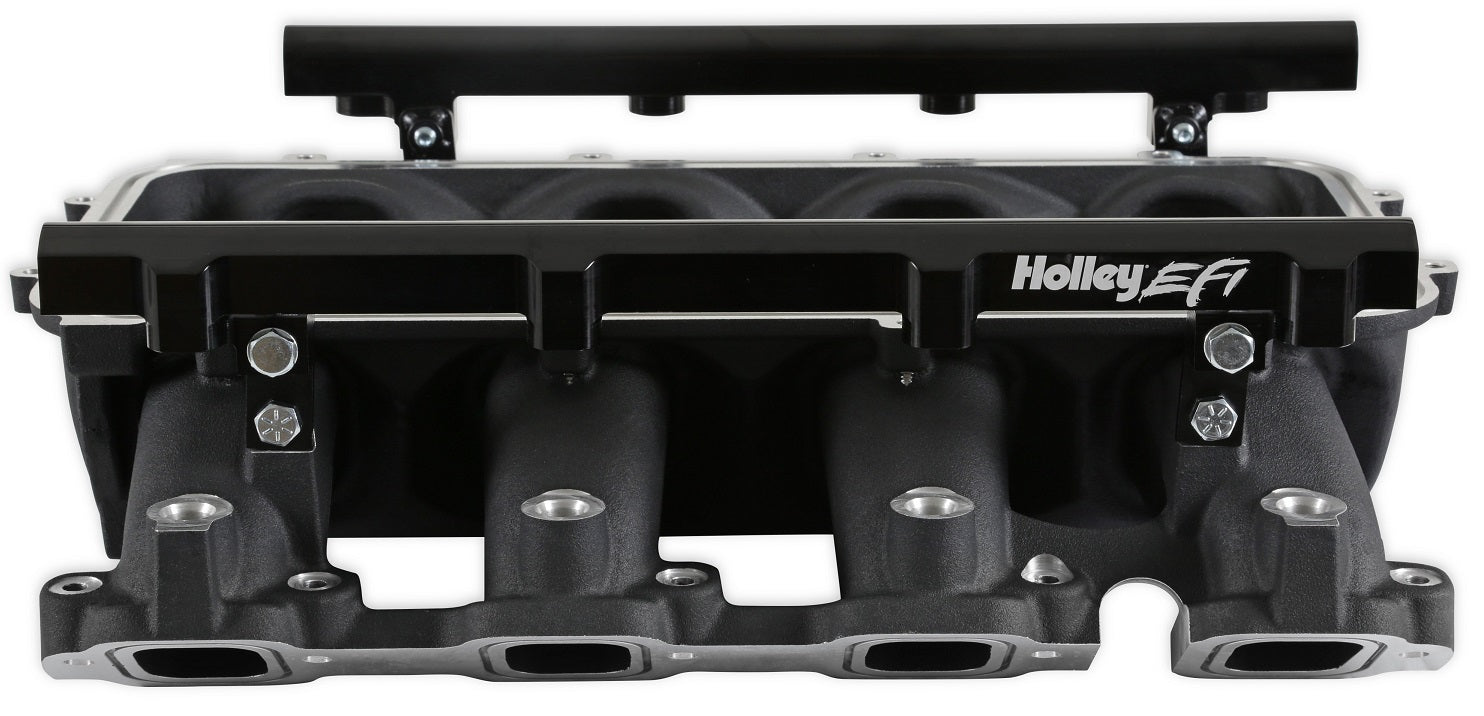

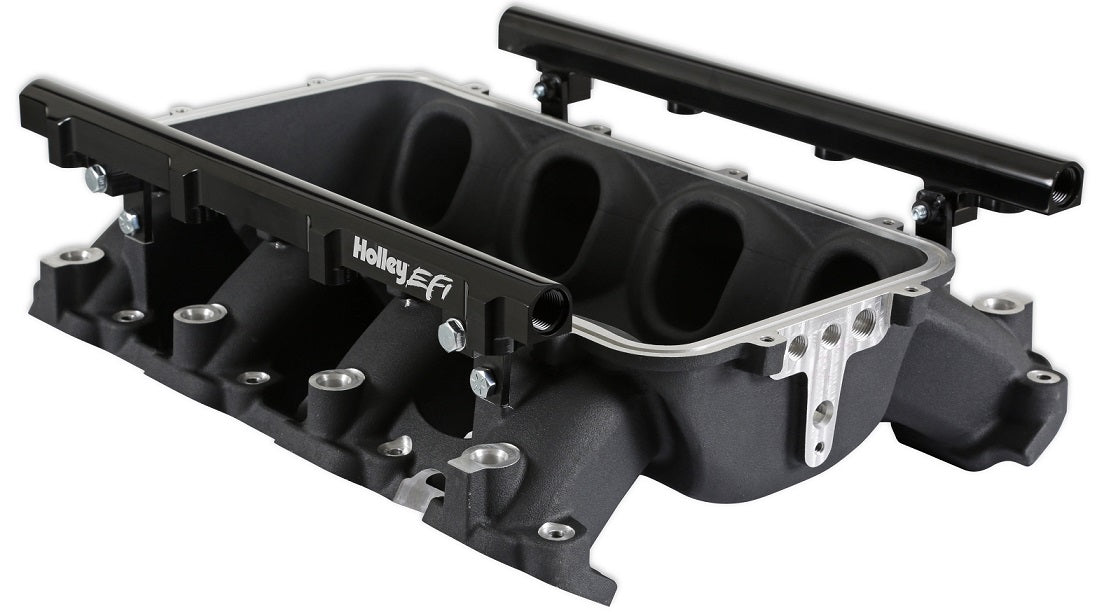

NOTE: NOTE: PART #300-711 (SILVER SATIN FINISH) IS USED IN THE IMAGES TO SHOW PRODUCT. PART #300-711BK IS A BLACK SATIN FINISH.

FEATURES:

• COMPATIBLE WITH GM GEN V ENGINES EQUIPPED WITH GM LT TYPE CYLINDER HEADS
• 105MM DIAMETER THROTTLE BODY OPENING ACCEPTS OEM 4-BOLT LS/LT DBW OR HOLLEY LS/LT THROTTLE BODIES
• ENGINEERED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7,000-8,000 RPM DEPENDING ON APPLICATION
• LOW-HEIGHT TOP-FEED PLENUM PROFILE TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD
• MODULAR DESIGN & TOP ENTRY PLENUM FLANGE ALLOWS THE USE OF POPULAR HOLLEY HI-RAM PLENUM TOPS AS WELL AS FACILITATING CUSTOM FABRICATED PLENUM TOPS
• COMPATIBLE WITH PLENUM MOUNTED AIR-TO-WATER INTERCOOLERS FOR BOOSTED APPLICATIONS

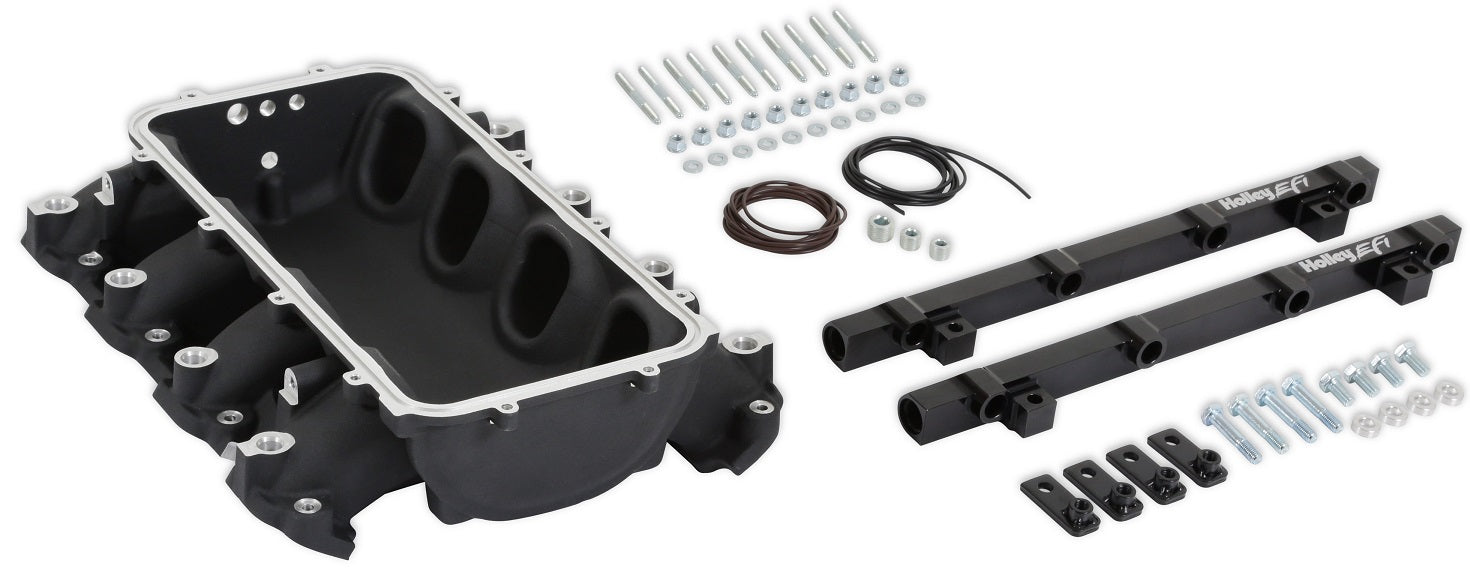

• KITS WITH PORT INJECTION PROVIDE HIGH VOLUME FUEL RAILS WITH 3/4-16 O-RING PORTS (8 AN). MOUNTING HARDWARE IS INCLUDED
• 3.18-INCHES TALLER THAN A FACTORY LT1 MANIFOLD

SPECS:

• BRAND: HOLLEY EFI
• ENGINE: GM GEN V LT1
• FINISH: SATIN
• FLANGE STYLE: EFI
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 3500-8000

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
