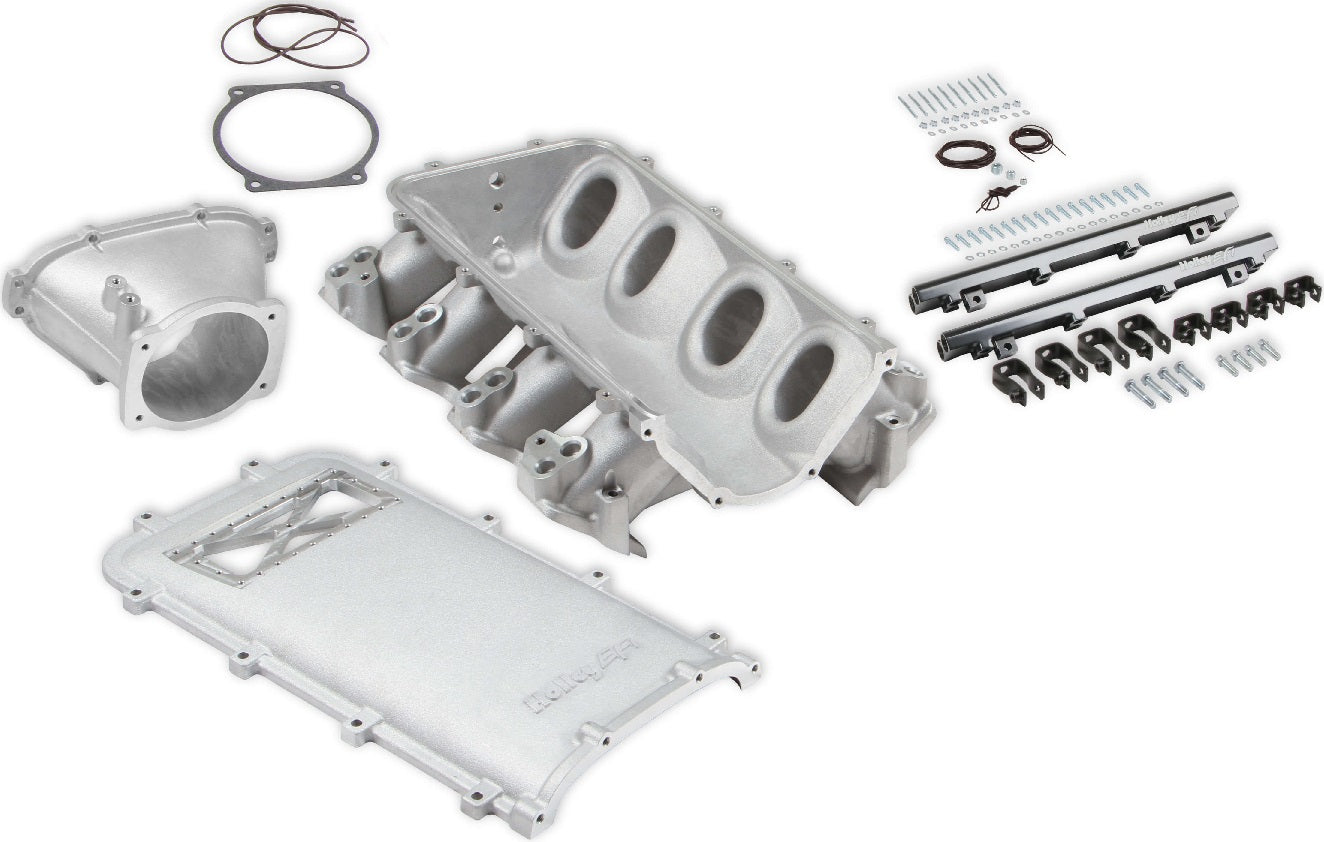

MANIFOLD KIT,LS3,LO-RAM,DUAL,BURST FLANGE,SATIN

BRAND NEW HOLLEY LS3 ULTRA LO-RAM MANIFOLD KIT WITH BURST PANEL FLANGE, DUEL FUEL INJECTOR, SILVER FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS. WORK WITH OE OR AFTERMARKET CYLINDER HEADS. DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM. FRONT ENTRY PLENUM FLANGE HAS A 105 MM OPENING TO WORK WITH THROTTLE BODY PART #112-581 OR SIMILAR MODELS.

BASE INTAKE MANIFOLD IS DESIGNED WITH A LOWER OVERALL HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN THE FRONT ENTRY CONFIGURATION. CONSTRUCTED TO PROVIDE A VERY LOW PROFILE MODULAR INTAKE MANIFOLD SUITABLE FOR FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLATIONS. THE FUEL RAIL KITS COME WITH 2 SETS OF BRACKETS. A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

NOTE: LO-RAM BASE INTAKE MANIFOLD PLENUM TOP MOUNTING FLANGE HEIGHT - 7.00

NOTE: PLENUM CONFIGURATION WITH 105MM THROTTLE BODY ADAPTER - 5.67"

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS
• ENGINEERED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 PRM
• LOW HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN THE FRONT-CONFIGURATION
• FRONT ENTRY PLENUM FLANGE ALLOWS DESIGN & FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLS
• CLEARS C6 CORVETTE COWLS & HOODS WITHOUT MODIFICATION
• DUAL INJECTOR PROVISIONS & BURST PANEL FLANGE
• HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATIONS. MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN)

SPECS:

• BRAND: HOLLEY EFI
• COLOR: SILVER
• ENGINE: GM LS3/L92
• FLANGE STYLE: EFI
• FRONT HEIGHT: 6.86" HEIGHT WITH THROTTLE BODY ADAPTER
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: DUAL
• INLET LOCATION: FRONT
• MANIFOLD TYPE: ULTRA LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD KIT HERE.
