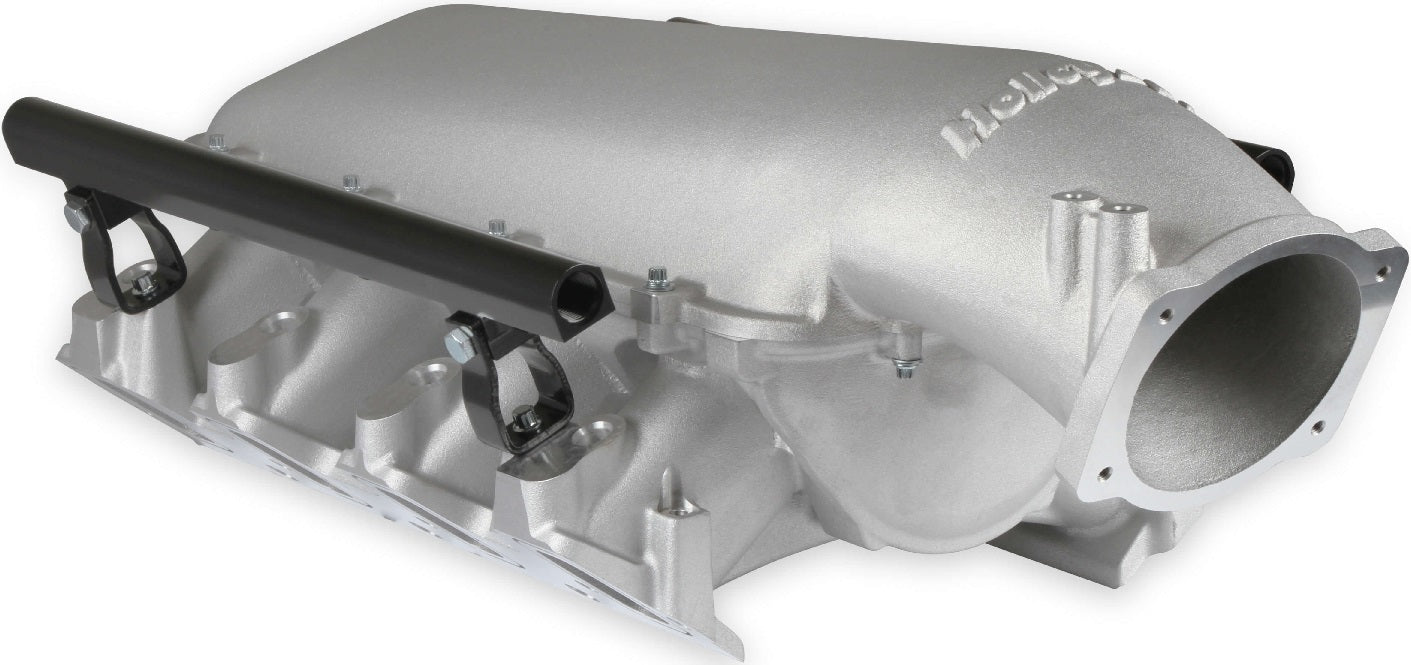

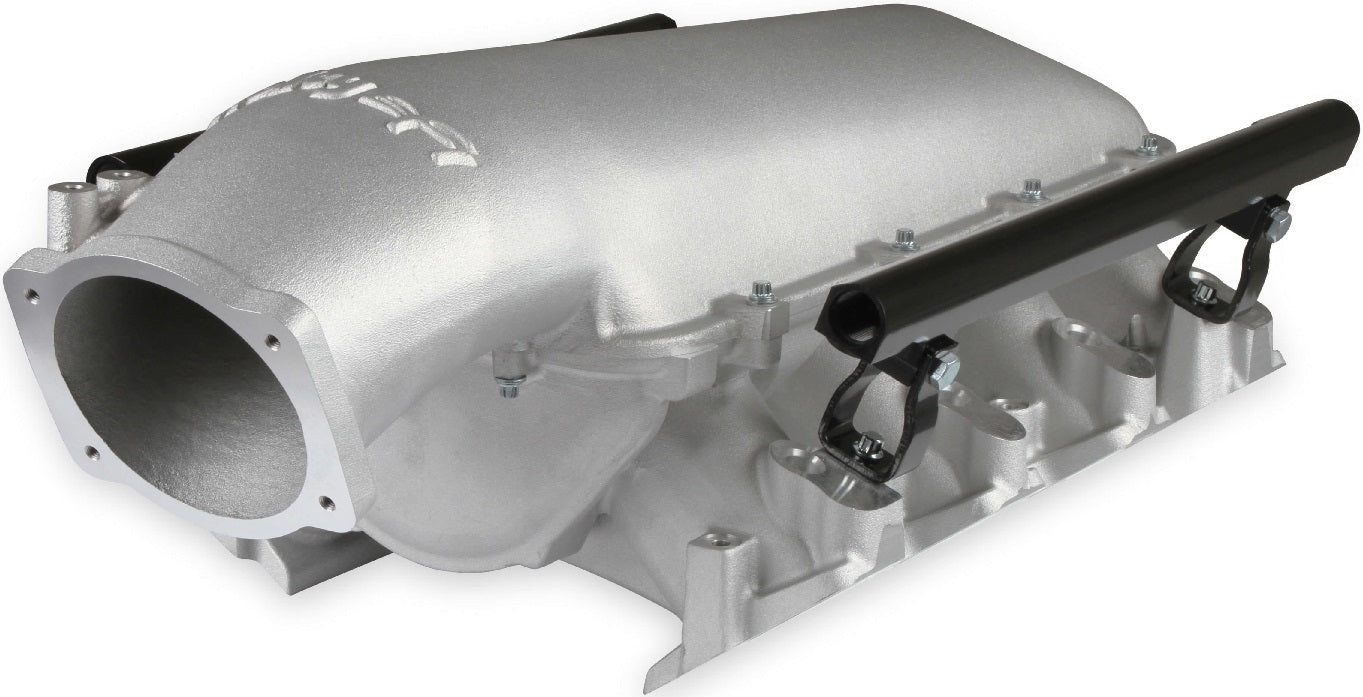

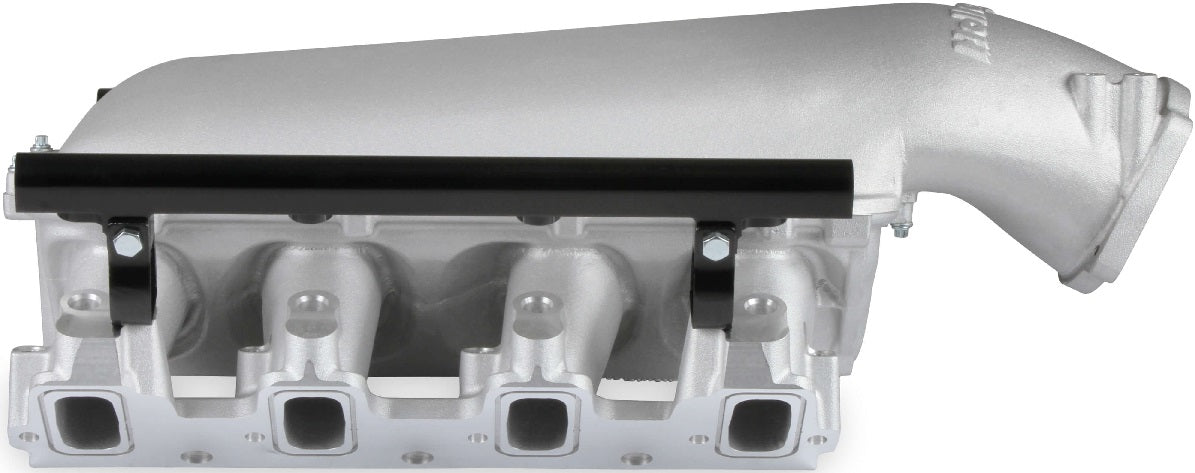

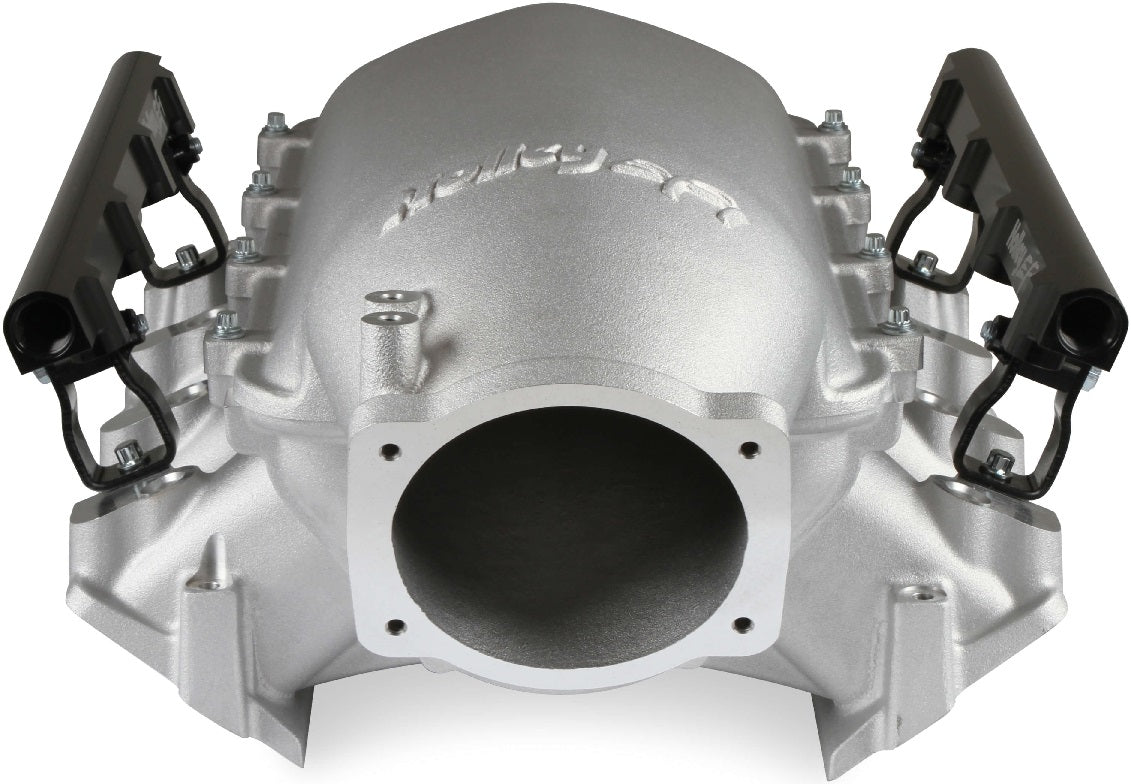

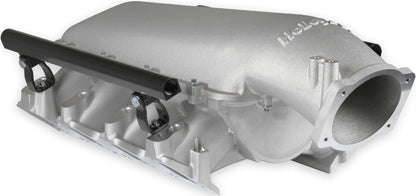

INTAKE MANIFOLD KIT,LS3,LO-RAM,TOP FEED,SATIN

BRAND NEW HOLLEY LS3 LO-RAM MANIFOLD KIT, SINGLE INJECTOR, TOP FEED, SILVER SATIN FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

THE HOLLEY LS3 LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS. THESE INTAKE MANIFOLDS WILL WORK WITH OE OR AFTERMARKET CYLINDER HEADS. THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS & 105 MM THROTTLE BODY PART #112-581 OR SIMILAR MODELS.

THE BASE INTAKE MANIFOLD IS DESIGNED WITH A LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIG. ADDITIONAL MANIFOLD DESIGNS INCLUDE BOTH SINGLE & DUAL INJECTOR OPTIONS. HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATIONS. MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN).

NOTE: LO-RAM BASE INTAKE MANIFOLD PLENUM TOP MOUNTING FLANGE HEIGHT - 5.67"

NOTE: TOTAL HEIGHT: TOP-FEED PLENUM CONFIG WITH 105MM LONG. MOUNT EFI PLENUM TOP - 9.25" (WITHOUT AN INTERCOOLER INSTALLED)

NOTE: TOP-FEED PLENUM CONFIG WITH 105MM LONG. MOUNT EFI PLENUM TOP, WITH INTERCOOLER INSTALLED - 9.25"+ INTERCOOLER THICKNESS

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS
• DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM
• MODULAR DESIGN ALLOWING THE USE OF THE INCLUDED TOP-FEED PLENUM ENTRY
• LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIG OR TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN FRONT-FEED CONFIGURATION
• HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATION
• MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN) & MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN)

SPECS:

• BRAND: HOLLEY EFI
• COLOR: SILVER
• CONSTRUCTION: CAST
• ENGINE: GM LS3/L92
• FINISH: SATIN
• FLANGE STYLE: EFI
• FRONT HEIGHT: 9.25" WITHOUT INTERCOOLER
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: SINGLE
• INLET LOCATION: TOP
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD KIT HERE.
