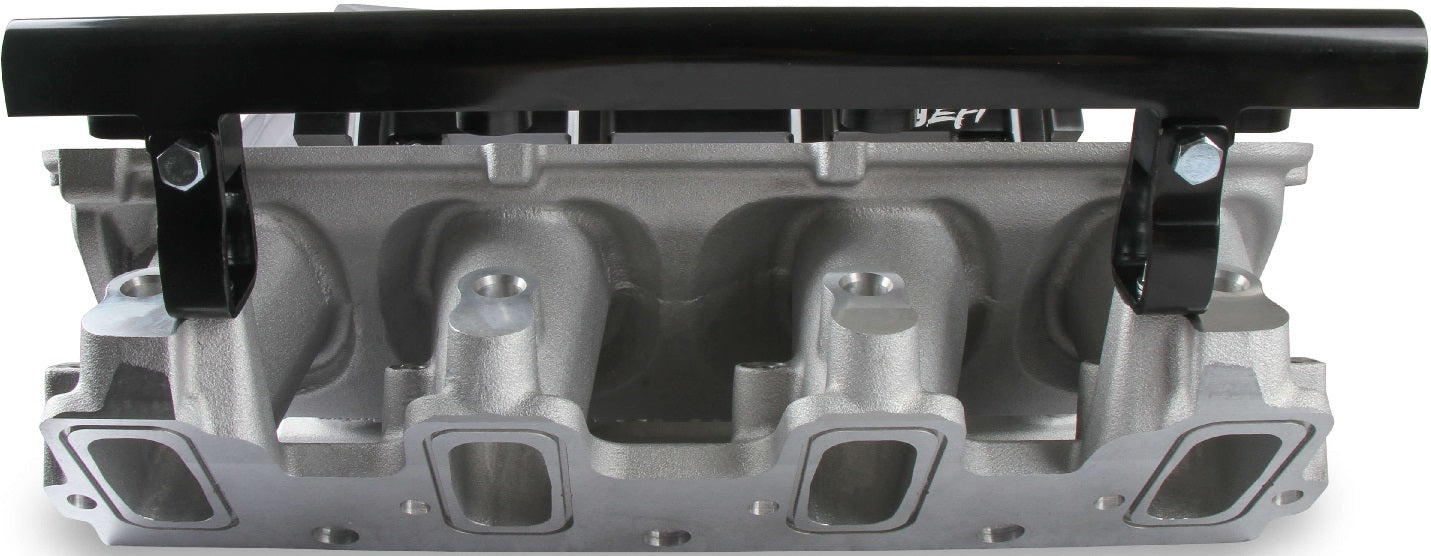

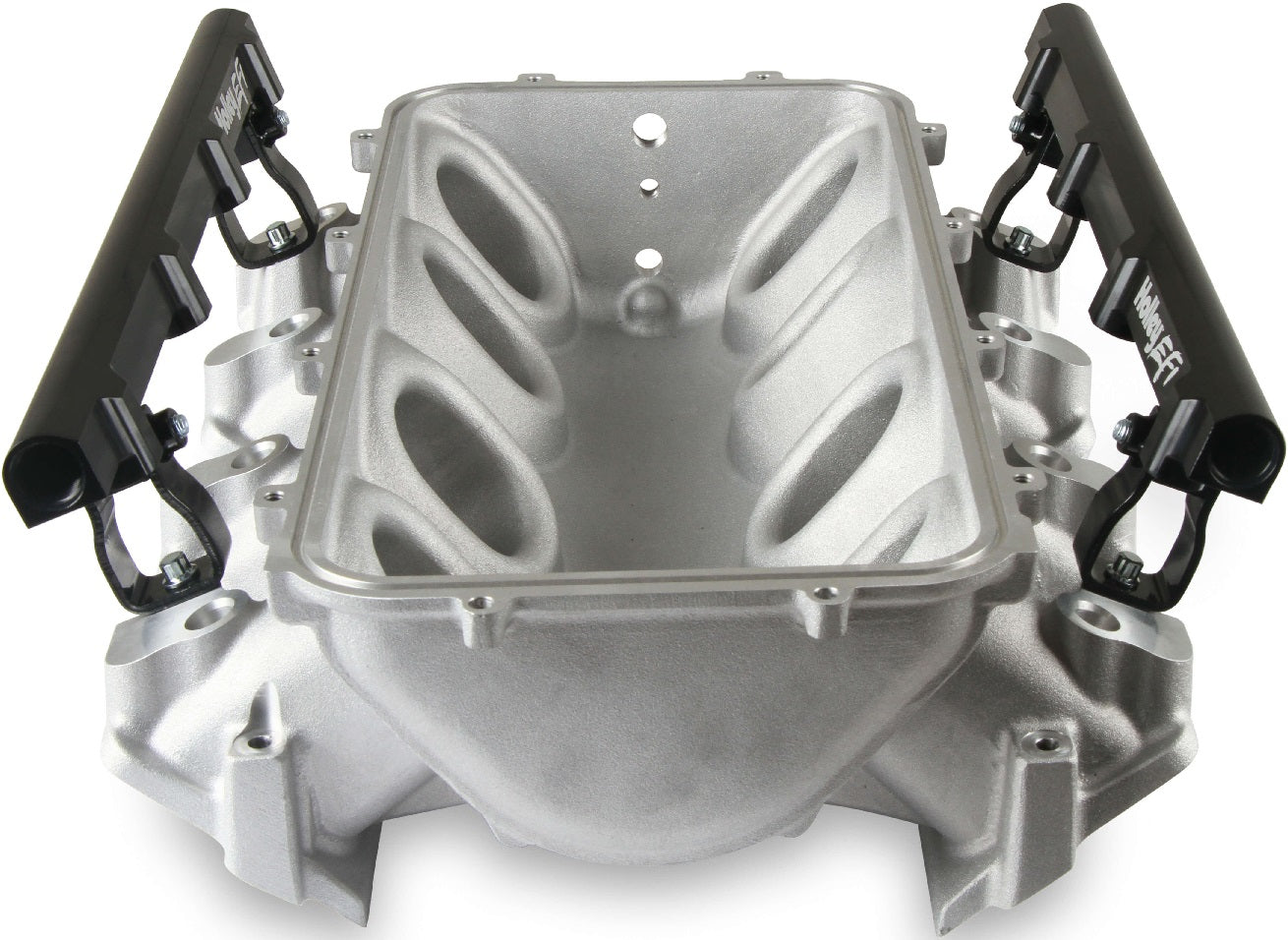

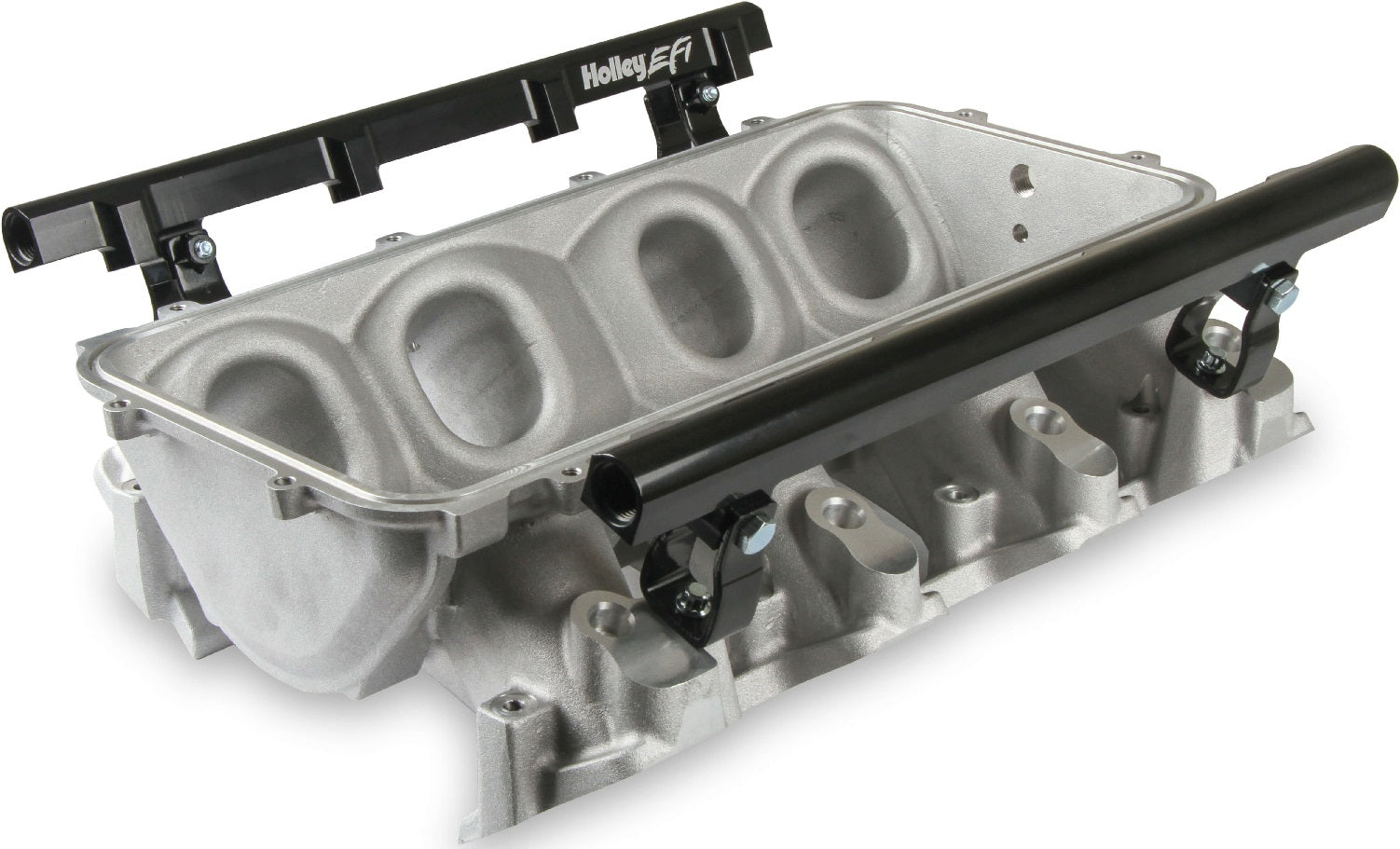

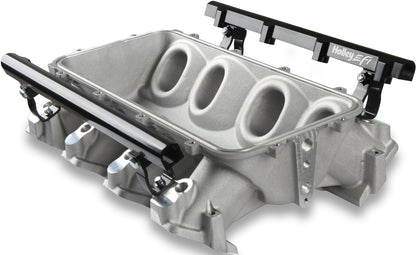

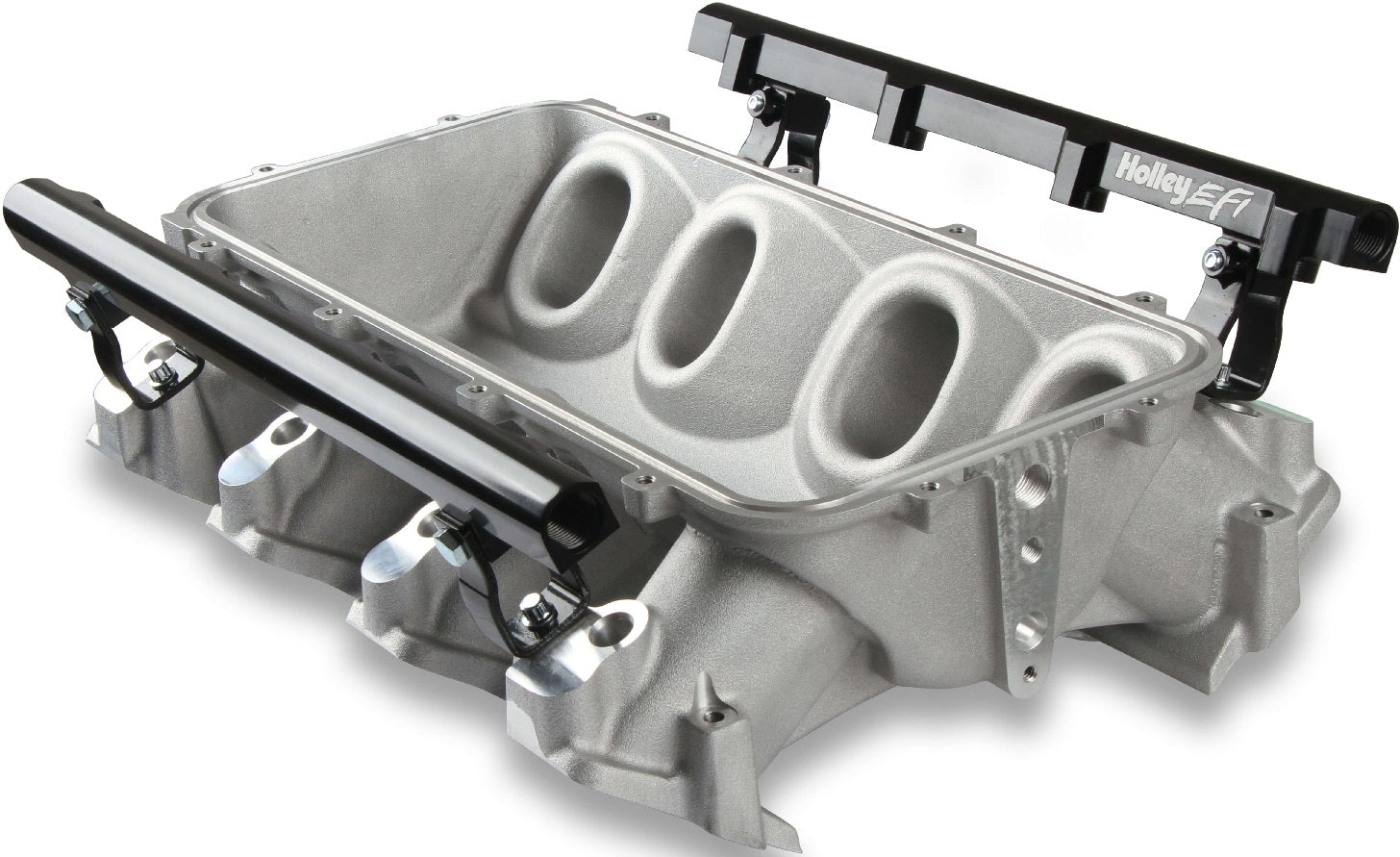

MANIFOLD BASE,RAILS,LS3,LO-RAM,TOP,SINGLE,SATIN

BRAND NEW HOLLEY LS3 LO-RAM MANIFOLD BASE & FUEL RAILS, SINGLE FUEL INJECTOR, TOP FEED, SILVER FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS. WILL WORK WITH OE OR AFTERMARKET CYLINDER HEADS. THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS & 105 MM THROTTLE BODY PART #112-581 OR SIMILAR MODELS.

THE BASE INTAKE MANIFOLD IS DESIGNED WITH A LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION. HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATIONS. MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN).

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS
• PROVIDES BEST PERFORMANCE FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM
• MODULAR LS3 LO-RAM DESIGN ALLOWS CUSTOMIZATION FOR USER DESIRED CONFIGURATION
• LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION
• HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATIONS. MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN) & MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN)
• MANIFOLD BASE HEIGHT: 5.67"

SPECS:

• BRAND: HOLLEY EFI
• COLOR: SILVER CAST
• ENGINE: GM LS3/L92
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: SINGLE
• INLET LOCATION: TOP
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD BASE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD BASE HERE.
