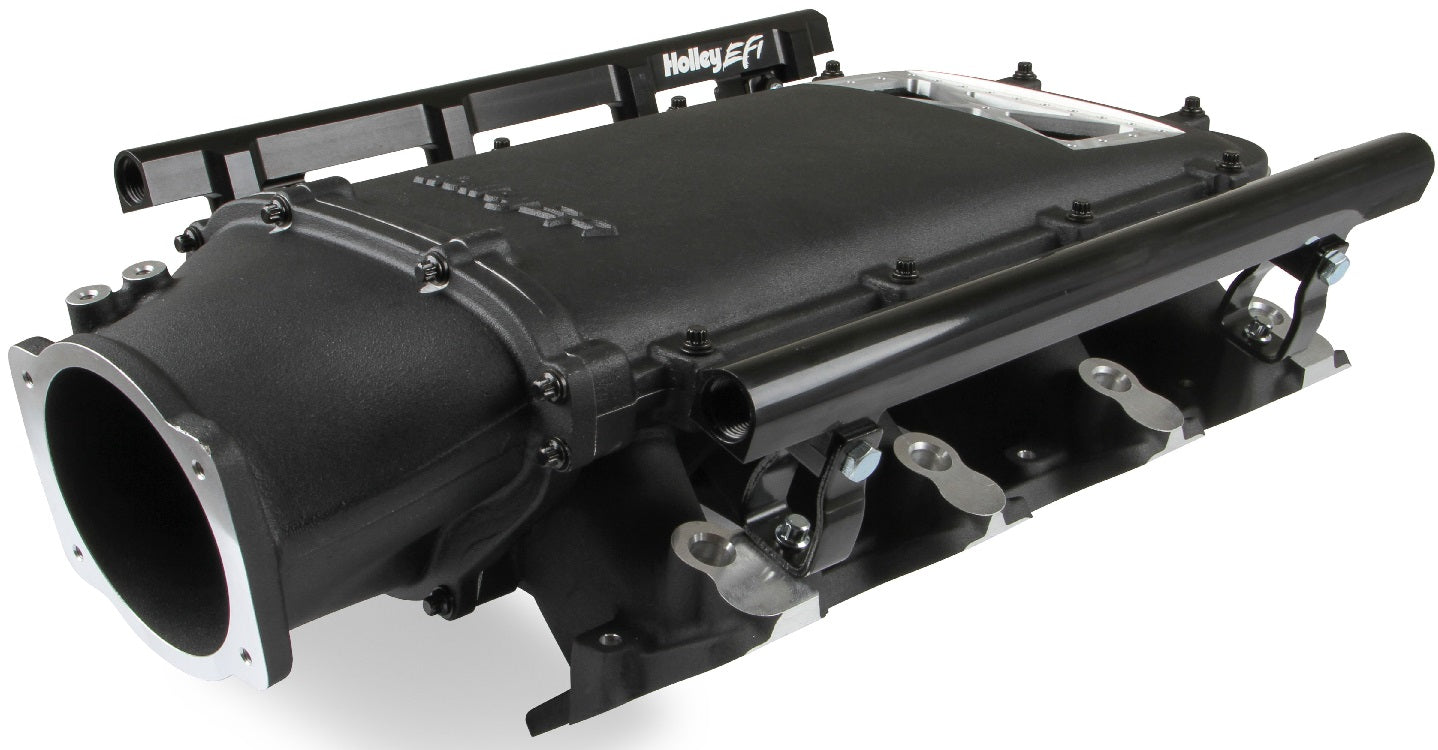

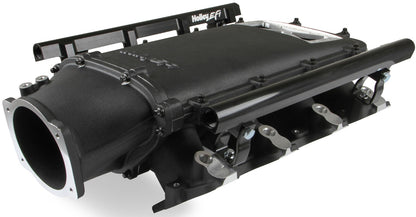

INTAKE MANIFOLD KIT,LS1/2/6,LO-RAM,BURST FLANGE,BLACK

BRAND NEW HOLLEY LS1 LO-RAM EFI MANIFOLD KIT, FRONT FEED, BLACK SATIN FINISH, SINGLE INJECTOR, BURST PANEL FLANGE, COMPATIBLE WITH GM LS1, LS2 & LS6 ENGINES

DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS. WILL WORK WITH OE OR AFTERMARKET CYLINDER HEADS. PLENUM TOP IS MACHINED FOR STANDARD "LARGE" 6-1/8" X 3-1/8" BURST PANEL. SFI APPROVED BURST PANELS, BURST PANEL FRAME SETS & GASKETS MAY BE PURCHASED SEPARATELY.

THE BASE INTAKE MANIFOLD IS DESIGNED WITH LOWER OVERALL HEIGHT TO FIT UNDER STOCK OR MILDLY MODIFIED HOOD IN THE FRONT-FEED CONFIG. THE LO-RAM FRONT-FEED PLENUM ENTRY WAS CONFIGURED TO PROVIDE A VERY LOW PROFILE MODULAR INTAKE MANIFOLD SUITABLE FOR TURBOCHARGED OR CENTRIFUGALLY SUPERCHARGED ENGINES. THE FUEL RAIL KITS COME WITH 2 SETS OF BRACKETS: A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS
• DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM - INCLUDES A BURST PANEL FLANGE IN THE LID
• PLENUM TOP IS MACHINED FOR A STANDARD "LARGE" 6-1/8" X 3-1/8" BURST PANEL. BURST PANELS, BURST PANEL FRAME SETS & GASKETS MAY BE PURCHASED SEPARATELY
• WITH FORCED-INDUCTION & SHORT RUNNER LENGTH THE ENGINE RPM AT WHICH PEAK POWER OCCURS IS MORE LIKELY TO BE COUPLED TO THE SUPERCHARGER OR TURBOCHARGER BEING USED
• MODULAR DESIGN ALLOWING USE OF FRONT-FEED PLENUM ENTRY
• INTAKE DESIGN FACILITATES CUSTOM INLET DUCT & THROTTLE BODY PLACEMENT
• LOW HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN FRONT-FEED CONFIGURATION

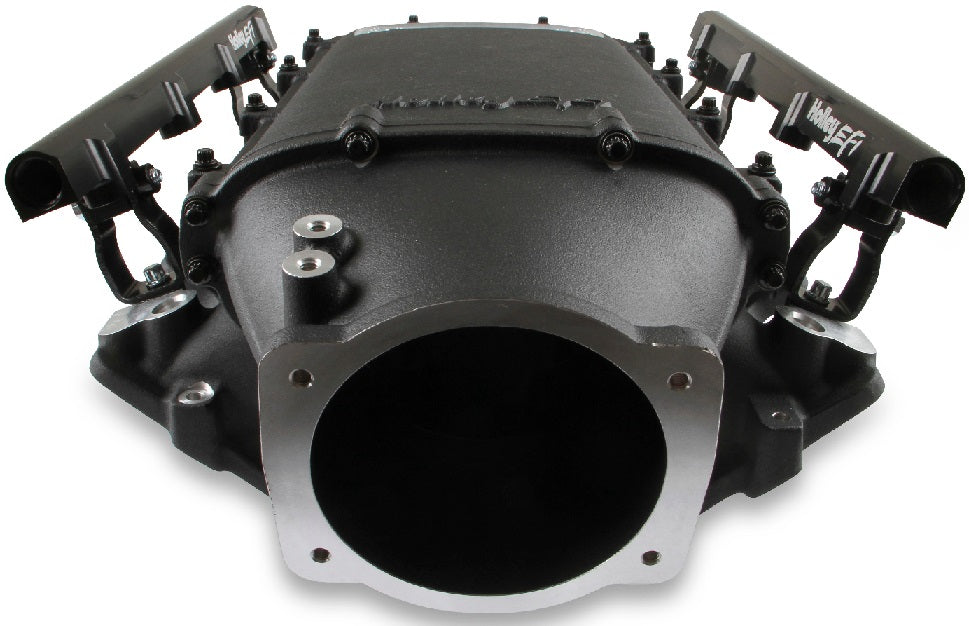

• FRONT ENTRY PLENUM FLANGE ALLOWS DESIGN & FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLATIONS

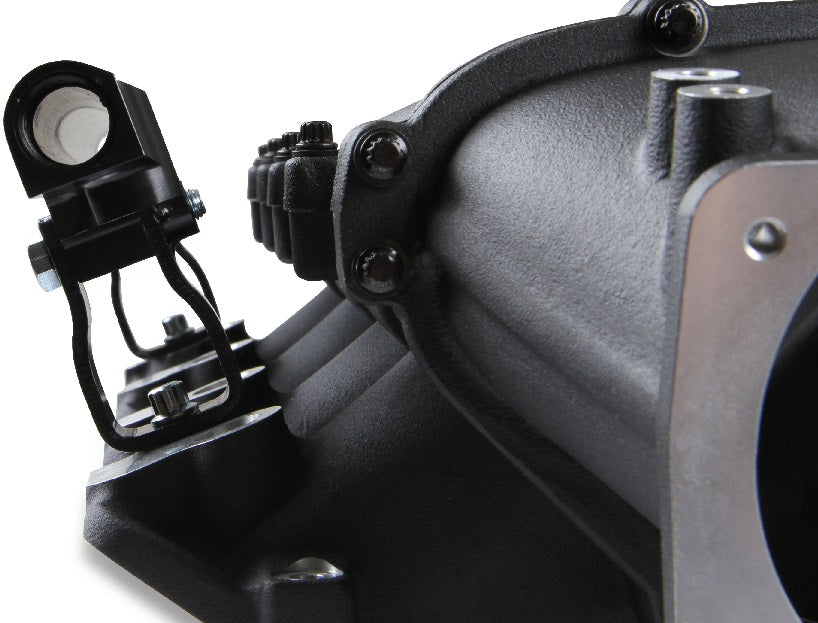

• HIGH VOLUME FUEL RAILS & MOUNTING HARDWARE INCLUDED WITH 3/4"-16 O-RING PORTS (8 AN)

SPECS:

• BRAND: HOLLEY EFI
• BURST PANEL COMPATIBLE: YES
• COLOR/FINISH: BLACK SATIN
• ENGINE: GM LS1/LS2/LS6
• FLANGE STYLE: EFI
• FRONT HEIGHT: 6.86" WITH THROTTLE BODY ADAPTER
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: SINGLE
• INLET LOCATION: FRONT
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD KIT HERE.
