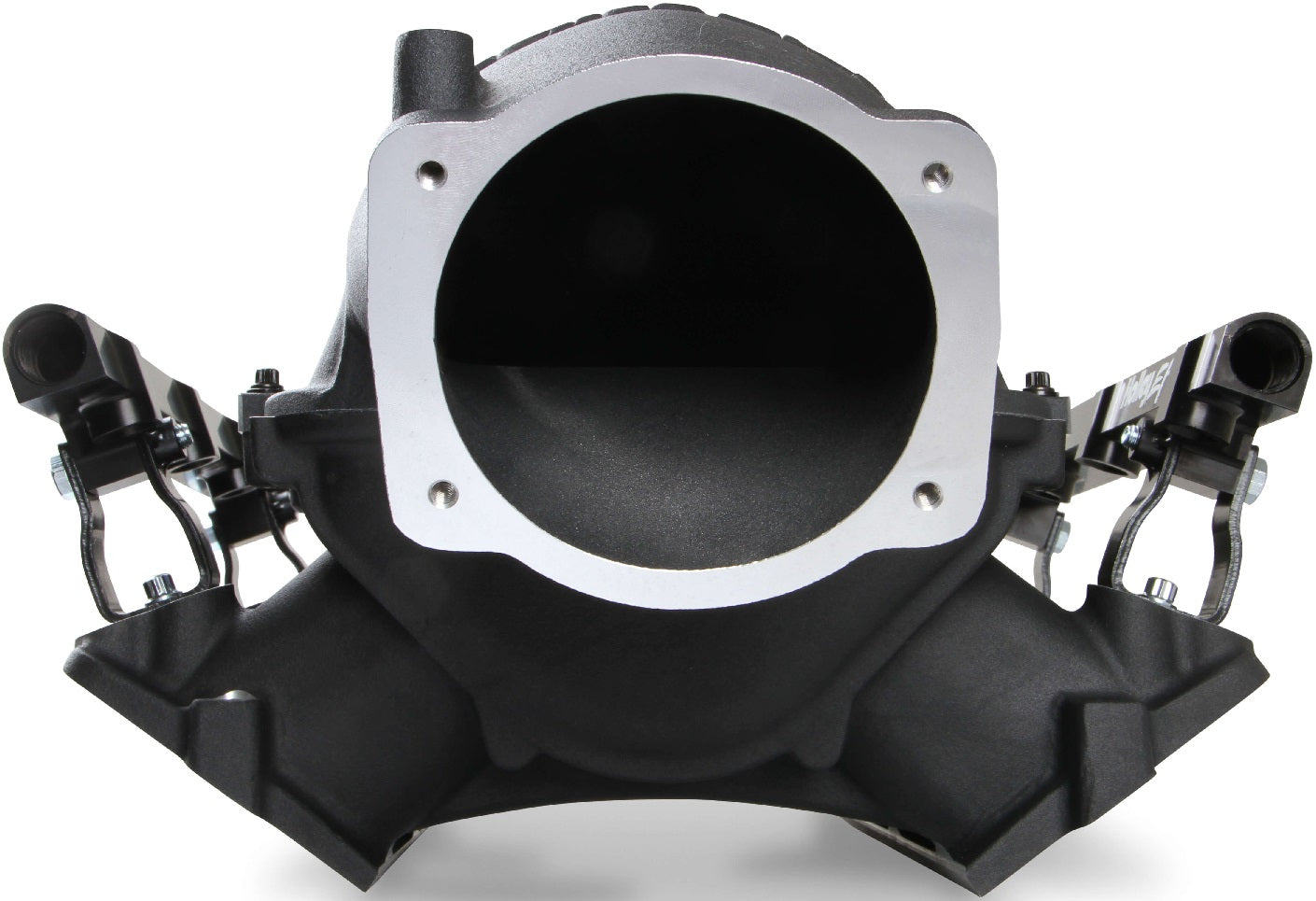

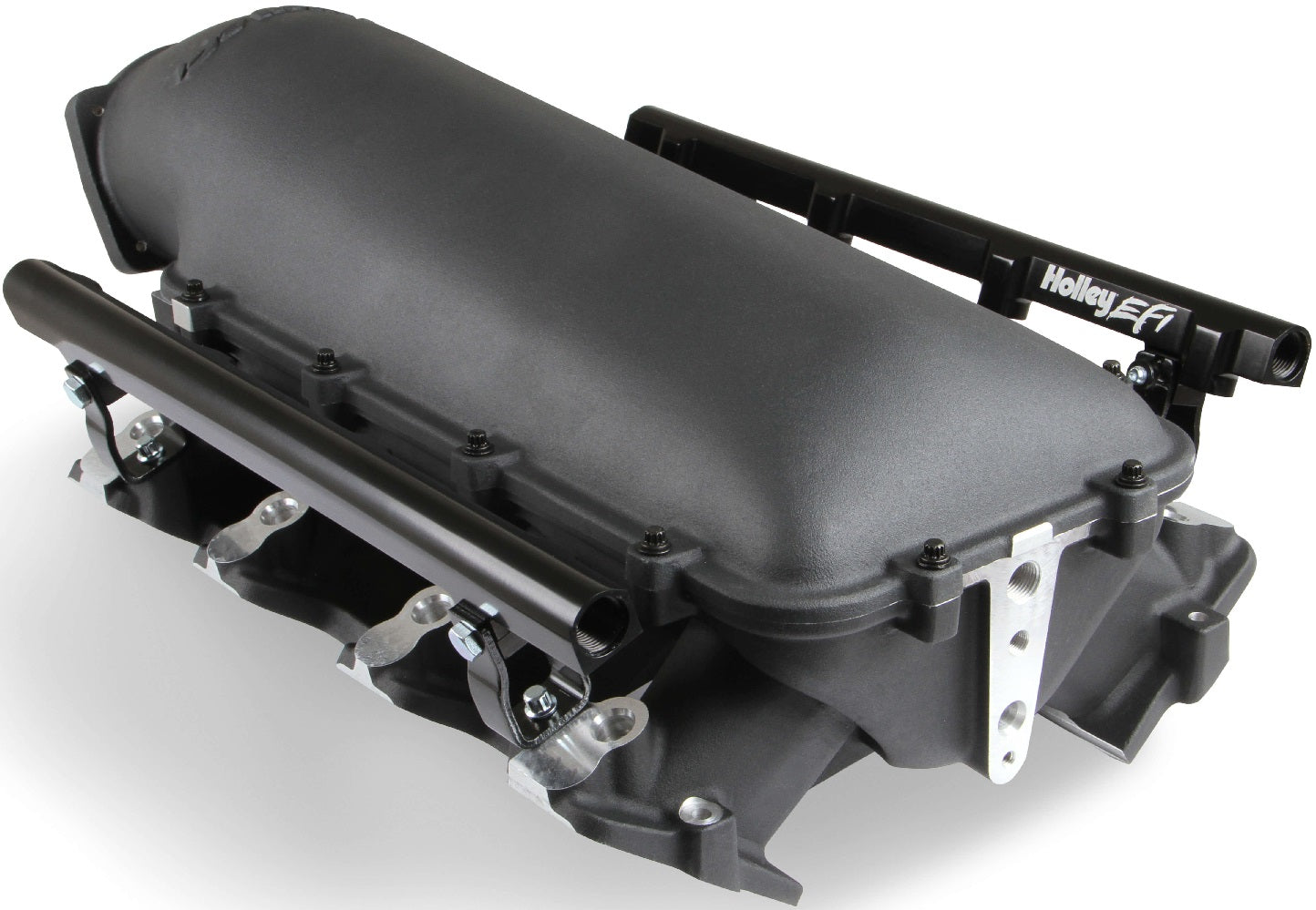

INTAKE MANIFOLD KIT,LS1/2/6 LO-RAM,TF,BLACK

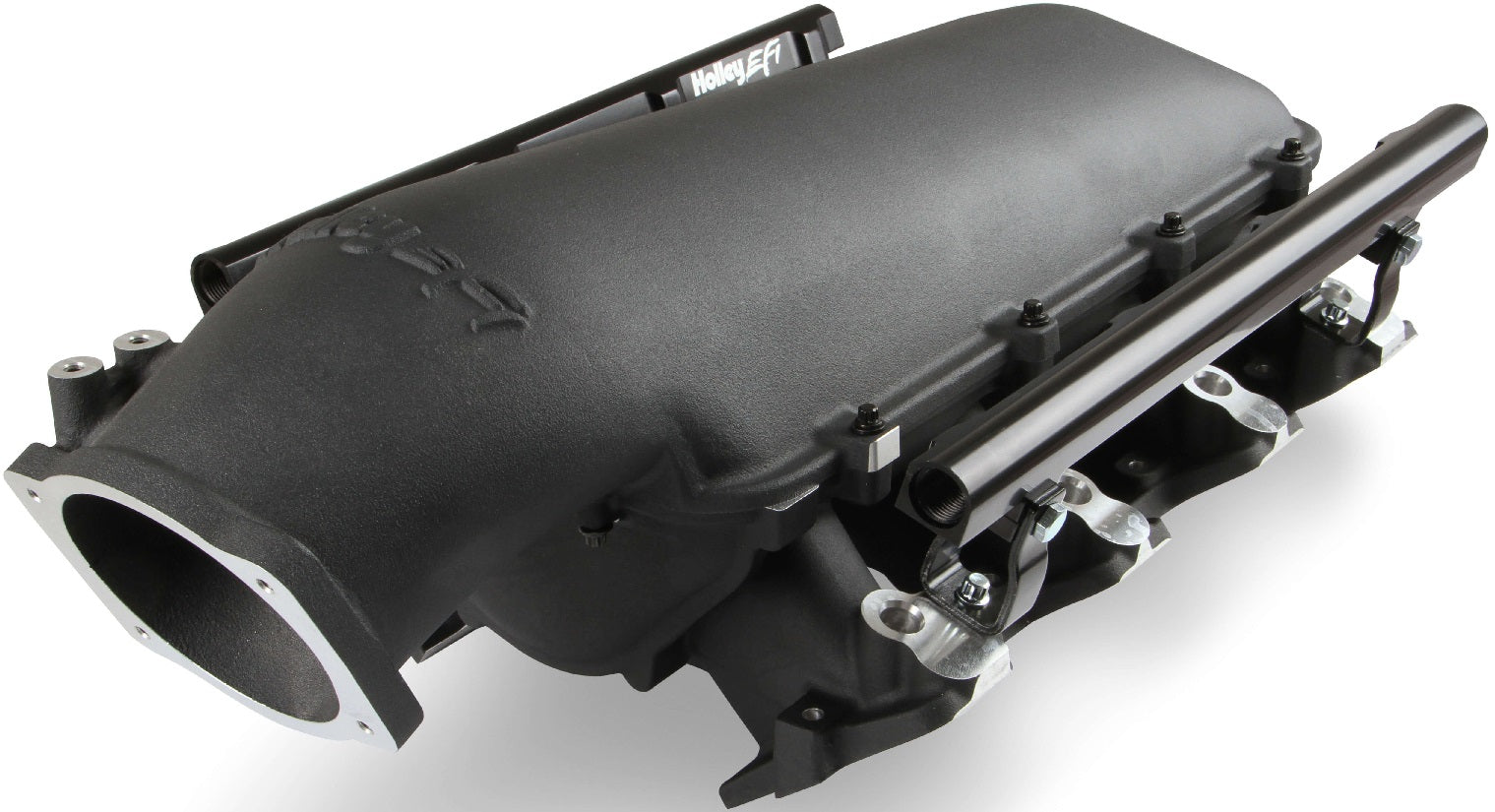

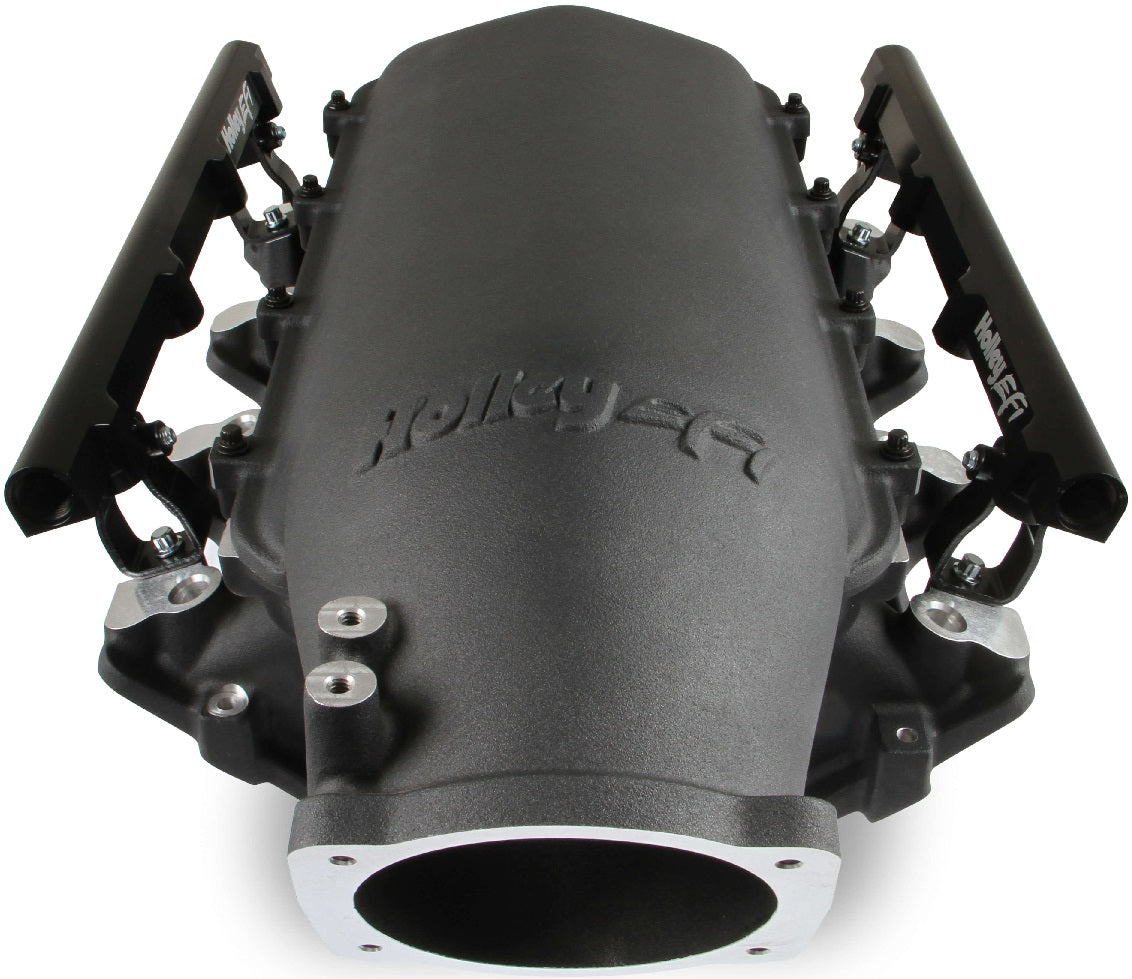

BRAND NEW HOLLEY MODULAR LO-RAM EFI MANIFOLD KIT, TOP-FEED PLENUM, BLACK FINISH, COMPATIBLE WITH LS1, LS2 & LS 6 GEN III & IV ENGINES

THE 300-620 TOP-FEED PLENUM ENTRY CONFIGURATION IS DESIGNED TO ALLOW THE INCLUDED HI-RAM 105MM PLENUM TOP TO BE FITTED TO A LOW-PROFILE BASE INTAKE MANIFOLD. THE SHORT RUNNER, LOW-PROFILE BASE INTAKE MANIFOLD INTENDED FOR FORCED INDUCTION APPLICATIONS WAS CONCEIVED TO PACKAGE WITH AN AIR TO WATER PLENUM MOUNTED INTERCOOLER WITH A SHORTER OVERALL HEIGHT THAN POSSIBLE WITH OTHER EXISTING INTAKE MANIFOLDS.

THE HOLLEY LS1/2/6 LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS. THESE INTAKE MANIFOLDS WILL WORK WITH OE OR AFTERMARKET CYLINDER HEADS. THE FUEL RAIL KITS COME WITH 2 SETS OF BRACKETS: A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

NOTE: TOTAL HEIGHT: TOP-FEED PLENUM CONFIGURATION W/105MM LONG. MOUNT EFI PLENUM TOP - 9.07" (WITHOUT INTERCOOLER INSTALLED) | TOP-FEED PLENUM CONFIGURATION W/105MM LONG. MOUNT EFI PLENUM TOP, W/ INTERCOOLER INSTALLED - 9.07" + INTERCOOLER THICKNESS.

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS
• DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM DEPENDING ON THE APPLICATION
• MODULAR DESIGN ALLOWING THE USE OF THE INCLUDED TOP-FEED PLENUM ENTRY
• LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION, OR TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN THE FRONT-FEED CONFIGURATION
• HIGH VOLUME FUEL RAILS & MOUNTING HARDWARE INCLUDED WITH 3/4"-16 O-RING PORTS (8 AN)
• LO-RAM BASE INTAKE MANIFOLD PLENUM TOP MOUNTING FLANGE HEIGHT - 5.17"

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• ENGINE: GM LS1/LS2/LS6
• FINISH: BLACK
• FLANGE STYLE: EFI
• FRONT HEIGHT: 9.07" WITHOUT INTERCOOLER
• FUEL SYSTEM TYPE: EFI
• PRODUCT TYPE: MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
