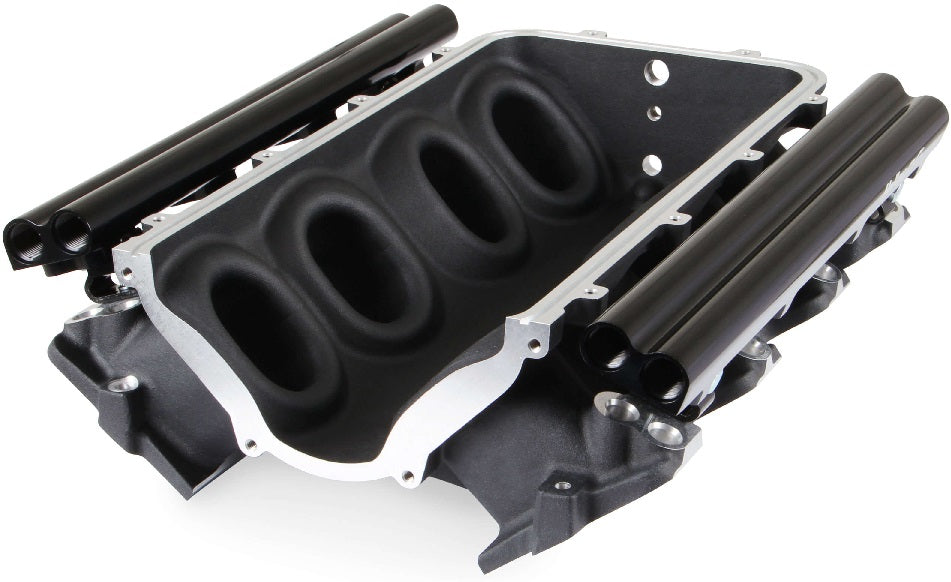

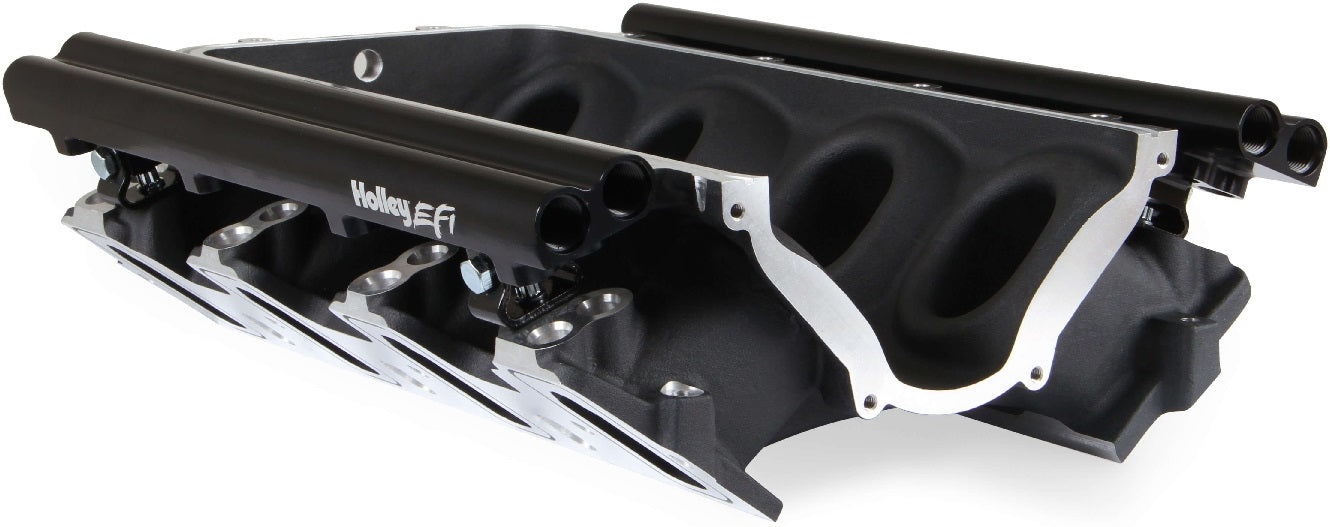

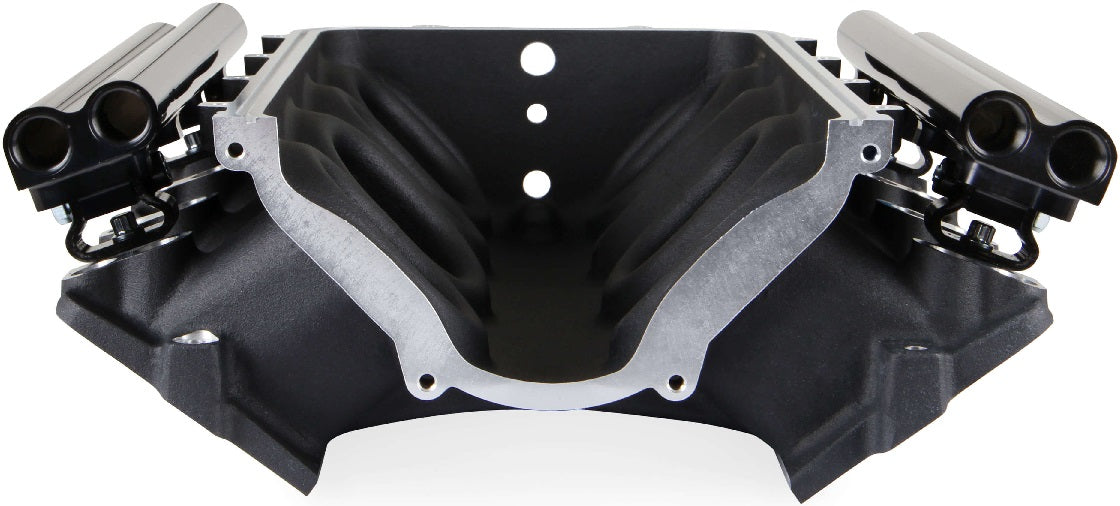

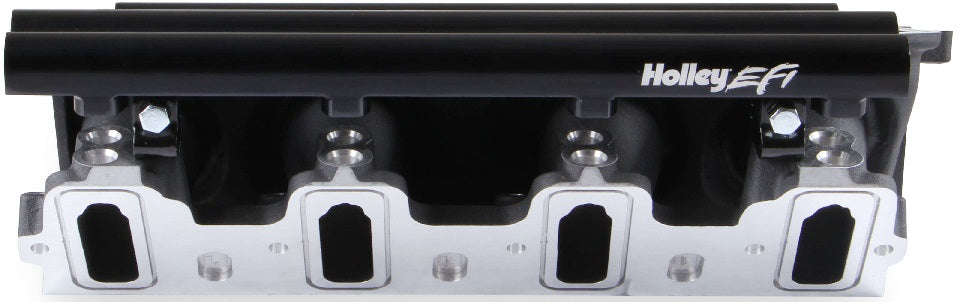

MANIFOLD BASE & RAILS,LS1/2/6,FF,DUAL FUEL INJECTOR,BLACK

BRAND NEW HOLLEY EFI DUAL FUEL INJECTOR LS1 ULTRA LO-RAM INTAKE MANIFOLD BASE WITH FUEL RAILS, BLACK, 3500-8000 RPM, COMPATIBLE WITH LS1, L2 & LS6 ENGINES

THESE INTAKE MANIFOLD & RAIL KITS WILL WORK WITH OE (ORIGINAL EQUIPMENT) OR AFTERMARKET CYLINDER HEADS. THE FUEL RAIL KITS COME WITH 2 SETS OF BRACKETS. A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS. HOLLEY ULTRA LO-RAM INTAKE MANIFOLD KITS INCLUDE ALL THE SEALING O-RINGS, PLUGS & FASTENERS REQUIRED FOR INSTALLATION.

THE BASE-LOWER INTAKE MANIFOLD PROVIDES 2 INJECTORS PER CYLINDER FOR HI-VOLUME FUEL DEMANDS, FLEXIBLE FUEL SUPPLY STRATEGIES & DUAL-FUEL CAPABILITY. THIS BASE INTAKE MANIFOLD WITH FUELS RAILS SEPARATELY ALLOWS INDIVIDUAL SELECTION OF COMPONENTS WHEN BUILDING AN INDUCTION SYSTEM. FRONT-FEED, SHORT RUNNER, LOW-PROFILE BASE INTAKE MANIFOLD WAS MADE TO PACKAGE WITH HIGH-BOOST TURBOCHARGED OR SUPERCHARGED INDUCTION SYSTEMS WITH A SHORT OVERALL HEIGHT NOT POSSIBLE WITH OTHER EXISTING INTAKE MANIFOLDS.

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS
• PROVIDES BEST PERFORMANCE FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM DEPENDING ON APPLICATION
• DUAL-INJECTOR, SEPARATE-PASSAGE, HIGH-VOLUME FUEL RAILS WITH MOUNTING HARDWARE, DUAL-FUEL CAPABLE, 8 AN O-RING PORTS
• MODULAR LS1 LO-RAM DESIGN ALLOWS CUSTOMIZED CONFIGURATIONS
• LOW HEIGHT & COMPACT PACKAGING ALLOWS INSTALL IN MOST APPLICATIONS OFTEN UNDER STOCK HOODS

SPECS:

• BRAND: HOLLEY EFI
• COLOR/CONSTRUCTION: BLACK CAST
• ENGINE: GM LS1/LS2/LS6
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: DUAL
• INLET LOCATION: FRONT
• MANIFOLD TYPE: ULTRA LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD BASE
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
