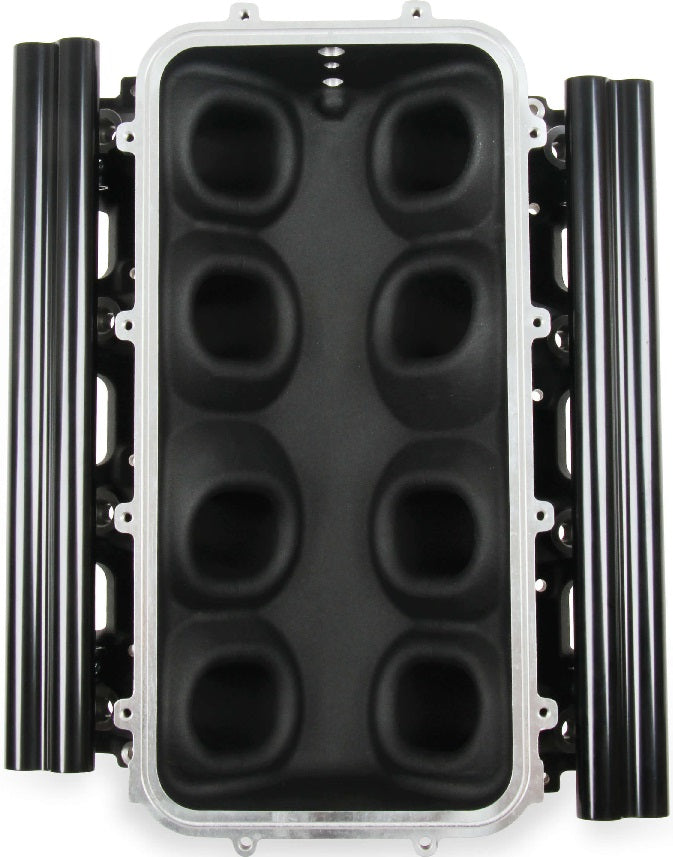

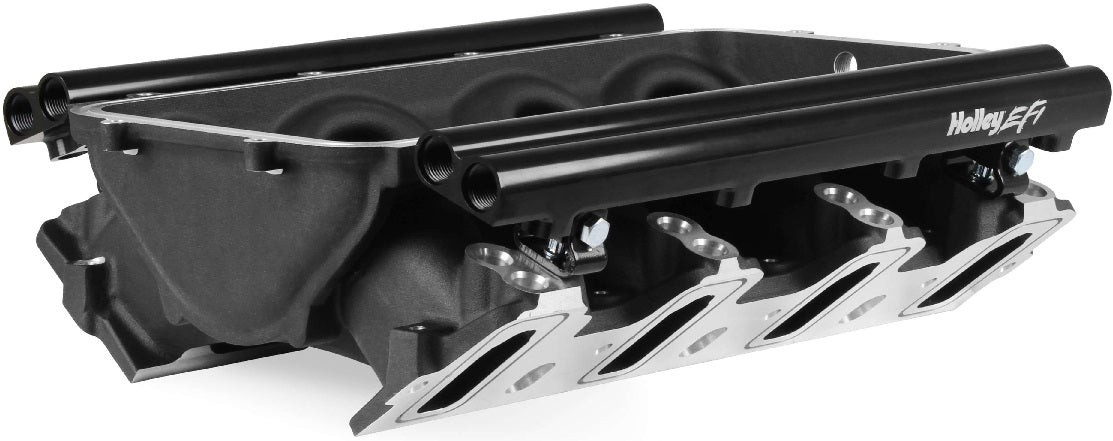

MANIFOLD BASE & RAILS,LS1/2/6,TF,DUAL FUEL INJECTOR,BLACK

BRAND NEW HOLLEY EFI DUAL FUEL INJECTOR LS1 LO-RAM MANIFOLD BASE & RAIL KIT, TOP FEED, BLACK SATIN FINISH, COMPATIBLE WITH GM LS1, LS2 & LS6 ENGINES

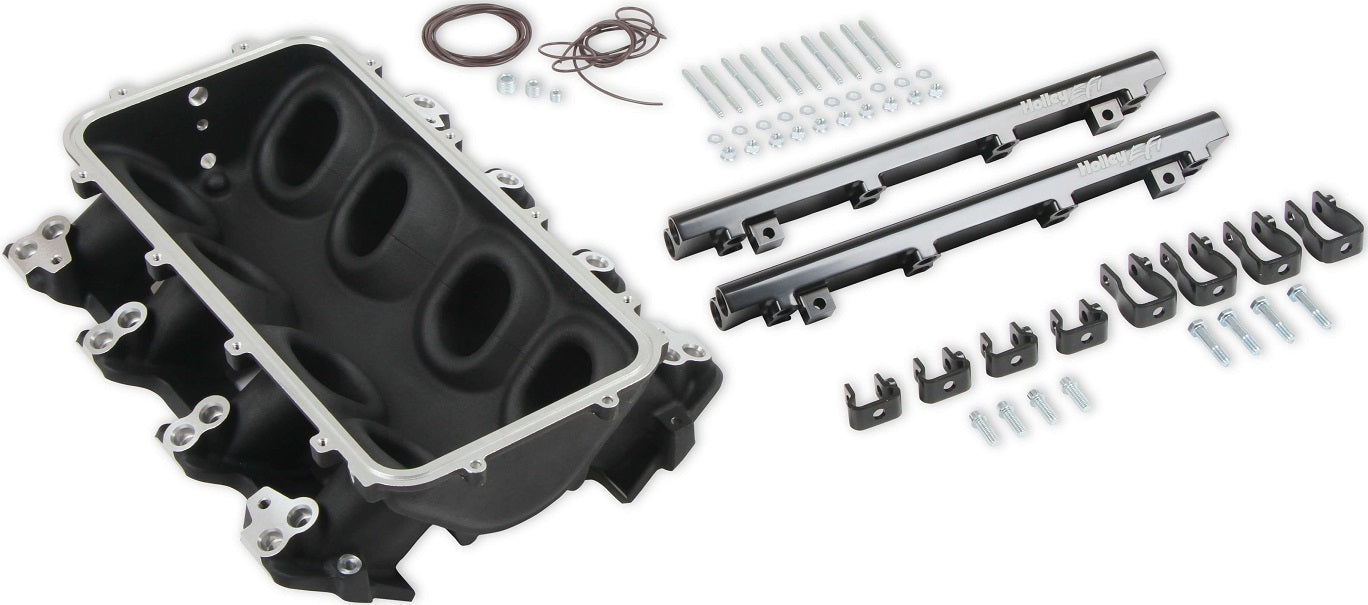

THE HOLLEY LS1/2/6 LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS. THESE INTAKE MANIFOLD & RAIL KITS WILL WORK WITH OE (ORIGINAL EQUIPMENT) OR AFTERMARKET CYLINDER HEADS. HOLLEY LO-RAM INTAKE MANIFOLD KITS INCLUDE ALL THE SEALING O-RINGS, PLUGS & FASTENERS REQUIRED FOR INSTALL.

300-601 & 300-601BK FRONT-FEED, BASE-LOWER INTAKE MANIFOLD PROVIDES 2 INJECTORS PER CYLINDER FOR HI-VOLUME FUEL DEMANDS, FLEXIBLE FUEL SUPPLY STRATEGIES & DUAL-FUEL CAPABILITY. OFFERING THIS BASE INTAKE MANIFOLD WITH FUELS RAILS SEPARATELY ALLOWS SELECTING COMPONENTS INDIVIDUALLY WHILE BUILDING AN INDUCTION SYSTEM.

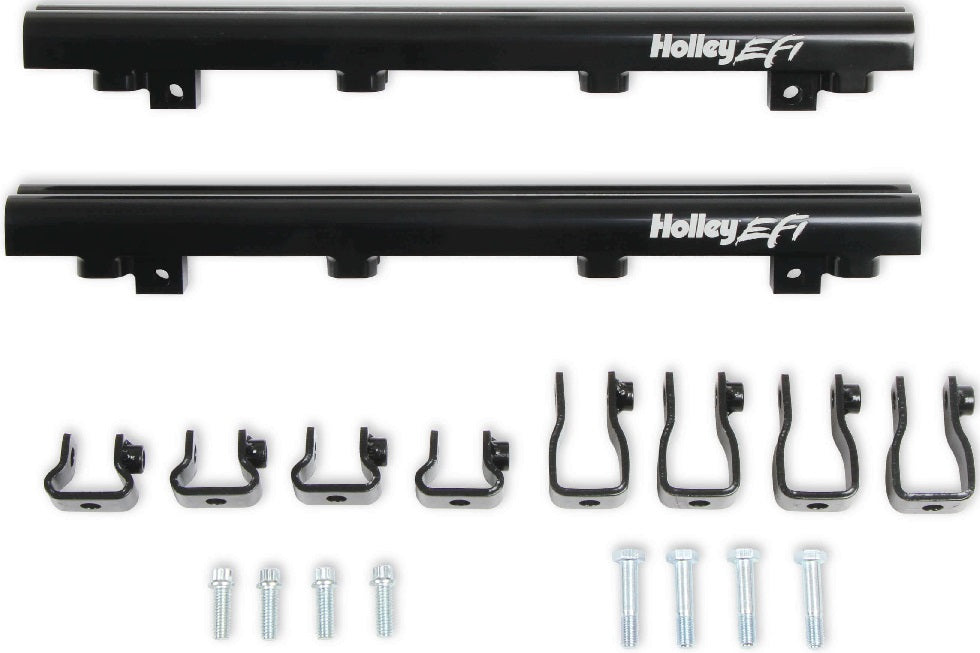

THE TOP-FEED, SHORT RUNNER, LOW-PROFILE BASE INTAKE MANIFOLD WAS CONCEIVED TO PACKAGE WITH AN AIR TO WATER PLENUM MOUNTED INTERCOOLER WITH A SHORTER OVERALL HEIGHT THAN POSSIBLE WITH OTHER EXISTING INTAKE MANIFOLDS. THE FUEL RAIL KITS COME WITH 2 SETS OF BRACKETS. A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & A SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

NOTE: LO-RAM BASE INTAKE MANIFOLD PLENUM TOP MOUNTING FLANGE HEIGHT - 5.17"

NOTE: FRONT FEED PLENUM CONFIGURATION WITH 105MM THROTTLE BODY ADAPTER - 6.86"

FEATURES:

• MODULAR LS1 LO-RAM DESIGN ALLOWS CUSTOMIZATION FOR USER DESIRED CONFIGURATIONS
• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS
• LOW HEIGHT TO AID USE OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION
• PROVIDES BEST PERFORMANCE FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM
• DUAL-INJECTOR, SEPARATE-PASSAGE, HIGH-VOLUME FUEL RAILS WITH MOUNTING HARDWARE, DUAL-FUEL CAPABLE, 8 AN O-RING PORTS

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• ENGINE: GM LS1/LS2/LS6
• FINISH: SATIN
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: DUAL
• INLET LOCATION: TOP
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD BASE HERE.
