MANIFOLD BASE & RAILS,LS1/2/6,TF,BLACK

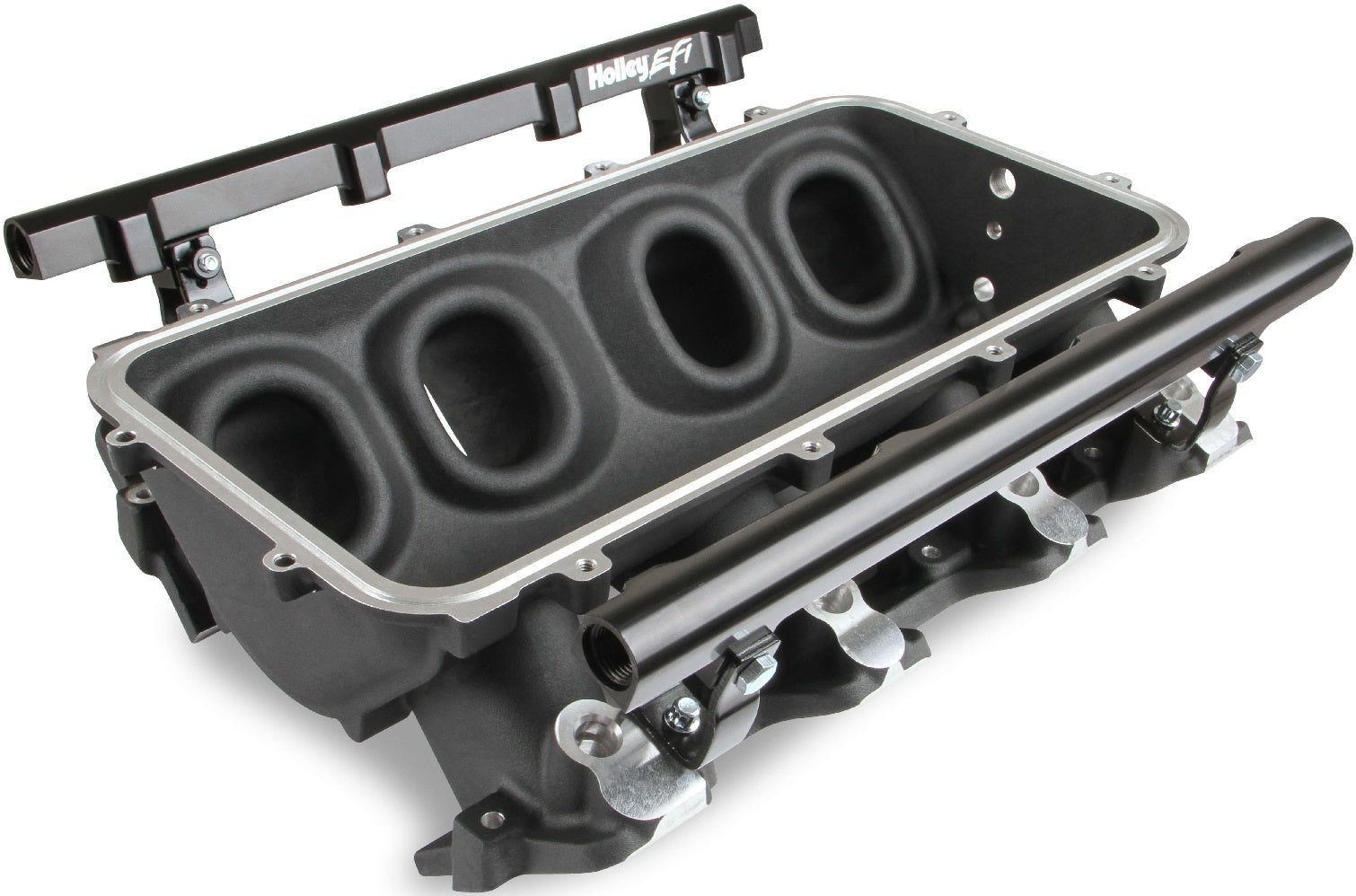

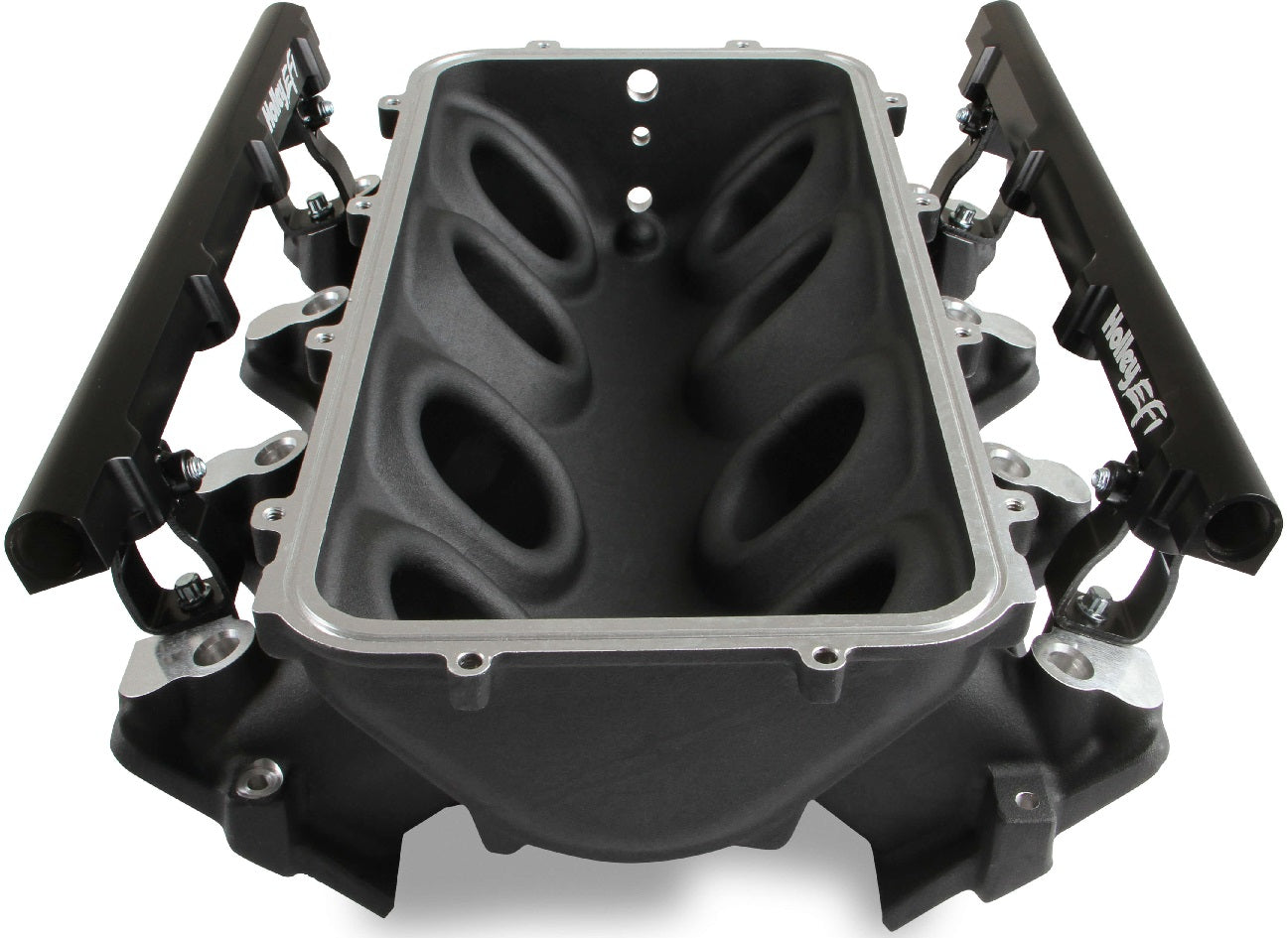

BRAND NEW HOLLEY BASE INTAKE MANIFOLD & RAIL KIT, BLACK FINISH, TOP-FEED PLENUM, COMPATIBLE WITH GM LS1-2-6 LO-RAM GEN III & IV ENGINES

THE 300-600 IS THE LOWER MANIFOLD IN THE 300-620 COMPLETE KIT. OFFERING THIS SEPARATELY ALLOWS YOU TO SELECT YOUR COMPONENTS INDIVIDUALLY AS YOU BUILD YOUR SYSTEM.

THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS AND THE 105 MM THROTTLE BODY PART NUMBER 112-581 OR SIMILAR MODELS. THE BASE INTAKE MANIFOLD IS DESIGNED WITH A LOW HEIGHT TO AID THE PACKAGING OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION.

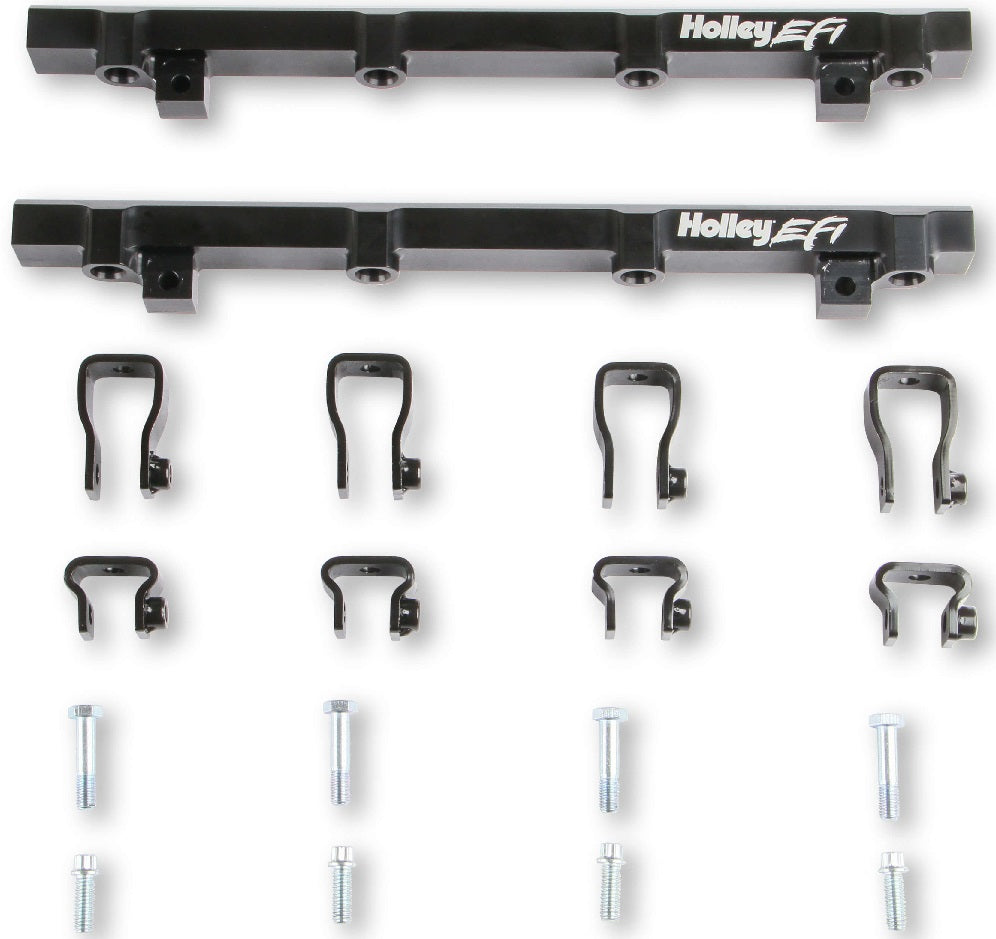

THE SHORT RUNNER, LOW-PROFILE BASE INTAKE MANIFOLD INTENDED FOR FORCED INDUCTION APPLICATIONS WAS CONCEIVED TO PACKAGE WITH AN AIR TO WATER PLENUM MOUNTED INTERCOOLER WITH A SHORTER OVERALL HEIGHT THAN POSSIBLE WITH OTHER EXISTING INTAKE MANIFOLDS. THE FUEL RAIL KITS COME WITH TWO SETS OF BRACKETS. A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS AND A SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

FEATURES:

• BASE MANIFOLD AND RAIL KIT FOR LOW-RAM 300-620 ALLOWS YOU TO SELECT YOUR COMPONENTS INDIVIDUALLY AS YOU BUILD YOUR INTAKE SYSTEM
• DESIGNED FOR GM LS GEN III AND IV ENGINES EQUIPPED WITH GM LS1/2/6 (CATHEDRAL PORT) CYLINDER HEADS
• LOW HEIGHT TO AID THE USE OF A PLENUM MOUNTED AIR-TO-WATER INTERCOOLER IN A TOP-FEED CONFIGURATION
• DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM DEPENDING ON THE APPLICATION

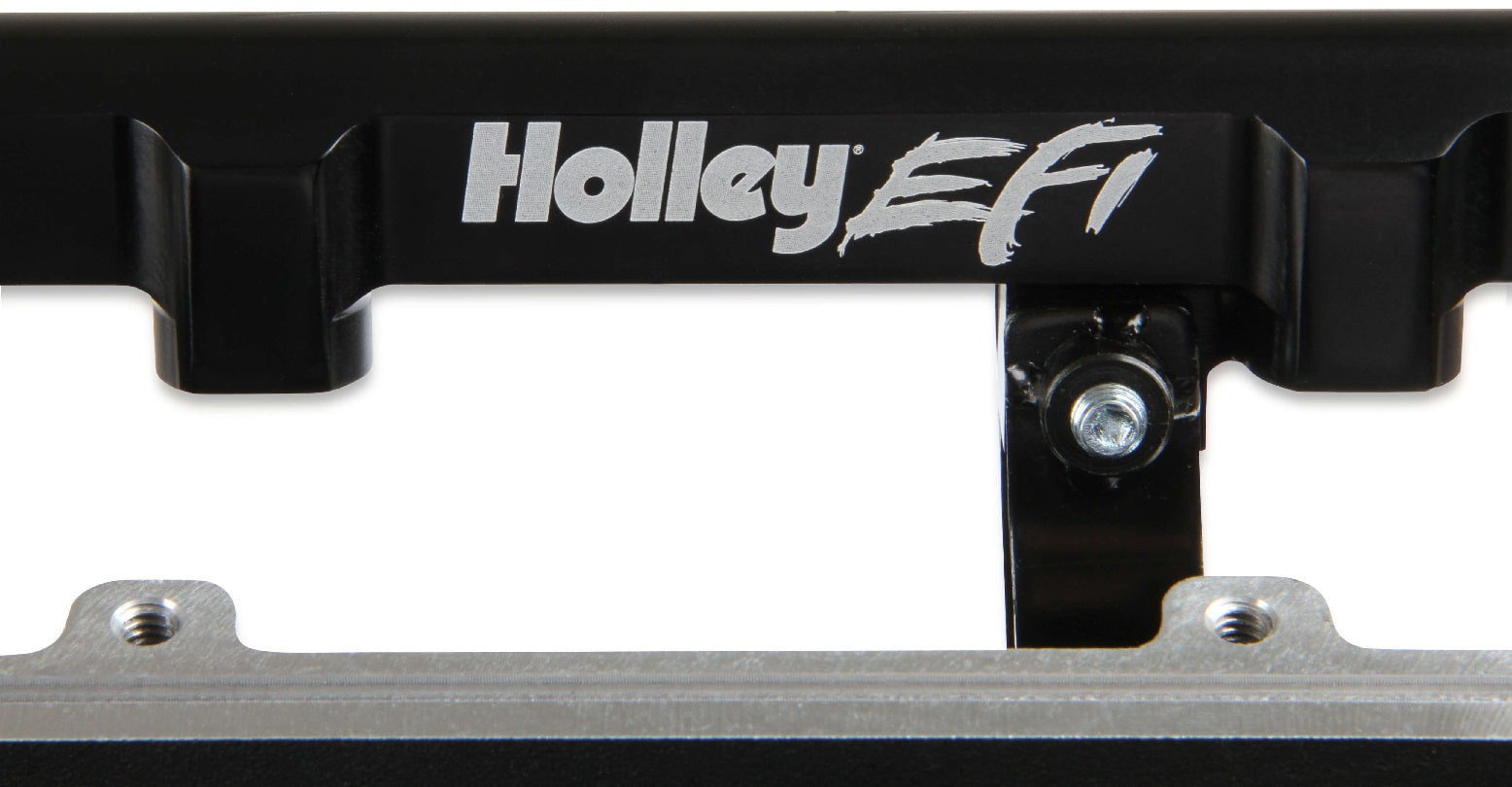

• HIGH VOLUME FUEL RAILS AND MOUNTING HARDWARE INCLUDED WITH 3/4"-16 O-RING PORTS (8 AN)

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• EMISSION CODE: 3
• ENGINE: GM LS1/LS2/LS6
• FINISH: CAST
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
