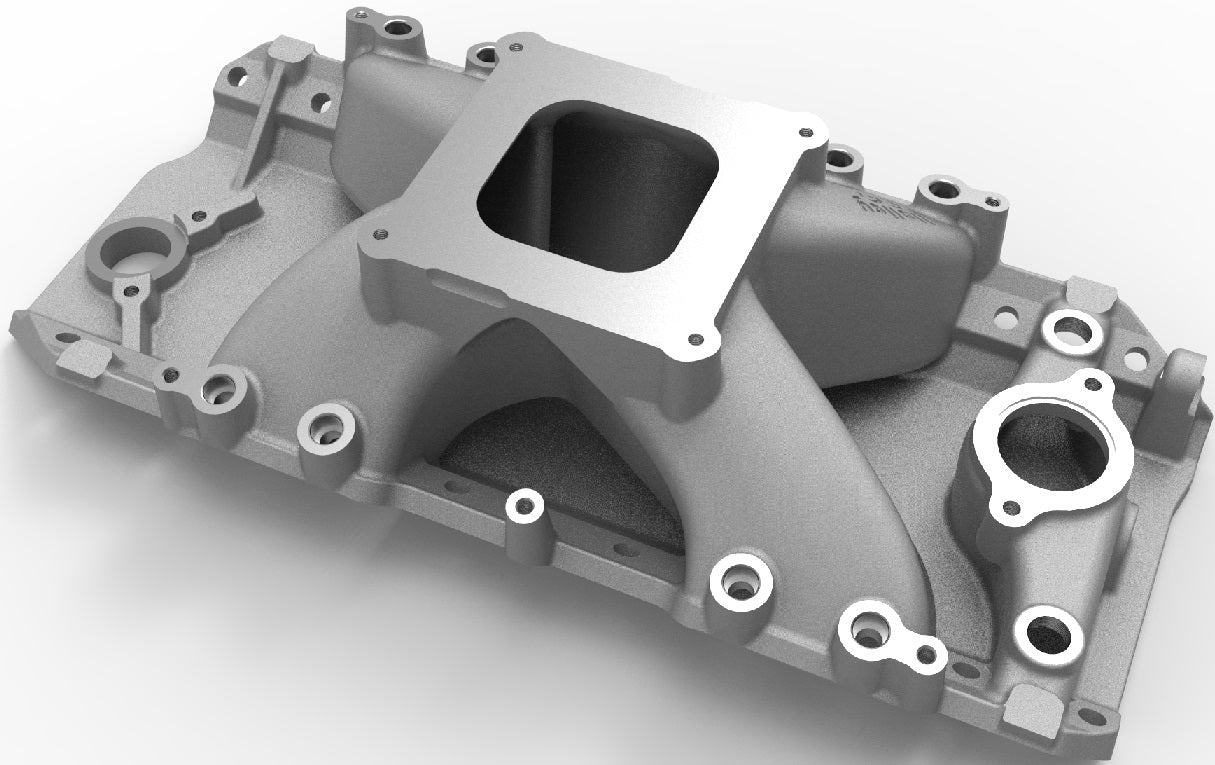

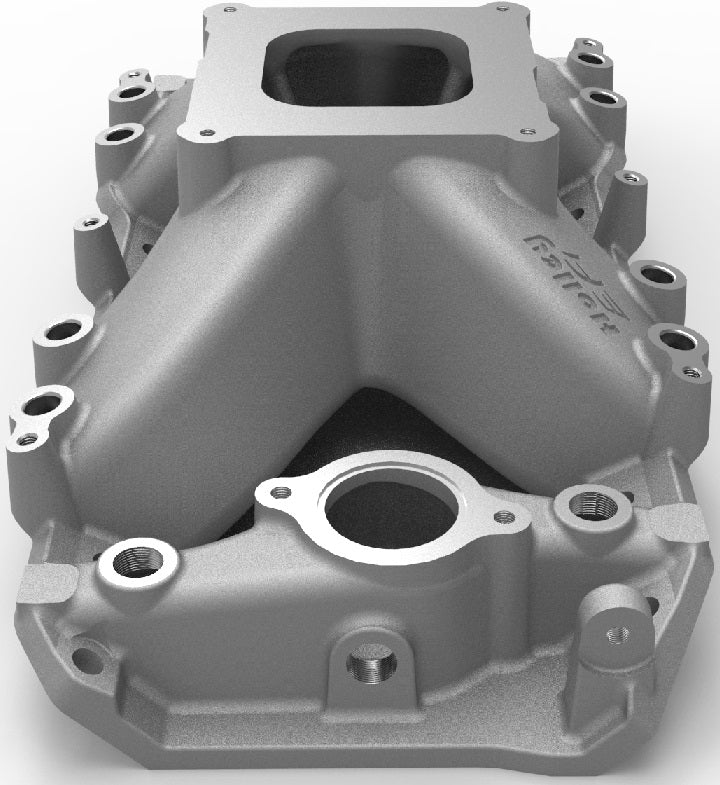

INTAKE MANIFOLD,BBC,RECTANGLE,SINGLE-PLANE,4150,FR,SATIN

BRAND NEW HOLLEY EFI INTAKE MANIFOLD, SILVER CAST FINISH, RECTANGULAR PORT HEADS, 4150 FLANGE, COMPATIBLE WITH CHEVY BIG BLOCK V8 ENGINES

HOLLEY EFI IS EXCITED TO LAUNCH FOUR NEW MULTI-POINT FUEL INJECTION INTAKE MANIFOLDS FOR THE BIG BLOCK CHEVY. THESE NEW INTAKES FEATURE RECTANGULAR PORT HEADS & 4150 STYLE THROTTLE BODIES. THESE INTAKES ARE IDEAL FOR CONVERTING YOUR BIG BLOCK HIGH PERFORMANCE OR RACING ENGINE FROM CARBURETION TO FUEL INJECTION.

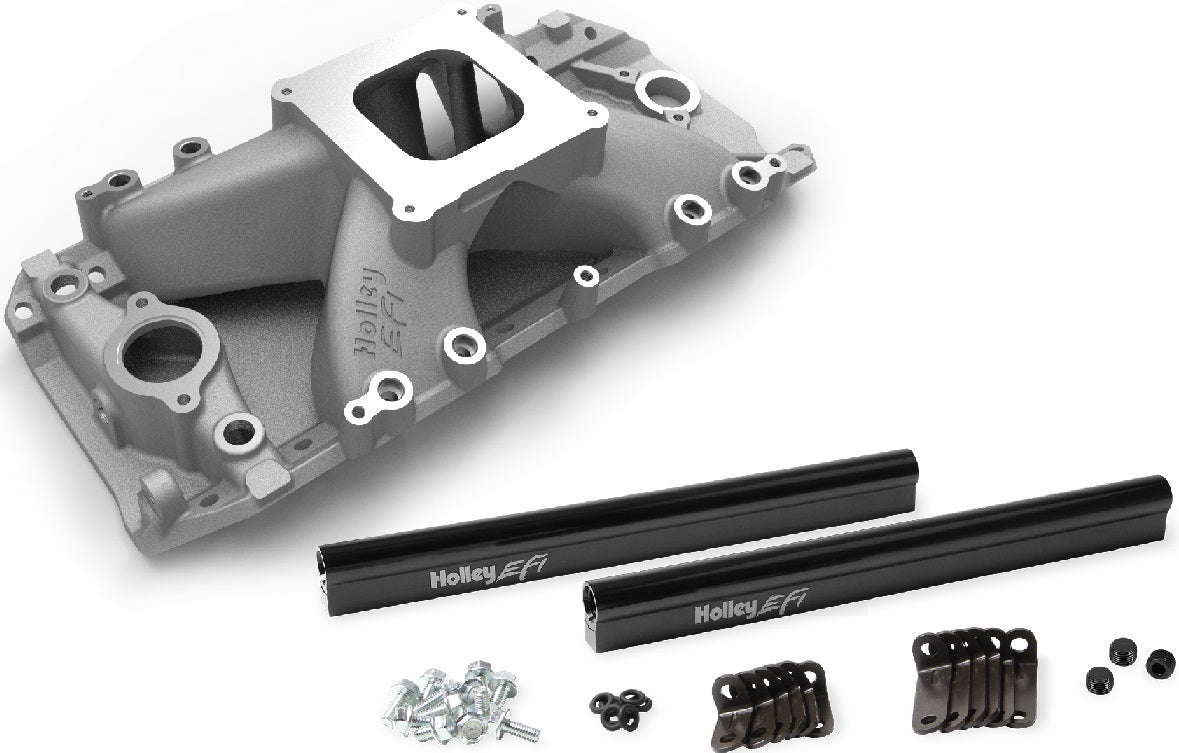

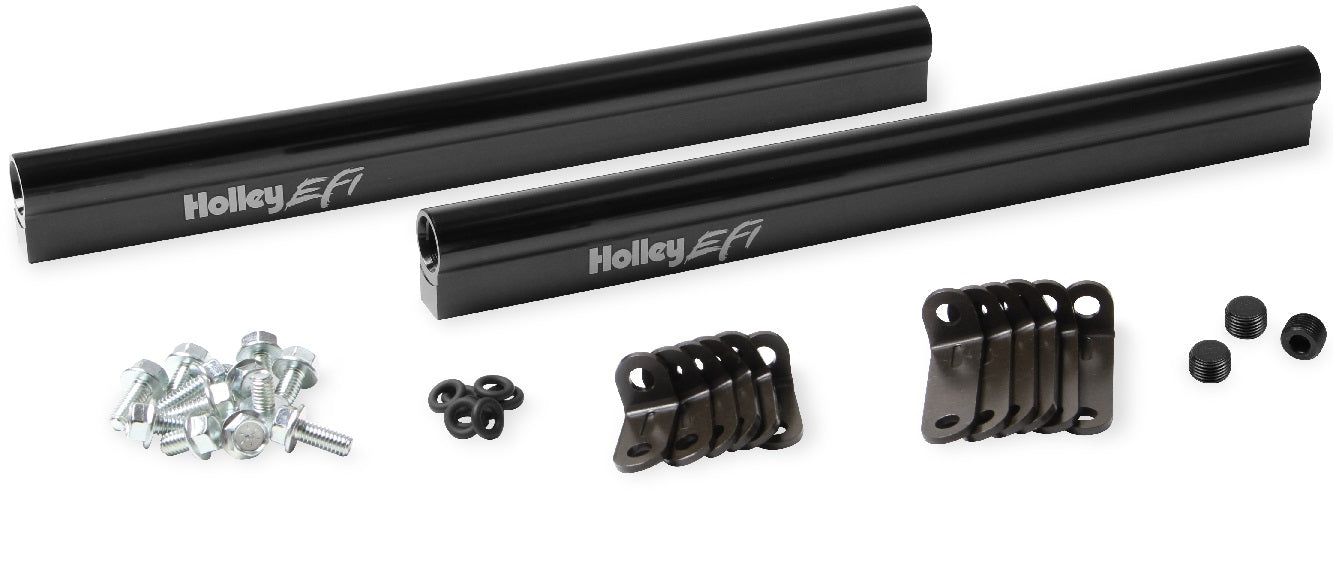

THESE INTAKE MANIFOLDS WERE COMPUTER DESIGNED AND DYNO PROVEN TO PRODUCE MORE HORSE POWER AND TORQUE THAN OTHER EFI MANIFOLDS. EACH MANIFOLD PACKAGE INCLUDES ANODIZED AND LASER ETCHED FUEL RAILS, AND 2 SETS OF MOUNTING BRACKETS (BRACKETS ALLOW USE OF 1.48" OR 2.56" O-RING TO O-RING INJECTOR LENGTHS).

FEATURES:

• OPEN PLENUM/SINGLE PLANE DESIGN
• NO EGR PROVISIONS
• 3500-8000 RPM POWER BAND
• 4150 CARBURETOR MOUNTING FLANGE
• INCLUDES FUEL RAILS AND MOUNTING BRACKETS
• COMPATIBLE WITH MODERN LARGER CUBIC INCH BIG BLOCK CHEVY RACE ENGINES
• RECTANGLE PORT DIMENSIONS: 2.28" HIGH X 1.48" WIDE
• HEIGHT: FRONT 5.96", REAR 5.96"

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: CHEVY BIG BLOCK V8
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: EFI INTAKE MANIFOLD
• RPM POWER BAND: 3500-8000

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
