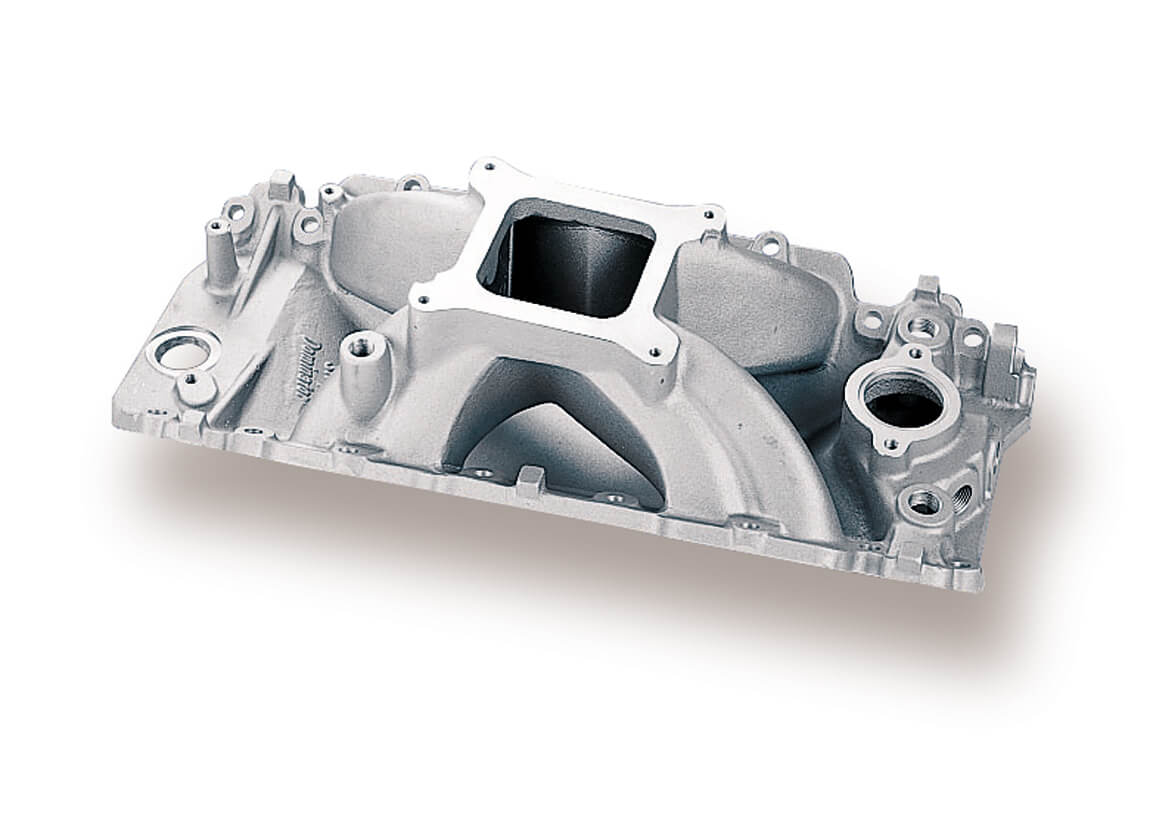

INTAKE MANIFOLD,BBC RECTANGLE,SP,STRIP DOM

INTAKE MANIFOLD,BBC RECTANGLE,SP,STRIP DOM

HOL 300-5

$427.95
$427.95

Yes, we have this item in stock and ready to ship immediately!
View full details

BRAND NEW HOLLEY STRIP DOMINATOR INTAKE MANIFOLD, 396CI-502CI WITH RECTANGULAR PORT HEADS, FITS CHEVY BIG BLOCK V8

NOTE: WILL FIT TALL BLOCKS WITH USE OF WEIAND SPACER PLATE KIT, P/N 8204. ACCEPTS 850-1000 CFM HOLLEY HP 4BBL CARBURETOR.

FEATURES:

  • SINGLE PLANE/OPEN PLENUM DESIGN
  • DEEP PLENUM DESIGN WITH ISOLATED RUNNERS
  • 4150 SQUARE BORE CARBURETOR MOUNTING FLANGE
  • POWER BAND: 4500-8500 RPM
  • HEIGHT: FRONT 4.77", REAR 6.16"
  • PORT SIZE: 2.30" HEIGHT 1.60" WIDTH

SPECS:

  • BRAND: HOLLEY
  • CONSTRUCTION: CAST
  • EMISSION CODE: 3
  • ENGINE: CHEVY BIG BLOCK V8
  • FINISH: SATIN
  • FRONT HEIGHT: 4.77"
  • FUEL SYSTEM TYPE: CARB
  • MANIFOLD TYPE: HIGH RISE
  • PRODUCT TYPE: MANIFOLD
  • REAR HEIGHT: 6.16"
  • RPM POWER BAND: 4500-8500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
