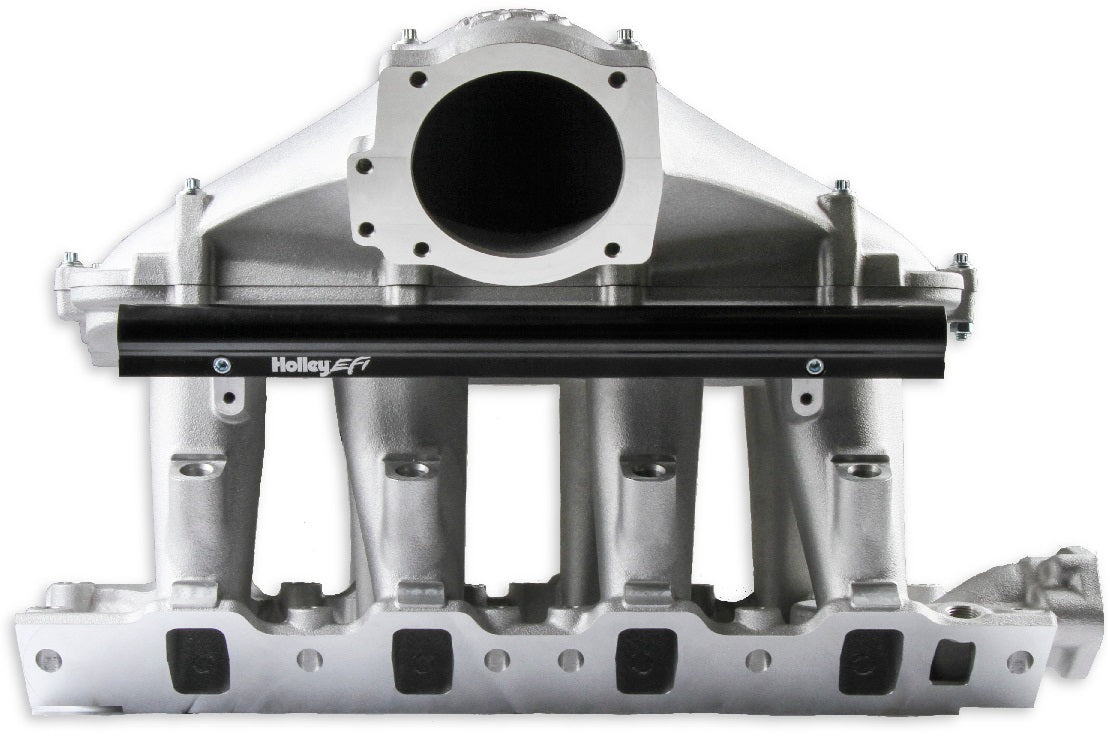

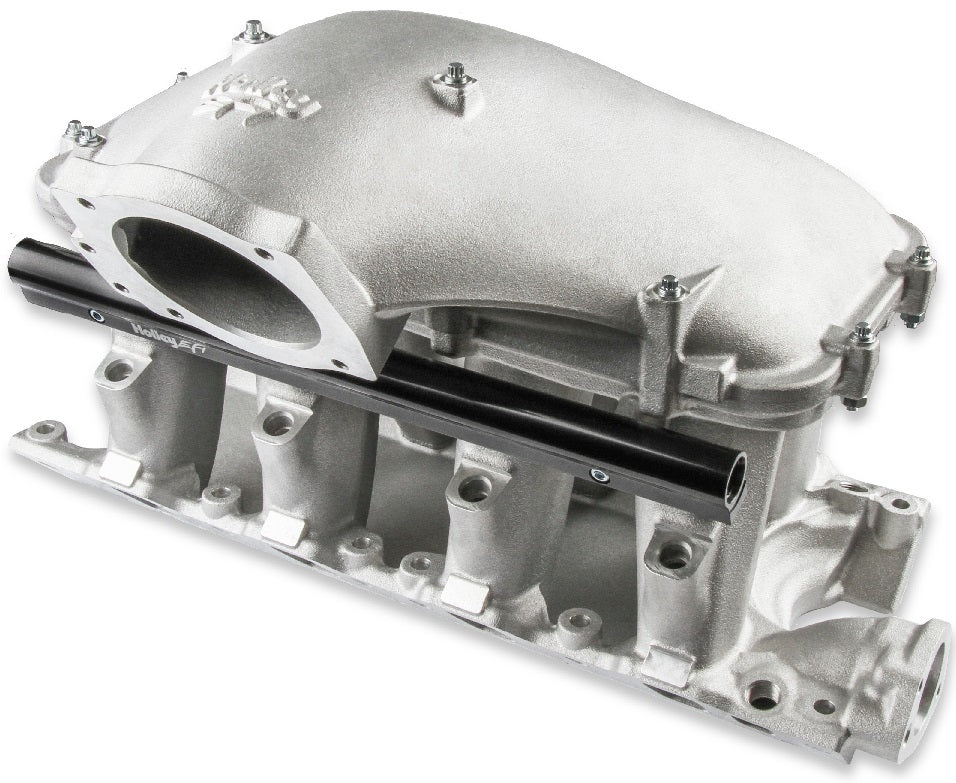

INTAKE MANIFOLD KIT,351W,HI-RAM,95MM,SIDE MOUNT

Brand New Holley Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top, Silver Satin Cast Finish, Compatible with Ford 351W Engines (Holley Part #300-309).

This EFI 351W Hi-Ram manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing.

Manifold is designed for a 9.5" deck height. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations. EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

NOTE: Requires Holley EFI Dual Sync Distributor Part #565-111

NOTE: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.

Features:

• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits
• Plenum Top Gasket Type - 3/32" Round O-ring Cord

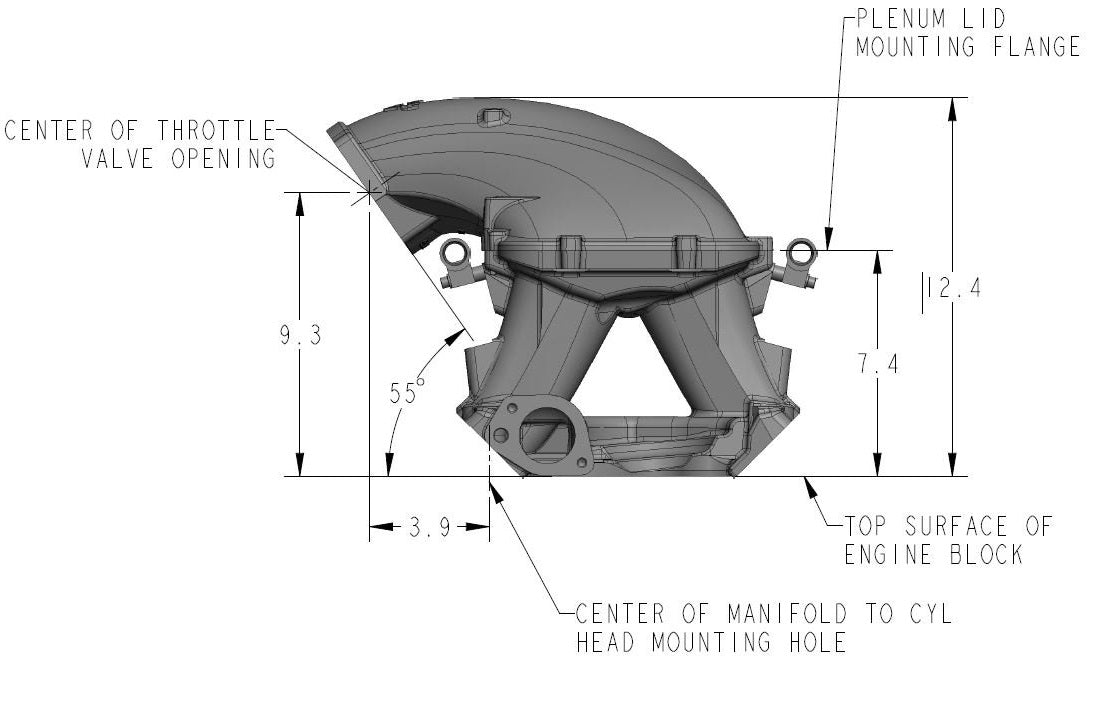

• Manifold is designed for a 9.5" deck height
• The 351W manifold is available to work with 95MM throttle bodies
• Ford 5.0 throttle body fitment
• Lid has been verified to fit under Cervinis 2.5" cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations
• Designed for side mounted throttle bodies
• Allows room for designing boosted applications
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111

Specs:

• Brand: Holley
• Finish/Construction: Satin Cast
• Engine: Ford 351W
• Flange Style: EFI
• Fuel System Type: EFI
• Manifold Type: Hi-Ram
• Port Size: 2.00" x 1.190"
• Product Type: Intake Manifold
• RPM Power Band: 1500-7000
• Throttle Bore: 95mm
