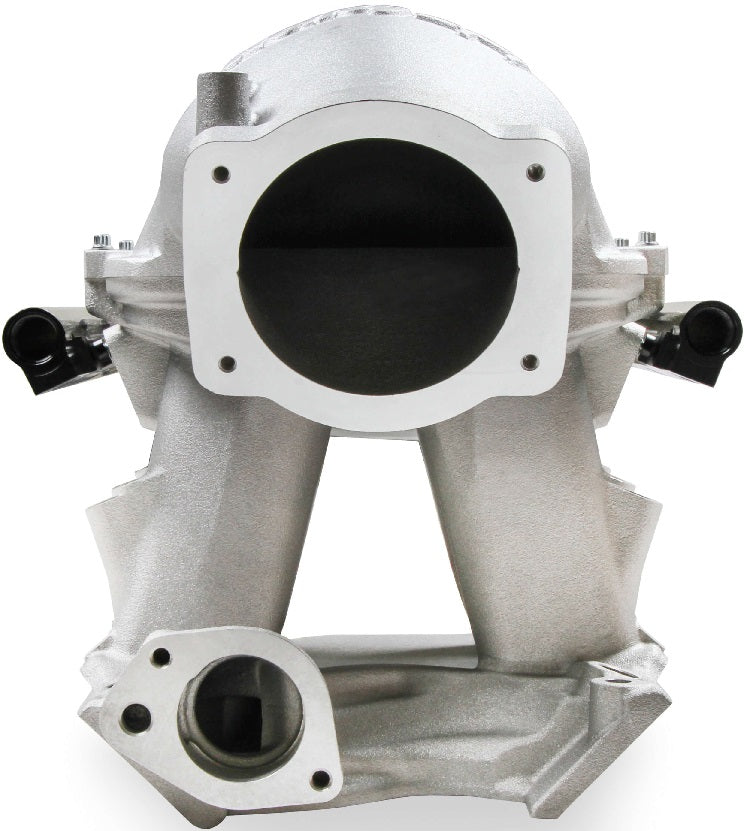

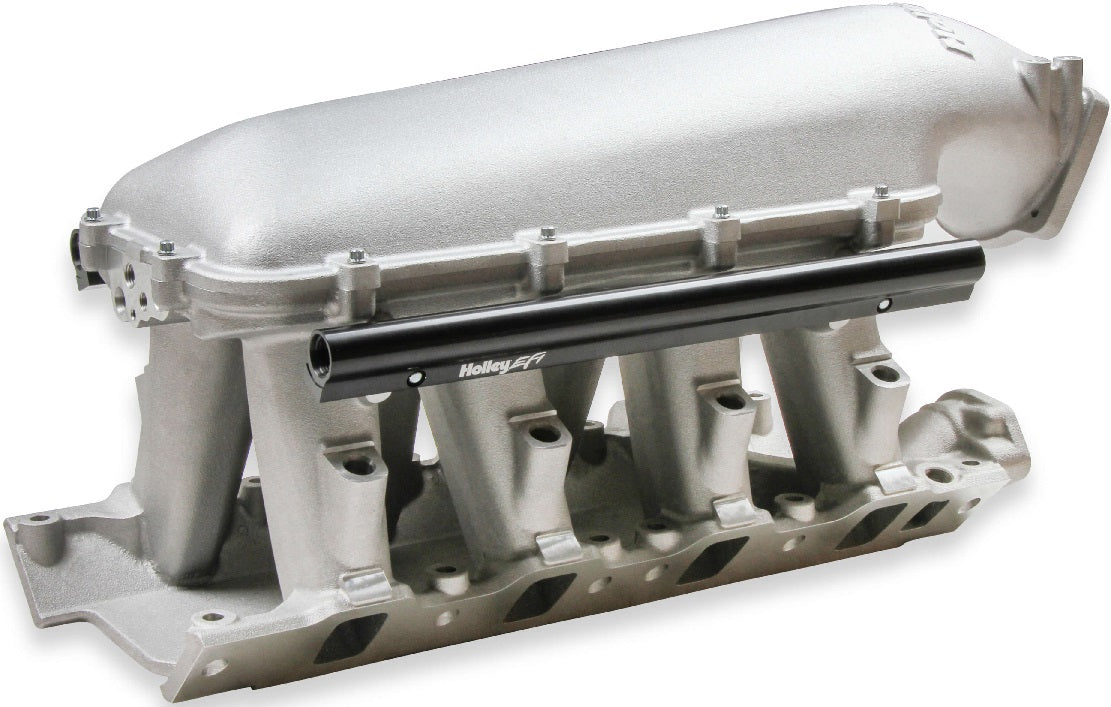

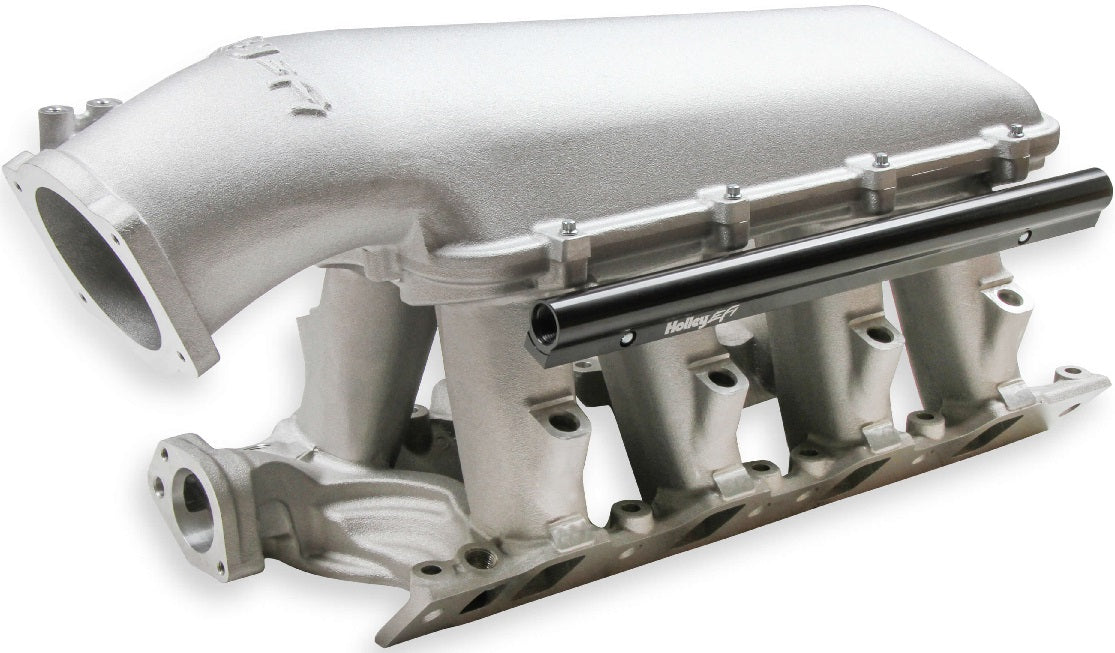

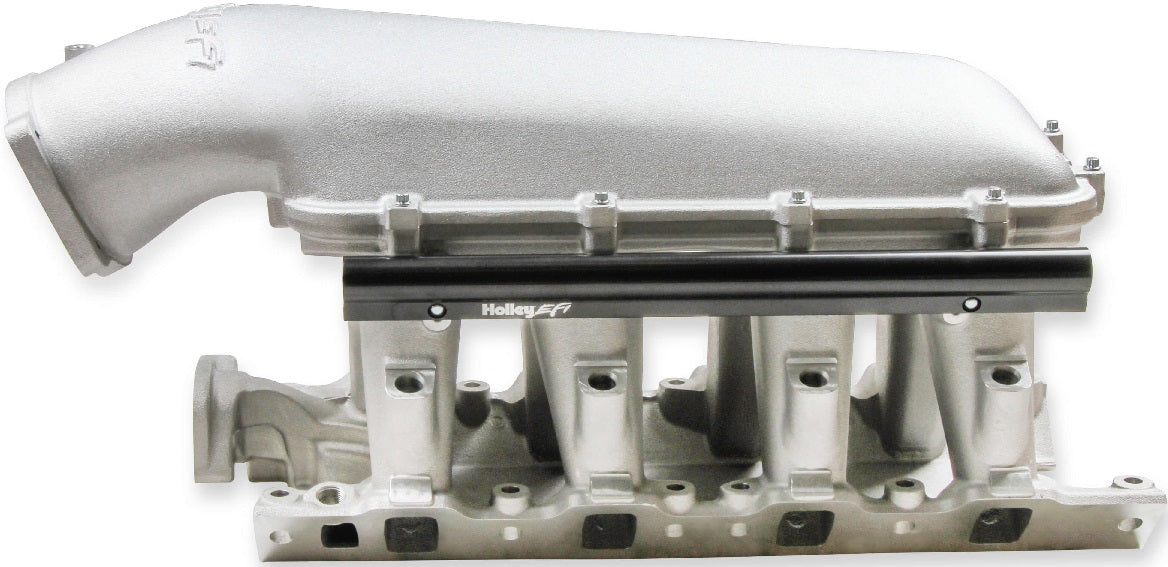

INTAKE MANIFOLD KIT,302W 8.2,HI-RAM,95MM,SATIN

BRAND NEW HOLLEY HI-RAM EFI MANIFOLD, SILVER SATIN FINISH, 1500-7000 RPM, 95MM LS THROTTLE BODY FLANGE TOP, COMPATIBLE WITH 8.2" SBF ENGINES

THIS MANIFOLD COMES WITH A 95MM LS THROTTLE BODY FLANGE TOP. THE RUNNER LENGTH & TAPERED CROSS SECTION DESIGN WILL PERFORM WELL FOR A WIDE RANGE OF ENGINE COMBINATIONS. REDESIGNED THE WATER CROSSOVER PASSAGE TO ALLOW ROOM FOR DISTRIBUTOR PHASING. AGGRESSIVE, BOLD, RACE-BRED STYLING WILL MAKE BAD INTENTIONS CLEAR FOR DRAG RACE, MUSCLE CAR, MARINE, OFF-ROAD, SANDRAILS, PULLING TRUCKS, TRACK, STREET-ROD APPLICATIONS & MORE!

NOTE: A LOW PROFILE DISTRIBUTOR WILL BE NEEDED WHEN USING THIS MANIFOLD.

NOTE: MANY FORD VEHICLE MODELS WERE ORIGINALLY EQUIPPED WITH A HEATER CORE FLOW RESTRICTOR LOCATED AT EITHER ORIGINAL HEATER HOSE FITTING IN FACTORY INTAKE OR INLINE IN THE INLET HEATER HOSE WHICH PROTECTS THE HEATER CORE FROM DAMAGE. IF REPLACING THE HOSES BETWEEN THE ENGINE & HEATER CORE OR CHANGING THE FACTORY FITTING CHECK TO SEE IF YOUR APPLICATION REQUIRES A FLOW RESTRICTOR. FAILURE TO USE THE PROPER FLOW RESTRICTOR WILL LIKELY RESULT IN A DAMAGED OR LEAKING HEATER CORE.

FEATURES:

• RUNNER LENGTH & TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR WIDE RANGE OF ENGINE CONFIGURATIONS
• EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS & DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM & COME STANDARD WITH EFI HI-RAM KITS
• CAST ALUMINUM CONSTRUCTION
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• MANIFOLD IS DESIGNED FOR A 8.2" SBF DECK HEIGHT
• COMPATIBLE WITH 95MM THROTTLE BODIES

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: FORD SMALL BLOCK V8
• FINISH: SATIN
• FLANGE STYLE: EFI
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PORT SIZE: 2.00" X 1.190"
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 1500-7000
• THROTTLE BORE: 95MM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
